Yealink MVC S98-C5U-004 Native Teams Rooms System
PRODUCT DESCRIPTION
Yealink MVC S98-C5U-004 Native Microsoft Teams Rooms System (MVC S98-C5U-004) - 2 Years Local Warranty
Yealink MVC S98: Flagship Native Microsoft Teams Rooms System for ProAV Rooms
The Yealink MVC S98-C5U-004 is Yealink’s flagship native Microsoft Teams Rooms on Windows system for ProAV rooms, boardrooms and the most demanding extra-large spaces. The kit bundles three SmartVision 80 quad-lens PTZ cameras, the AVHub multi-camera audio-video processor, the RCH40 E2 PoE+ switch, the MCore 4 mini-PC (Intel Core Ultra 5), the 11.6-inch MTouch Plus touch console, the RoomSensor and a BYOD-Extender — a complete multi-camera ProAV deployment in one order.
Triple SmartVision 80 Cameras: 20× Optical Zoom from Three Angles
Each SmartVision 80 combines a mechanical PTZ lens with 20× optical zoom and three electronic lenses (one panoramic at 110° DFOV, two telephoto at 51° DFOV), driven by an on-device 48-TOPS Qualcomm QCS8550 AI processor. Deployed as a trio through the AVHub, they cover complex ProAV rooms from multiple angles with Multi-Stream IntelliFrame, Participant Identification, IntelliFocus, Speaker Tracking, Presenter Tracking, Video Fence, Picture-in-Picture and Auto Framing.
AVHub + RCH40 E2: Scalable ProAV Backbone
The AVHub processor supports up to nine Yealink cameras with intelligent multi-speaker tracking and mic-camera linkage, while the included RCH40 E2 PoE+ switch (4 × Gigabit ports, 90 W PoE budget) powers and connects the camera network cleanly. Room audio scales through Yealink’s pro audio ecosystem — CM50 ceiling microphones, CS10-D ceiling loudspeakers and the AP08 Dante DSP.
BYOD-Ready Flagship for Singapore Boardrooms
The included BYOD-Extender lets guests run any UC platform from their own laptop through the room’s cameras and audio, and the optional WPP30 pod adds one-click wireless sharing. SourceIT designs, installs and supports complete MVC S98-C5U-004 ProAV deployments across Singapore with 2 years local warranty and a GST invoice.
Yealink MVC S98 Datasheet — Technical Specifications
General
| Product | Yealink MVC S98-C5U-004 Native Microsoft Teams Rooms System |
| Part Number | MVC S98-C5U-004 |
| Platform | Native Microsoft Teams Rooms on Windows (Microsoft Teams Rooms app and Yealink RoomConnect preloaded) |
| Recommended Room Size | Extra-large meeting rooms, boardrooms, training centres and ProAV spaces |
| Warranty | 2 Years Local Warranty (Singapore) |
Cameras (3 × SmartVision 80)

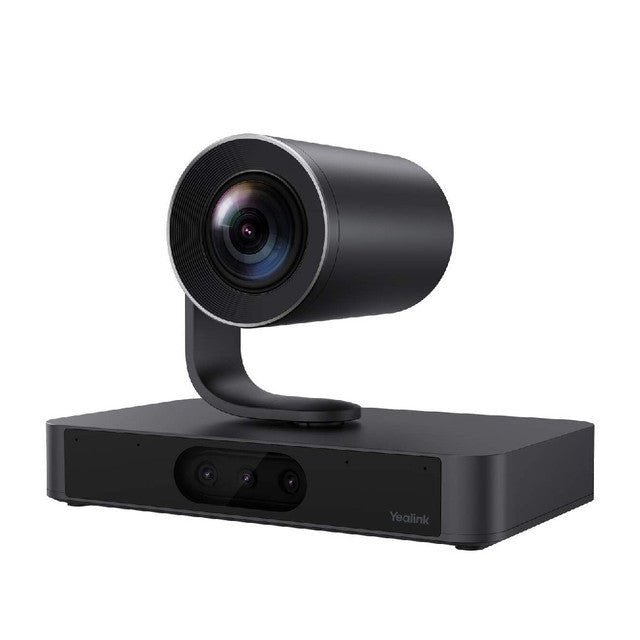

| Cameras | 3 × Yealink SmartVision 80 quad-lens PTZ cameras |
| Lens Configuration | Per camera: 1 × mechanical PTZ lens + 1 × panoramic + 2 × telephoto electronic lenses |
| Optical Zoom | 20× optical zoom (PTZ lens) |
| Field of View | PTZ: 69° DFOV / 61.5° HFOV; Panoramic: 110° DFOV / 98° HFOV; Telephoto: 51° DFOV / 41.6° HFOV |
| Max Resolution | UHD 4K |
| AI Processor | Qualcomm QCS8550, 48 TOPS (per camera) |
| AI Features | Multi-Stream IntelliFrame, Participant Identification, IntelliFocus, Speaker Tracking, Presenter Tracking, Video Fence, Picture-in-Picture, Auto Framing |
| Camera Microphones | Built-in 4-microphone array per camera for sound-source localisation |
Audio-Video Processing & Network

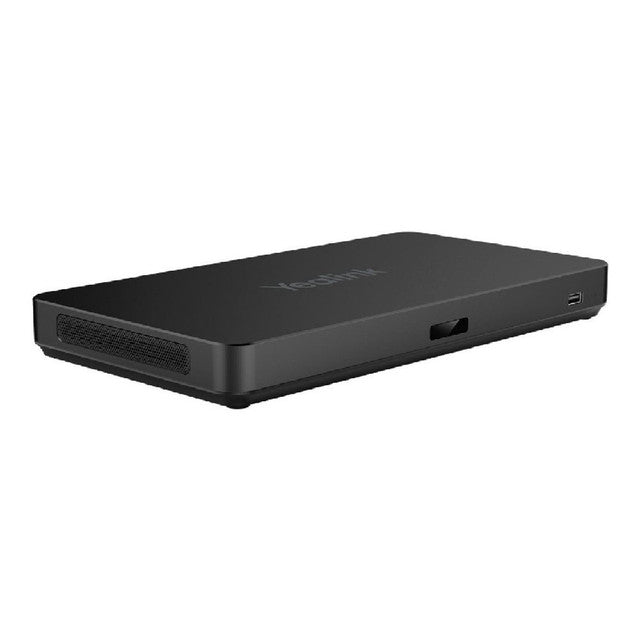

| Audio-Video Processor | Yealink AVHub — up to 9 Yealink cameras, intelligent multi-speaker tracking, mic-camera linkage |
| AVHub Ports | 7 × VCH port (RJ-45), 2 × USB-A, 1 × USB-B, 1 × Codec port |

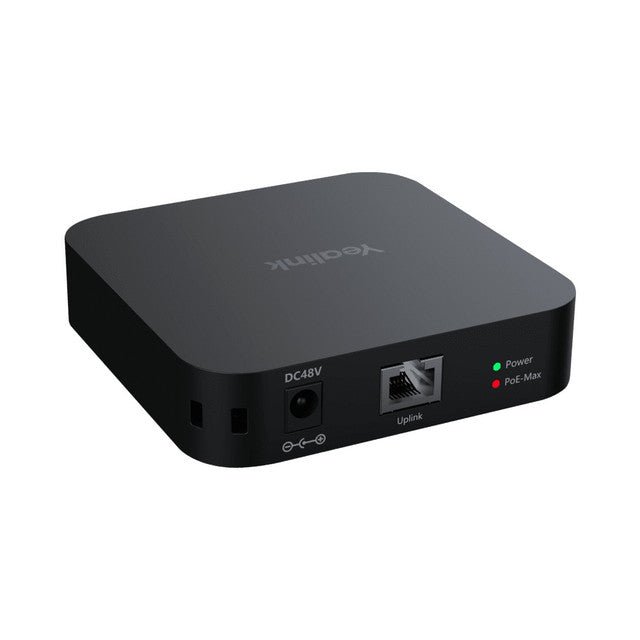

| PoE Switch | RCH40 E2 — 4 × 10/100/1000 Mbps ports, 90 W total PoE budget |
| Room Audio | Scales with Yealink pro audio: CM50 ceiling microphone, CS10-D ceiling loudspeaker, AP08 Dante DSP (sold separately) |
Compute & Console

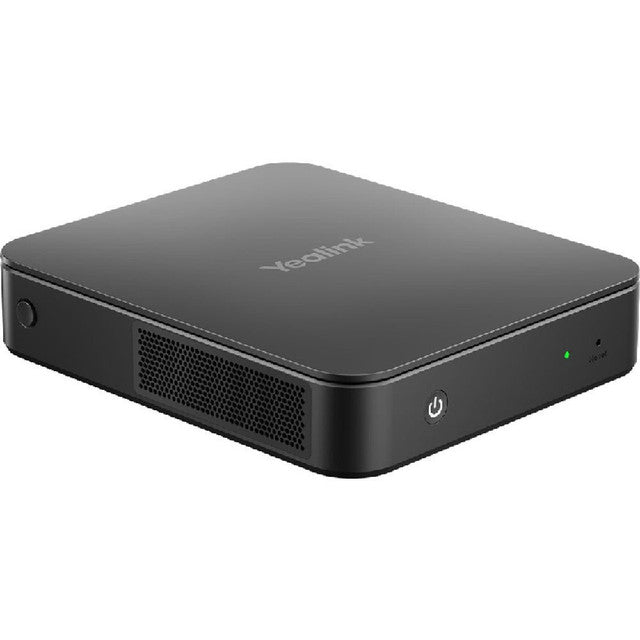

| Mini-PC | Yealink MCore 4 (Gen-4 Mini-PC) |
| Processor | Intel Core Ultra 5 125H |
| Memory / Storage | 16 GB (2 × 8 GB) DDR5 / 256 GB SSD |
| Operating System | Windows 11 IoT Enterprise x64 |
| Mini-PC Ports | 1 × HDMI-Out 2.1, 2 × HDMI-Out 2.0 (CEC), 1 × HDMI-In (4K content sharing), 4 × USB 3.0 Type-A, 1 × MTouch port (RJ-45), 1 × AV-network LAN, 1 × Gigabit Ethernet |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 |

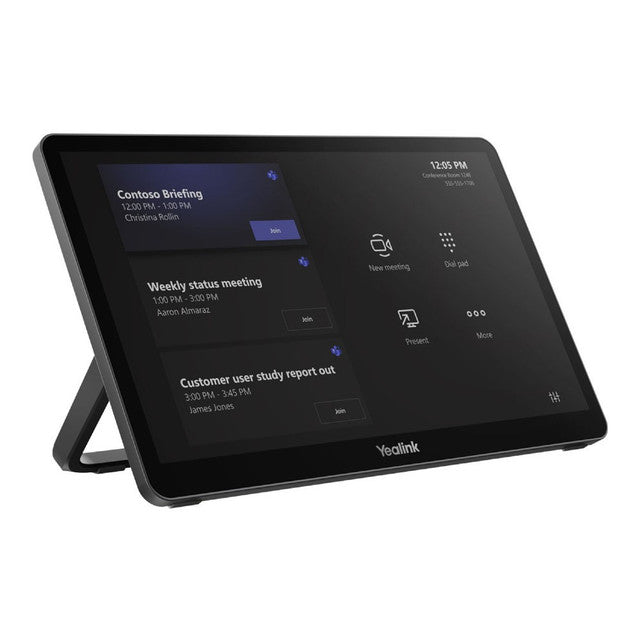

| Touch Console | Yealink MTouch Plus — 11.6″ narrow-bezel IPS display, 1920 × 1080, adjustable 30°–70° screen angle, single CAT5e connection to the mini-PC |
| Room Sensor | Yealink RoomSensor — occupancy, temperature, humidity & ambient light sensing; Bluetooth BLE 5.2, up to 30 m range |
Content Sharing & BYOD
| BYOD | BYOD-Extender included — run any UC platform from a laptop through the room’s AV |
| Wireless Sharing | Optional Yealink WPP30 pod (1080p/30fps) |
Compatibility & Software Support
Runs the native Microsoft Teams Rooms on Windows experience: Windows 11 IoT Enterprise with the Microsoft Teams Rooms app preloaded, one-touch join, calendar integration and multi-display support. Manageable through the Microsoft Teams Admin Center alongside your other Teams Rooms.
Device management is handled with Yealink RoomConnect (preloaded) and the Yealink Management Cloud Service (YMCS), giving IT remote monitoring, diagnostics and firmware updates for every MVC S98 room.
The included BYOD-Extender lets guests run Google Meet, Webex or any other UC app from their own laptop through the room’s cameras and audio — ideal for mixed-platform organisations in Singapore.
Wired HDMI content sharing is supported out of the box; the optional Yealink WPP30 pod adds one-click 1080p/30fps wireless sharing.
Package Contents & MVC S-Series Ordering Information

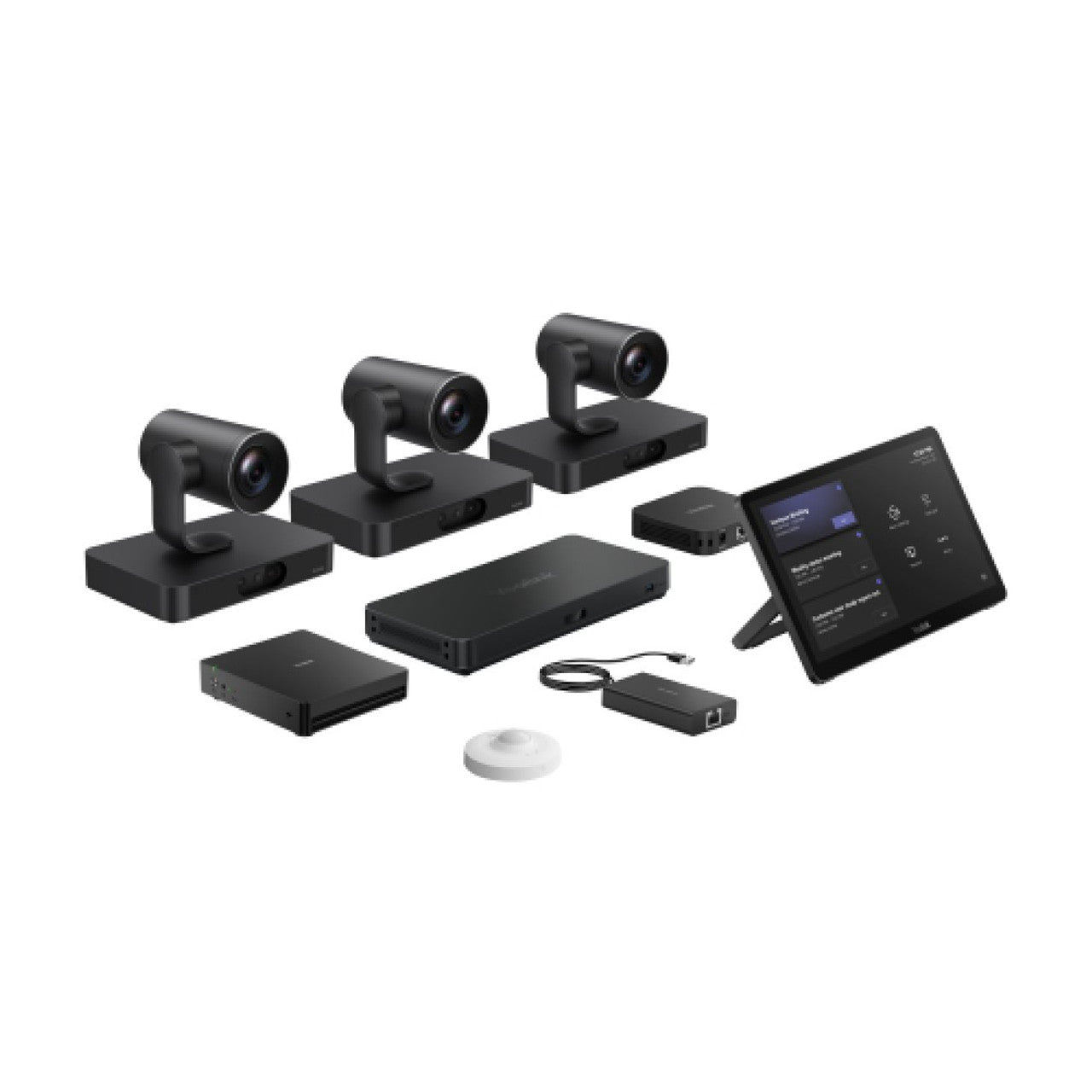

In the box:
- 3 × SmartVision 80 quad-lens PTZ cameras
- AVHub audio-video processor
- RCH40 E2 PoE+ switch (4 × GbE, 90 W)
- MCore 4 mini-PC (Intel Core Ultra 5)
- MTouch Plus 11.6″ touch console
- RoomSensor
- BYOD-Extender
Yealink MVC/ZVC S Series Rooms Systems at SourceIT:
| MVC S40-C5U-000 | Microsoft Teams — Small-medium rooms |
| ZVC S40-C5U-000 | Zoom — Small-medium rooms |
| MVC S50-C5U-000 | Microsoft Teams — Medium-large rooms |
| ZVC S50-C5U-000 | Zoom — Medium-large rooms |
| MVC S60-C5-000 | Microsoft Teams — Medium rooms (360° centre-of-table) |
| MVC S80-C5U-000 | Microsoft Teams — Large rooms |
| ZVC S80-C5U-000 | Zoom — Large rooms |
| MVC S90-C5U-004 | Microsoft Teams — Extra-large rooms |
| ZVC S90-C5-007 | Zoom — Extra-large rooms |
| MVC S98-C5U-004 | Microsoft Teams — ProAV / extra-large rooms |
| ZVC S98-C5U-004 | Zoom — ProAV / extra-large rooms |
Datasheet & Downloads
Official Yealink documentation for this system:
Frequently Asked Questions — Yealink MVC S98
Q: How many cameras does the MVC S98-C5U-004 include?
A: Three. The current S98 kit ships with three SmartVision 80 quad-lens PTZ cameras (each with 20× optical zoom), connected through the included AVHub and powered via the RCH40 E2 PoE+ switch for multi-angle ProAV coverage.
Q: What is the difference between the MVC S98 and the ZVC S98?
A: Identical hardware, different preloaded platform: the MVC S98 runs native Microsoft Teams Rooms while the ZVC S98-C5U-004 runs native Zoom Rooms.
Q: How does the S98 compare with the S90?
A: The S90 deploys two UVC86 dual-eye cameras; the S98 flagship moves to three SmartVision 80 quad-lens cameras — each adding 20× optical zoom and an on-board 48-TOPS AI processor — plus an RCH40 E2 PoE+ switch for a cleaner multi-camera network in ProAV rooms.
Q: Does the S98 kit include room microphones and speakers?
A: No — ProAV rooms are individually engineered. The system scales with Yealink pro audio such as CM50 ceiling microphones, CS10-D ceiling loudspeakers and the AP08 Dante DSP, which SourceIT specifies to your room during design.
Q: Can guests use the room for meetings on other platforms?
A: Yes. The included BYOD-Extender lets any laptop drive the room’s cameras and audio over USB for Google Meet, Webex or any other UC platform, and the optional WPP30 adds wireless content sharing.
Q: Does the MVC S98 come with a local Singapore warranty?
A: Yes. Every MVC S98 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
