Poly EagleEye IV-12x Camera
PRODUCT DESCRIPTION
Poly EagleEye IV-12x Camera (8200-64350-001 / 89L77AA) - Local Warranty

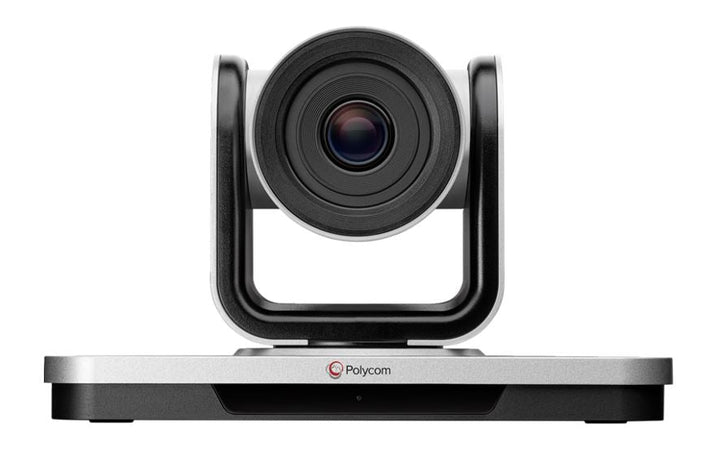

Poly EagleEye IV-12x PTZ Conference Camera with 12x Optical Zoom
The Poly EagleEye IV-12x is a professional pan-tilt-zoom conference camera built for large meeting rooms and integrated AV designs. HP specifies 1080p Full HD (1920 x 1080) capture at 60 fps through a single auto-focus lens with a 65° horizontal field of view and a true 12x optical zoom — optical, not digital, so detail is preserved as the camera reaches across the room rather than being interpolated. It connects to a Poly G7500 codec over a single mini HDCI port and is rated by HP for large rooms of 10 or more people.
True 12x Optical Zoom for Large Rooms and Long Sightlines
Optical zoom matters in the long, narrow boardrooms common in Singapore office towers. Because the EagleEye IV-12x magnifies through the lens rather than by cropping the sensor, a participant seated at the far end of a 10-metre table stays sharp at full zoom. Combined with the 65° horizontal field of view, the camera can hold a wide establishing shot of the room or tighten onto a single speaker without a visible drop in image quality.
Auto Focus and Silver Precision Housing
A single-lens auto-focus optical assembly keeps subjects sharp as the camera pans, tilts and zooms, and the camera ships in a silver housing measuring 218 x 138 x 118 mm. The unit draws 12 V / 1.2 A and includes an HDCI camera cable in the box, so a standard installation needs no additional camera interface hardware.
Purpose-Built for Poly G7500 Modular Rooms
The EagleEye IV-12x plugs into the HDCI camera port on the Poly G7500 codec, making it the reach-optimised alternative to the wide-angle Poly Studio E70 in a modular room build. Where the E70 is designed for AI-driven framing across a wide room, the EagleEye IV-12x is designed for optical reach — the classic choice for auditoriums, training rooms, town halls and rooms with a distant presenter position.
Poly EagleEye IV-12x Datasheet — Technical Specifications
General
| Model | Poly EagleEye IV-12x PTZ conference camera |
| Part number | 8200-64350-001 / 89L77AA |
| Manufacturer | Poly (HP) |
| Colour | Silver |
| Recommended room size | Large (10+ people) |
| Warranty | Local Warranty (Singapore) |
Camera
| Resolution | 1080p, FHD (1920 x 1080) |
| Video frame rate | 60 fps |
| Zoom | 12x optical zoom |
| Field of view (horizontal) | 65° |
| Lens | Single lens |
| Focus | Auto focus |
| Movement | Pan-tilt-zoom (PTZ) |
Connectivity
| Ports | 1 mini HDCI |
| Cable supplied | HDCI camera cable |
| Host system | Connects to the Poly G7500 codec HDCI camera port |
Design & Power
| Dimensions (W x D x H) | 218 x 138 x 118 mm (8.58 x 5.43 x 4.64 in) |
| Power | 12 V / 1.2 A |
Compatibility & Software Support
Host systems
The EagleEye IV-12x is an HDCI camera intended for Poly modular room systems. In the current SourceIT catalogue it is the camera used with the Poly G7500 codec, which provides the HDCI camera port. It is not a USB webcam and will not connect directly to a laptop or to a USB-only video bar.
Room platforms
Because the camera is driven by the host codec, platform support follows the G7500: HP lists the G7500 as certified for Microsoft Teams and certified for Zoom. No separate driver or software is required for the camera itself.
Optical accessories
A wide-angle lens accessory is catalogued separately for this camera — see Poly EagleEye IV 12x Wide Angle Lens (875G8AA) — along with a range of HDCI camera cables in 0.3 m, 0.45 m, 1 m, 3 m and 10 m lengths for longer camera runs.
Management
The camera is configured and updated as part of the host G7500 system, which is managed through Poly Lens.
Package Contents & EagleEye IV Ordering Information

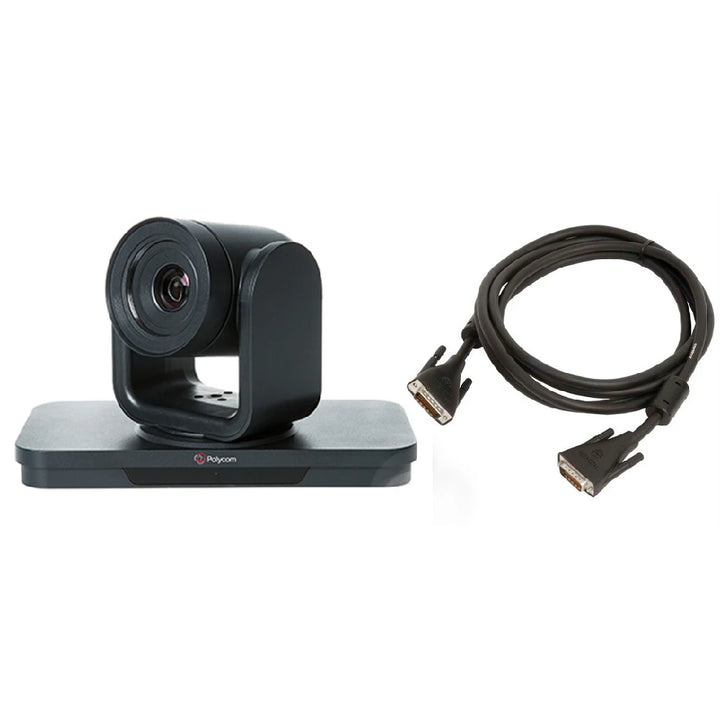

In the box
- Poly EagleEye IV-12x camera
- HDCI camera cable
Cameras, controllers and microphones for Poly G7500 rooms
| Poly EagleEye IV-12x Camera (this listing) | 8200-64350-001 / 89L77AA |
| Poly Studio E70 Smart Conference Camera | 842F8AA |
| Poly Studio TC8 Video Conferencing Controller | 2200-30760-001 / 875J0AA |
| Poly TC10 Touch Controller (black) | 875K5AA |
| Poly TC10 Touch Controller (white) | 875J5AA |
| Poly GC8 Touch Controller | 2200-30780-001 / 875J6AA |
| Poly IP Table Microphone Array for G7500 | 2200-85250-001 / 874R3AA |
| Poly IP Ceiling Microphone Array (white) for G7500 | 2215-85360-001 / 875S1AA |
| Poly EagleEye IV 12x Wide Angle Lens | 875G8AA |
Poly G7500 systems and kits that use this camera
| Poly G7500 UHD 4K Codec Base Unit | 7200-85860-102 / 83Z50AA |
| Poly G7500 Video System with EagleEye IV Camera | 7200-85760-102 / 83Z49AA |
| Poly G7500 with EagleEyeIV 12x Kit (No Radio or Power Cord) | 842U3AA |
| Poly G7500 Video Kit with TC8 & Studio E70 Camera | 7200-87310-102 |
| Poly G7500 Video Kit with TC10 & Studio E70 | 7200-88280-102 / 92L53AA |
| Poly G7500 Conferencing System with Studio E70 & TC10 Kit | 92L53AA |
| Poly G7500 Video Conferencing System LAN Group | 7200-85860-102 / 7200-87310-102 |
Datasheet & Downloads
Frequently Asked Questions — Poly EagleEye IV-12x
Is the 12x zoom optical or digital?
It is 12x optical zoom. HP's specification for this camera states 12x zoom on a single auto-focus lens; the magnification happens in the optics, so image detail is retained at full zoom rather than being interpolated as with digital zoom.
What resolution does the EagleEye IV-12x capture?
1080p Full HD (1920 x 1080) at 60 fps. This is a Full HD camera, not a 4K camera — if you need 4K capture with AI framing, look at the Poly Studio E70 instead, which uses dual 20-megapixel 4K sensors.
How do I choose between the EagleEye IV-12x and the Studio E70?
Choose the EagleEye IV-12x when the room needs optical reach — long boardrooms, training rooms and auditoriums where a distant presenter must be shown in detail. Choose the Studio E70 when the room needs wide coverage and automatic framing: it offers up to a 140° diagonal field of view and Poly DirectorAI speaker, people and group framing, but its 7.3x zoom is digital rather than optical.
What does it plug into?
A single mini HDCI port connects the camera to the HDCI camera input on a Poly G7500 codec. An HDCI camera cable is supplied in the box; longer HDCI cables are catalogued separately if the camera position is more than a short run from the codec.
Do I need a room PC or a separate licence?
No room PC is needed. The camera is powered and controlled by the G7500 codec, which runs Poly Video OS natively. You will still need the appropriate Microsoft Teams Rooms or Zoom Rooms licence for the room platform you intend to run on the codec.
Can I buy the camera on its own, or only as part of a kit?
Both. This listing is the standalone camera. SourceIT also stocks pre-matched G7500 systems that already include an EagleEye IV camera — see G7500 with EagleEye IV Camera (83Z49AA) and G7500 with EagleEyeIV 12x Kit (842U3AA).
Does this come with local Singapore warranty?
Yes. Every Poly EagleEye IV-12x sold by SourceIT comes with local Singapore warranty and a GST invoice.
