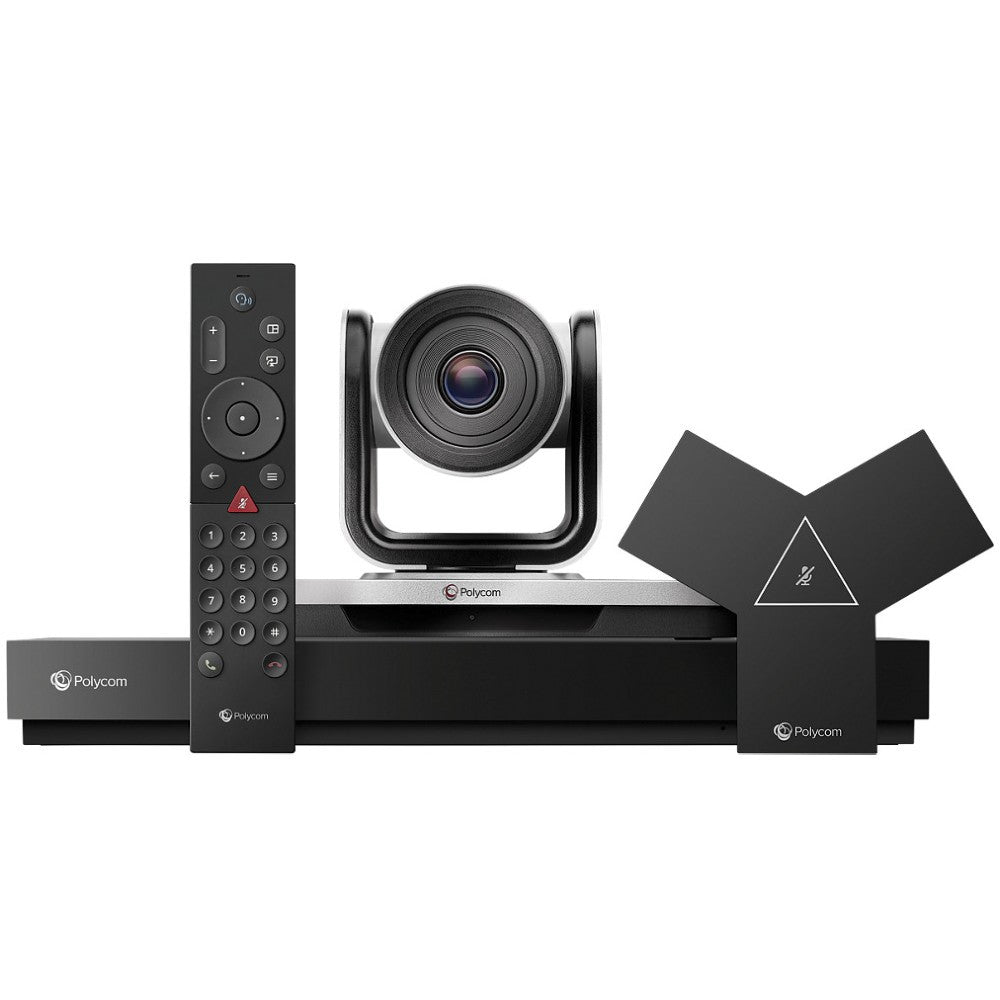

Poly G7500 Video System with EagleEye IV Camera
PRODUCT DESCRIPTION
Poly G7500 Video System with EagleEye IV Camera (7200-85760-102 / 83Z49AA) - Local Warranty
Poly G7500 Video System with EagleEye IV Camera — 4K Modular Video Conferencing
The Poly G7500 is HP's modular 4K room codec: a 349 x 140 mm, 952.5 g appliance that carries the whole room. HP specifies people video at 4K 30 fps from 2048 Kbps and 1080p 60 fps from 1740 Kbps, using H.264 AVC, H.264 High Profile and H.265, with dual display output and content input up to UHD 3840 x 2160. It is certified for Microsoft Teams and certified for Zoom, and it is the Poly platform to specify when a room needs a camera and microphone design chosen to fit the space rather than a fixed all-in-one bar. This system pairs the codec with a Poly EagleEye IV pan-tilt-zoom camera.
Optical Zoom Reach for Long Rooms

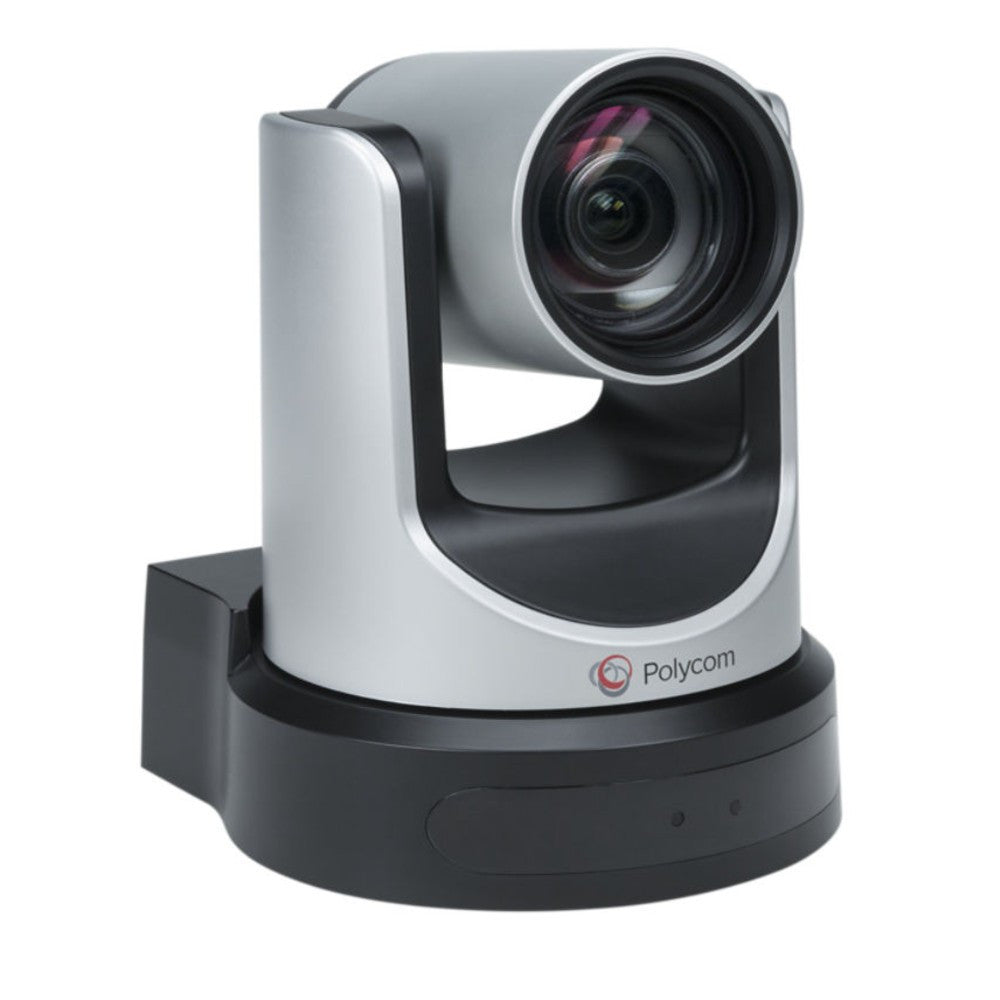

The EagleEye IV family is Poly's PTZ camera line for rooms that need to reach, not just widen. HP's specification for the EagleEye IV-12x supplied in the SourceIT catalogue lists 1080p Full HD (1920 x 1080) at 60 fps, a 65° horizontal field of view, a single auto-focus lens and 12x optical zoom over a single mini HDCI connection. In a long boardroom, that optical reach keeps a far-end participant sharp in a way digital cropping cannot.
Every Port a Large Room Design Needs

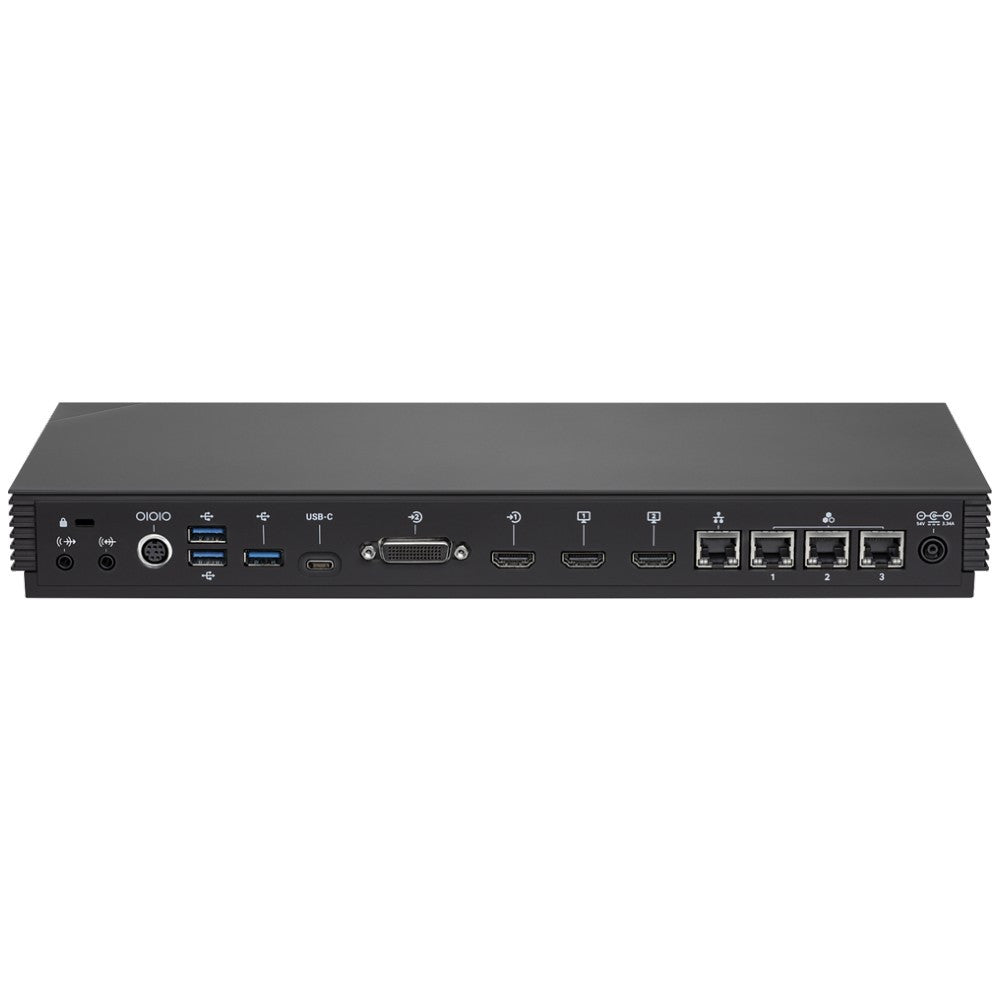

The G7500 carries 1 HDMI-in 1.4 for wired laptop content, 2 HDMI-out 1.4 for dual displays plus a separate HDMI-out 1.4 for audio, an HDCI camera port, 1 USB Type-C and 3 USB Type-A at 5Gbps signalling, audio-in, audio-out and RS-232 for control-system integration. Four Ethernet ports are provided — one 10/100/1G uplink plus three 10/100/1G LLN ports with PoE+/PSE — so Poly IP table and ceiling microphone arrays run over ordinary structured cabling instead of proprietary looms.
NoiseBlockAI, Acoustic Fence and Third-Party DSP
Poly NoiseBlockAI suppresses non-speech noise on the transmit side and Poly Acoustic Fence keeps sound from outside the intended meeting area out of the call — both useful in open-plan Singapore offices and glass-walled meeting rooms. Poly IP microphones give up to 20 ft (6.09 m) of pickup, and where a room already has a professional audio design, HP documents support for audio-conferencing processors such as QSC, Shure and Biamp over USB.
Sized and Supported for Singapore Deployments
The codec draws power from an external auto-sensing supply rated at 65 BTU/h, so it fits comfortably into a credenza or rack alongside existing AV. Fleet provisioning, firmware and room health run through Poly Lens. SourceIT supplies the G7500 with local Singapore warranty and a GST invoice, and can quote the matching cameras, IP microphone arrays, touch controllers and mounts as one deployment.
Poly G7500 with EagleEye IV Camera Datasheet — Technical Specifications
General
| Model | Poly G7500 modular video conferencing codec |
| Part number | 7200-85760-102 / 83Z49AA |
| Manufacturer | Poly (HP) |
| Colour | Black |
| Certifications | Certified for Microsoft Teams; Certified for Zoom |
| Warranty | Local Warranty (Singapore) |
Video & Codec
| Video standards | H.264 AVC; H.264 High Profile; H.265 |
| People video | 4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 60 fps from 1740 Kbps |
| Video frame rate | 5–60 fps (up to 4K resolution at 15 fps in call) |
| Content input | UHD (3840 x 2160); HD (1920 x 1080); WSXGA+; UXGA; SXGA; WXGA; XGA; SVGA |
| Content output | UHD; WUXGA; HD; WSXGA+; SXGA+; SXGA; XGA |
| Display support | Dual display |
Audio
| Audio technologies | Poly NoiseBlockAI; Poly Acoustic Fence |
| Microphone pickup | Up to 20 ft (6.09 m) with Poly IP microphones |
| Audio codecs | G.711; G.722; Polycom Siren 14; Polycom Siren 22 |
| Third-party DSP | Supports audio-conferencing processors such as QSC, Shure and Biamp over USB |
Connectivity
| Ports | 1 HDMI-in 1.4 (video and audio); 2 HDMI-out 1.4 (video); 1 HDMI-out 1.4 (audio); 1 HDCI; 1 USB Type-C 5Gbps; 3 USB Type-A 5Gbps; 1 audio-in; 1 audio-out; 1 RS-232 |
| Ethernet | 1 x 10/100/1G; 3 x 10/100/1G LLN with PoE+/PSE |
| Wireless | Bluetooth remote control included |
Design & Power
| Dimensions (W x H x D) | 349.2 x 38.1 x 139.7 mm (13.75 x 1.5 x 5.5 in) |
| Weight | 952.5 g (2.1 lb) |
| Power | External auto-sensing power supply; 65 BTU/h |
Poly EagleEye IV-12x camera
| Part number | 8200-64350-001 / 89L77AA |
| Resolution | 1080p, FHD (1920 x 1080) |
| Video frame rate | 60 fps |
| Zoom | 12x optical zoom |
| Field of view (horizontal) | 65° |
| Lens / focus | Single lens; auto focus |
| Ports | 1 mini HDCI |
| Power | 12 V / 1.2 A |
| Dimensions (W x D x H) | 218 x 138 x 118 mm |
| Colour | Silver |
| Room size | Large (10+ people) |
Compatibility & Software Support
Operating systems and room platforms
The Poly G7500 is an appliance-based room system running Poly Video OS — no separate room PC or compute appliance is required for its native modes. HP states that the G7500 is certified for Microsoft Teams and certified for Zoom, so a Teams Rooms on Android or Zoom Rooms Appliance experience runs natively on the codec itself once the corresponding licence is assigned.
Standards-based calling and interoperability
The codec supports standards-based video calling using H.264 AVC, H.264 High Profile and H.265, which allows it to interoperate with SIP and H.323 infrastructure and with third-party bridges. HP does not publish a Google Meet certification for the G7500, so SourceIT does not claim one; if Google Meet hardware certification is a requirement, please ask us to confirm the current certified model list before you order.
BYOD and USB device mode
The G7500 carries 1 USB Type-C and 3 USB Type-A ports at 5Gbps signalling, plus HDMI-in 1.4 for wired content sharing from a laptop. HP also documents support for third-party audio-conferencing processors such as QSC, Shure and Biamp over USB, which is what makes the G7500 the natural choice when a room needs to integrate into an existing DSP-based audio design.
Microphones and cameras over standard cabling
Three of the four Ethernet ports are LLN ports with PoE+/PSE, so Poly IP table and ceiling microphone arrays connect over ordinary structured cabling rather than proprietary runs — a practical advantage in Singapore fit-outs where cable paths are already installed.
Management
The G7500 is managed through Poly Lens, HP's cloud management and insights service, for provisioning, firmware updates, device health and room analytics across a fleet.
Package Contents & G7500 Ordering Information
In the box
- Poly G7500 codec
- Poly EagleEye IV camera
- HDCI camera cable
- Poly IP microphone
- Bluetooth remote control
- AC power adapter
- HDMI cable
- CAT 5E LAN cable
Contents follow HP's published contents for G7500 EagleEye IV kits. The exact EagleEye IV variant and carton contents vary by regional SKU — ask us to confirm against the shipping SKU before you order if the specific camera model matters.
Poly G7500 systems and kits at SourceIT
| Poly G7500 UHD 4K Codec Base Unit | 7200-85860-102 / 83Z50AA |
| Poly G7500 Video System with EagleEye IV Camera (this listing) | 7200-85760-102 / 83Z49AA |
| Poly G7500 with EagleEyeIV 12x Kit (No Radio or Power Cord) | 842U3AA |
| Poly G7500 Video Kit with TC8 & Studio E70 Camera | 7200-87310-102 |
| Poly G7500 Video Kit with TC10 & Studio E70 | 7200-88280-102 / 92L53AA |
| Poly G7500 Conferencing System with Studio E70 & TC10 Kit | 92L53AA |
| Poly G7500 Video Conferencing System LAN Group | 7200-85860-102 / 7200-87310-102 |
Cameras, controllers, microphones and optics
| Poly EagleEye IV-12x Camera | 8200-64350-001 / 89L77AA |
| Poly Studio E70 Smart Conference Camera | 842F8AA |
| Poly Studio TC8 Video Conferencing Controller | 2200-30760-001 / 875J0AA |
| Poly TC10 Touch Controller (black) | 875K5AA |
| Poly TC10 Touch Controller (white) | 875J5AA |
| Poly GC8 Touch Controller | 2200-30780-001 / 875J6AA |

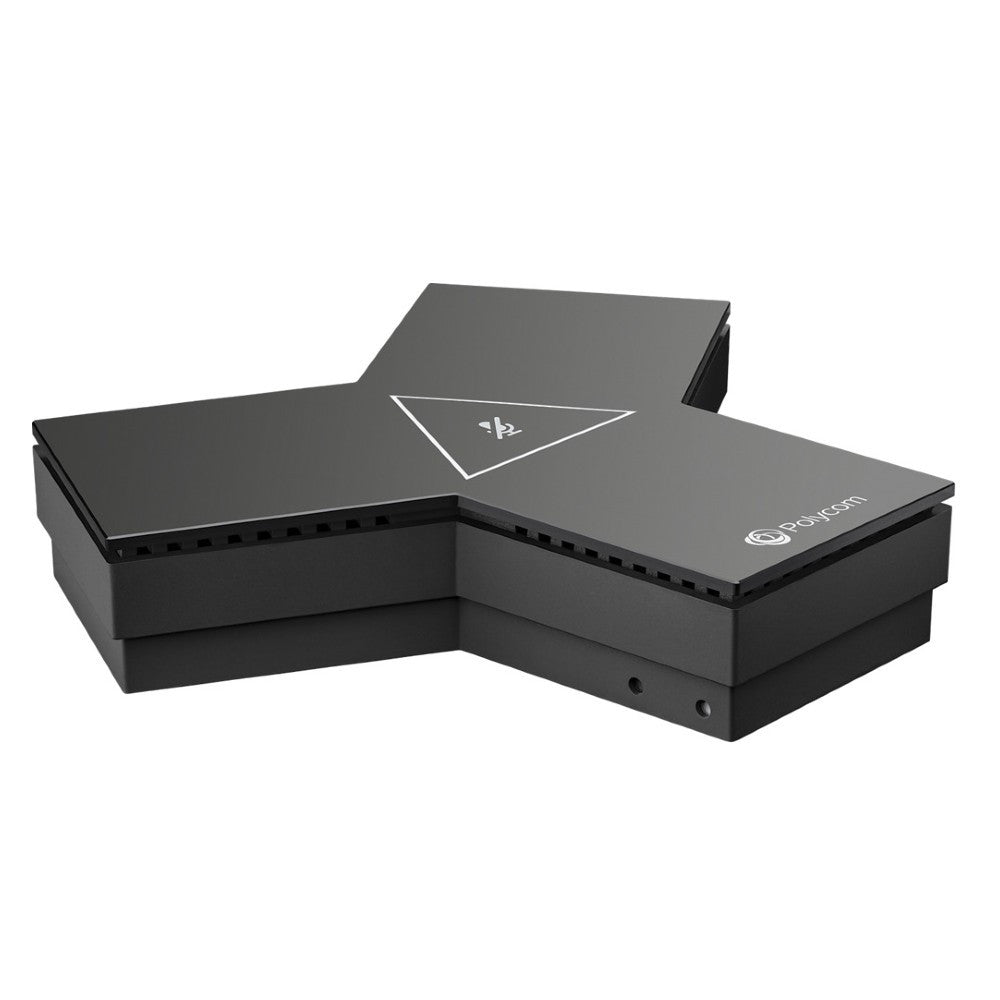

| Poly IP Table Microphone Array for G7500 | 2200-85250-001 / 874R3AA |
| Poly IP Ceiling Microphone Array (white) for G7500 | 2215-85360-001 / 875S1AA |
| Poly EagleEye IV 12x Wide Angle Lens | 875G8AA |
Datasheet & Downloads
- HP product specifications — Poly G7500 with EagleEyeIV 12x Kit, PDF
- HP Poly G7500 product page (HP Singapore)
- HP product specifications — Poly G7500 Video Conferencing System (83Z50AA), PDF
- HP product specifications — Poly EagleEye IV 12x Camera (89L77AA)
- HP product specifications — Poly EagleEye IV 12x Camera (89L77AA), PDF
Frequently Asked Questions — Poly G7500 with EagleEye IV Camera
Which EagleEye IV camera is supplied?
The EagleEye IV family includes 4x and 12x optical-zoom models. SourceIT stocks the EagleEye IV-12x (8200-64350-001 / 89L77AA) as the standalone camera, and HP publishes 12x optical zoom, 1080p at 60 fps and a 65° horizontal field of view for it. Because the exact camera variant in a bundled system can vary by regional SKU, please ask us to confirm which model ships against your order.
Is the zoom optical or digital?
The EagleEye IV-12x uses 12x optical zoom through a single auto-focus lens. This is genuinely different from the digital 7.3x zoom on the Studio E70, which trades optical reach for wide coverage and DirectorAI framing.
Is this a 4K camera?
No. HP specifies the EagleEye IV-12x at 1080p Full HD (1920 x 1080), 60 fps. The G7500 codec itself supports 4K people video at 30 fps and UHD content, so a 4K camera such as the Studio E70 can be fitted instead if 4K capture is the priority.
Which is better for our room — this or the Studio E70 kit?
If the room is long and narrow with a distant presenter position, the optical reach of the EagleEye IV suits it better. If the room is wide with people spread around a large table, the G7500 with Studio E70 and TC10 kit will frame the room far better thanks to its dual 20-megapixel 4K sensors, up to 140° diagonal field of view and DirectorAI framing modes.
Does the system include a touch controller?

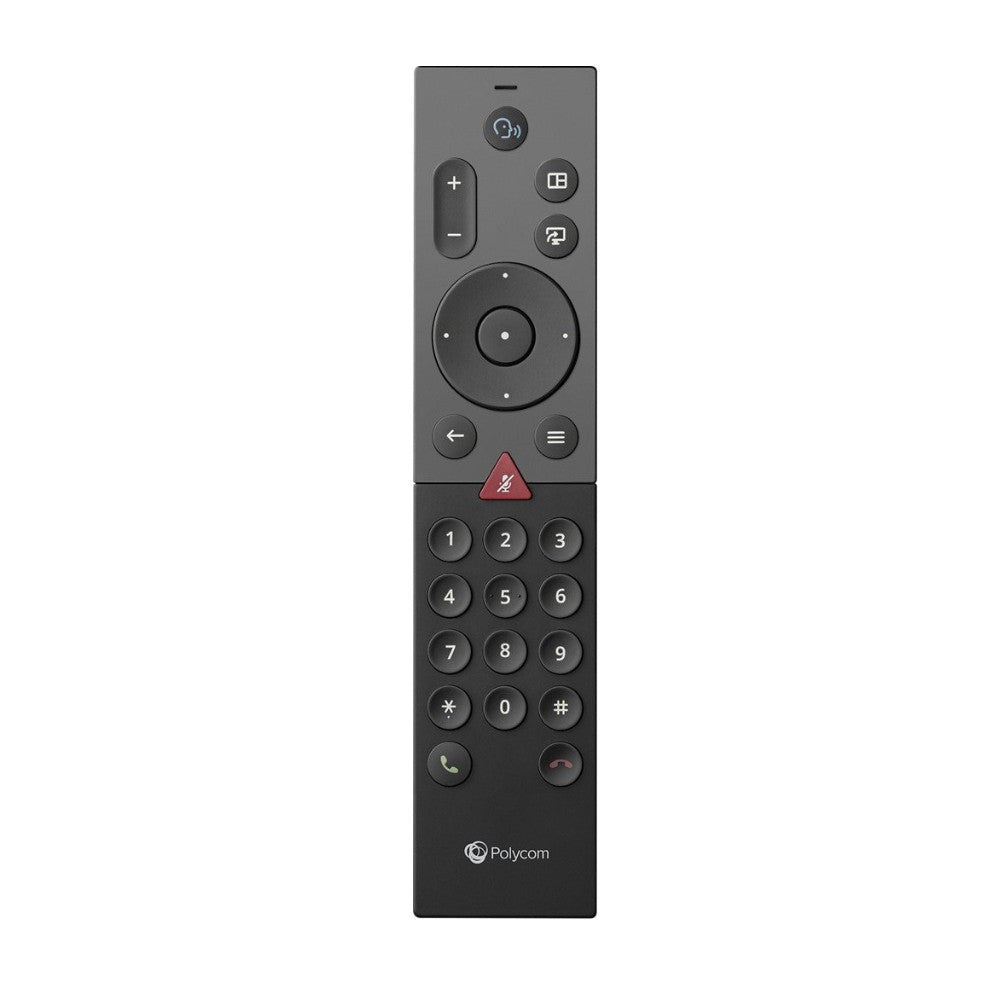

This system is built around the codec and camera. If you want touch control, add a TC8 or TC10 — both are powered over Ethernet on a single RJ-45. The G7500 also ships with a Bluetooth remote control.
Do we need a room PC?
No. The G7500 runs Poly Video OS natively and HP lists it as certified for Microsoft Teams and certified for Zoom. The corresponding room licence is still required.
Does this come with local Singapore warranty?
Yes. Every Poly G7500 with EagleEye IV Camera sold by SourceIT comes with local Singapore warranty and a GST invoice.
