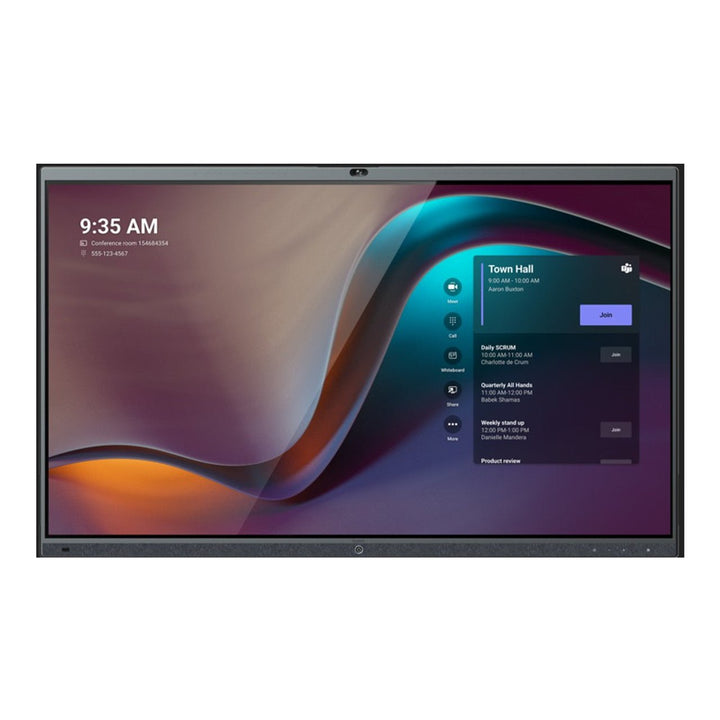

Yealink MeetingBoard 86" UHD 4K LED Touchscreen Display For Microsoft Teams Rooms
PRODUCT DESCRIPTION
Yealink MeetingBoard 86" UHD 4K LED Touchscreen Display For Microsoft Teams Rooms (MeetingBoard 86-Teams) - 2 Years Local Warranty
All-in-One Interactive Display for Microsoft Teams Rooms — Sized for Larger Rooms
The Yealink MeetingBoard 86 is a true all-in-one collaboration display for Microsoft Teams Rooms: an 86-inch Ultra HD 4K D-LED touchscreen with a built-in 8 MP Sony-sensor 4K camera, a 16-microphone MEMS beamforming array and a 4 full-range + 2 tweeter stereo speaker system in one device. It gives medium and large Singapore meeting rooms a full Teams Rooms system with a single power and network connection — no separate codec, camera or mic pods.
Smart Collaboration Whiteboard with Digital-Paper Inking
Four-level smart ink recognition — write with the pen tip, navigate with fingers, erase with the pen tail, with palm rejection — and simultaneous multi-inking let teams brainstorm on the 20-point touch surface with ±1 mm accuracy and anti-glare, anti-fingerprint coating. Microsoft Teams Whiteboard runs in the cloud, so remote participants co-create in real time.
AI 4K Camera and 8-Metre Full-Duplex Audio
The built-in 4K camera (8 MP Sony sensor, 120° diagonal field of view, 4x e-PTZ, electric privacy shutter) supports Auto Framing and Speaker Tracking, with optional detachable MB PTZ camera modules for deeper rooms. The 16 MEMS beamforming microphones deliver 8-metre full-duplex pickup with AI-enhanced noise cancellation, acoustic echo cancellation and reverberation suppression, while the 4+2 stereo speakers cover rooms up to about 60 m².
Expandable for Boardrooms and Training Rooms
Extend the MeetingBoard with a Windows OPS module, the detachable MB-Camera-6X PTZ module, VCM36-W wireless microphones, the WPP30 wireless presentation pod for sharing and BYOD, and the CTP18 touch console for tabletop control. Wi-Fi 6, Bluetooth 5.0 and NFC are built in, with YDMP fleet management for Singapore IT teams.
Yealink MeetingBoard 86 Datasheet — Technical Specifications
| Model | Yealink MeetingBoard 86 — Microsoft Teams Rooms edition |
| Part Number (SKU) | MeetingBoard 86-Teams |
| Device Type | All-in-one 4K interactive touchscreen for video conferencing |
| Warranty | 2 Years Local Warranty (Singapore) |
| Display | 86" D-LED, Ultra HD 4K (3840 x 2160), 16:9, 60 Hz |
| Contrast / Viewing Angle | 1200:1 (typ.), 178° (H) / 178° (V) |
| Touch | 20-point multi-touch, ±1 mm accuracy (over 90% of area), anti-glare and anti-fingerprint coating |
| Camera | Built-in 4K camera, 8 MP Sony sensor, 120° diagonal FOV, 4x e-PTZ, electric privacy shutter |
| AI Video | Auto Framing, Speaker Tracking, Picture-in-Picture, Multi-focus Framing |
| Optional PTZ Module | Detachable MB-Camera-6X (6x optical) via dedicated PTZ camera port |
| Microphones | Built-in 16 MEMS beamforming microphone array, 8 m full-duplex pickup |
| Audio Processing | AI-enhanced noise cancellation, acoustic echo cancellation, reverberation suppression |
| Speakers | 4 full-range + 2 tweeter stereo speakers, coverage up to approx. 60 m² |
| Wireless | Wi-Fi 6 (2x2 MIMO, dual-band), Bluetooth 5.0, NFC |
| Ports | 1x detachable PTZ camera port, 1x HDMI output (CEC), 1x HDMI input, 2x RCA audio in, 2x RCA audio out, 1x Yealink VCH port (RJ-45), 3x USB-A, 1x 10/100/1000M Ethernet, 1x Windows OPS slot, security lock slot |
| Storage | Built-in 64 GB (approx. 40 GB available) |
| Security | SRTP/TLS, AES 256-bit encryption, 802.1X, VLAN/LLDP, HTTPS |
| Dimensions (wall mount) | 1967 x 1205 x 96 mm |
| Dimensions (on floor stand) | 1967 x 2040 x 820 mm |
| Operating Conditions | 0–40°C, 10–95% humidity |
Compatibility & Software Support
This edition runs the native Microsoft Teams Rooms on Android experience: calendar integration, one-click join, proximity join, Teams Whiteboard, content sharing and full meeting controls, managed through the Microsoft Teams Admin Center. A Zoom Rooms edition of the same hardware is also available from SourceIT.
Deploy and manage fleets with the Yealink Device Management Platform (YDMP) or Yealink Management Cloud Service. The Windows OPS slot lets the board run a full Windows conferencing platform, with seamless Android/Windows switching. Optional accessories include the MB-Camera-6X PTZ module, VCM36-W wireless microphones, WPP30 wireless presentation pod, VCH51 sharing box and CTP18 touch console.
Package Contents & MeetingBoard Ordering Information
In the box: Yealink MeetingBoard 86, power cable, Ethernet cable, HDMI cable, stylus pens, mounting bracket and accessories, Quick Start Guide.
| MeetingBoard 86 — Teams | This model (SKU: MeetingBoard 86-Teams) |
| MeetingBoard 65 — Teams | 65" edition for Microsoft Teams Rooms |
| MeetingBoard 86 — Zoom | 86" edition for Zoom Rooms |
| MeetingBoard 65 — Zoom | 65" edition for Zoom Rooms |
| MeetingBoard 86 Gray (MB86-A001) | 86" board, gray finish |
| MeetingBoard 86 White (MB86-A001 White) | 86" board, white finish |
| MB-Camera-6X PTZ module | Optional 6x optical zoom camera module |
| MeetingBoard 86 Floor Stand | Optional mobile floor stand |
| WPP30 Wireless Presentation Pod | Wireless sharing & BYOD |
Datasheet & Downloads
Frequently Asked Questions — Yealink MeetingBoard 86 (Teams)
What is the difference between the Teams and Zoom editions of the MeetingBoard 86?
The hardware is identical — the difference is the pre-deployed platform. This listing ships for native Microsoft Teams Rooms on Android; the Zoom Rooms edition runs native Zoom Rooms.
Which rooms suit the 86" model?
Medium and large meeting rooms, boardrooms and training rooms. For huddle and small rooms, the MeetingBoard 65 offers the same system in a smaller canvas.
How does the MeetingBoard compare to the MeetingBoard Pro?
The MeetingBoard 75 Pro is the next-generation model with a triple 50 MP camera system, 12-metre microphone pickup, Android 13 and 8 GB RAM. The standard MeetingBoard 86 remains a strong choice where maximum screen size matters.
Do I need an external camera or microphones?
The built-in 120° 4K camera and 16-mic array cover up to 8 metres. For deeper rooms, add the MB-Camera-6X PTZ module or VCM36-W wireless mics.
Can it be floor-standing instead of wall-mounted?
Yes — a wall mount bracket is included, and the MeetingBoard 86 floor stand with casters is available separately for mobile deployments.
Does the Yealink MeetingBoard 86 come with local warranty in Singapore?
Yes. Every MeetingBoard 86 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
