Yealink ZVC S90-C5-007 Native Zoom Rooms System
PRODUCT DESCRIPTION
Yealink ZVC S90-C5-007 Native Zoom Rooms System (ZVC S90-C5-007) - 2 Years Local Warranty
Yealink ZVC S90 Native Zoom Rooms System for Extra-Large and ProAV Rooms
The Yealink ZVC S90-C5-007 is a premium, native Zoom Rooms on Windows system engineered for extra-large meeting spaces, boardrooms and Pro-AV environments. The kit bundles two UVC86 4K dual-eye intelligent tracking cameras, the AVHub audio-video processor, the MCore Pro mini-PC, the 11.6-inch MTouch Plus touch console, the RoomSensor and a BYOD-Extender plus two WPP30 wireless presentation pods — one validated, ready-to-deploy flagship configuration.
Dual UVC86 4K Cameras with AI Tracking
Each UVC86 pairs an 8 MP Sony-sensor PTZ camera featuring 20.4× HD zoom (12× optical) with an 8 MP AI panoramic camera in one dual-eye design. Deployed as a pair through the AVHub, the cameras cover expansive rooms from multiple angles with Auto Framing, Speaker Tracking and Presenter Tracking, and mic-camera linkage keeps the frame locked on whoever is speaking.
AVHub: Professional Multi-Camera Audio-Video Processing
The included AVHub processor scales to 9 Yealink cameras, 8 VCM-series array microphones and 4 MSpeaker II speakers, so integrators can tailor coverage precisely to the room — wired VCM34/VCM35/VCM38 microphones, wireless VCM36-W mics and MSpeaker II soundbars are added to suit (sold separately).
BYOD Flexibility with Wireless Presentation Included
The included BYOD-Extender lets guests drive the room’s cameras and audio from their own laptop for meetings on any UC platform, and the two bundled WPP30 pods add one-click 1080p/30fps wireless content sharing. SourceIT designs, installs and supports complete ZVC S90-C5-007 boardroom deployments across Singapore with 2 years local warranty and a GST invoice.
Yealink ZVC S90 Datasheet — Technical Specifications
General
| Product | Yealink ZVC S90-C5-007 Native Zoom Rooms System |
| Part Number | ZVC S90-C5-007 |
| Platform | Native Zoom Rooms on Windows (Zoom Rooms app and Yealink RoomConnect preloaded) |
| Recommended Room Size | Extra-large meeting rooms, boardrooms, training and ProAV rooms |
| Warranty | 2 Years Local Warranty (Singapore) |
Cameras (2 × UVC86)
| Cameras | 2 × Yealink UVC86 dual-eye intelligent tracking cameras |
| Sensors | PTZ camera: 8 MP Sony sensor; Panoramic camera: 8 MP Sony sensor (per UVC86) |
| Zoom | 20.4× HD zoom (12× optical + 1.7× digital) |
| Pan / Tilt | Pan ±100°; Tilt +40° / -90° |
| Field of View | PTZ: 90° DFOV / 81° HFOV / 50° VFOV; Panoramic: 120° DFOV / 110° HFOV / 78° VFOV |
| Max Resolution | UHD 4K (3840 × 2160) at 30 fps |
| AI Features | Auto Framing, Speaker Tracking, Presenter Tracking, Multi-Focus, Picture-in-Picture; multi-camera intelligent speaker tracking via AVHub |
Audio-Video Processing (AVHub)
| Audio-Video Processor | Yealink AVHub |
| Camera Capacity | Up to 9 Yealink cameras (UVC84/UVC86) |
| Microphone Capacity | Up to 8 × VCM34/VCM35/VCM38 array microphones; up to 4 × VCM36-W wireless microphones |
| Speaker Capacity | Up to 4 × MSpeaker II |
| AVHub Ports | 7 × VCH port (RJ-45), 2 × USB-A, 1 × USB-B, 1 × Codec port |
| Mic-Camera Linkage | Camera focus dynamically follows the active speaker |
Audio
| Room Audio | Deployed via the Yealink audio ecosystem: VCM34 / VCM35 / VCM38 wired microphones, VCM36-W wireless microphones, MSpeaker II soundbars (sold separately, scaled to the room) |
Compute & Console
| Mini-PC | Yealink MCore Pro (Gen-3 Mini-PC) |
| Processor | 11th Gen Intel Core i5 |
| Memory / Storage | 8 GB (2 × 4 GB) / 128 GB SSD |
| Operating System | Windows 11 IoT Enterprise x64 |
| Mini-PC Ports | 3 × HDMI output (CEC), 4 × USB 3.0 Type-A, 1 × 10/100/1000M Ethernet, 1 × MTouch port (RJ-45) |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 |
| Touch Console | Yealink MTouch Plus — 11.6″ narrow-bezel IPS display, 1920 × 1080, adjustable 30°–70° screen angle, single CAT5e connection to the mini-PC |
| Room Sensor | Yealink RoomSensor — occupancy, temperature, humidity & ambient light sensing; Bluetooth BLE 5.2, up to 30 m range |
Content Sharing & BYOD
| BYOD | BYOD-Extender included — use the room’s cameras and audio from a laptop on any UC platform |
| Wireless Sharing | 2 × WPP30 wireless presentation pods included (1080p/30fps) |
Compatibility & Software Support
Runs the native Zoom Rooms experience on Windows 11 IoT Enterprise with the Zoom Rooms app preloaded — one-touch join, calendar integration and intuitive in-room controls on the MTouch Plus console.
Device management is handled with Yealink RoomConnect (preloaded) and the Yealink Management Cloud Service (YMCS), giving IT remote monitoring, diagnostics and firmware updates for every ZVC S90 room.
The included BYOD-Extender lets guests run Google Meet, Webex or any other UC app from their own laptop through the room’s cameras and audio — ideal for mixed-platform organisations in Singapore.
Two WPP30 wireless presentation pods are included for one-click 1080p/30fps wireless content sharing.
Package Contents & ZVC S-Series Ordering Information

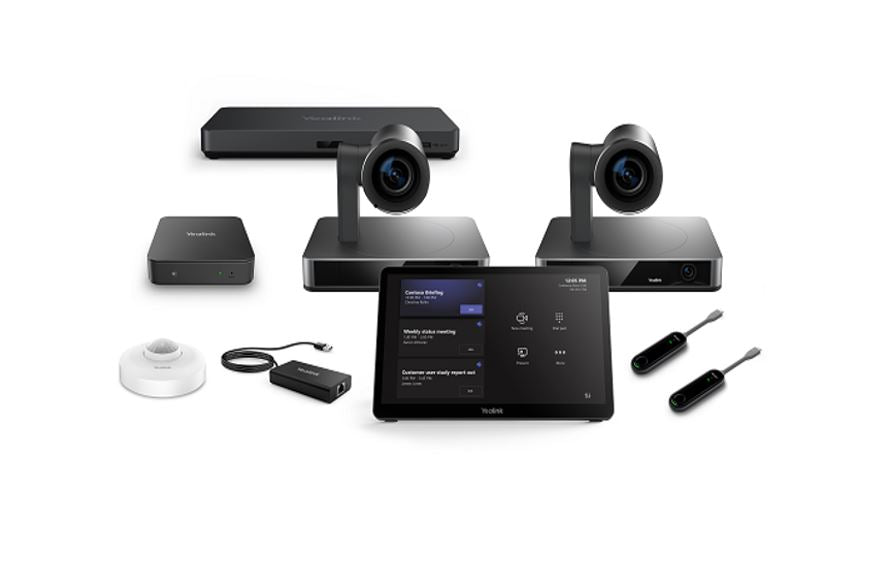

In the box:
- 2 × UVC86 4K dual-eye intelligent tracking cameras
- AVHub audio-video processor

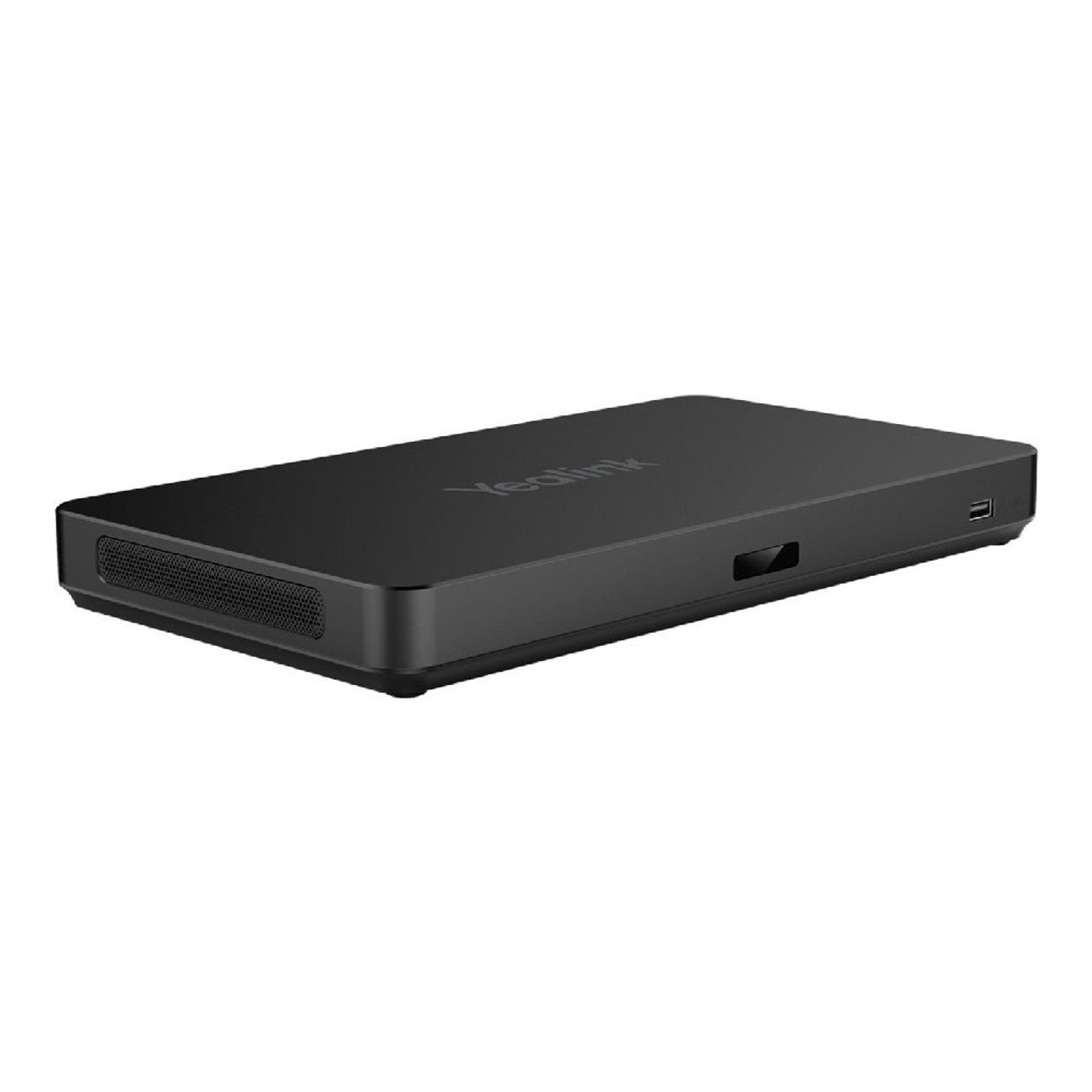

- MCore Pro mini-PC
- MTouch Plus 11.6″ touch console
- RoomSensor

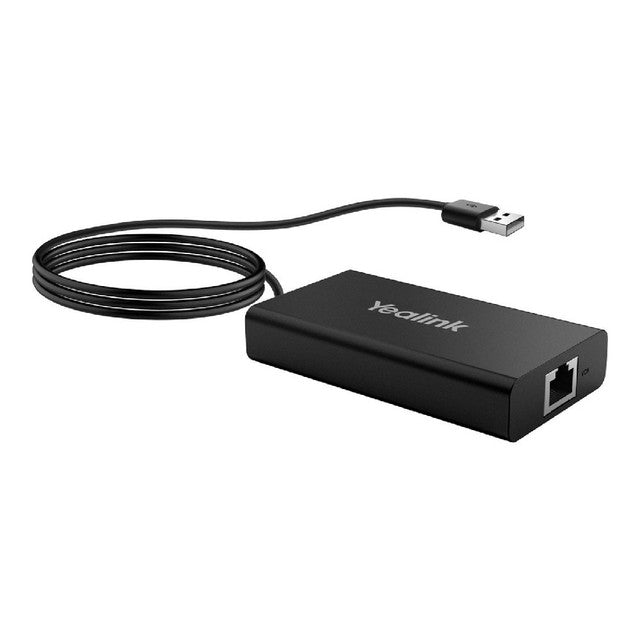

- BYOD-Extender
- 2 × WPP30 wireless presentation pods
Yealink MVC/ZVC S Series Rooms Systems at SourceIT:
| MVC S40-C5U-000 | Microsoft Teams — Small-medium rooms |
| ZVC S40-C5U-000 | Zoom — Small-medium rooms |
| MVC S50-C5U-000 | Microsoft Teams — Medium-large rooms |
| ZVC S50-C5U-000 | Zoom — Medium-large rooms |
| MVC S60-C5-000 | Microsoft Teams — Medium rooms (360° centre-of-table) |
| MVC S80-C5U-000 | Microsoft Teams — Large rooms |
| ZVC S80-C5U-000 | Zoom — Large rooms |
| MVC S90-C5U-004 | Microsoft Teams — Extra-large rooms |
| ZVC S90-C5-007 | Zoom — Extra-large rooms |
| MVC S98-C5U-004 | Microsoft Teams — ProAV / extra-large rooms |
| ZVC S98-C5U-004 | Zoom — ProAV / extra-large rooms |
Datasheet & Downloads
Official Yealink documentation for this system:
Frequently Asked Questions — Yealink ZVC S90
Q: How many cameras are included in the ZVC S90-C5-007?
A: Two. The kit ships with two UVC86 4K dual-eye intelligent tracking cameras that work together through the included AVHub for multi-angle coverage of extra-large rooms.
Q: What is the difference between the ZVC S90-C5-007 and the MVC S90-C5U-004?
A: Both are dual-UVC86 + AVHub systems. The ZVC S90-C5-007 runs native Zoom Rooms and includes two WPP30 wireless presentation pods, while the MVC S90-C5U-004 runs native Microsoft Teams Rooms on the newer MCore 4 (Intel Core Ultra 5).
Q: Does the S90 kit include microphones and speakers?
A: No — extra-large rooms vary too much for one fixed audio set. The AVHub supports up to 8 VCM-series array microphones, 4 VCM36-W wireless mics and 4 MSpeaker II speakers, which SourceIT specifies to match your room during design.
Q: How does the S90 compare with the S80 and the S98?
A: The S80 uses a single quad-lens SmartVision 80 for large rooms; the S90 steps up to two UVC86 PTZ cameras with the AVHub for extra-large rooms; and the flagship S98 deploys three SmartVision 80 cameras for full ProAV multi-camera coverage.
Q: Can guests use the room for non-Zoom meetings?
A: Yes. The included BYOD-Extender lets any laptop use the room’s cameras and audio over USB, so Google Meet, Webex or other UC calls run without reconfiguring the room.
Q: Does the ZVC S90 come with a local Singapore warranty?
A: Yes. Every ZVC S90 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
