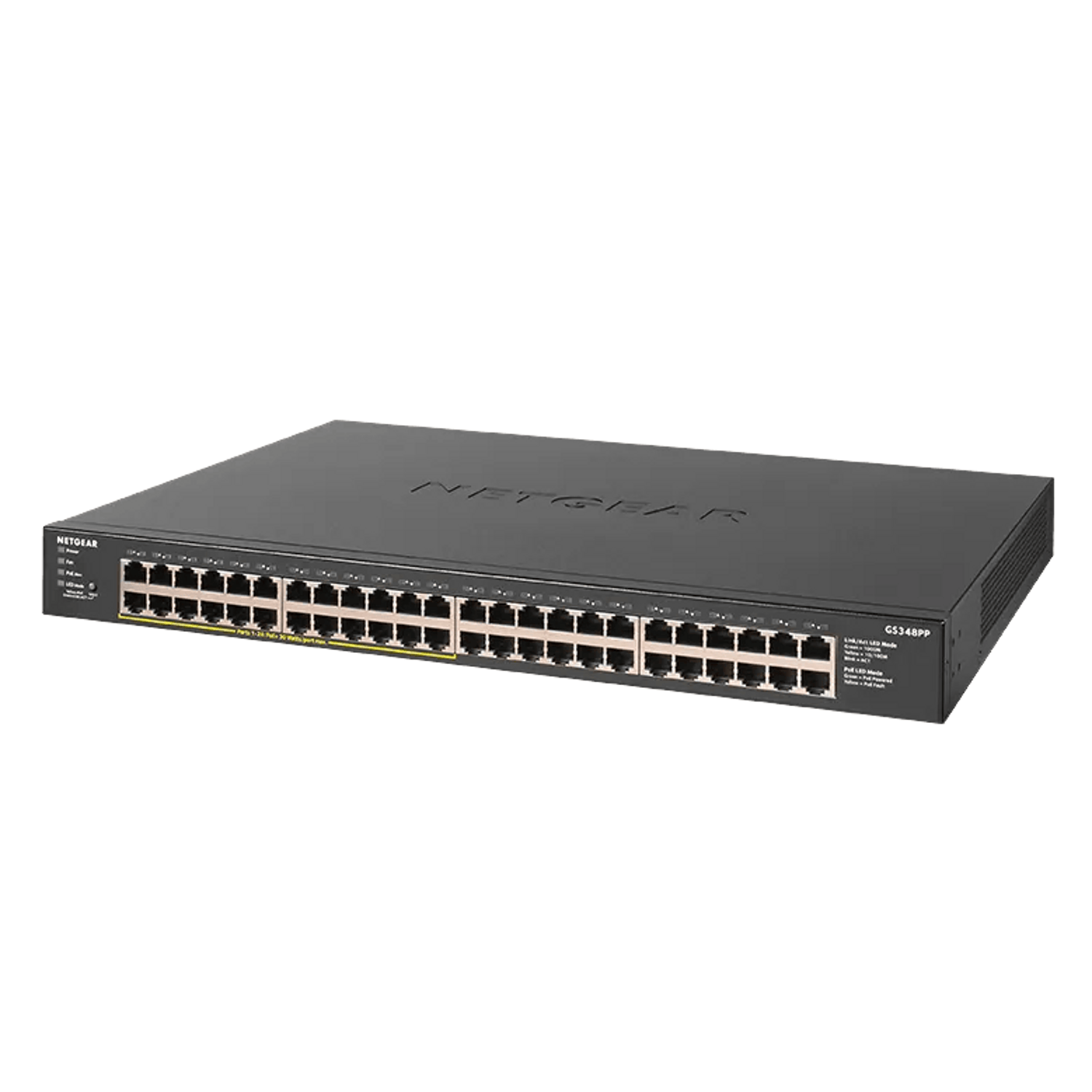

NETGEAR GS348PP 48-Port Gigabit PoE+ Unmanaged Switch, 24 x PoE+ 380W, Rackmount
PRODUCT DESCRIPTION
NETGEAR GS348PP 48-Port Gigabit Ethernet Unmanaged PoE+ Essentials Switch with 24 PoE+ Ports, 380W (GS348PP-100EUS) - 3 Years Local Warranty
48 Gigabit Ports, 24 with PoE+
The NETGEAR GS348PP is a 48-port Gigabit Ethernet unmanaged switch in which 24 ports deliver IEEE 802.3at PoE+ at up to 30 W per port, from a 380 W total PoE budget — enough to power IP cameras, access points and VoIP phones while the other 24 ports connect desks, printers and servers.
Non-Blocking, Plug-and-Play
A 96 Gbps non-blocking fabric, 1.5 MB packet buffer and 12,288-byte jumbo frame support keep traffic moving at wire speed, with no software or configuration — every port auto-negotiates speed, duplex and cable type.
Rackmount Metal Chassis
The 440 x 310 x 43 mm metal enclosure has an internal power supply (no external brick) and ships with a rack-mount kit, so it installs in a rack or sits on a desk.
NETGEAR GS348PP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS348PP 48-Port Gigabit Ethernet Unmanaged PoE+ Essentials Switch with 24 PoE+ Ports (380W) |
| Part Number | GS348PP-100EUS |
| Series | NETGEAR 300 Series Gigabit Unmanaged Essentials PoE Switches |
| Local Warranty (Singapore) | 3 Years, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 48 x 10/100/1000BASE-T RJ-45, auto-uplink (Auto MDI/MDI-X) |
| PoE+ Ports | 24 x IEEE 802.3at PoE+, up to 30 W per port |
| PoE Budget | 380 W total |
Performance
| Switching Bandwidth | 96 Gbps (non-blocking) |
| Forwarding Rate | 1,488,000 pps per 1000 Mbps port (64-byte packets) |
| Latency | < 4 µs (64-byte, 1000 Mbps, average) |
| MAC Address Table | 8K |
| Packet Buffer | 1.5 MB (shared) |
| Jumbo Frames | Up to 12,288 bytes |
| QoS | IEEE 802.1p (CoS), honours DSCP tags; WRR queue ratio 1:3:5:7:8:10:12:15 |
Power & Environmental
| Power Supply | Internal, 110–240 V AC, 50/60 Hz, 8 A max |
| Power Consumption | 410 W max; 10 W standby |
| Heat Dissipation | 1,402.2 BTU/hr max; 34.2 BTU/hr standby |
| Cooling | 2 fans |
| Storage Temperature | –20 to 70 °C (–4 to 158 °F) |
| MTBF | 570,972 hours @ 25 °C |
Physical
| Dimensions (W x D x H) | 440 x 310 x 43 mm (17.3 x 12.2 x 1.7 in) |
| Weight | 4.56 kg (10.05 lb) |
| Enclosure | Metal |
| Mounting | Rackmount or desktop (rack-mount kit included) |
Certifications
| EMC | CE, FCC Part 15 Class A, IC Class A, RCM, VCCI, KC |
| Safety | CB, CE LVD, UL |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required.
PoE Compatibility
Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) on ports with PoE — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices up to 30 W each.
Typical Use
Wiring closets in offices, schools, clinics and retail sites that need high Gigabit port density plus PoE+ for up to 24 powered devices from one rackmount switch.
Package Contents & 300 Series Unmanaged PoE Ordering Information
In the Box
GS348PP switch, power cord (localized to the country of sale), rack-mount kit, rubber footpads, installation guide.
NETGEAR 300 Series Unmanaged Essentials PoE Models
| Model | Ports / PoE | Part No. |
| GS305P | 5 x GE, 4 x PoE+, 63W | GS305P-300UKS |
| GS305PP | 5 x GE, 4 x PoE+, 83W | GS305PP-300UKS |
| GS308PP | 8 x GE, 8 x PoE+, 83W (FlexPoE to 123W) | GS308PP-100EUS |
| GS316P | 16 x GE, 16 x PoE+, 115W (FlexPoE to 183W) | GS316P-100EUS |
| GS316PP | 16 x GE, 16 x PoE+, 183W | GS316PP-100EUS |
| GS324P | 24 x GE, 16 x PoE+, 190W | GS324P-100EUS |
| GS324PP | 24 x GE, 24 x PoE+, 380W | GS324PP-100EUS |
| GS348PP (this listing) | 48 x GE, 24 x PoE+, 380W | GS348PP-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | 300 Series Gigabit Unmanaged Essentials PoE Switches Datasheet (PDF) |
| Installation guide | GS348PP Installation Guide (PDF) |
| NETGEAR product page | GS348PP on netgear.com |
Frequently Asked Questions — NETGEAR GS348PP
How many ports have PoE?
24 of the 48 Gigabit ports supply IEEE 802.3af/at PoE+, up to 30 W per port, from a 380 W total budget.
Does the GS348PP need configuring?
No. It is unmanaged and plug-and-play.
Is it fanless?
No. NETGEAR's datasheet lists 2 fans for the GS348PP.
Can it be rack-mounted?
Yes. A rack-mount kit is included in the box; it can also be used on a desktop.
What warranty do I get?
3 Years local warranty in Singapore, supplied by SourceIT with a GST invoice.
