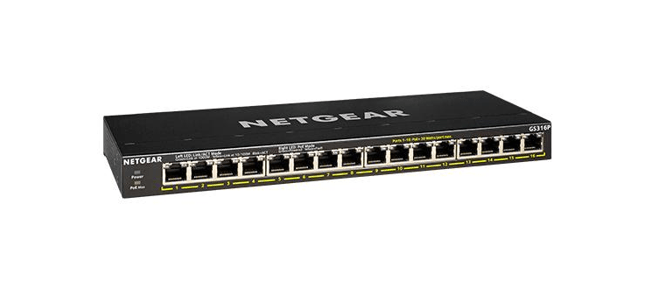

NETGEAR GS316P 16-Port Gigabit PoE+ Unmanaged Switch, 115W FlexPoE, Fanless
PRODUCT DESCRIPTION
NETGEAR GS316P 16-Port Gigabit Ethernet PoE+ Unmanaged Switch, 115W (GS316P-100EUS) - 3 Years Local Warranty

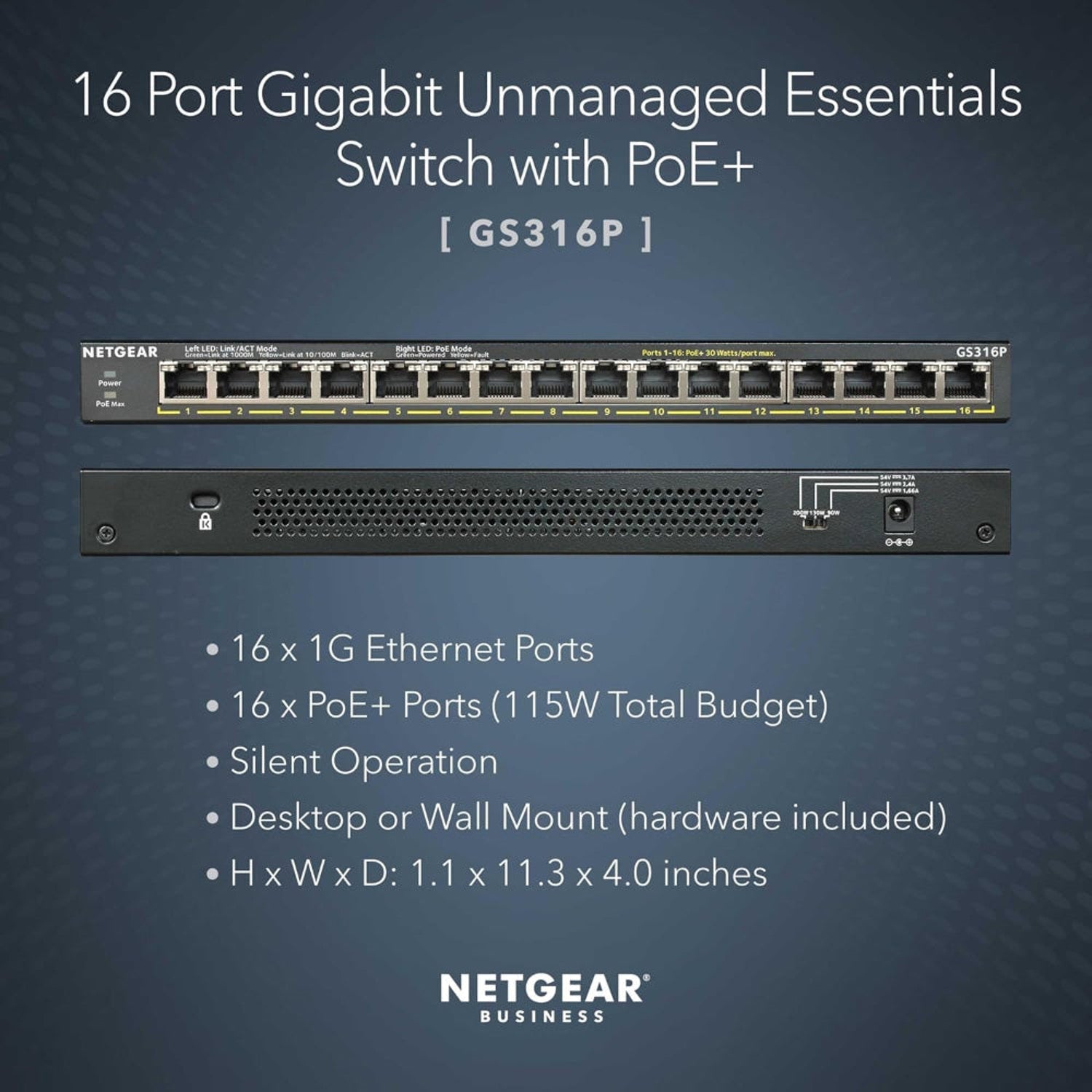

16 PoE+ Ports, 115W Budget

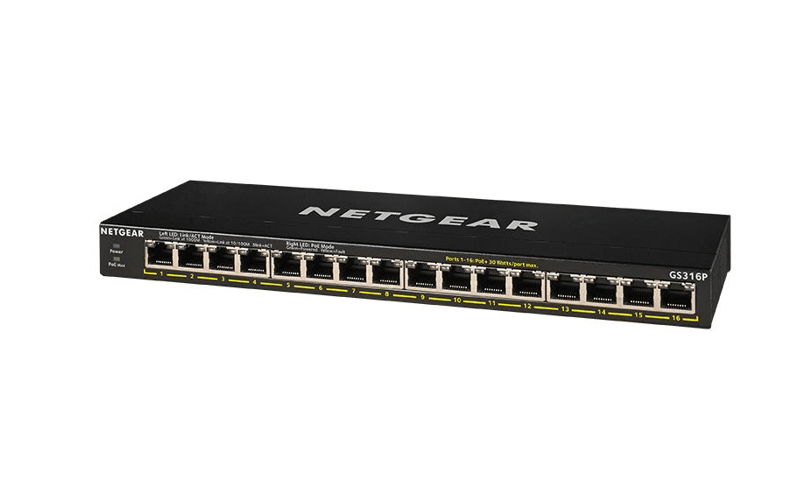

The NETGEAR GS316P is a 16-port Gigabit Ethernet unmanaged switch where every port supports IEEE 802.3af/at PoE+ at up to 30 W, sharing a 115 W budget from the included 130 W power adapter.
FlexPoE — Scale Power Up or Down

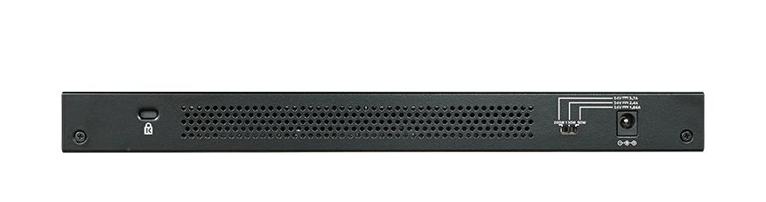

NETGEAR FlexPoE lets you change the PoE budget by swapping the adapter: 76 W with the EPS90W or 183 W with the EPS200W (optional, sold separately). A rear slider sets the budget to match the adapter.
Silent, Non-Blocking, Energy Efficient
32 Gbps non-blocking switching, a 1 MB packet buffer and a fanless metal case make it a quiet fit for offices and classrooms. PoE auto-balance, 802.3az Energy Efficient Ethernet and auto power-down reduce running costs.
Need help choosing? Email sales@sourceit.com.sg with your device count and PoE power needs and we will size it for you.
NETGEAR GS316P Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS316P 16-Port Gigabit Ethernet PoE+ Unmanaged Switch, 115W |
| Part Number | GS316P-100EUS |
| Series | NETGEAR 300 Series Gigabit Unmanaged Essentials PoE Switches |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces & PoE

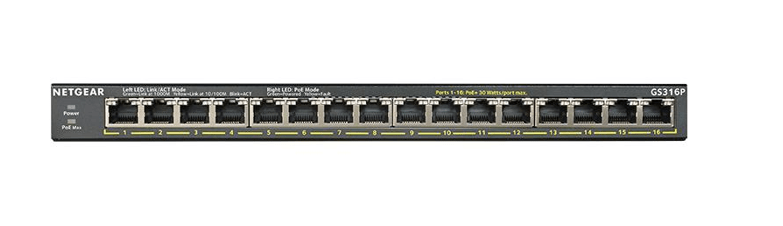

| Ethernet Ports | 16 x 10/100/1000BASE-T RJ-45, all PoE+ (802.3af/at, up to 30 W per port) |
| PoE Budget | 115 W with included EPS130W adapter; 76 W (EPS90W) or 183 W (EPS200W) with optional FlexPoE adapters |
Performance
| Switching Capacity | 32 Gbps (non-blocking) |
| Forwarding Rate | 1,488,000 pps (64-byte packets at 1000 Mbps) |
| Latency | < 3.7 µs |
| MAC Address Table | 4K |
| Packet Buffer | 1 MB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | IEEE 802.1p (CoS), honours DSCP tags |
Power & Environmental
| Power Supply | External 130 W adapter (EPS130W), 54 V DC @ 2.4 A |
| Power Consumption | 127.9 W max; 2.68 W standby |
| Heat Dissipation | 437.42 BTU/hr max; 9.18 BTU/hr standby |
| Cooling | Fanless |
| Operating Temperature | 0 to 45 °C |
| Operating Humidity | 10–90% RH, non-condensing |
| MTBF | 2,362,192 hours |
Physical
| Dimensions (W x D x H) | 286 x 102 x 27 mm |
| Weight | 0.88 kg |
| Mounting | Desktop or wall mount |
Certifications
| EMC | CE, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC |
| Safety | CB, CE LVD |
Compatibility & Software Support
Management

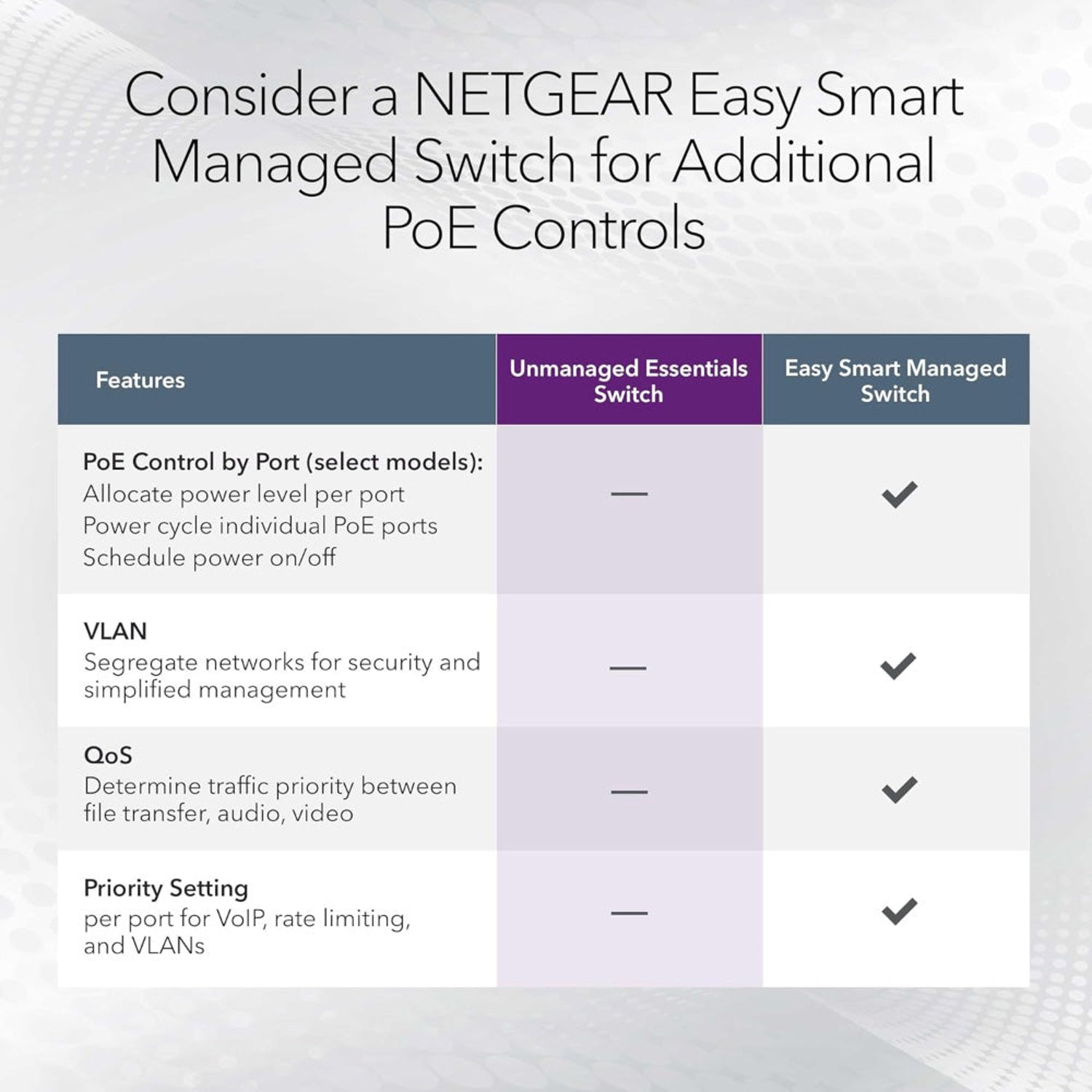

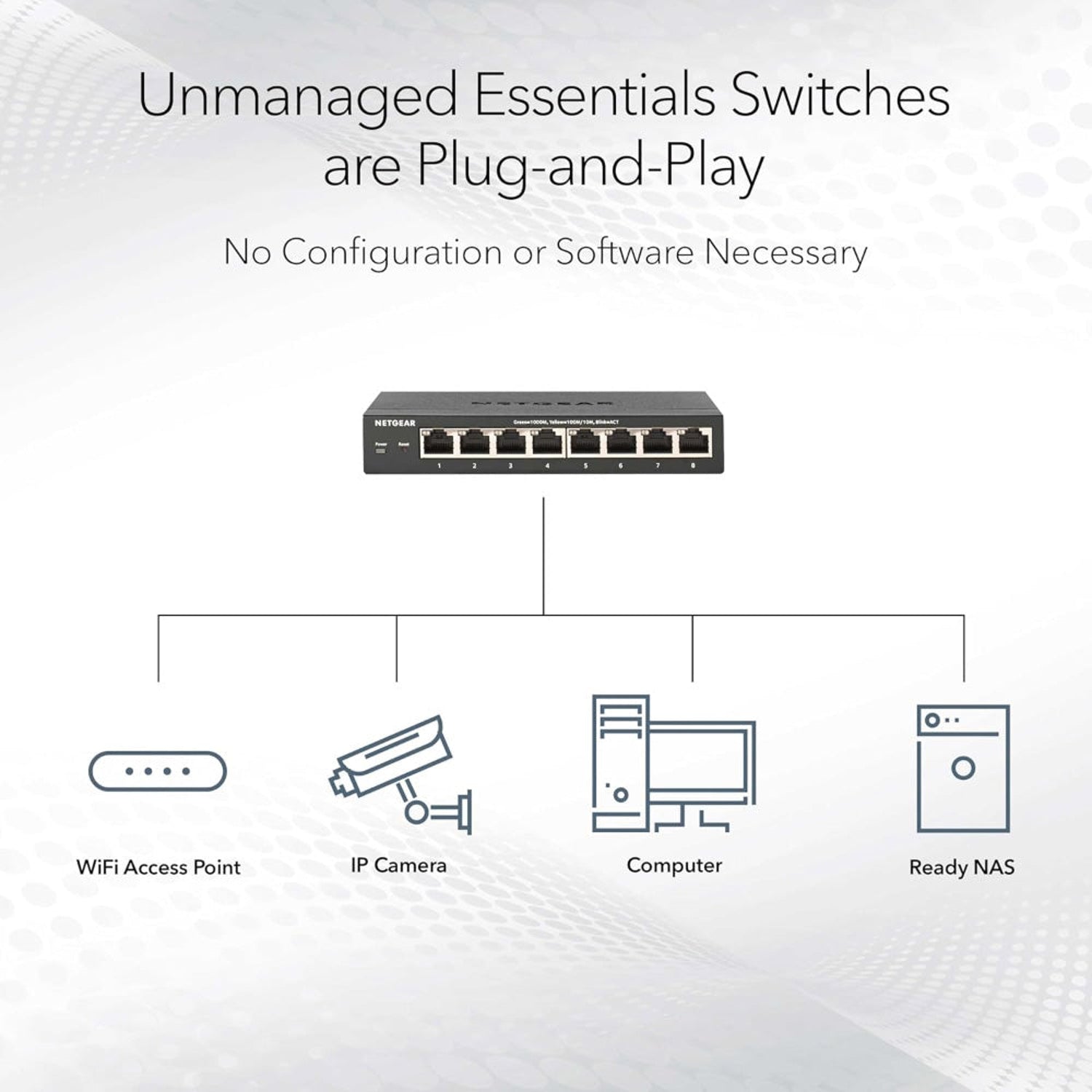

Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type (Auto MDI/MDI-X).
PoE Compatibility

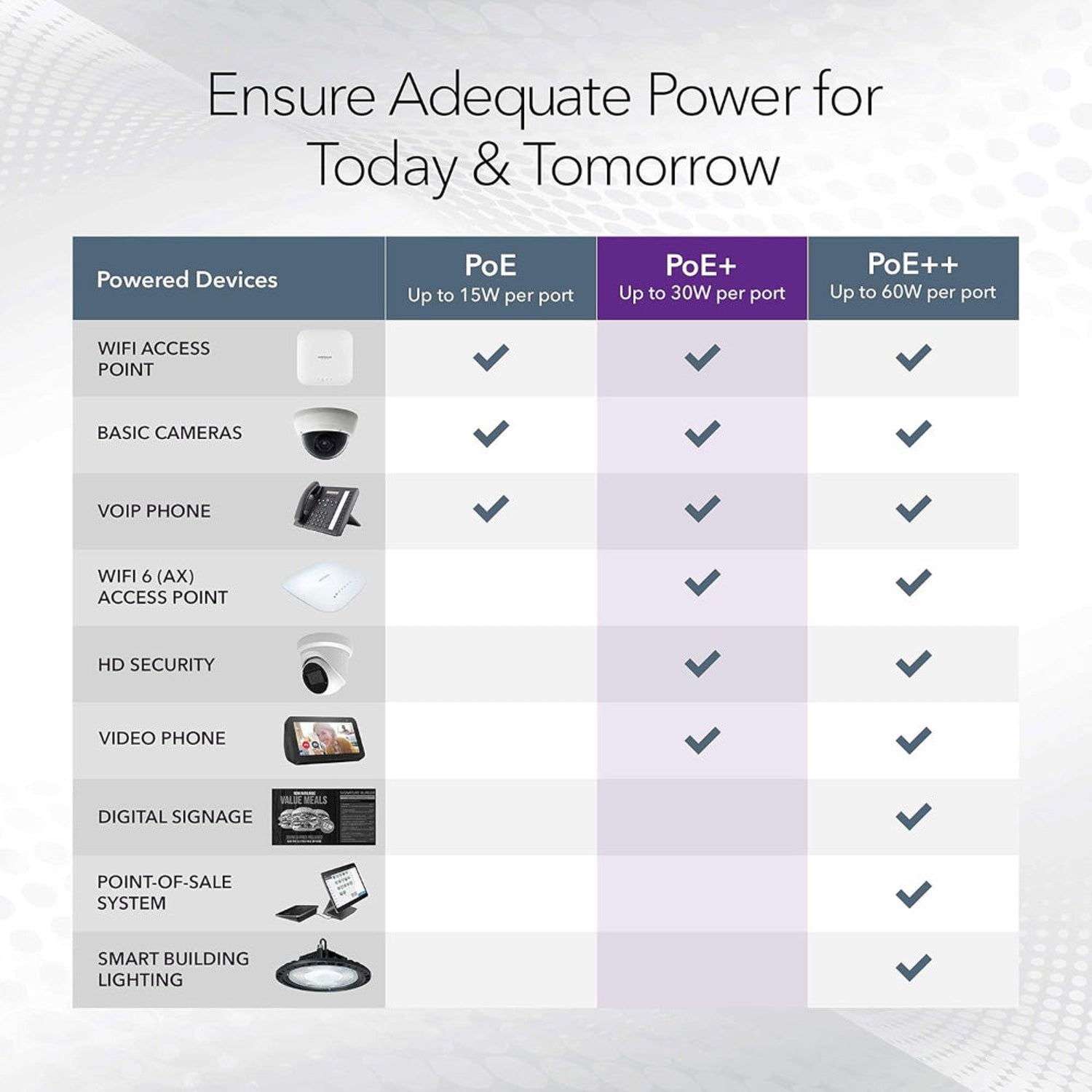

Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices.
Typical Use
Small businesses, schools and CCTV installs that need 16 powered Gigabit ports without the noise of a fan.
Package Contents & 300 Series Unmanaged PoE Ordering Information
In the Box
GS316P switch, 130 W power adapter, power cord, wall installation kit, rubber feet, mounting ties, documentation.
NETGEAR 300 Series Unmanaged PoE Models
| Model | Ports / PoE | Part No. |
| GS305P | 5 x GE, 4 x PoE+, 63W | GS305P-300UKS |
| GS305PP | 5 x GE, 4 x PoE+, 83W | GS305PP-300UKS |
| GS308PP | 8 x GE, 8 x PoE+, 83W | GS308PP-100EUS |
| GS316P (this listing) | 16 x GE, 16 x PoE+, 115W | GS316P-100EUS |

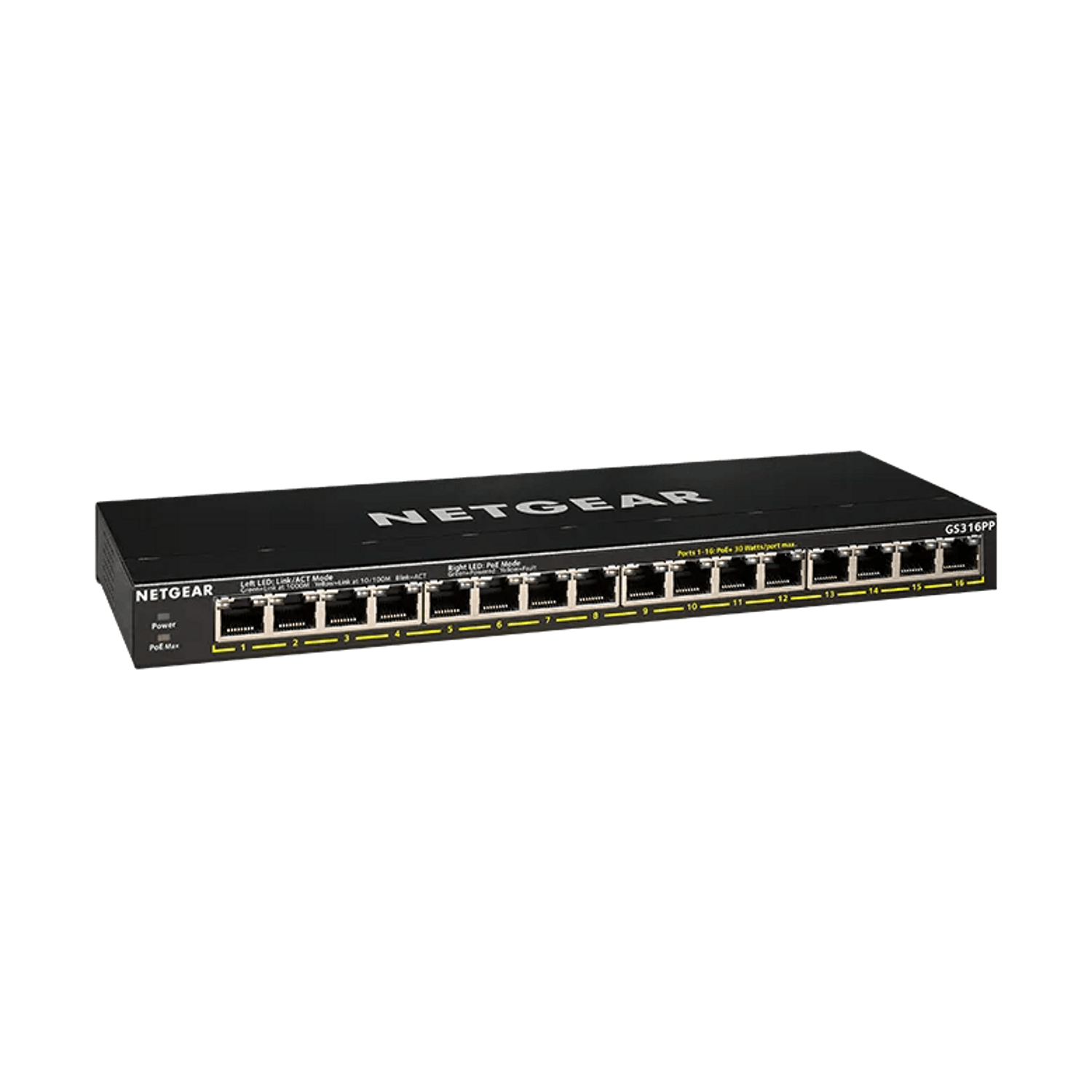

| GS316PP | 16 x GE, 16 x PoE+, 183W | GS316PP-100EUS |
| GS324P | 24 x GE, 16 x PoE+, 190W | GS324P-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | 300 Series Gigabit Unmanaged Essentials PoE Switches Datasheet (PDF) |
| Installation guide | GS316P / GS316PP Installation Guide (PDF) |
| NETGEAR product page | GS316P on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS316P-100EUS.
Frequently Asked Questions — NETGEAR GS316P
Does the GS316P need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Can I change the PoE budget?
Yes, with NETGEAR FlexPoE: 76 W with the optional EPS90W adapter or 183 W with the optional EPS200W, set via the rear slider.
What happens if the PoE budget is exceeded?
NETGEAR's installation guide states PoE is prioritised by port order, with port 1 highest.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
