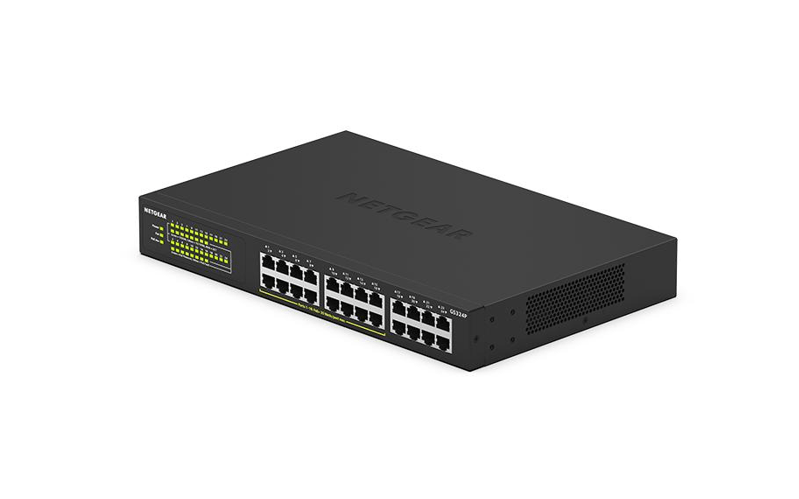

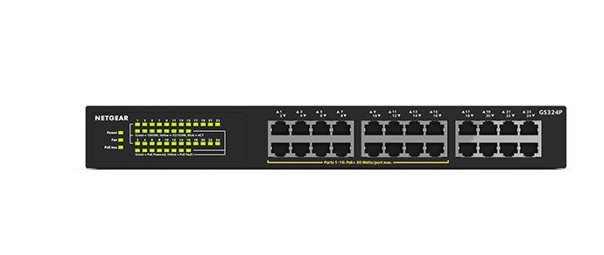

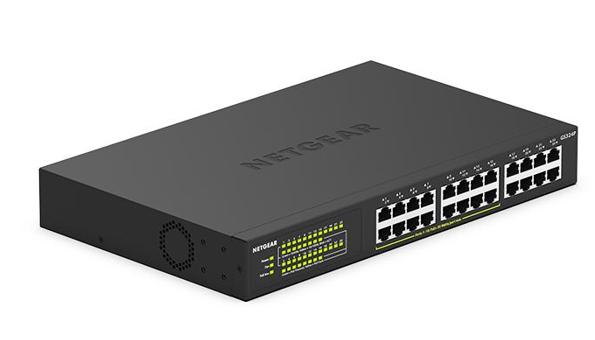

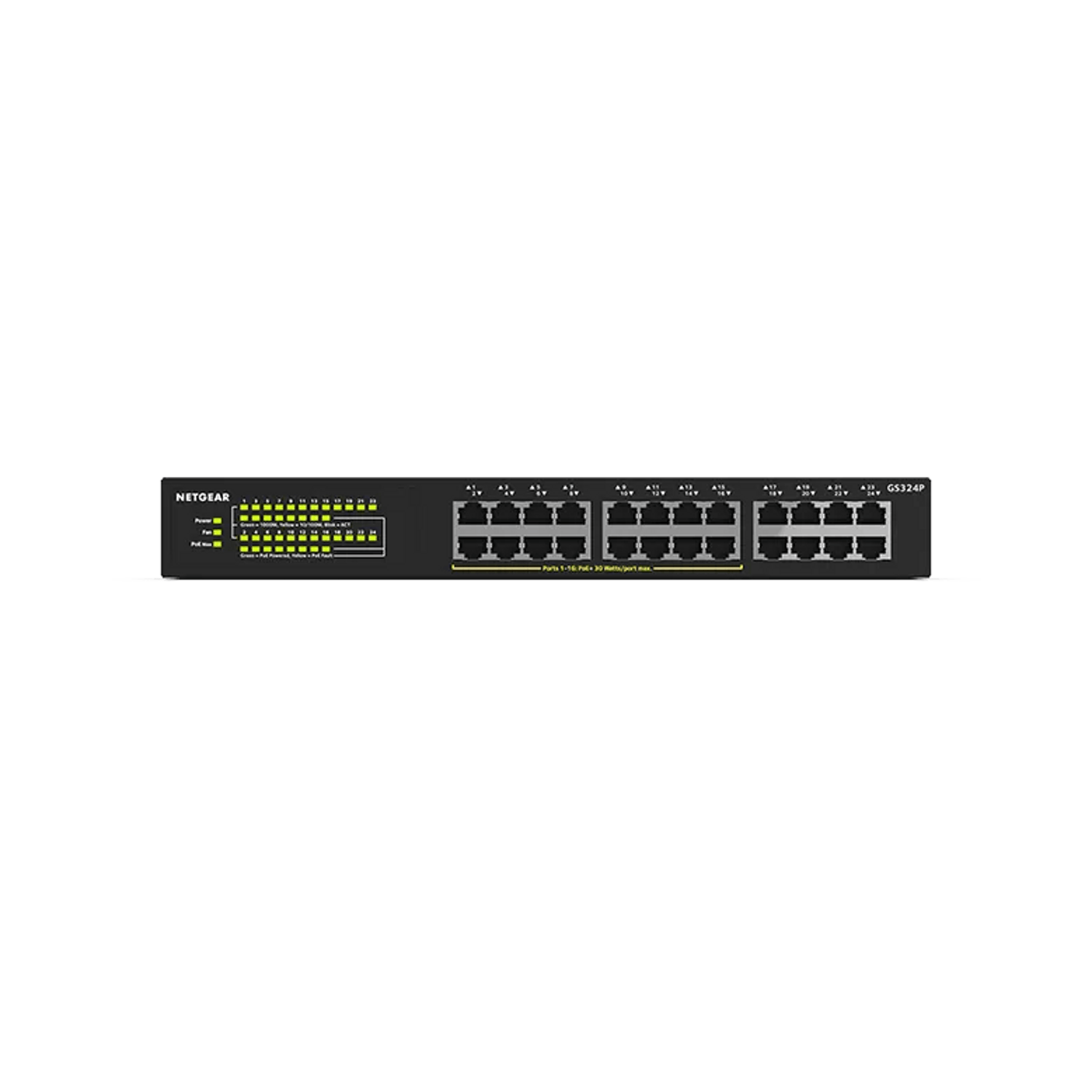

NETGEAR GS324P 24-Port Gigabit Unmanaged Switch, 16 x PoE+ 190W, Desktop/Rackmount
PRODUCT DESCRIPTION
NETGEAR GS324P 24-Port Gigabit Ethernet Unmanaged Switch with 16 PoE+ Ports, 190W (GS324P-100EUS) - 3 Years Local Warranty
24 Gigabit Ports, 16 with PoE+
The NETGEAR GS324P is a 24-port Gigabit Ethernet unmanaged switch with 16 IEEE 802.3at PoE+ ports (up to 30 W each) sharing a 190 W budget — power cameras, phones and access points while connecting PCs, printers and servers on the remaining ports.

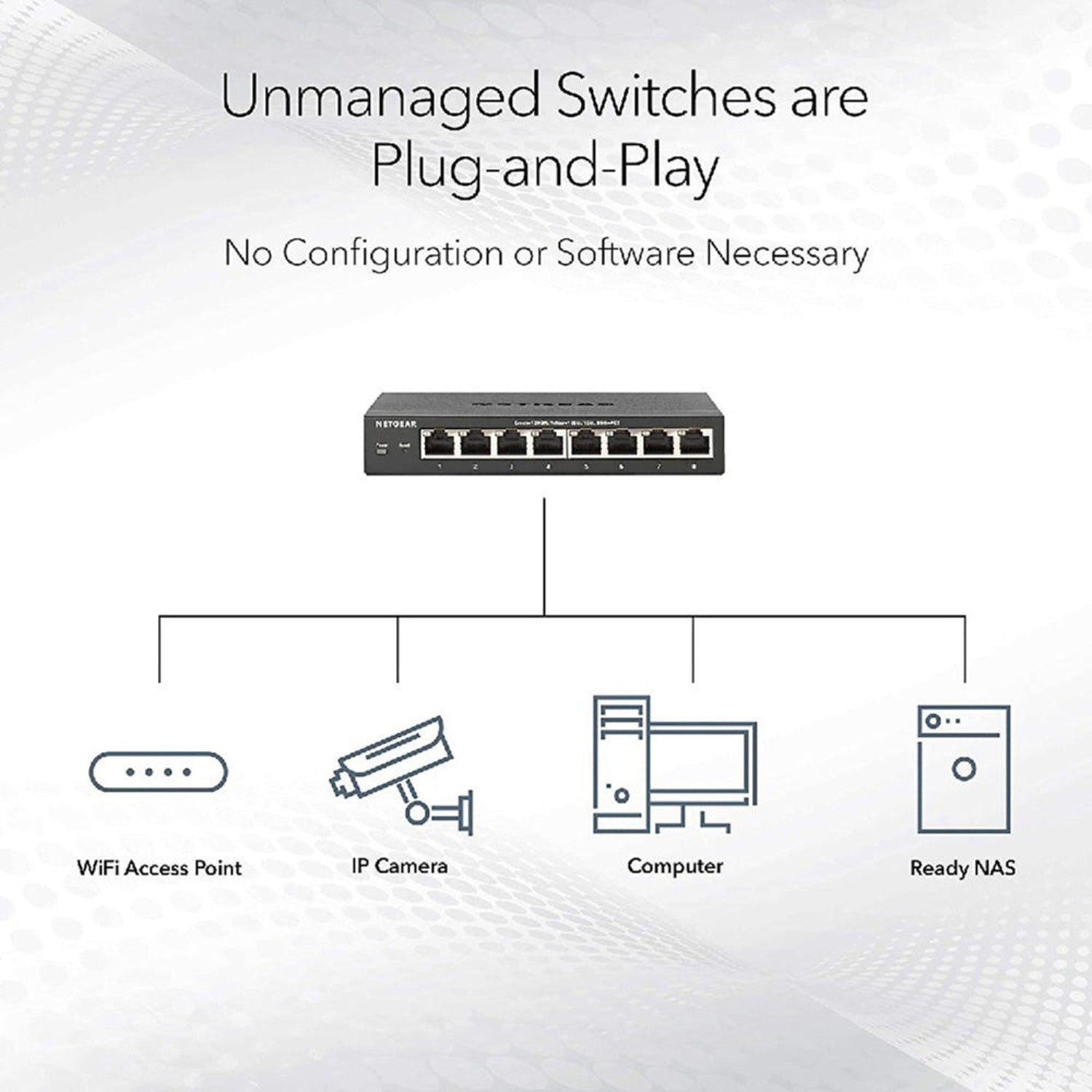

Non-Blocking, Plug-and-Play
48 Gbps of non-blocking switching capacity keeps every port at wire speed. There is nothing to configure, and PoE auto-balance allocates power based on each device's needs.
Built-In Power Supply, Rack-Ready

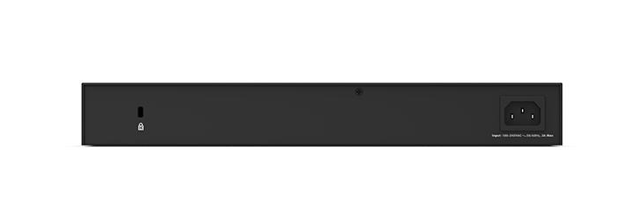

An internal 100–240 V AC power supply means no external brick. The metal switch sits on a desk or mounts in a 19-inch rack using the rack-mount kit included in the box, with 802.3az Energy Efficient Ethernet and auto power-down.
Need help choosing? Email sales@sourceit.com.sg with your device count and PoE power needs and we will size it for you.
NETGEAR GS324P Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS324P 24-Port Gigabit Ethernet Unmanaged Switch with 16 PoE+ Ports, 190W |
| Part Number | GS324P-100EUS |
| Series | NETGEAR 300 Series Gigabit Unmanaged Essentials PoE Switches |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 24 x 10/100/1000BASE-T RJ-45; 16 x PoE+ (802.3at, up to 30 W per port) |
| PoE Budget | 190 W |
Performance
| Switching Capacity | 48 Gbps (non-blocking) |
| Forwarding Rate | 1,488,000 pps (64-byte packets) |
| Latency | < 4 µs average |
| MAC Address Table | 8K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Up to 10,000 bytes |
| QoS | IEEE 802.1p |
Power & Environmental
| Power Supply | Internal, 100–240 V AC, 50/60 Hz, 3 A max |
| Power Consumption | 210 W max; 10 W standby |
| Heat Dissipation | 718.2 BTU/hr max; 34.2 BTU/hr standby |
| Cooling | 1 fan (per NETGEAR datasheet) |
| Operating Temperature | 0 to 45 °C |
| Operating Humidity | 10–90% RH, non-condensing |
| MTBF | 1,193,574 hours |
Physical
| Dimensions (W x D x H) | 330 x 206 x 43 mm |
| Weight | 2.44 kg |
| Mounting | Desktop or 19-inch rack (rack-mount kit included) |
Certifications
| EMC | CE, FCC Part 15 Class A, IC Class A, RCM, VCCI, KC |
| Safety | CB, CE LVD, UL |
Compatibility & Software Support
Management

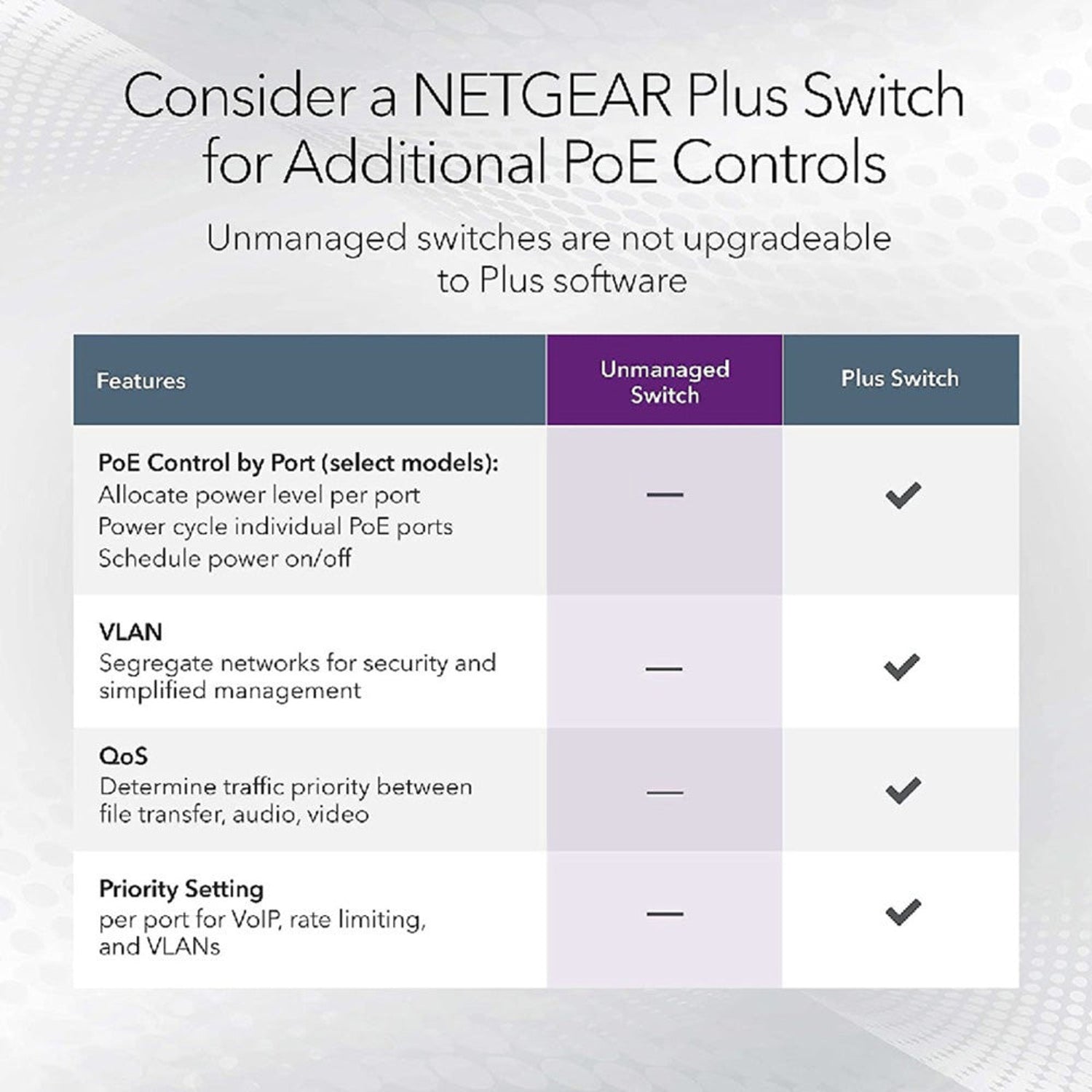

Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type (Auto MDI/MDI-X).
PoE Compatibility

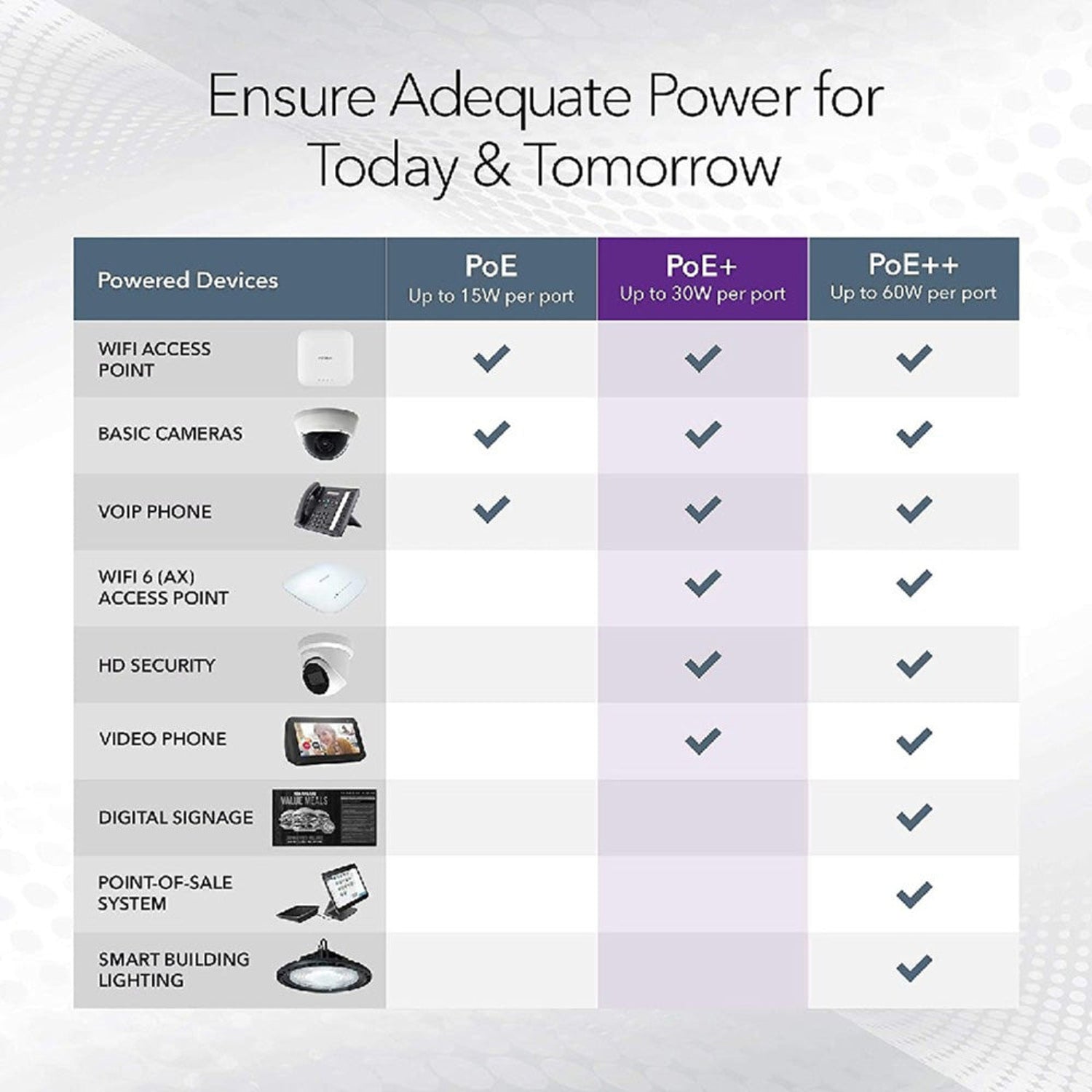

Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices.
Typical Use
Small and medium offices that need a mix of 16 powered and 8 non-powered Gigabit connections in one rack-mountable unit.
Package Contents & 300 Series Unmanaged PoE Ordering Information
In the Box
GS324P switch, power cord, rack-mount kit, rubber footpads, installation guide.
NETGEAR 300 Series Unmanaged PoE Models
| Model | Ports / PoE | Part No. |
| GS305P | 5 x GE, 4 x PoE+, 63W | GS305P-300UKS |
| GS305PP | 5 x GE, 4 x PoE+, 83W | GS305PP-300UKS |
| GS308PP | 8 x GE, 8 x PoE+, 83W | GS308PP-100EUS |
| GS316P | 16 x GE, 16 x PoE+, 115W | GS316P-100EUS |
| GS316PP | 16 x GE, 16 x PoE+, 183W | GS316PP-100EUS |
| GS324P (this listing) | 24 x GE, 16 x PoE+, 190W | GS324P-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | 300 Series Gigabit Unmanaged Essentials PoE Switches Datasheet (PDF) |
| Installation guide | GS324P Installation Guide (PDF) |
| NETGEAR product page | GS324P on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS324P-100EUS.
Frequently Asked Questions — NETGEAR GS324P
Does the GS324P need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
How many ports supply PoE?
16 of the 24 ports are PoE+ (up to 30 W each) with a 190 W total budget.
Can it be rack-mounted?
Yes, a rack-mount kit is included in the box.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
