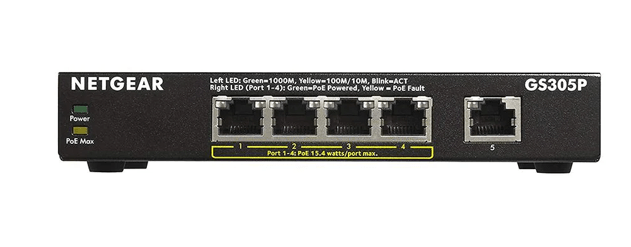

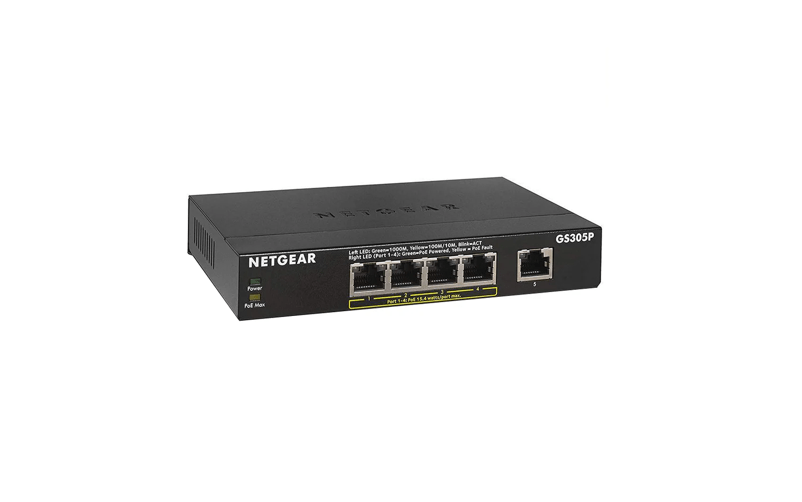

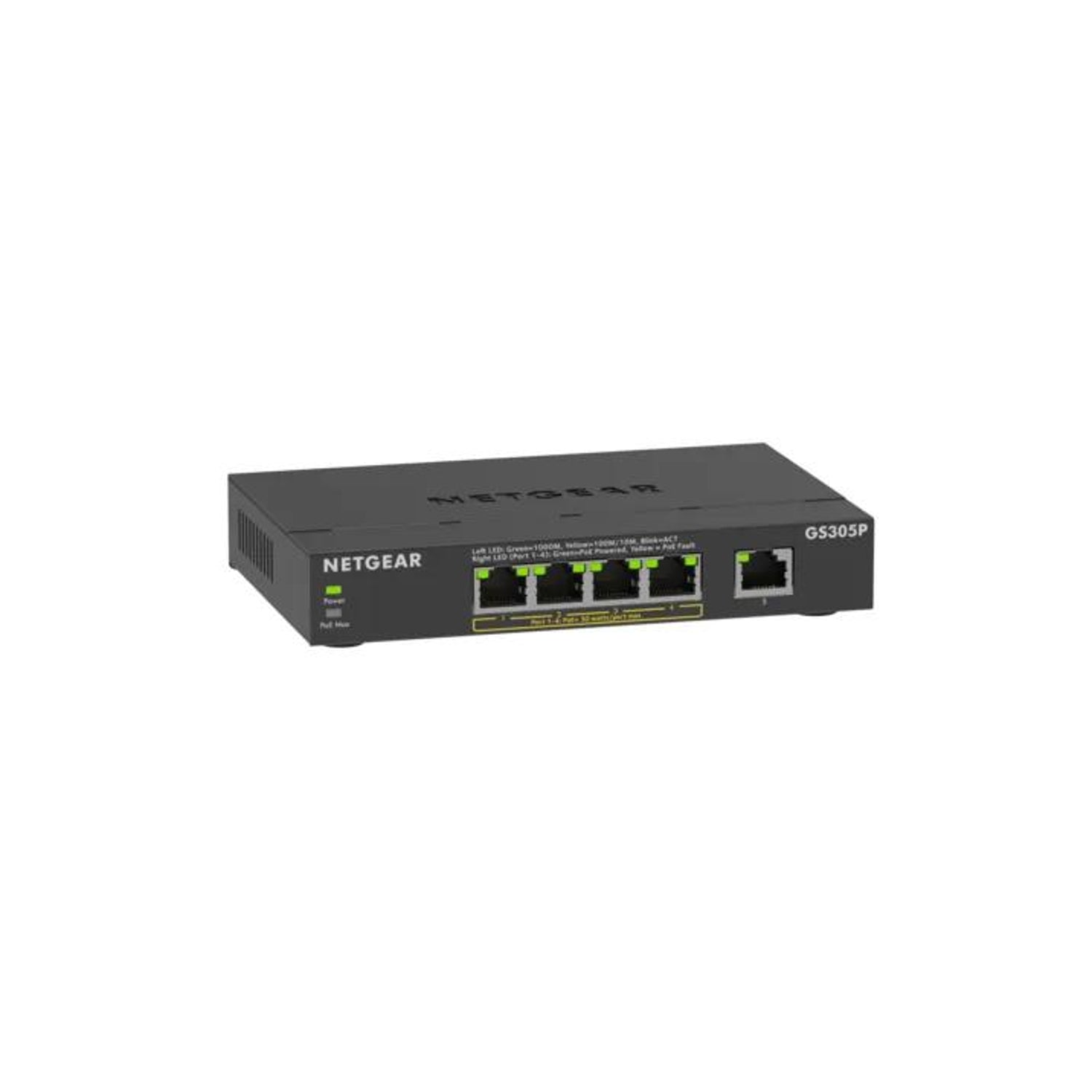

NETGEAR GS305P 5-Port Gigabit PoE+ Unmanaged Switch, 4 x PoE+ 63W, Fanless Desktop
PRODUCT DESCRIPTION
NETGEAR GS305P 5-Port Gigabit Ethernet PoE+ Unmanaged Switch, 63W (GS305P-300UKS) - 3 Years Local Warranty
Four PoE+ Ports, 63W Budget
The NETGEAR GS305P (GS305Pv3) is a 5-port Gigabit Ethernet unmanaged switch from NETGEAR's 300 Series Essentials range. Ports 1–4 deliver IEEE 802.3af/at PoE+ at up to 30 W each from a 63 W total budget, powering IP cameras, VoIP phones, wireless access points and IoT devices, while port 5 connects back to your network.
Plug-and-Play with PoE Auto-Balance
There is nothing to configure — connect devices and the switch auto-negotiates speed, duplex and cable type. NETGEAR's PoE auto-balance allocates power based on what each device actually needs, independent of its detected PoE class.
Silent, Compact and Energy Efficient
The fanless metal design runs silently on a desk or mounted on a wall (wall-mount screws included). IEEE 802.3az Energy Efficient Ethernet, auto power-down and short-cable detection keep running costs low.
Need help choosing? Email sales@sourceit.com.sg with your device count and PoE power needs and we will size it for you.
NETGEAR GS305P Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS305P 5-Port Gigabit Ethernet PoE+ Unmanaged Switch, 63W |
| Part Number | GS305P-300UKS |
| Series | NETGEAR 300 Series Gigabit Unmanaged Essentials PoE Switches (GS305Pv3) |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 5 x 10/100/1000BASE-T RJ-45; ports 1–4 PoE+ (802.3af/at, up to 30 W per port); port 5 uplink |
| PoE Budget | 63 W |
Performance
| Switching Capacity | 10 Gbps (non-blocking) |
| Forwarding Rate | 1,488,000 pps (64-byte packets at 1000 Mbps) |
| Latency | < 2.4 µs |
| MAC Address Table | 2K |
| Packet Buffer | 128 KB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | IEEE 802.1p (CoS), honours DSCP tags |
Power & Environmental
| Power Supply | External adapter, 54 V DC @ 1.25 A |
| Power Consumption | 66.78 W max; 1.02 W standby |
| Heat Dissipation | 228.38 BTU/hr max; 3.24 BTU/hr standby |
| Cooling | Fanless |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 4,113,947 hours |
Physical
| Dimensions (W x D x H) | 158 x 101 x 27 mm |
| Weight | 0.40 kg |
| Mounting | Desktop or wall mount |
Certifications
| EMC | CE, FCC Part 15 Class B, IC Class B, RCM, VCCI, KC |
| Safety | CB, CE LVD |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type (Auto MDI/MDI-X).
PoE Compatibility
Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices.
Typical Use
Small offices, home offices and retail that need to power a few IP cameras, VoIP phones or access points from one compact switch.
Package Contents & 300 Series Unmanaged PoE Ordering Information
In the Box
GS305P switch, DC power adapter, detachable power cable, wall-mount screws, 4 rubber footpads, installation guide.
NETGEAR 300 Series Unmanaged PoE Models
| Model | Ports / PoE | Part No. |
| GS305P (this listing) | 5 x GE, 4 x PoE+, 63W | GS305P-300UKS |
| GS305PP | 5 x GE, 4 x PoE+, 83W | GS305PP-300UKS |
| GS308PP | 8 x GE, 8 x PoE+, 83W | GS308PP-100EUS |
| GS316P | 16 x GE, 16 x PoE+, 115W | GS316P-100EUS |
| GS316PP | 16 x GE, 16 x PoE+, 183W | GS316PP-100EUS |
| GS324P | 24 x GE, 16 x PoE+, 190W | GS324P-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | 300 Series Gigabit Unmanaged Essentials PoE Switches Datasheet (PDF) |
| Installation guide | GS305Pv3 / GS305PPv3 Installation Guide (PDF) |
| NETGEAR product page | GS305P on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS305P-300UKS.
Frequently Asked Questions — NETGEAR GS305P
Does the GS305P need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
How many devices can it power?
Four. Ports 1–4 are PoE+ (up to 30 W each) sharing a 63 W total budget; port 5 is for the uplink.
What happens if the PoE budget is exceeded?
NETGEAR's installation guide states PoE is prioritised by port order, with port 1 highest, so the highest-numbered ports are cut first.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
