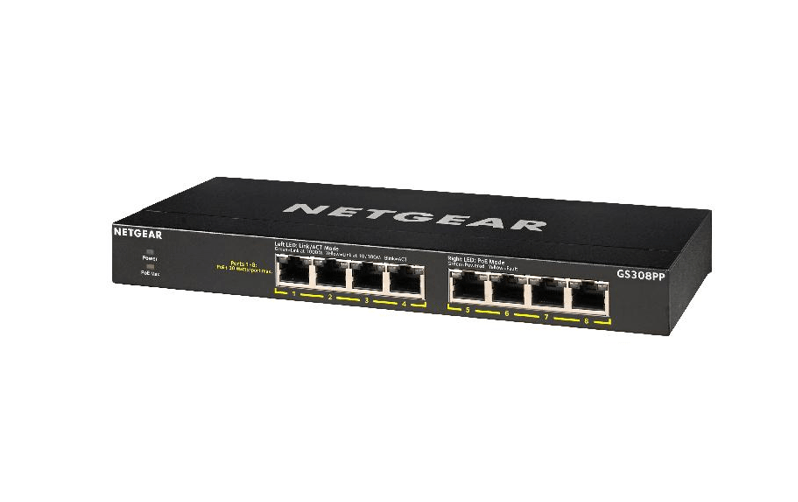

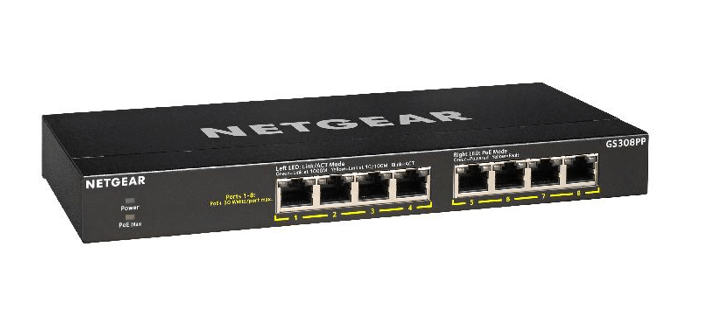

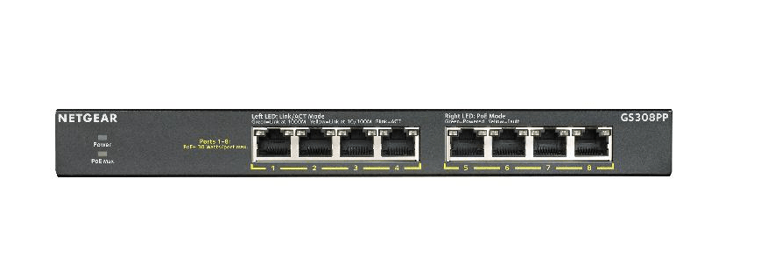

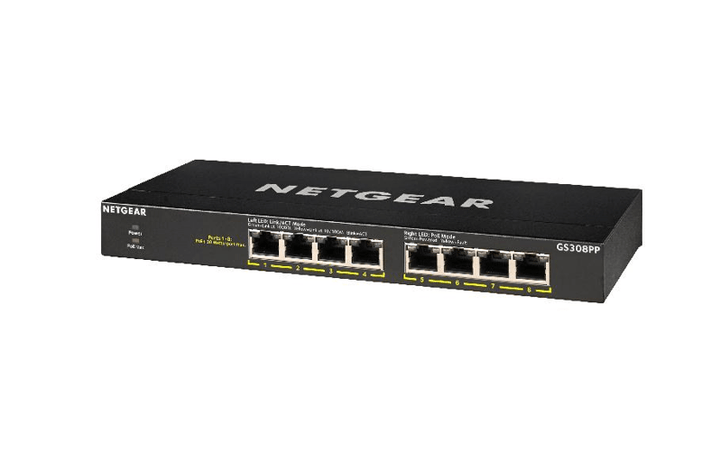

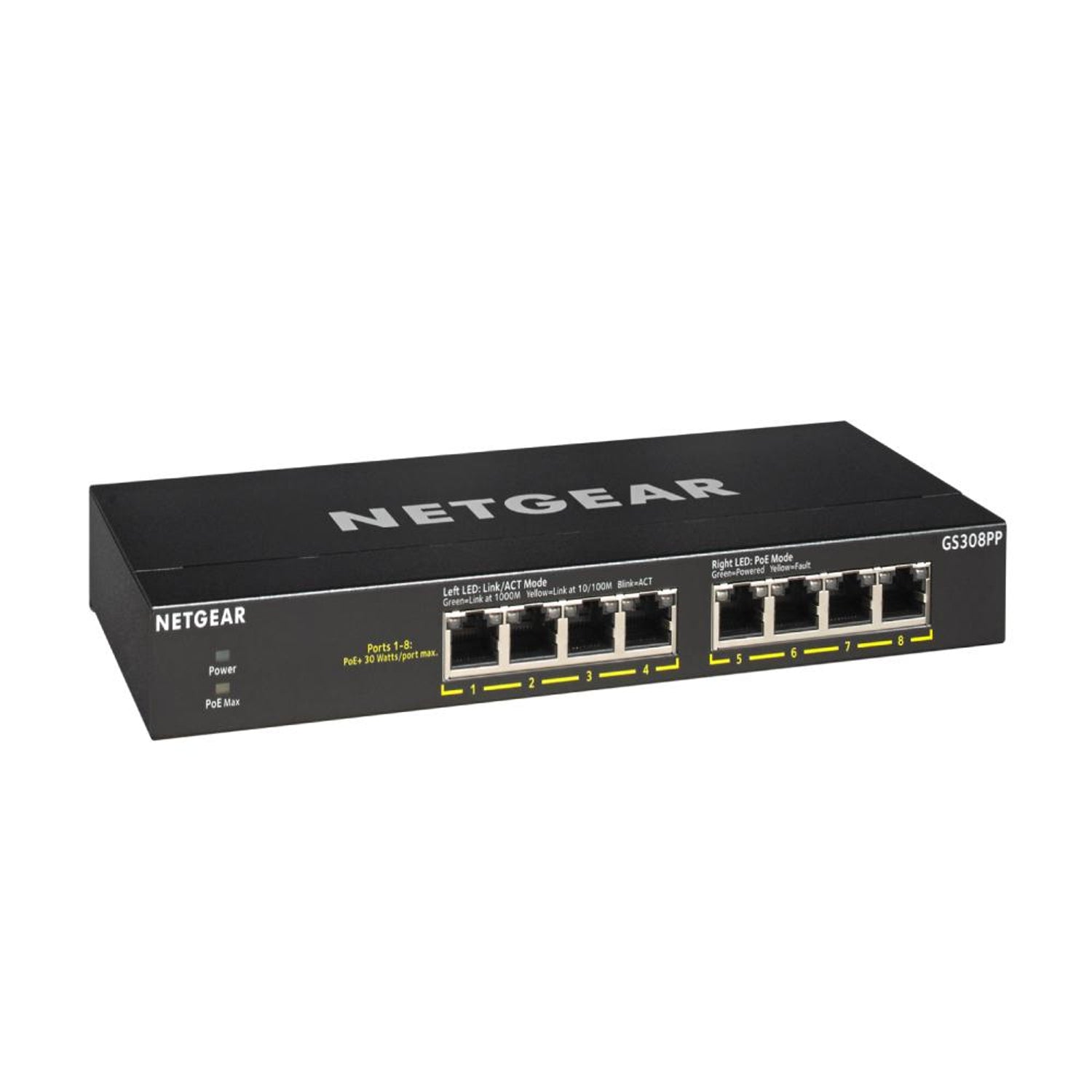

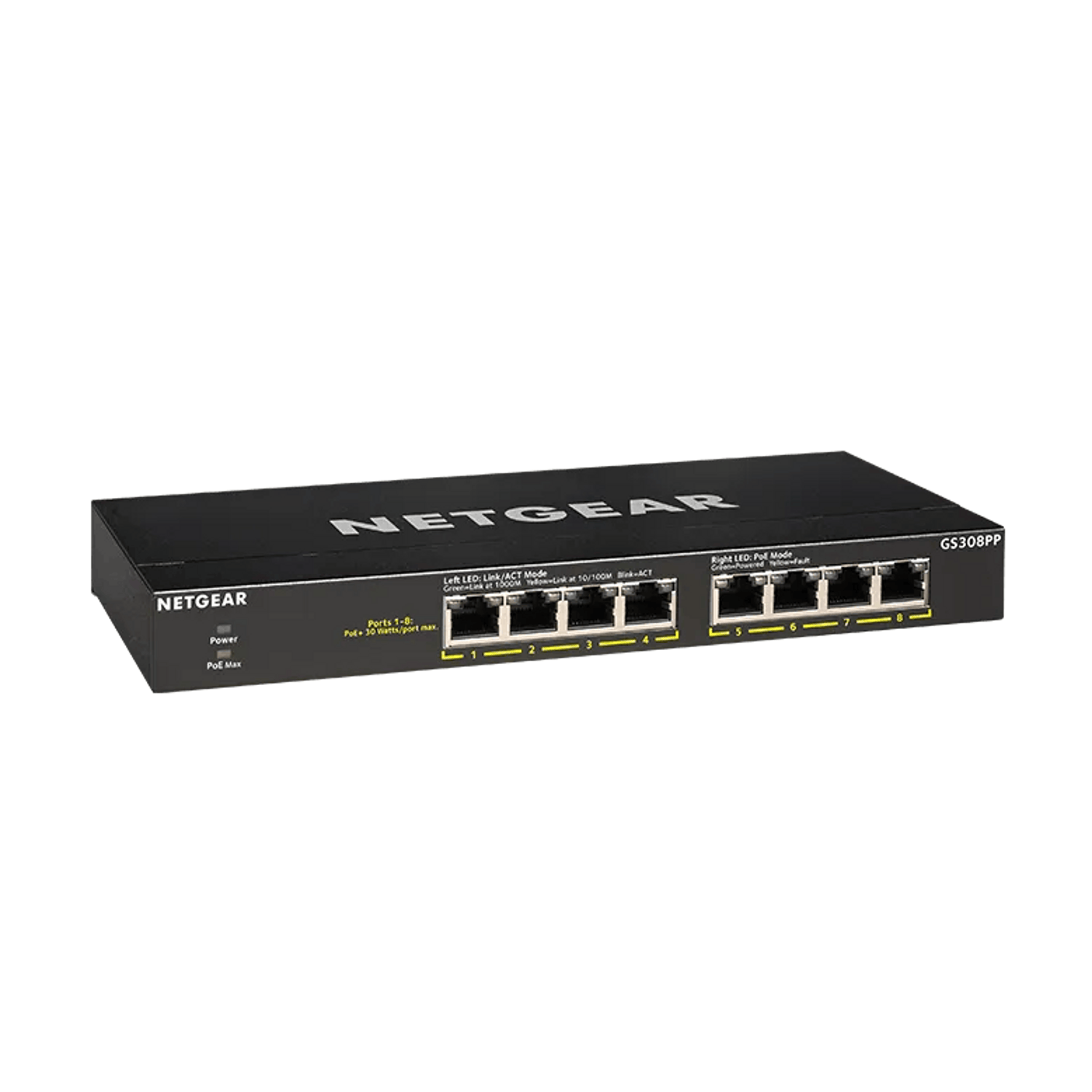

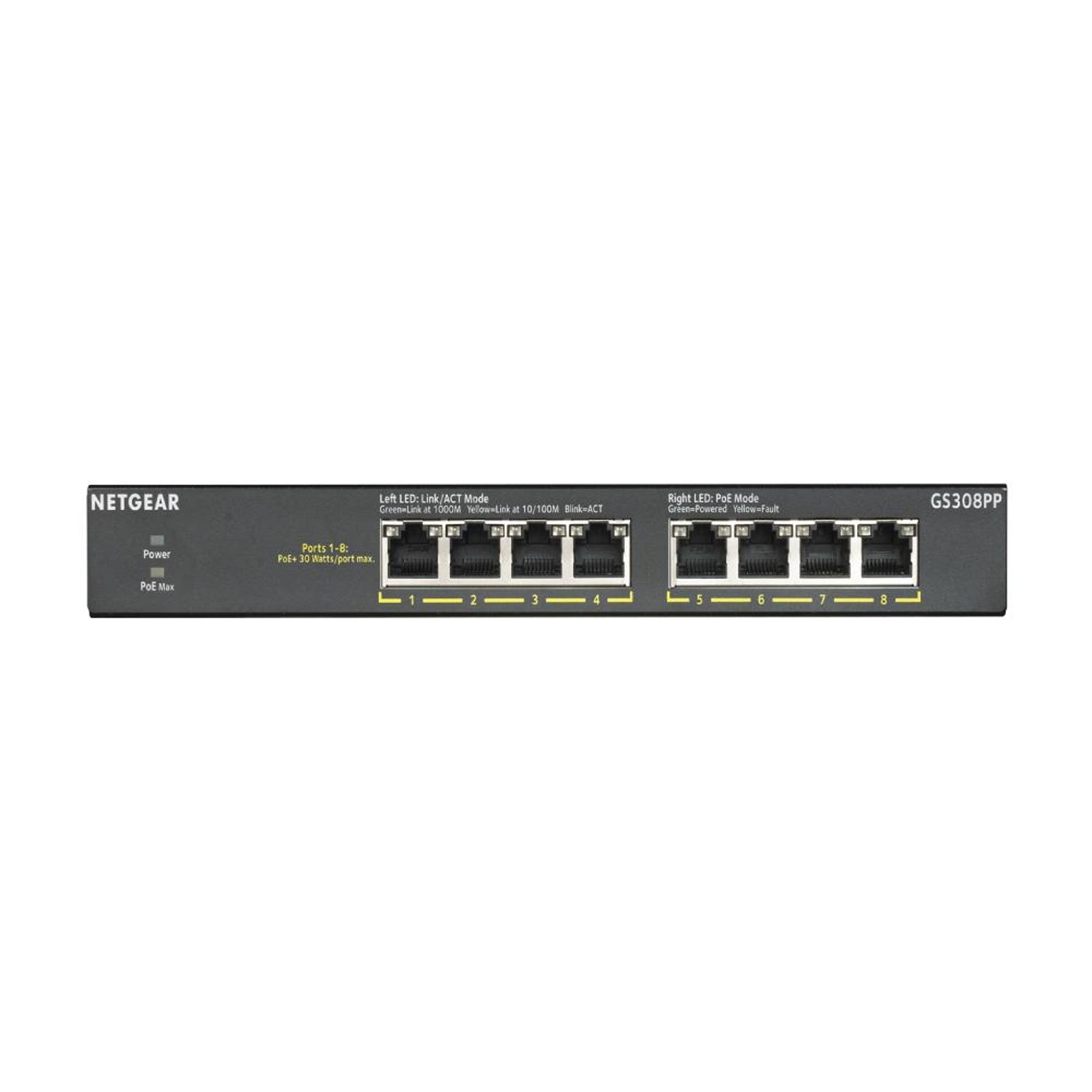

NETGEAR GS308PP 8-Port Gigabit PoE+ Unmanaged Switch, 83W FlexPoE, Fanless
PRODUCT DESCRIPTION
NETGEAR GS308PP 8-Port Gigabit Ethernet PoE+ Unmanaged Switch, 83W (GS308PP-100EUS) - 3 Years Local Warranty
Eight PoE+ Ports, 83W Budget
The NETGEAR GS308PP is an 8-port Gigabit Ethernet unmanaged switch where every port delivers IEEE 802.3af/at PoE+ at up to 30 W, from an 83 W total budget with the included 90 W power adapter.
FlexPoE — Upgrade Power Later

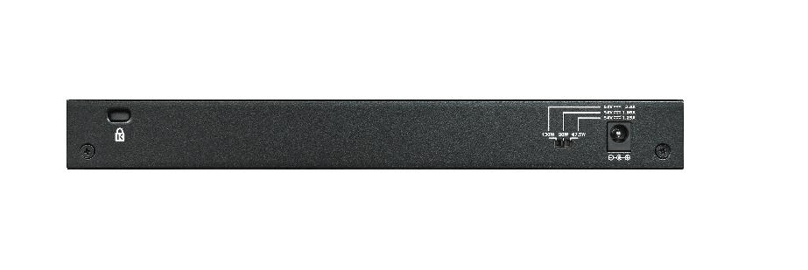

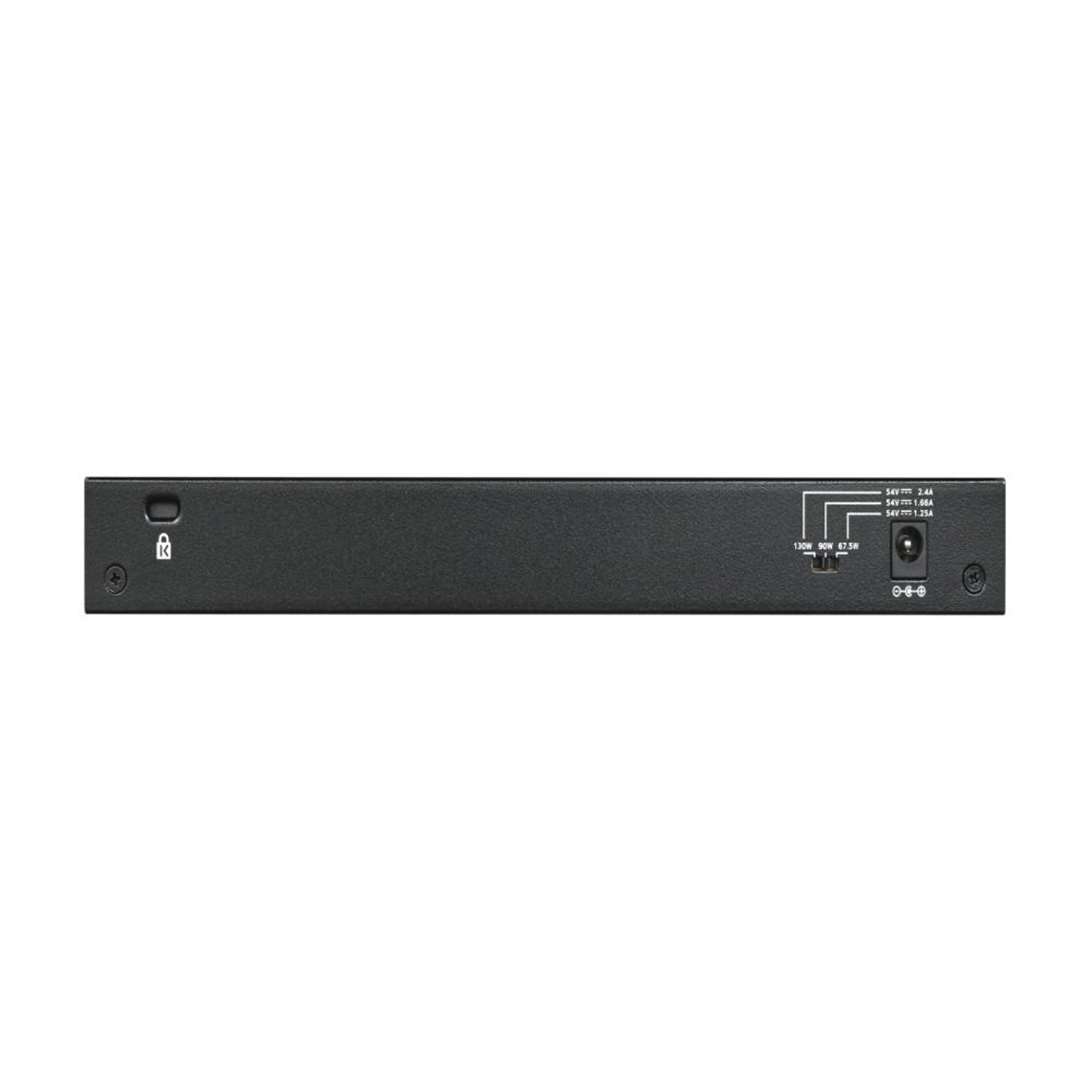

With NETGEAR FlexPoE you can raise the PoE budget to 123 W by fitting the optional NETGEAR EPS130W power adapter (sold separately) and setting the rear PoE budget slider to match — no need to replace the switch as your devices grow.
Plug-and-Play, Silent Operation
No configuration is needed and PoE auto-balance allocates power to each device's actual needs. The fanless metal case runs silently on a desk or wall, with 802.3az Energy Efficient Ethernet and auto power-down.
Need help choosing? Email sales@sourceit.com.sg with your device count and PoE power needs and we will size it for you.
NETGEAR GS308PP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS308PP 8-Port Gigabit Ethernet PoE+ Unmanaged Switch, 83W |
| Part Number | GS308PP-100EUS |
| Series | NETGEAR 300 Series Gigabit Unmanaged Essentials PoE Switches |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 8 x 10/100/1000BASE-T RJ-45, all PoE+ (802.3af/at, up to 30 W per port) |
| PoE Budget | 83 W with included EPS90W adapter; 123 W with optional EPS130W (FlexPoE) |
Performance
| Switching Capacity | 16 Gbps (non-blocking) |
| Forwarding Rate | 1,488,000 pps (64-byte packets at 1000 Mbps) |
| Latency | < 3.0 µs |
| MAC Address Table | 4K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | IEEE 802.1p (CoS), honours DSCP tags |
Power & Environmental
| Power Supply | External 90 W adapter (EPS90W), 54 V DC @ 1.66 A |
| Power Consumption | 90 W max; 3.86 W standby |
| Heat Dissipation | 300.6 BTU/hr max; 3.69 BTU/hr standby |
| Cooling | Fanless |
| Operating Temperature | 0 to 45 °C |
| Operating Humidity | 10–90% RH, non-condensing |
| MTBF | 2,752,476 hours |
Physical
| Dimensions (W x D x H) | 236 x 102 x 27 mm |
| Weight | 0.6 kg |
| Mounting | Desktop or wall mount |
Certifications
| EMC | CE, FCC Part 15 Class A, IC Class A, RCM, VCCI, KC |
| Safety | CB, CE LVD |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type (Auto MDI/MDI-X).
PoE Compatibility
Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices.
Typical Use
Offices, shops and homes powering up to eight PoE devices such as IP cameras, phones and access points from one quiet switch.
Package Contents & 300 Series Unmanaged PoE Ordering Information
In the Box
GS308PP switch, power adapter, wall-mount kit, rubber footpads, installation guide.
NETGEAR 300 Series Unmanaged PoE Models
| Model | Ports / PoE | Part No. |
| GS305P | 5 x GE, 4 x PoE+, 63W | GS305P-300UKS |
| GS305PP | 5 x GE, 4 x PoE+, 83W | GS305PP-300UKS |
| GS308PP (this listing) | 8 x GE, 8 x PoE+, 83W | GS308PP-100EUS |
| GS316P | 16 x GE, 16 x PoE+, 115W | GS316P-100EUS |
| GS316PP | 16 x GE, 16 x PoE+, 183W | GS316PP-100EUS |
| GS324P | 24 x GE, 16 x PoE+, 190W | GS324P-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | 300 Series Gigabit Unmanaged Essentials PoE Switches Datasheet (PDF) |
| Installation guide | GS308LP / GS308PP Installation Guide (PDF) |
| NETGEAR product page | GS308PP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS308PP-100EUS.
Frequently Asked Questions — NETGEAR GS308PP
Does the GS308PP need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Can I increase the PoE budget?
Yes. Fit the optional NETGEAR EPS130W adapter and set the rear slider to raise the budget from 83 W to 123 W (FlexPoE).
What happens if the PoE budget is exceeded?
NETGEAR's installation guide states PoE is prioritised by port order, with port 1 highest.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
