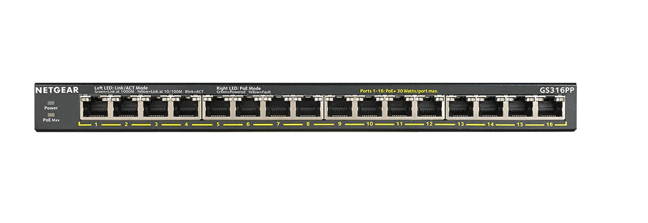

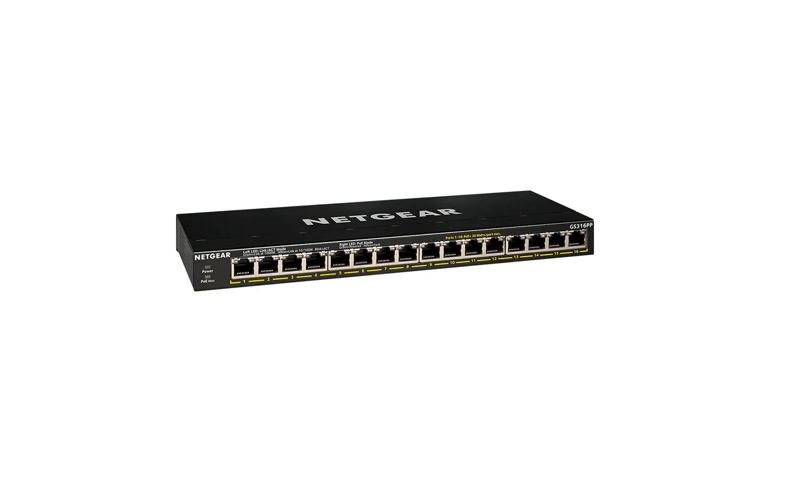

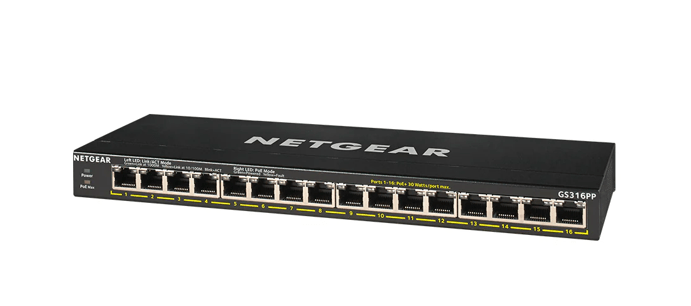

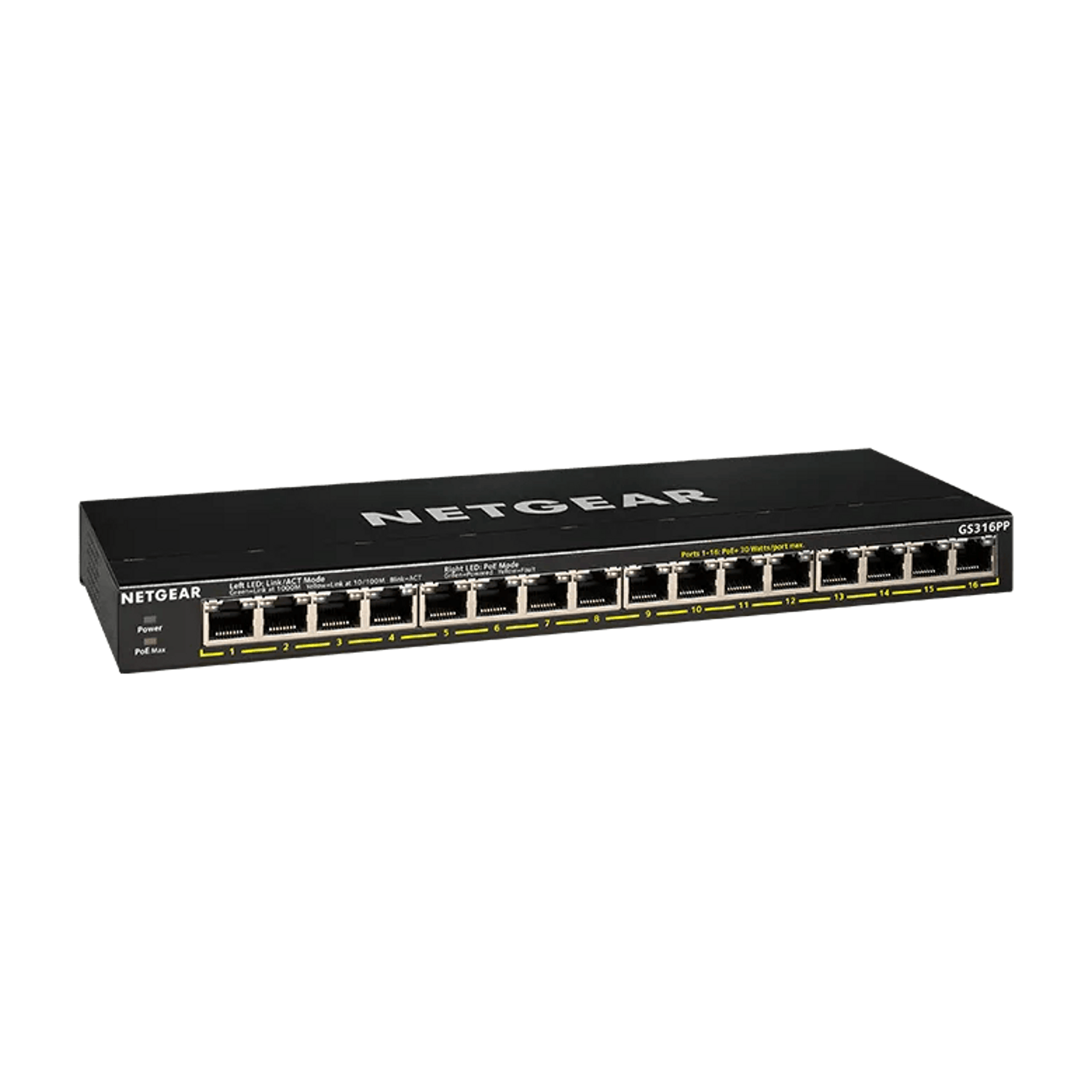

NETGEAR GS316PP 16-Port Gigabit High-Power PoE+ Unmanaged Switch, 183W FlexPoE, Fanless
PRODUCT DESCRIPTION
NETGEAR GS316PP 16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch, 183W (GS316PP-100EUS) - 3 Years Local Warranty

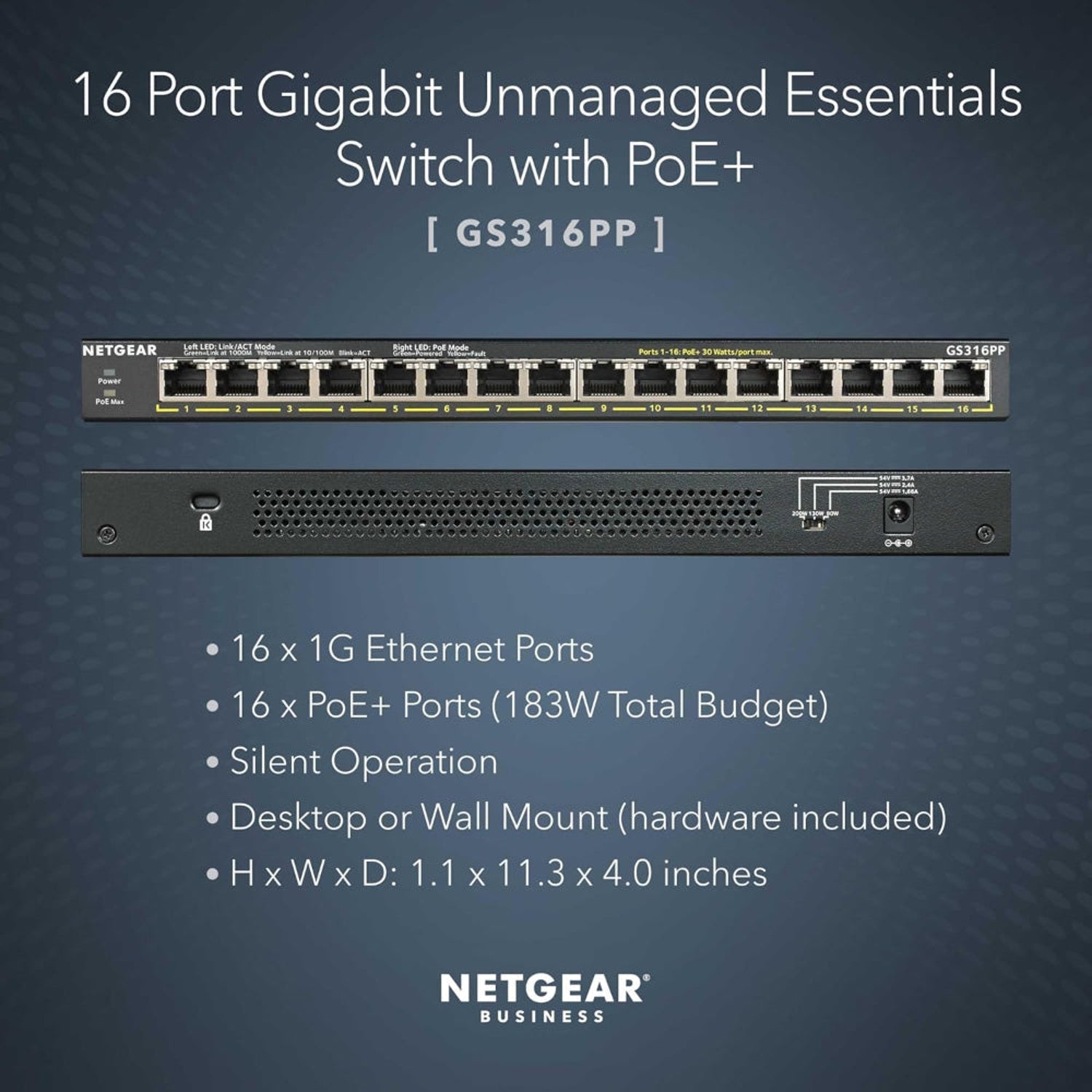

16 PoE+ Ports, 183W Budget
The NETGEAR GS316PP is the high-power 16-port model in NETGEAR's 300 Series Essentials range. All 16 Gigabit ports deliver IEEE 802.3af/at PoE+ at up to 30 W, from a 183 W total budget supplied by the included external power adapter.
FlexPoE Power Adapter
NETGEAR FlexPoE uses an interchangeable external power adapter, so the PoE budget can be increased or decreased at any time with optional NETGEAR FlexPoE adapters.
Silent, Non-Blocking, Energy Efficient
32 Gbps non-blocking switching and a 1 MB packet buffer in a fanless metal case. PoE auto-balance, 802.3az Energy Efficient Ethernet, auto power-down and short-cable detection come standard.
Need help choosing? Email sales@sourceit.com.sg with your device count and PoE power needs and we will size it for you.
NETGEAR GS316PP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS316PP 16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch, 183W |
| Part Number | GS316PP-100EUS |
| Series | NETGEAR 300 Series Gigabit Unmanaged Essentials PoE Switches |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 16 x 10/100/1000BASE-T RJ-45, all PoE+ (802.3af/at, up to 30 W per port) |
| PoE Budget | 183 W (FlexPoE) |
Performance
| Switching Capacity | 32 Gbps (non-blocking) |
| Forwarding Rate | 1,488,000 pps (64-byte packets) |
| Latency | < 3.7 µs average |
| MAC Address Table | 4K |
| Packet Buffer | 1 MB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | IEEE 802.1p |
Power & Environmental

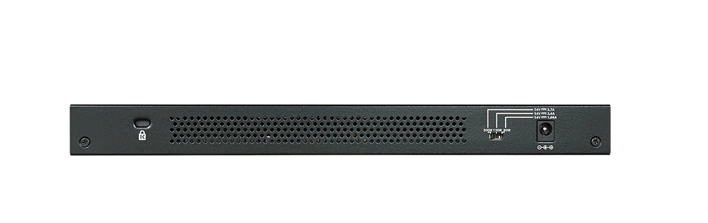

| Power Supply | External 200 W adapter, 54 V DC @ 3.7 A |
| Power Consumption | 195.9 W max; 2.67 W standby |
| Heat Dissipation | 669.9 BTU/hr max; 9.14 BTU/hr standby |
| Cooling | Fanless |
| Operating Temperature | 0 to 45 °C |
| Operating Humidity | 10–90% RH, non-condensing |
| MTBF | 2,362,192 hours at 25 °C |
Physical
| Dimensions (W x D x H) | 286 x 102 x 27 mm |
| Weight | 0.88 kg |
| Mounting | Desktop or wall mount (wall-mount kit included) |
Certifications
| EMC | CE, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC |
| Safety | CB, CE LVD |
Compatibility & Software Support
Management

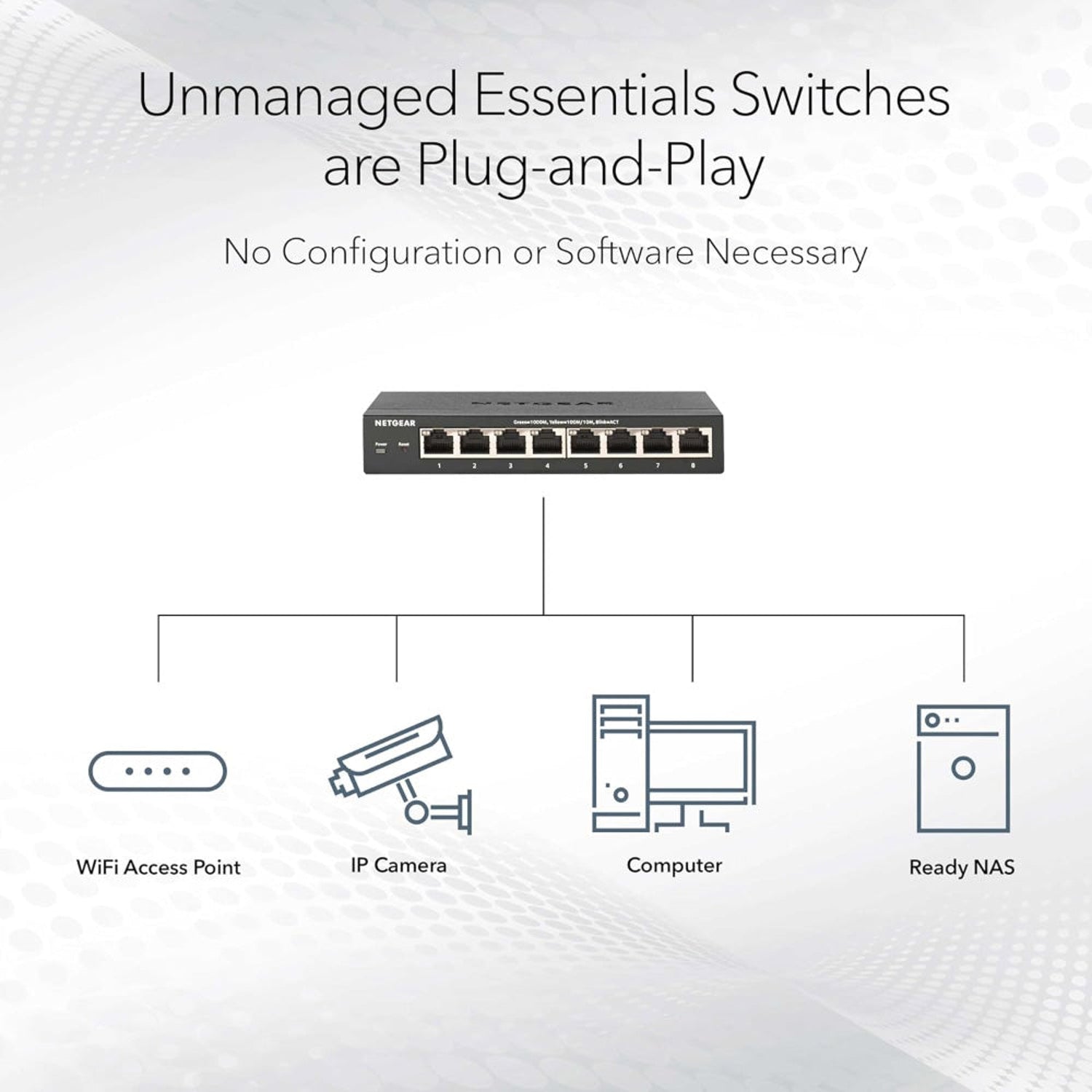

Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type (Auto MDI/MDI-X).
PoE Compatibility

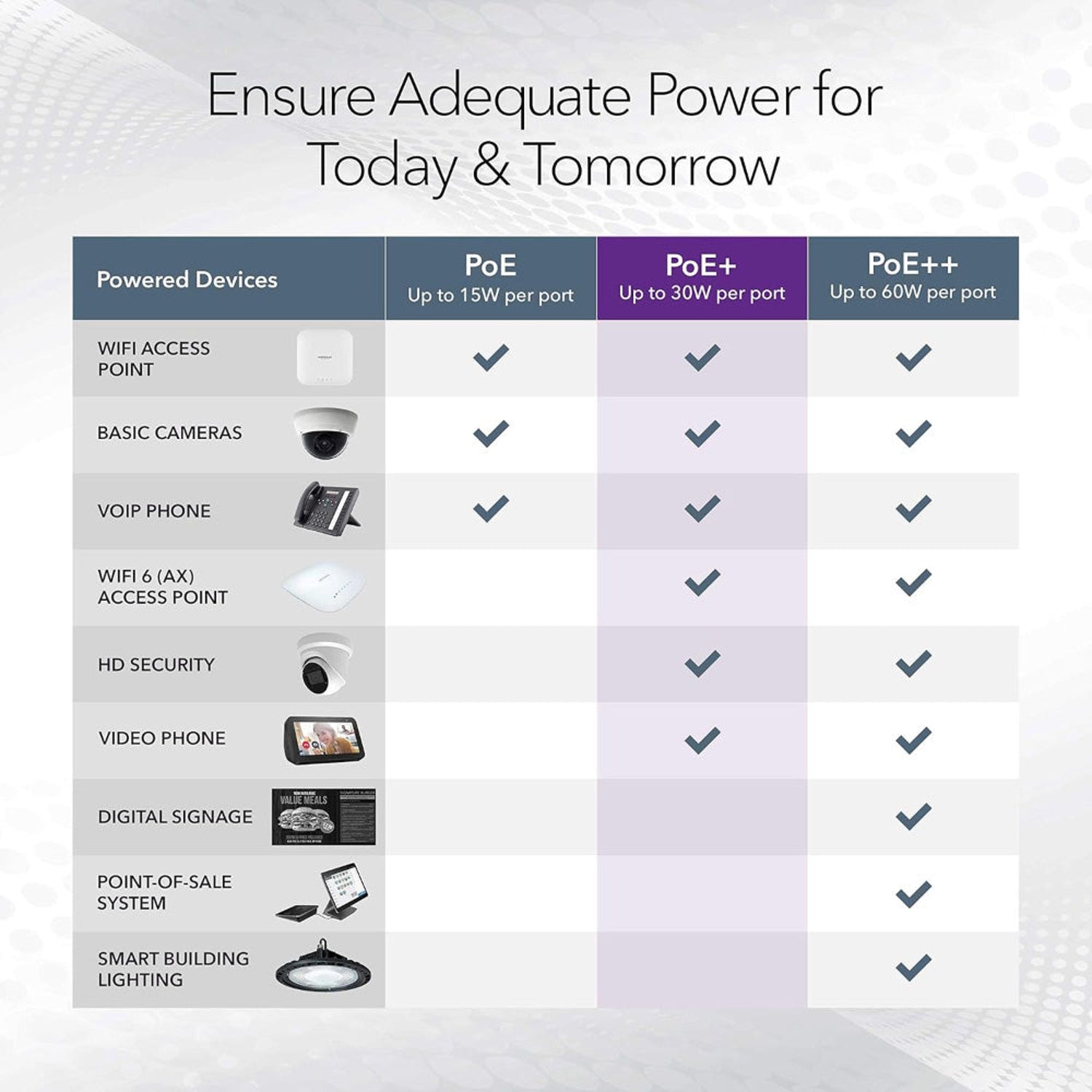

Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices.
Typical Use
Deployments powering up to 16 PoE/PoE+ devices — CCTV cameras, access points, VoIP phones — that need more budget than the 115 W GS316P.
Package Contents & 300 Series Unmanaged PoE Ordering Information
In the Box
GS316PP switch, power adapter, wall-mount kit, rubber footpads, installation guide.
NETGEAR 300 Series Unmanaged PoE Models
| Model | Ports / PoE | Part No. |
| GS305P | 5 x GE, 4 x PoE+, 63W | GS305P-300UKS |
| GS305PP | 5 x GE, 4 x PoE+, 83W | GS305PP-300UKS |
| GS308PP | 8 x GE, 8 x PoE+, 83W | GS308PP-100EUS |
| GS316P | 16 x GE, 16 x PoE+, 115W | GS316P-100EUS |
| GS316PP (this listing) | 16 x GE, 16 x PoE+, 183W | GS316PP-100EUS |
| GS324P | 24 x GE, 16 x PoE+, 190W | GS324P-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | 300 Series Gigabit Unmanaged Essentials PoE Switches Datasheet (PDF) |
| Installation guide | GS316P / GS316PP Installation Guide (PDF) |
| NETGEAR product page | GS316PP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS316PP-100EUS.
Frequently Asked Questions — NETGEAR GS316PP
Does the GS316PP need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
What is the difference between GS316P and GS316PP?
Both have 16 Gigabit PoE+ ports. The GS316PP ships with a 183 W PoE budget; the GS316P ships with 115 W.
Is it silent?
Yes. NETGEAR's datasheet lists it as fanless.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
