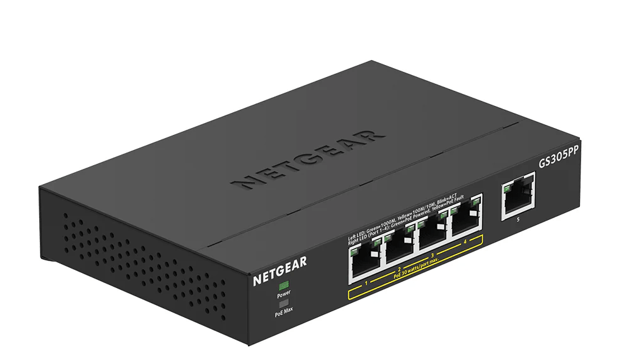

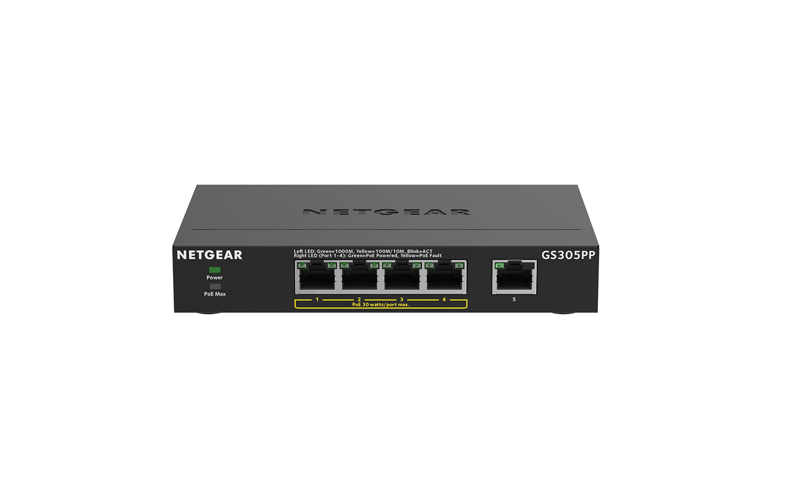

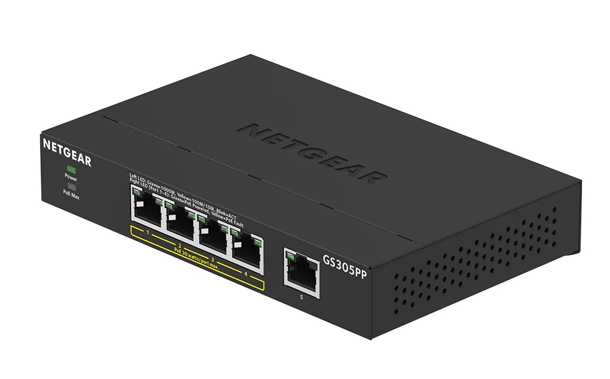

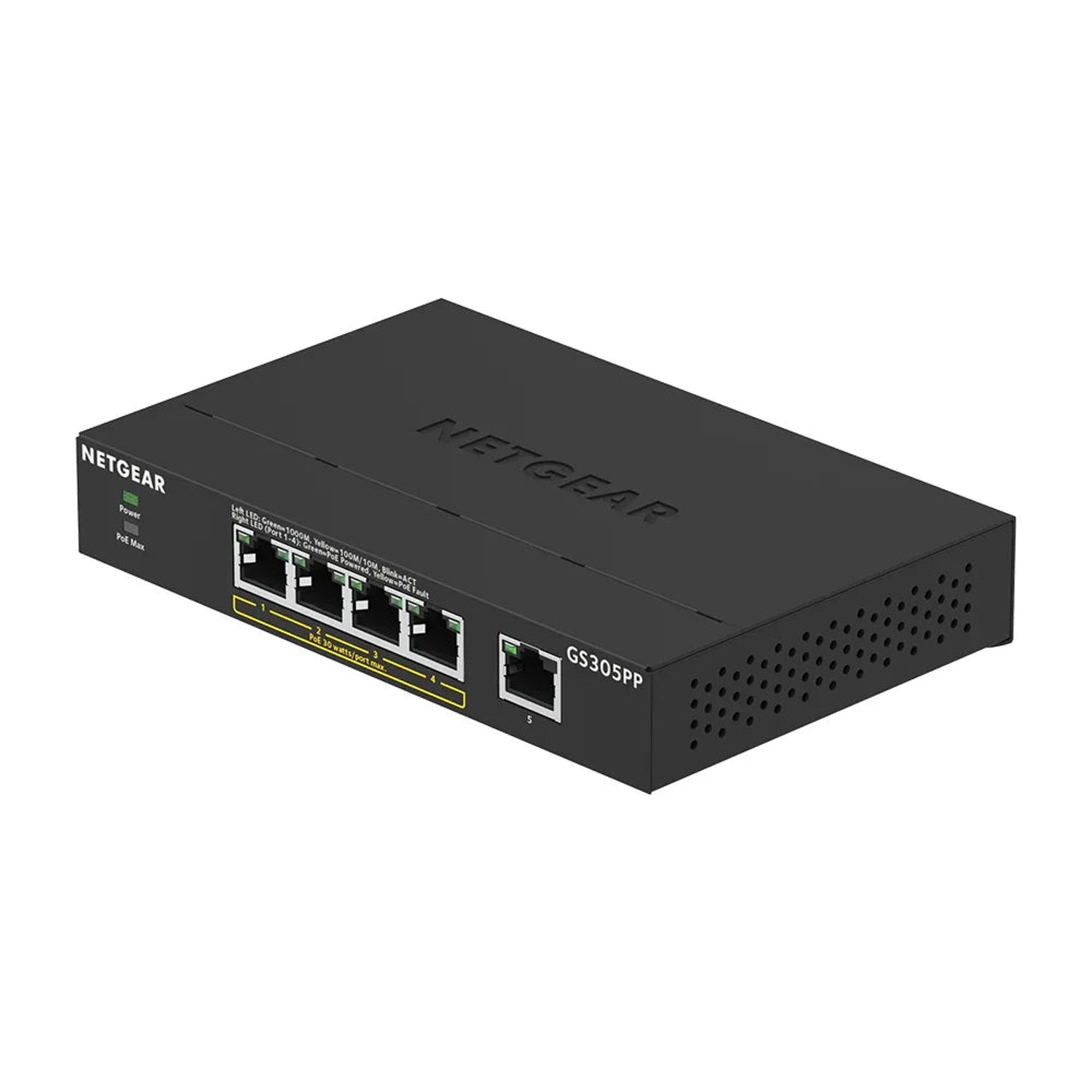

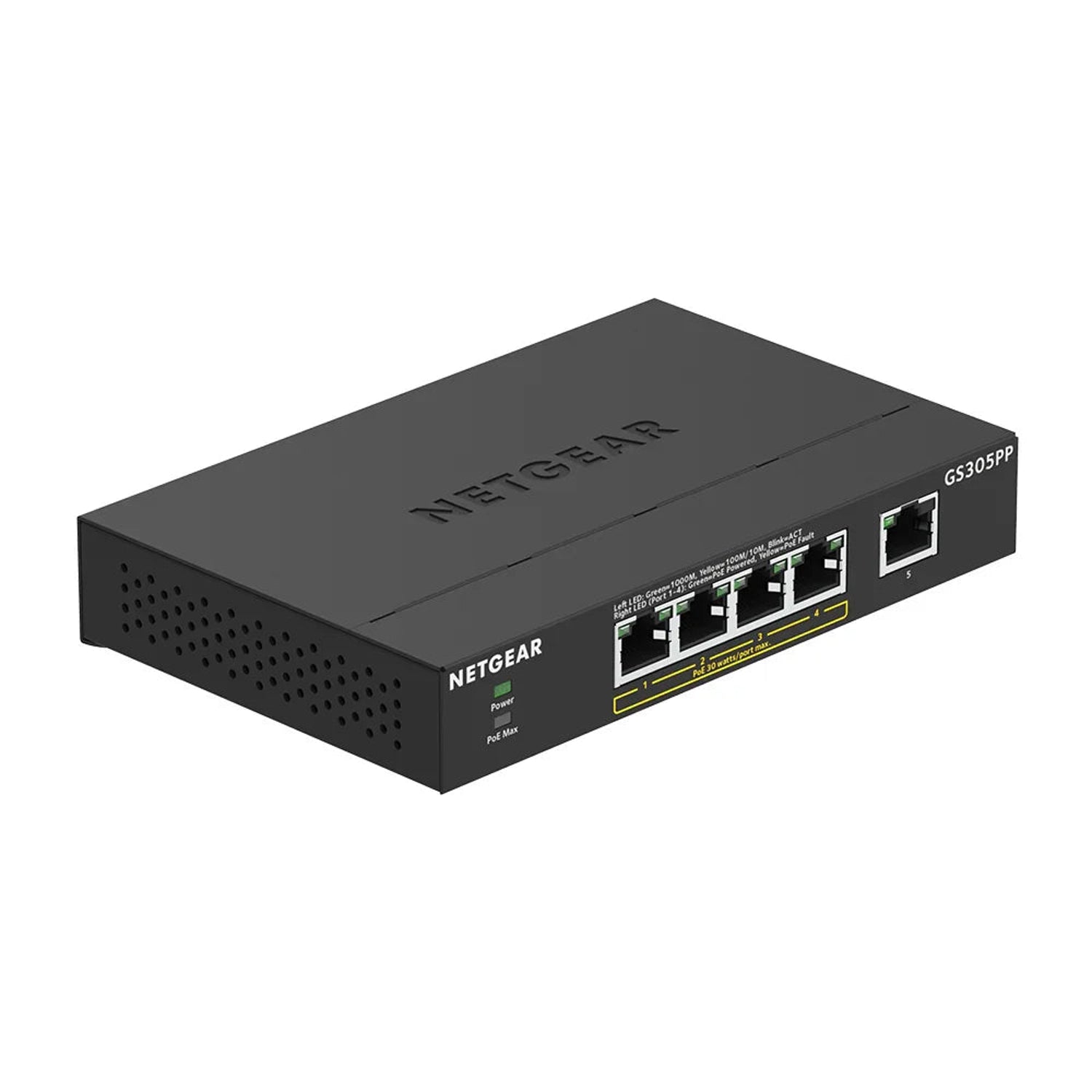

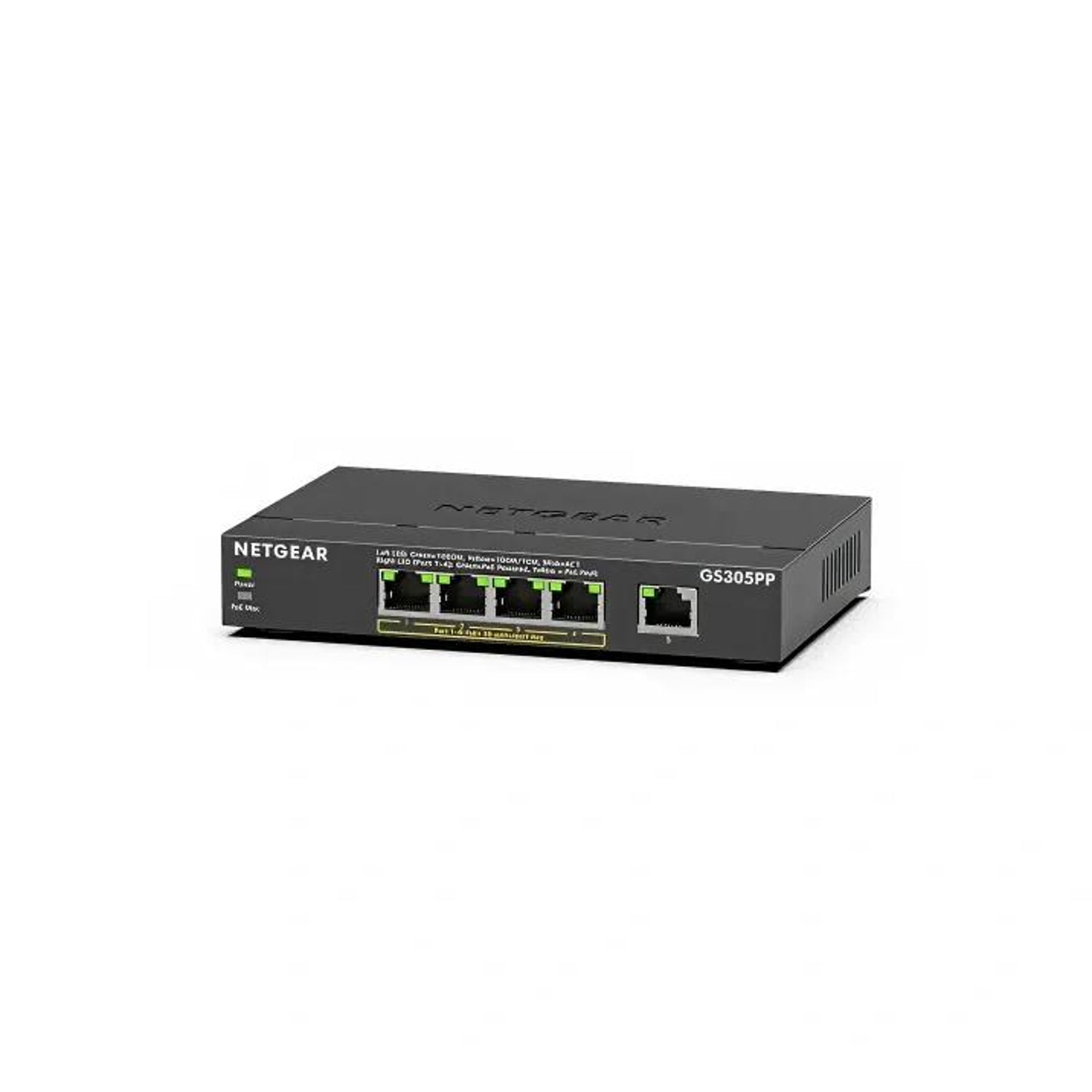

NETGEAR GS305PP 5-Port Gigabit PoE+ Unmanaged Switch, 4 x PoE+ 83W, Fanless Desktop
PRODUCT DESCRIPTION
NETGEAR GS305PP 5-Port Gigabit Ethernet PoE+ Unmanaged Switch, 83W (GS305PP-300UKS) - 3 Years Local Warranty
Four PoE+ Ports, 83W Budget
The NETGEAR GS305PP (GS305PPv3) is a 5-port Gigabit Ethernet unmanaged switch from NETGEAR's 300 Series Essentials range. Ports 1–4 deliver IEEE 802.3af/at PoE+ at up to 30 W each from an 83 W total budget — 20 W more than the GS305P for power-hungry cameras and access points.
Plug-and-Play with PoE Auto-Balance
No software or configuration is required. NETGEAR's PoE auto-balance allocates power based on each device's actual needs, independent of the PoE class detected.
Silent, Compact and Energy Efficient
The fanless metal design runs silently on a desk or wall. IEEE 802.3az Energy Efficient Ethernet, auto power-down and short-cable detection reduce power use.
Need help choosing? Email sales@sourceit.com.sg with your device count and PoE power needs and we will size it for you.
NETGEAR GS305PP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS305PP 5-Port Gigabit Ethernet PoE+ Unmanaged Switch, 83W |
| Part Number | GS305PP-300UKS |
| Series | NETGEAR 300 Series Gigabit Unmanaged Essentials PoE Switches (GS305PPv3) |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 5 x 10/100/1000BASE-T RJ-45; ports 1–4 PoE+ (802.3af/at, up to 30 W per port) |
| PoE Budget | 83 W |
Performance
| Switching Capacity | 10 Gbps (non-blocking) |
| Forwarding Rate | 1,488,000 pps (64-byte packets at 1000 Mbps) |
| Latency | < 2.4 µs |
| MAC Address Table | 2K |
| Packet Buffer | 128 KB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | IEEE 802.1p (CoS), honours DSCP tags |
Power & Environmental

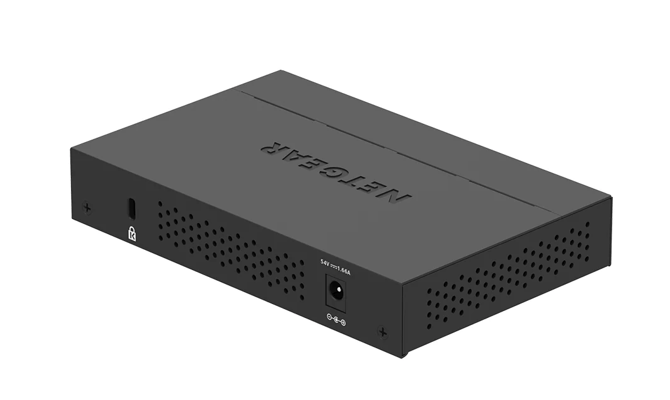

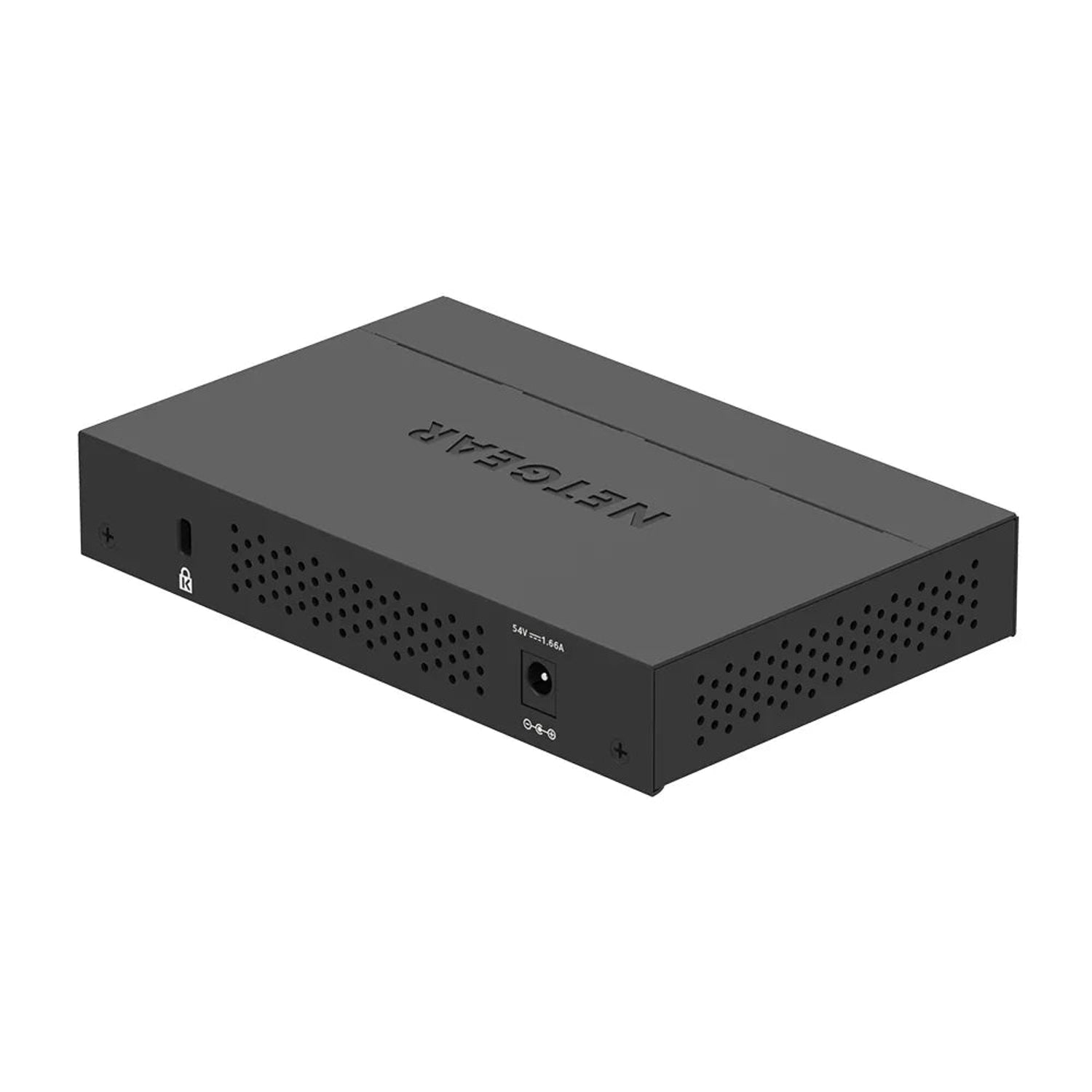

| Power Supply | External adapter, 54 V DC @ 1.66 A |
| Power Consumption | 85.77 W max; 1.01 W standby |
| Heat Dissipation | 293.33 BTU/hr max; 3.078 BTU/hr standby |
| Cooling | Fanless |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 4,113,947 hours |
Physical
| Dimensions (W x D x H) | 158 x 101 x 27 mm |
| Weight | 0.40 kg |
| Mounting | Desktop or wall mount |
Certifications
| EMC | CE, FCC Part 15 Class B, IC Class B, RCM, VCCI, KC |
| Safety | CB, CE LVD |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type (Auto MDI/MDI-X).
PoE Compatibility
Standards-based IEEE 802.3af (PoE) and 802.3at (PoE+) — works with PoE/PoE+ IP cameras, VoIP phones, wireless access points and IoT devices.
Typical Use
Small offices and homes powering up to four PoE+ devices — IP cameras, VoIP phones, access points — that need more power headroom than the 63 W GS305P.
Package Contents & 300 Series Unmanaged PoE Ordering Information
In the Box
GS305PP switch, DC power adapter, detachable power cable, wall-mount screws, 4 rubber footpads, installation guide.
NETGEAR 300 Series Unmanaged PoE Models
| Model | Ports / PoE | Part No. |
| GS305P | 5 x GE, 4 x PoE+, 63W | GS305P-300UKS |
| GS305PP (this listing) | 5 x GE, 4 x PoE+, 83W | GS305PP-300UKS |
| GS308PP | 8 x GE, 8 x PoE+, 83W | GS308PP-100EUS |
| GS316P | 16 x GE, 16 x PoE+, 115W | GS316P-100EUS |
| GS316PP | 16 x GE, 16 x PoE+, 183W | GS316PP-100EUS |
| GS324P | 24 x GE, 16 x PoE+, 190W | GS324P-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | 300 Series Gigabit Unmanaged Essentials PoE Switches Datasheet (PDF) |
| Installation guide | GS305PPv3 Installation Guide (PDF) |
| NETGEAR product page | GS305PP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS305PP-300UKS.
Frequently Asked Questions — NETGEAR GS305PP
Does the GS305PP need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
What is the difference between GS305P and GS305PP?
Both have 5 Gigabit ports with 4 PoE+ ports. The GS305PP has an 83 W PoE budget versus 63 W on the GS305P.
What happens if the PoE budget is exceeded?
NETGEAR's installation guide states PoE is prioritised by port order, with port 1 highest.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
