J5Create JCH471 USB-C Multi-Adapter Gigabit Ethernet / USB 3.1 Hub
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JCH471 USB-C Multi-Adapter Gigabit Ethernet / USB 3.1 Hub - 2 Years Local Warranty
A compact USB-C mini dock that adds display, data and charging ports to a laptop, small enough to carry between desk and meeting room.
Key Features
- Gigabit Ethernet RJ-45 plus three USB 3.0 Type-A ports from one USB-C connection
- Wake-on-LAN, VLAN tagging, jumbo frame and checksum offload support
- Optional DC 5V power jack for high-draw USB devices
- Aluminium housing; works with Windows, macOS, Linux and Chrome OS
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCH471 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCH471 |
| Product Name | USB-C Multi-Adapter Gigabit Ethernet / USB 3.1 HUB |
| EAN | 4712795080797 |
Ports
| Host Interface | USB-C male |
| Ethernet | 1x RJ-45 female (Gigabit Ethernet, 10/100/1000 Mbps) |
| USB | 3x USB 3.0 Type-A female |
| Max Data Transfer Rate | 5 Gbps |
| LED | Activity and link indicators |

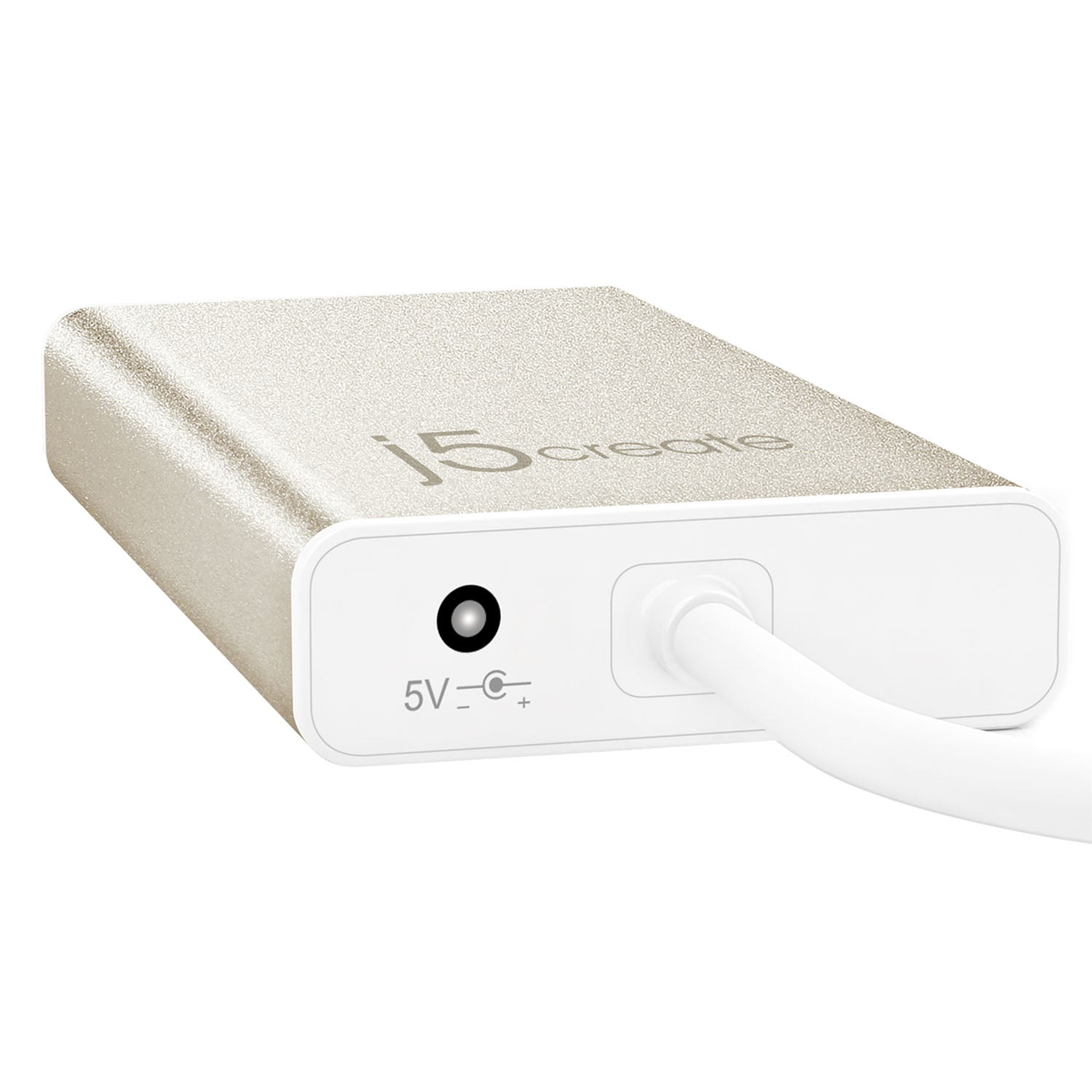

| Power Jack | DC 5V (3.5 mm OD, 1.35 mm ID) |
Networking
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3az, 802.3x |
| Features | Wake on LAN; suspend/remote wakeup (link-change, Magic Packet, Microsoft wake-up frame); IEEE 802.1Q VLAN tagging with 2 VLAN ID filtering; Jumbo Frame; checksum offload (IPv4, IPv6, TCP, UDP); TCP Large Send Offload |
Power
| Power Mode | Bus-powered or self-powered |
Compatibility
| OS | Windows 10 (driver required); macOS X v10.8 or later; Linux kernel 3.x / 2.6.x; Chrome OS |
| Driver | Not required for Chrome OS 3.8 and Linux 3.1x and up |
Physical
| Dimensions (W x H x D) | 43.75 x 90.6 x 18.6 mm (main body) |
| Cable Length | 14.5 cm |
| Weight | Approx. 58.5 g (including cable) |
| Housing | Aluminium |
Compatibility & System Requirements
System Requirements
- Windows 10
- macOS X v10.8 or later
- Linux Kernel 3.x / 2.6.x
- Available USB-C port
Compatibility
| OS | Windows 10 (driver required); macOS X v10.8 or later; Linux kernel 3.x / 2.6.x; Chrome OS |
| Driver | Not required for Chrome OS 3.8 and Linux 3.1x and up |
Package Contents & j5create USB-C Mini Docks Ordering Information
In the Box
- JCH471 USB-C Gigabit Ethernet & HUB Multi Adapter
- Quick Installation Guide
- Driver CD
j5create USB-C Mini Docks at SourceIT
| Model | Product |
| JCH471 (this listing) | USB-C Multi-Adapter Gigabit Ethernet / USB 3.1 HUB |
| JCD353 | USB-C to 4K HDMI Multi-Port Hub |
| JCD371 | USB-C to HDMI & USB 3.1 2-Port with Power Delivery |
| JCD373 | USB-C Multi-Port Hub with Power Delivery |
| JCD373EW | USB-C Multi-Port Hub with Power Delivery |
| JCD376 | USB-C Multiport Adapter with Power Delivery |
| JCD381 | USB-C Dual HDMI Mini Dock |
| JCD383 | USB-C Multi Adapter (9 Functions in 1) |
| JCD384 | USB-C Multi Adapter (10 Functions in 1) |
| JCD392 | 4K60 Elite USB-C 10Gbps Travel Dock |
| JCD396 | USB-C Dual HDMI 4K60 Mini Dock |
| JCD397 | 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock |
| JCD398 | USB-C Dual 4K HDMI 10Gbps Mini Dock |
| JCH462 | Wormhole Switch Display Sharing Hub |
Datasheet & Downloads
| j5create product page | JCH471 on j5create.com |
| Driver (Downloads & Drivers, JCH471 section) | Driver (Downloads & Drivers, JCH471 section) |
| Country of Origin Declaration (PDF) | Country of Origin Declaration (PDF) (PDF) |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCH471.
Frequently Asked Questions — j5create JCH471
Does it need a driver?
Not required for Chrome OS 3.8 and Linux 3.1x and up
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCH471 and the quantity for volume pricing and delivery lead time.
