J5Create JCD371 USB-C to HDMI & USB 3.1 2-Port with Power Delivery
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JCD371 USB-C to HDMI & USB 3.1 2-Port with Power Delivery - 2 Years Local Warranty

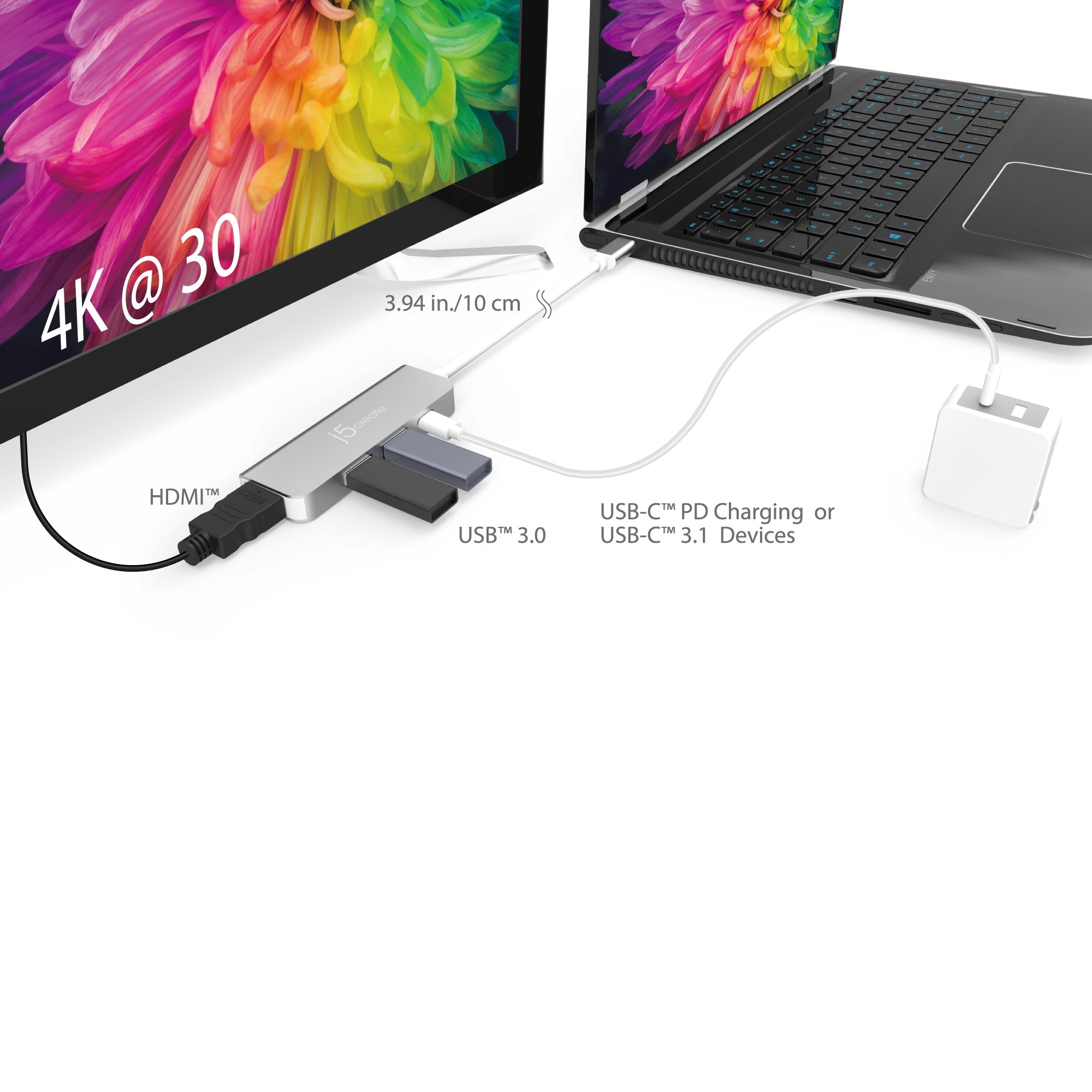

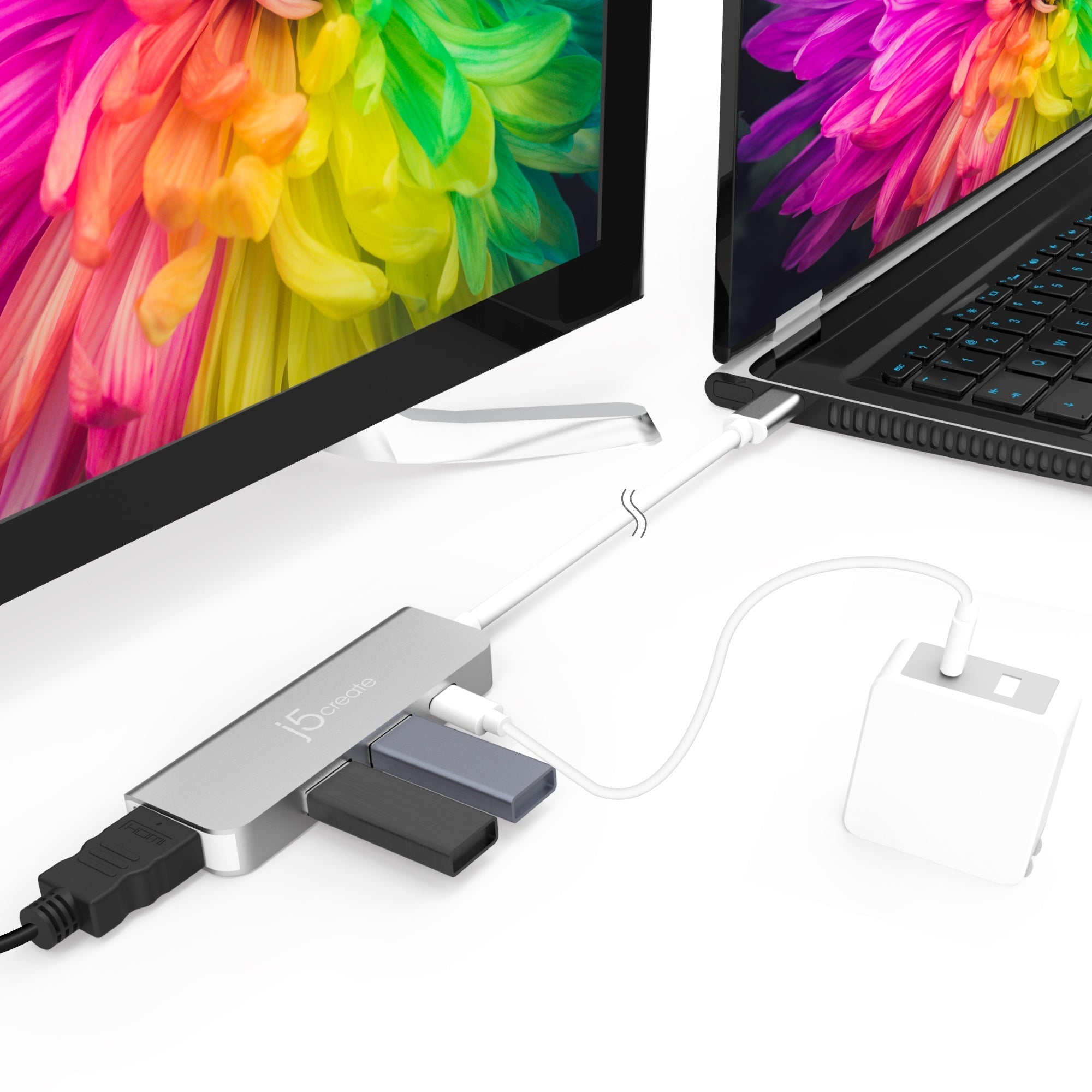

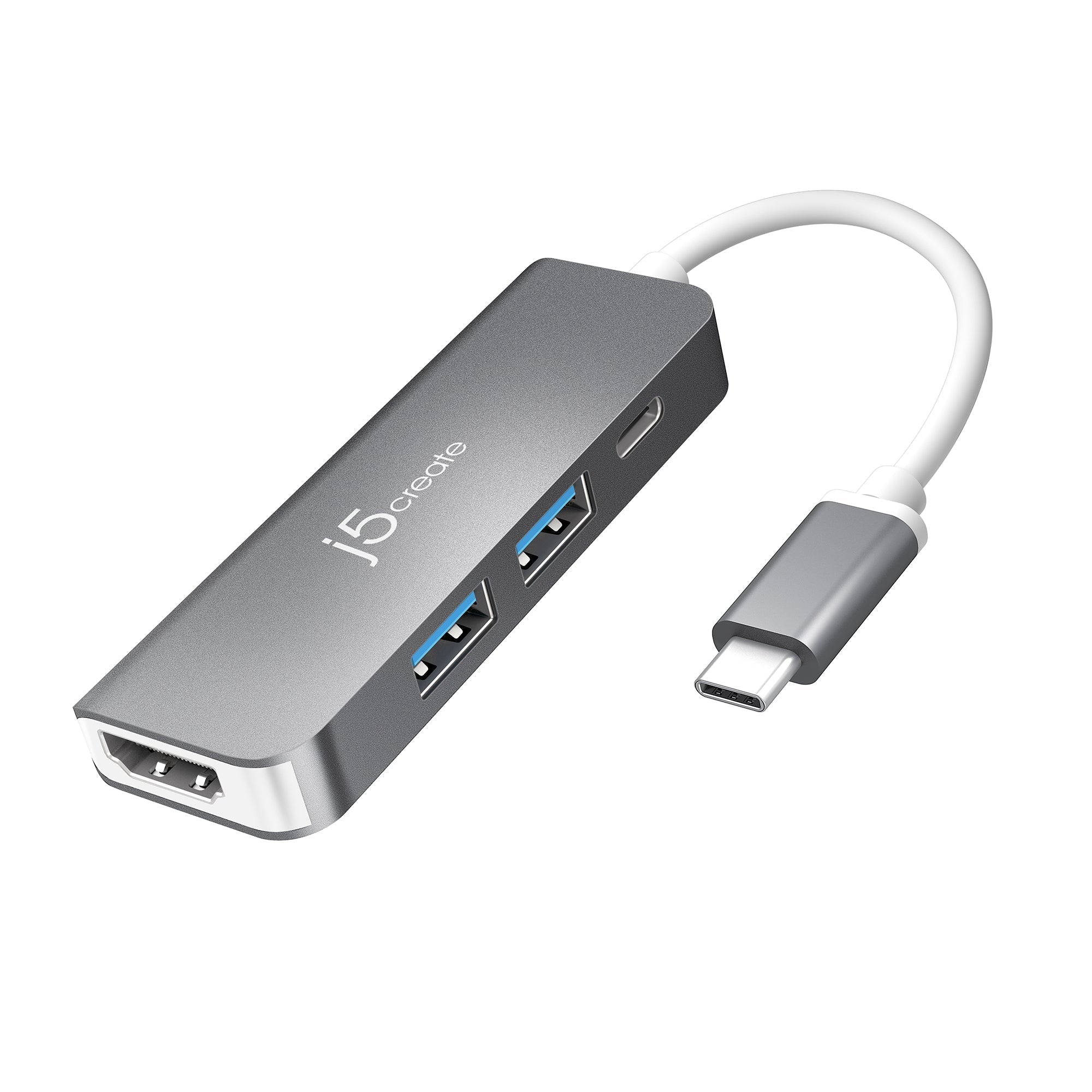

A compact USB-C mini dock that adds display, data and charging ports to a laptop, small enough to carry between desk and meeting room.
Key Features
- HDMI output up to 4K (30Hz), mirror or extend
- Two USB-A ports at up to 5Gbps
- USB-C Power Delivery pass-through charging up to 60W
- Small aluminium adapter, bus-powered
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCD371 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCD371 |
| Product Name | USB-C to HDMI & USB 3.1 2-Port with Power Delivery |
| EAN | 4712795083842 |
Video Output
| HDMI | 1x HDMI female, 4K |
| Max Resolution | 3840 x 2160 @ 30Hz |
| Max Refresh Rate | 30 Hz |
| Displays Supported | 1 |
| Display Modes | Mirror or extend |
| Audio Channel | 2.1 via HDMI |

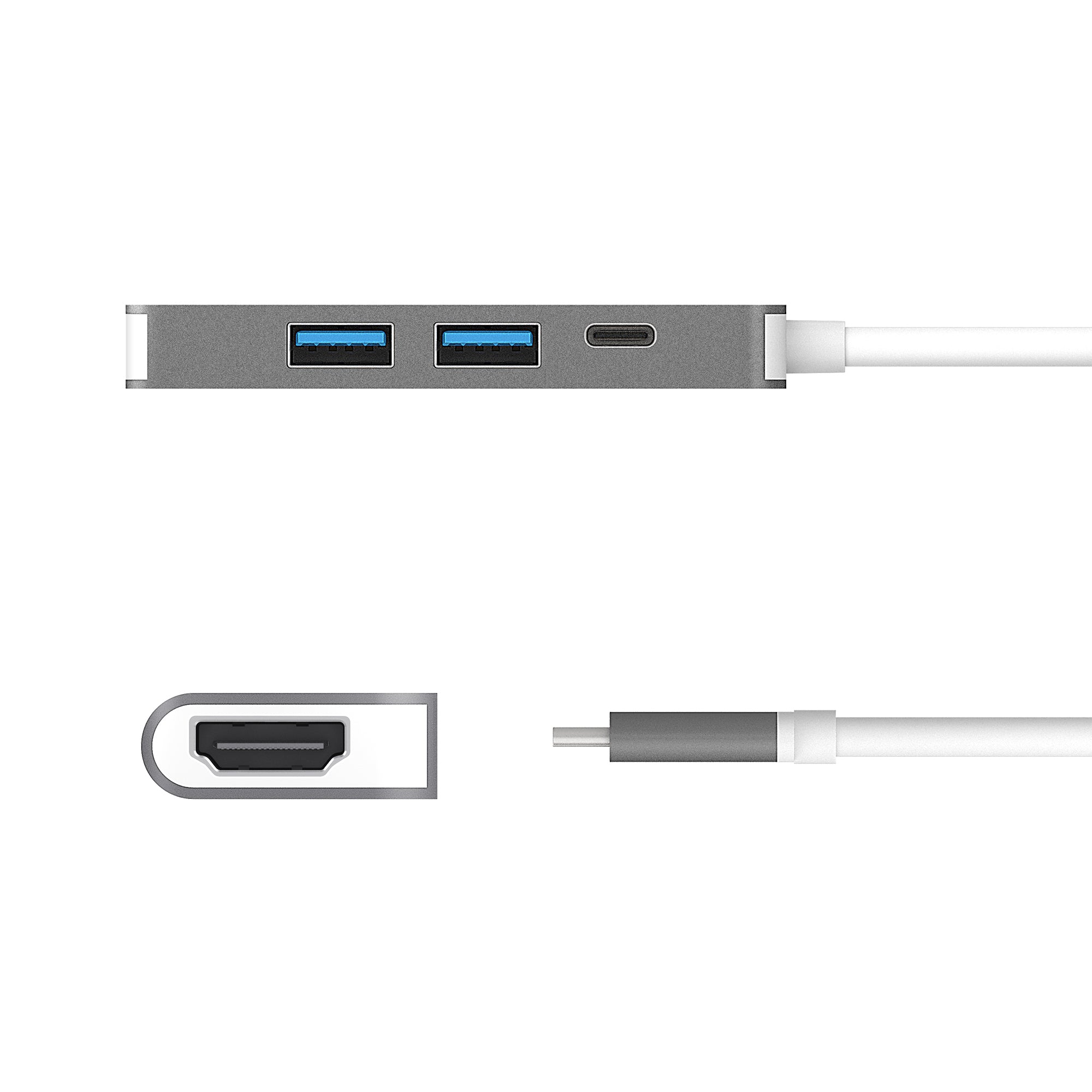

Ports
| Host Connector | 1x USB-C male |
| USB-A | 2x USB Type-A (5Gbps) |
| USB-C PD | 1x USB-C Power Delivery 2.0 |
| Max Data Transfer Rate | 5 Gbps |
Power
| Power Source | Bus-powered or self-powered |
| Power Delivery | Up to 60W via USB-C |
| Power Consumption | ≤ 500 mA |
Physical
| Dimensions (W x H x D) | 23 x 79 x 10 mm (0.9 x 3.11 x 0.4 in) |
| Weight | 32 g (1.13 oz) |
| Cable Length | 100 mm (3.94 in) |
| Colour | Space Grey |
| Enclosure | Aluminium, ABS plastic |
| Operating Temperature | -1 to 41°C |
| Storage Temperature | -17 to 68°C (0 to 155°F) |
| Operating / Storage Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- Available DisplayPort Alt Mode over USB-C port
- Available USB Power Delivery over USB-C to support upstream charging
- 4K-capable display required for 3840x2160
Package Contents & j5create USB-C Mini Docks Ordering Information
In the Box
- 1x JCD371 USB-C to HDMI & USB 3.1 2-Port with Power Delivery
- 1x Quick Installation Guide (QIG)
j5create USB-C Mini Docks at SourceIT
| Model | Product |
| JCH471 | USB-C Multi-Adapter Gigabit Ethernet / USB 3.1 HUB |
| JCD353 | USB-C to 4K HDMI Multi-Port Hub |
| JCD371 (this listing) | USB-C to HDMI & USB 3.1 2-Port with Power Delivery |
| JCD373 | USB-C Multi-Port Hub with Power Delivery |
| JCD373EW | USB-C Multi-Port Hub with Power Delivery |
| JCD376 | USB-C Multiport Adapter with Power Delivery |
| JCD381 | USB-C Dual HDMI Mini Dock |
| JCD383 | USB-C Multi Adapter (9 Functions in 1) |
| JCD384 | USB-C Multi Adapter (10 Functions in 1) |
| JCD392 | 4K60 Elite USB-C 10Gbps Travel Dock |
| JCD396 | USB-C Dual HDMI 4K60 Mini Dock |
| JCD397 | 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock |
| JCD398 | USB-C Dual 4K HDMI 10Gbps Mini Dock |
| JCH462 | Wormhole Switch Display Sharing Hub |
Datasheet & Downloads
| j5create product page | JCD371 on j5create.com |
| Downloads & Drivers (general) | Downloads & Drivers (general) |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCD371.
Frequently Asked Questions — j5create JCD371
How many external displays does it support?
1. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCD371 and the quantity for volume pricing and delivery lead time.
