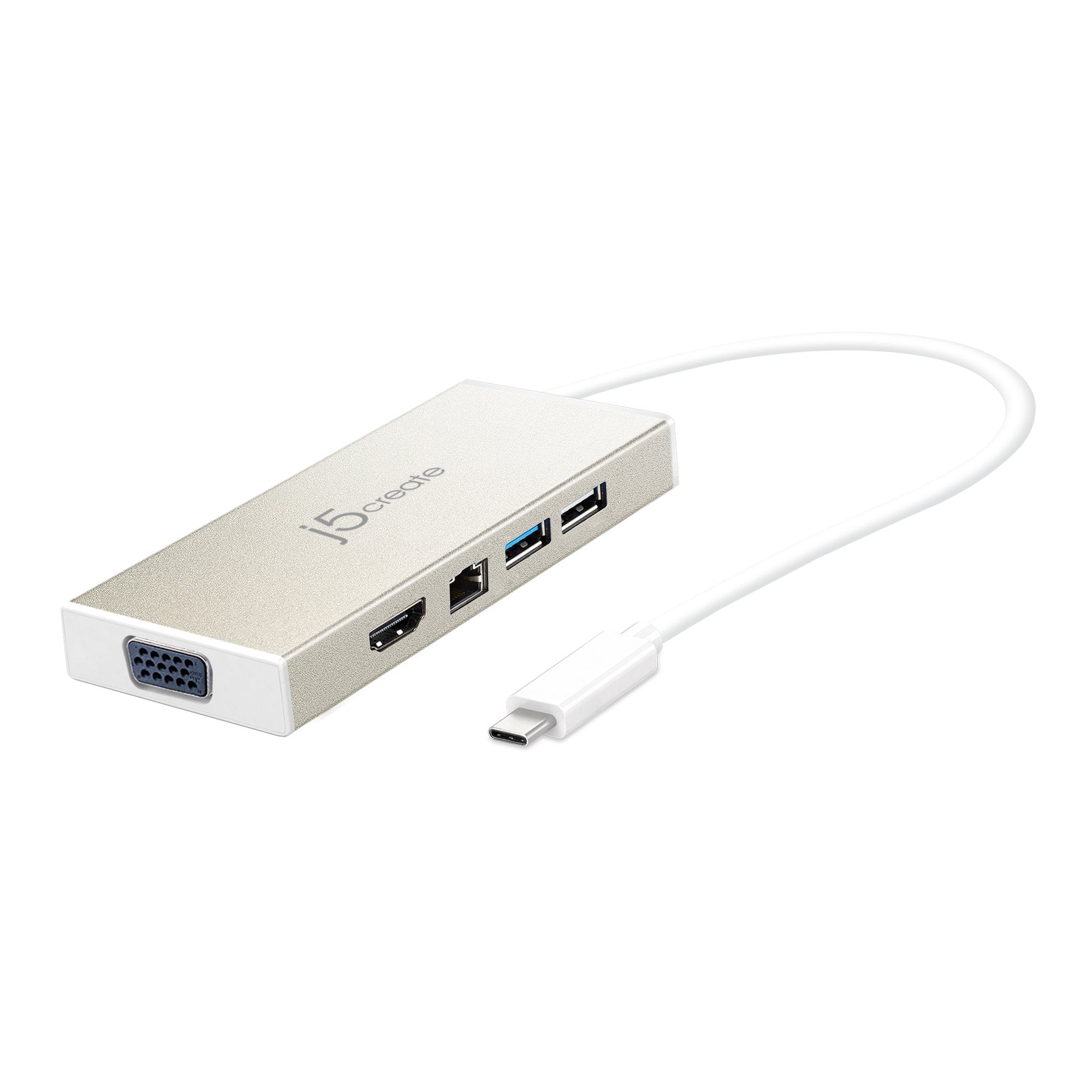

J5Create JCD376 USB-C Multiport Adapter with Power Delivery
PRODUCT DESCRIPTION
J5Create JCD376 USB-C Multiport Adapter with Power Delivery - 2 Years Local Warranty
A compact USB-C mini dock that adds display, data and charging ports to a laptop, small enough to carry between desk and meeting room.
Key Features
- One display via HDMI (up to 4K 30 Hz) or VGA (up to 1080p 60 Hz)
- Gigabit Ethernet plus USB 3.0 and USB 2.0 Type-A ports
- USB-C 3.1 Gen 1 port with PD 2.0 pass-through charging up to 60W
- Recyclable aluminium enclosure in champagne metallic
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCD376 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCD376 |
| Product Name | USB-C Multiport Adapter with Power Delivery |
| EAN | 4712795081367 |
Hardware
| Host connector | USB-C 3.1 Gen 1 male |
| Ports | 1 x HDMI; 1 x VGA; 1 x USB-C 3.1 Gen 1 with PD 2.0; 1 x USB 3.0 Type-A; 1 x USB 2.0 Type-A; 1 x RJ45 Gigabit Ethernet |
| Network interface | RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Audio | 2.1 channel via HDMI |
| Power source | Bus-powered or self-powered |
Performance
| Displays supported | 1 (HDMI or VGA) |
| Max resolution | HDMI 3840 x 2160 @ 30 Hz; VGA 1920 x 1080 @ 60 Hz |
| Max data transfer rate | 5 Gbps |
| USB-C downstream charging | Up to 900 mA |
Power
| Power delivery | Up to 60W via USB-C (PD 2.0) |
| Input | Up to 20V / up to 3A |
| Output | Up to 20V / up to 3A |
| Power consumption | ≤ 500 mA |
Physical
| Cable length | 200 mm (7.87 in) |
| Colour | Champagne Metallic |
| Enclosure | Aluminium |
| Dimensions (D x H x W) | 15.2 x 115 x 53.3 mm (0.6 x 4.53 x 2.1 in) |
| Weight | 95 g (3.35 oz) |
| Operating temperature | 0 to 40°C (32 to 104°F) |
| Storage temperature | -10 to 65°C (14 to 149°F) |
| Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- Available USB-C port with DisplayPort Alt Mode and USB PD 2.0 (USB 3.1 recommended)
- DisplayPort 1.2 for 4K at 30 Hz; DisplayPort 1.1 for 1920 x 1200 at 60 Hz
- 4K display needed for 3840 x 2160
- Attach a USB-C power adapter for high-power devices; do not unplug it during file copies
Package Contents & j5create USB-C Mini Docks Ordering Information
In the Box
- 1 x JCD376 USB-C 3.1 Mini Dock
- 1 x Quick Installation Guide
j5create USB-C Mini Docks at SourceIT
| Model | Product |
| JCH471 | USB-C Multi-Adapter Gigabit Ethernet / USB 3.1 HUB |
| JCD353 | USB-C to 4K HDMI Multi-Port Hub |
| JCD371 | USB-C to HDMI & USB 3.1 2-Port with Power Delivery |
| JCD373 | USB-C Multi-Port Hub with Power Delivery |
| JCD373EW | USB-C Multi-Port Hub with Power Delivery |
| JCD376 (this listing) | USB-C Multiport Adapter with Power Delivery |
| JCD381 | USB-C Dual HDMI Mini Dock |
| JCD383 | USB-C Multi Adapter (9 Functions in 1) |
| JCD384 | USB-C Multi Adapter (10 Functions in 1) |
| JCD392 | 4K60 Elite USB-C 10Gbps Travel Dock |
| JCD396 | USB-C Dual HDMI 4K60 Mini Dock |
| JCD397 | 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock |
| JCD398 | USB-C Dual 4K HDMI 10Gbps Mini Dock |
| JCH462 | Wormhole Switch Display Sharing Hub |
Datasheet & Downloads
| j5create product page | JCD376 on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
| Downloads & Drivers page | Downloads & Drivers page |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCD376.
Frequently Asked Questions — j5create JCD376
How many external displays does it support?
1 (HDMI or VGA). Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
How much charging power reaches my laptop?
Up to about 60W, based on j5create’s published output rating, when a suitable USB-C PD power adapter is connected (adapter sold separately unless listed in the box).
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCD376 and the quantity for volume pricing and delivery lead time.
