J5Create JCD383 USB-C Multi Adapter (9 Functions in 1)
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JCD383 USB-C Multi Adapter (9 Functions in 1) - 2 Years Local Warranty

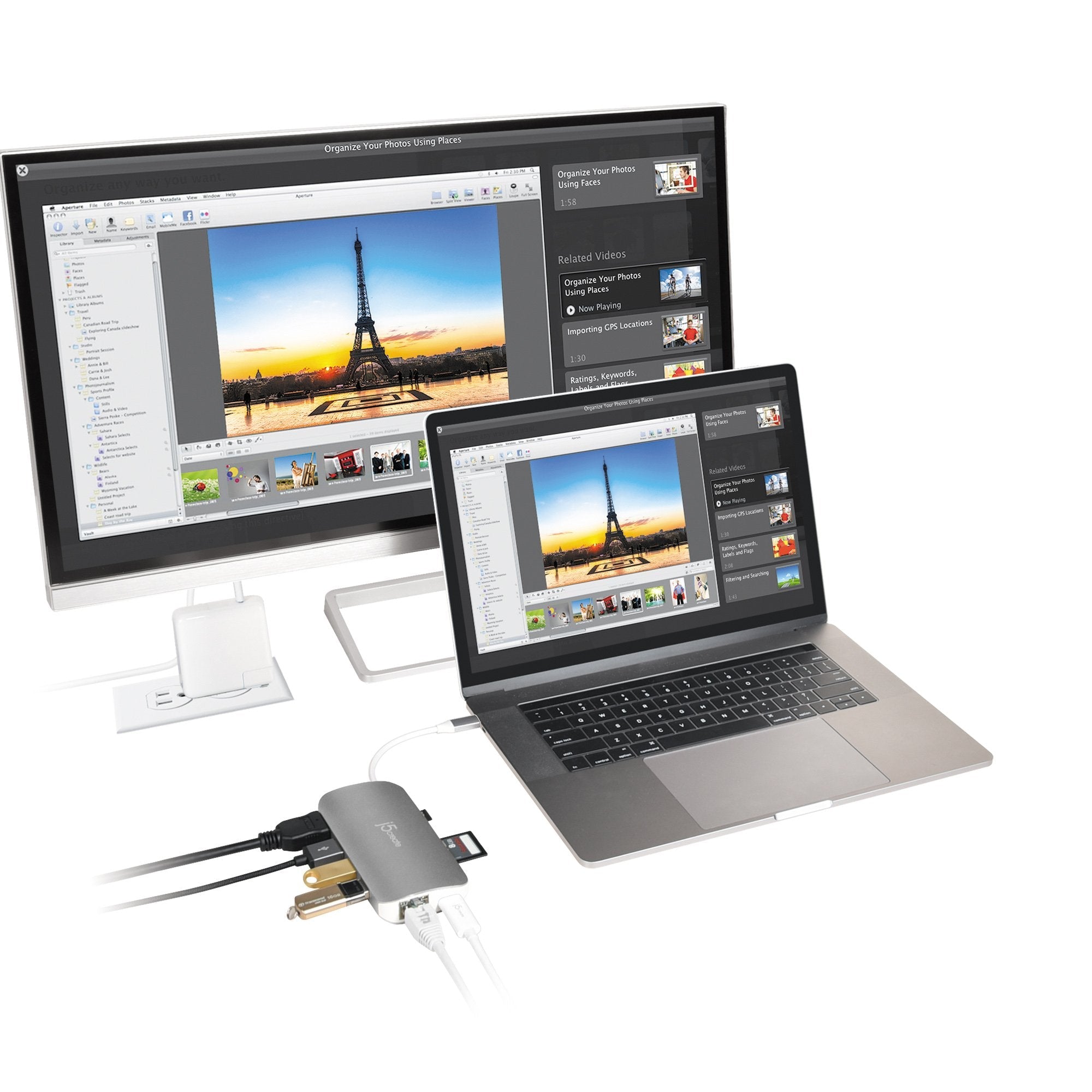

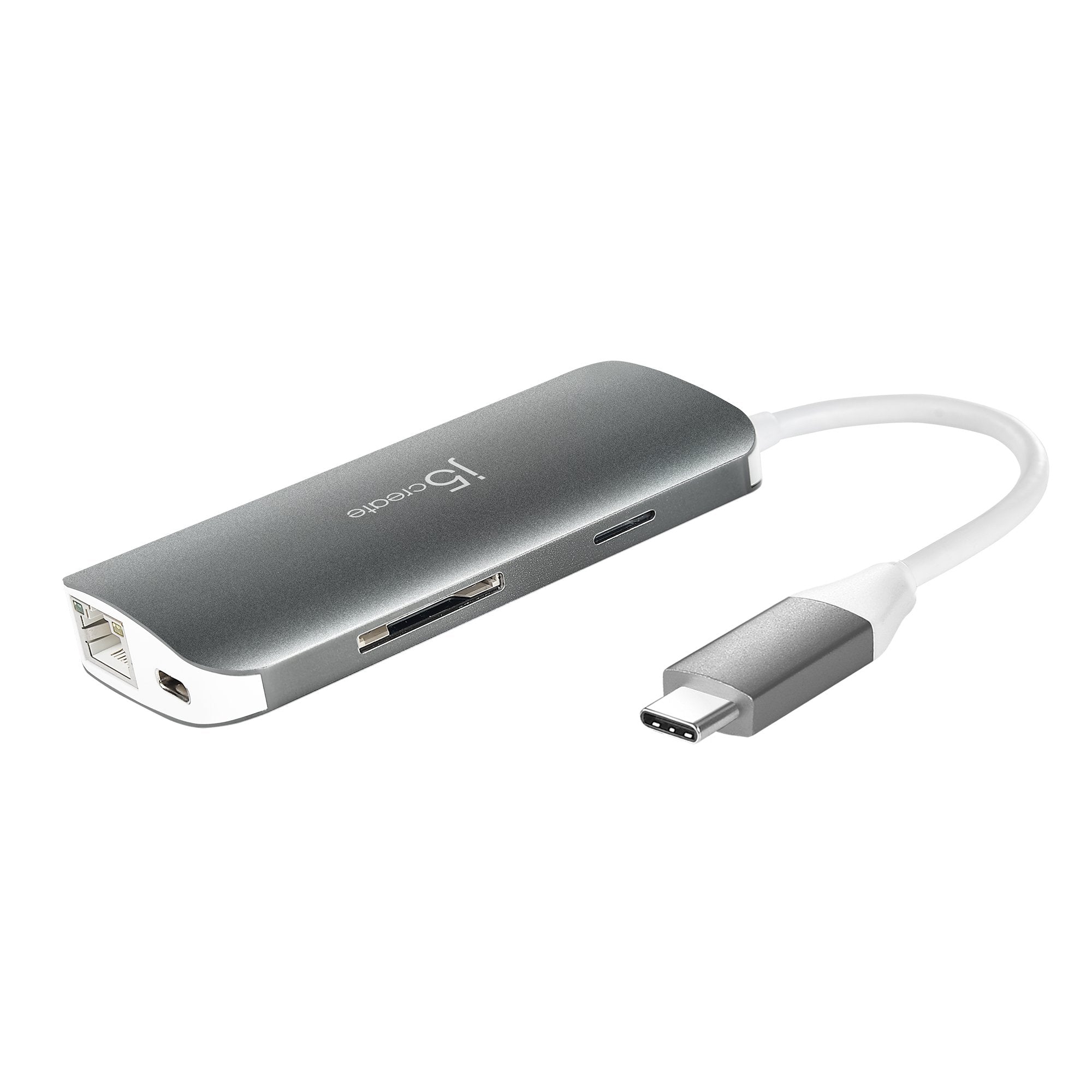

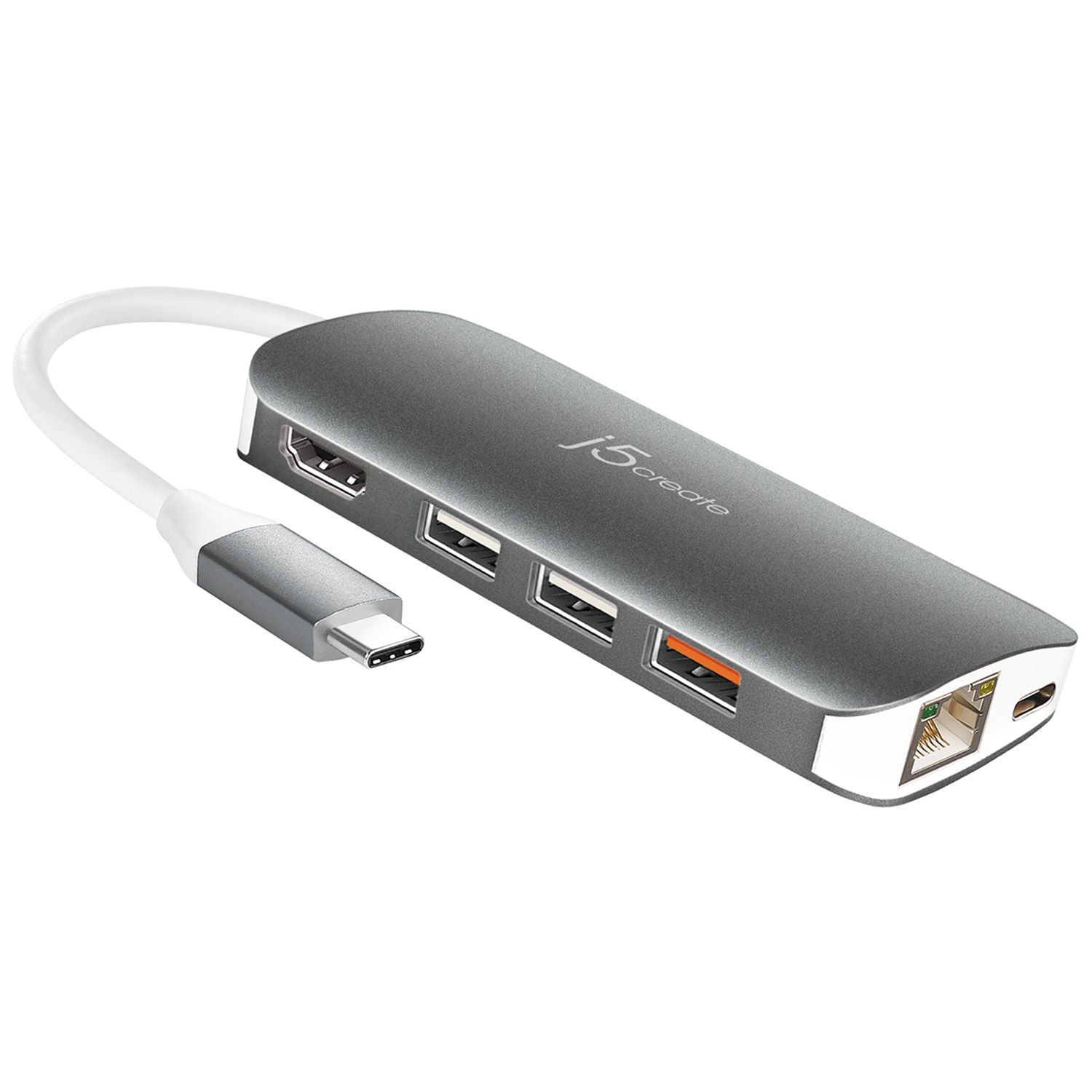

A compact USB-C mini dock that adds display, data and charging ports to a laptop, small enough to carry between desk and meeting room.
Key Features

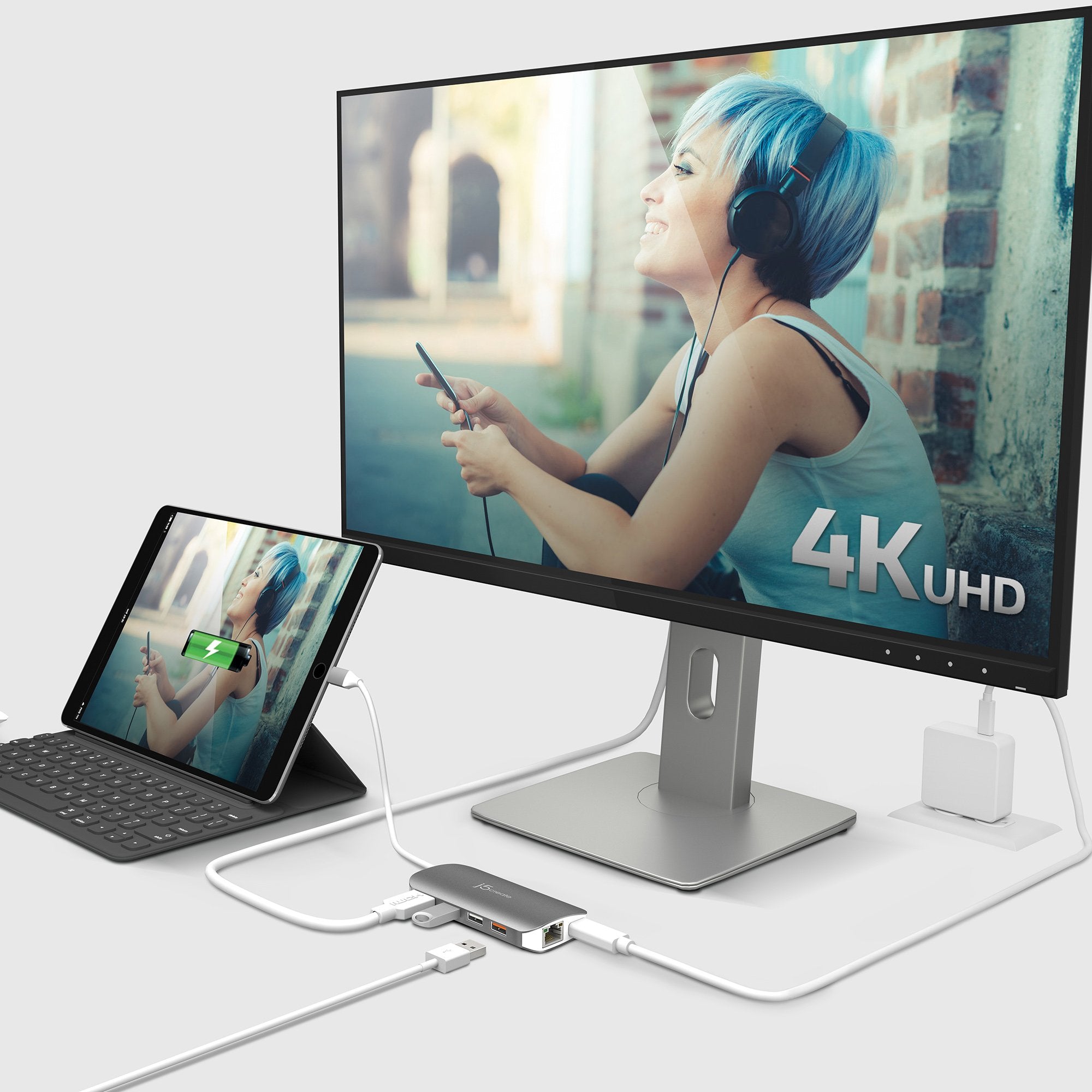

- HDMI 2.0 output up to 4K 30 Hz
- Gigabit Ethernet plus three USB-A 5Gbps ports, one with BC 1.2 fast charging
- SD and microSD card reader

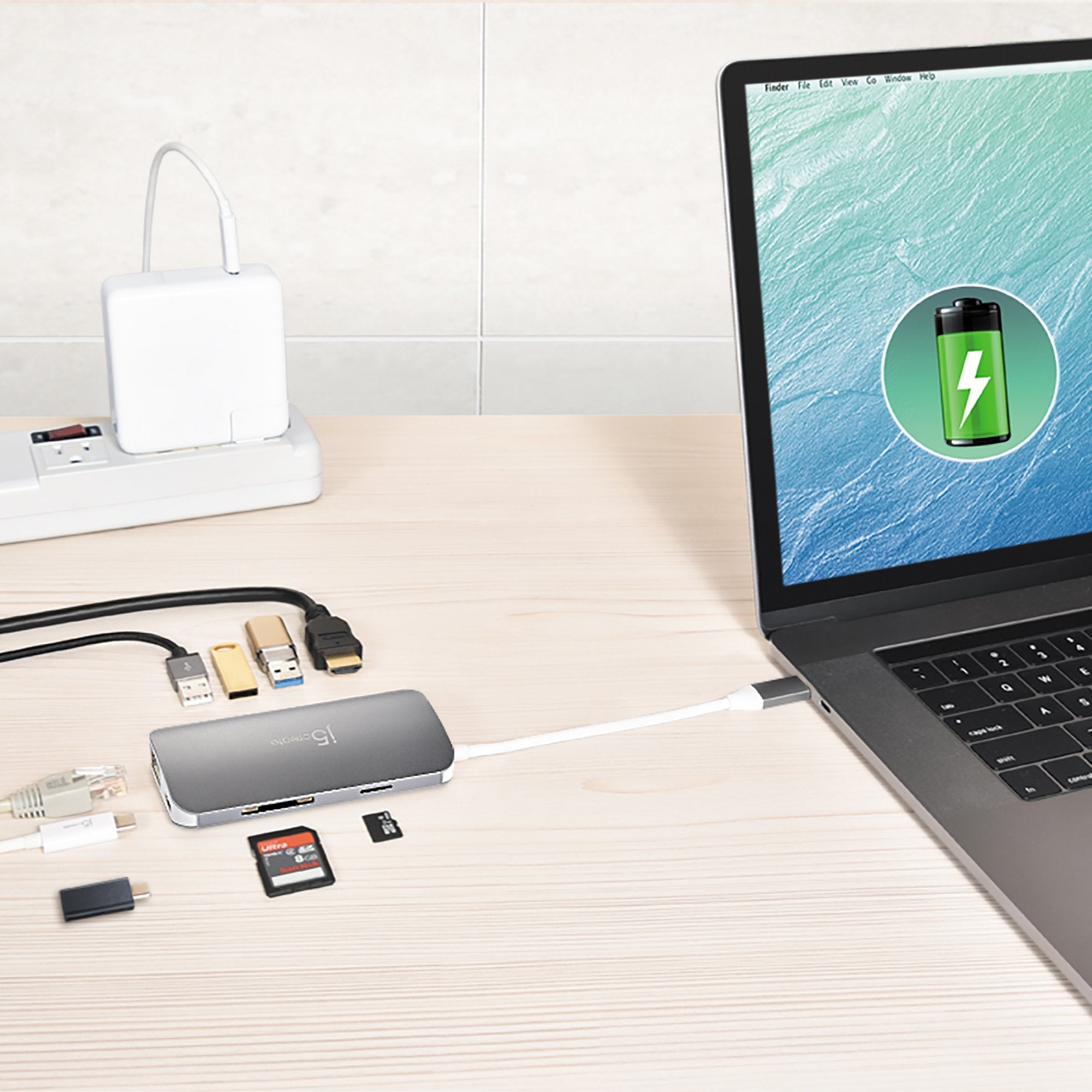

- USB-C PD 3.0 pass-through charging (100W rated on spec table)
- Aluminium enclosure in silver
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCD383 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCD383 |
| Product Name | USB-C Multi Adapter (9 Functions in 1) |
| EAN | 4712795081909 |
Hardware
| Host connector | 1 x USB-C male |

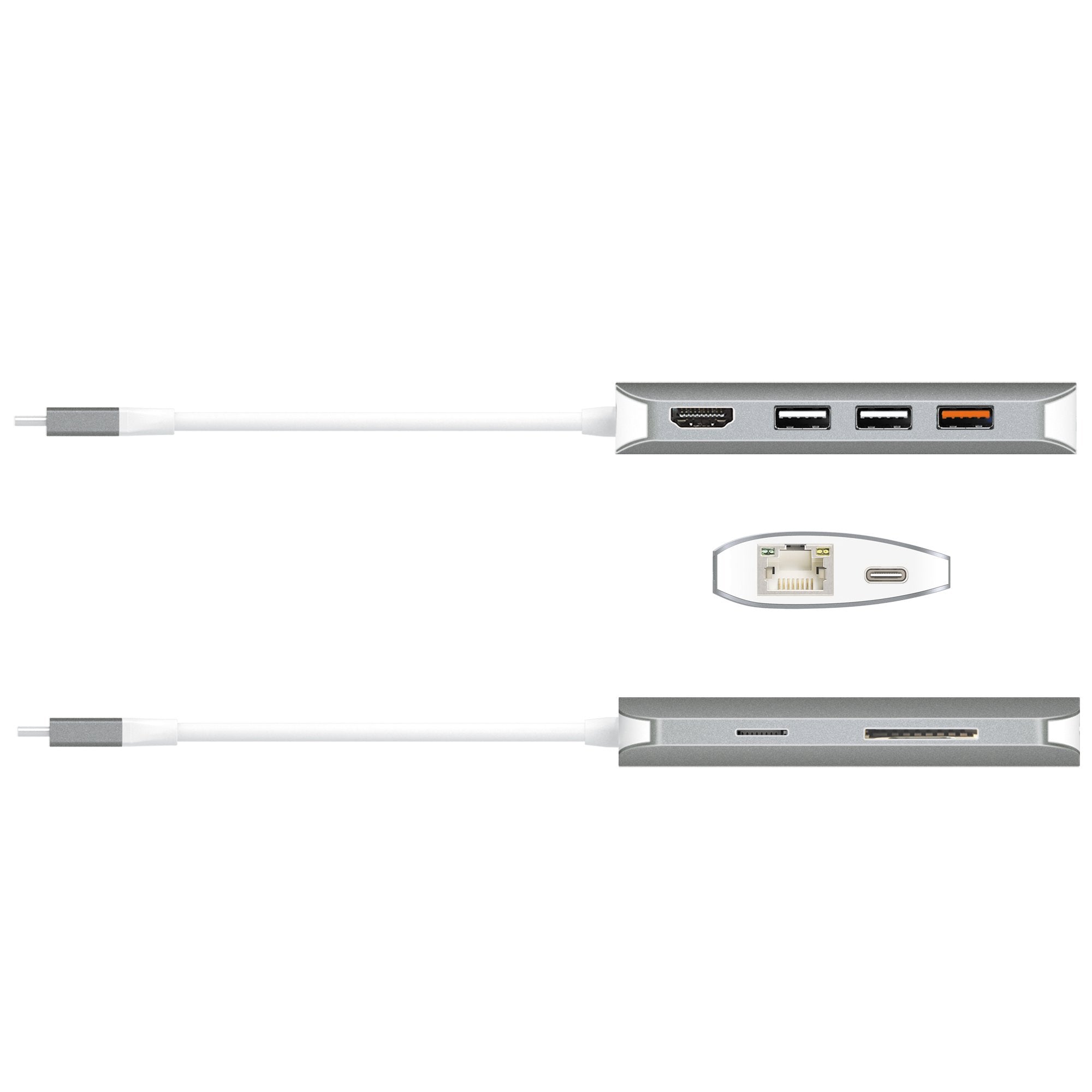

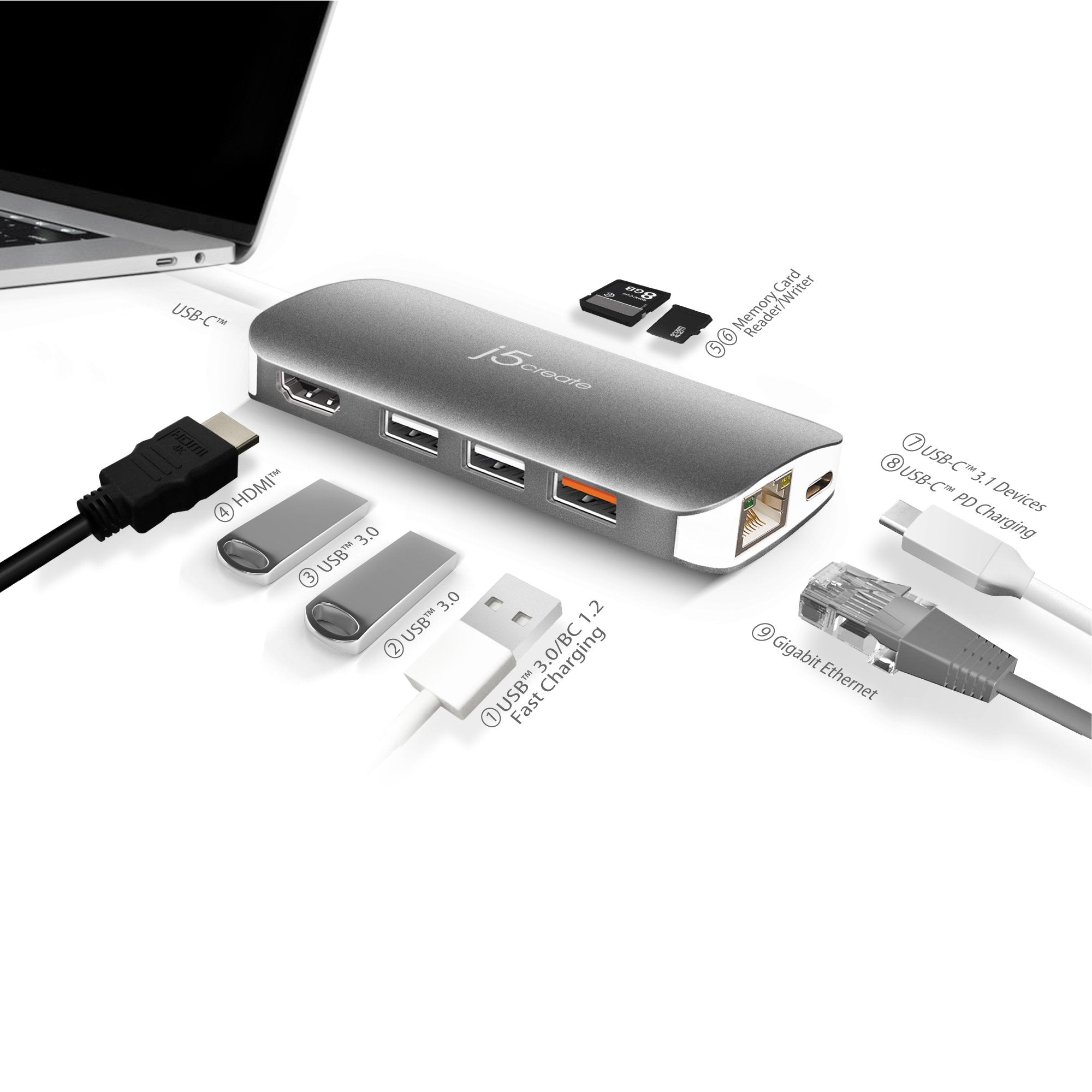

| Ports | 1 x USB-C 3.0 (PD 3.0 charging and data); 2 x USB-A 3.1 Gen 1; 1 x USB-A 3.1 Gen 1 with BC 1.2; 1 x SD & microSD slot; 1 x HDMI; 1 x RJ45 Gigabit Ethernet |
| Video output | 1 x HDMI female (HDMI 2.0) |
| Network interface | RJ45 Gigabit Ethernet (10/100/1000 Base-T, auto-negotiating) |
| Audio | 2.1 channel via HDMI |
| Power source | Bus-powered or self-powered |
Performance
| Displays supported | 1 |
| Max resolution | 3840 x 2160 @ 30 Hz |
| Max data transfer rate | 5 Gbps |
Power
| Power delivery | Accepts up to 100W USB-C PD input; up to 85W pass-through to the laptop |
| Input | Up to 20V / up to 5A |
| Output | Up to 20V / up to 4.25A |
| Power consumption | ≤ 500 mA |
Physical
| Cable length | 137 mm (5.4 in) |
| Colour | Silver |
| Enclosure | Aluminium |
| Dimensions (H x W x D) | 105 x 50 x 16.5 mm (4.13 x 1.97 x 0.65 in) |
| Weight | 78 g (2.75 oz) |
| Operating temperature | 0 to 48°C (32 to 118°F) |
| Storage temperature | -10 to 65°C (14 to 149°F) |
| Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- Available USB-C port supporting DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0
- 4K-capable display required for 3840 x 2160
- Will not pass power through a USB-C port without Power Delivery support
Package Contents & j5create USB-C Mini Docks Ordering Information
In the Box
- 1 x JCD383 USB-C 9-in-1 Multi Adapter
- 1 x Quick Installation Guide
j5create USB-C Mini Docks at SourceIT
| Model | Product |
| JCH471 | USB-C Multi-Adapter Gigabit Ethernet / USB 3.1 HUB |
| JCD353 | USB-C to 4K HDMI Multi-Port Hub |
| JCD371 | USB-C to HDMI & USB 3.1 2-Port with Power Delivery |
| JCD373 | USB-C Multi-Port Hub with Power Delivery |
| JCD373EW | USB-C Multi-Port Hub with Power Delivery |
| JCD376 | USB-C Multiport Adapter with Power Delivery |
| JCD381 | USB-C Dual HDMI Mini Dock |
| JCD383 (this listing) | USB-C Multi Adapter (9 Functions in 1) |
| JCD384 | USB-C Multi Adapter (10 Functions in 1) |
| JCD392 | 4K60 Elite USB-C 10Gbps Travel Dock |
| JCD396 | USB-C Dual HDMI 4K60 Mini Dock |
| JCD397 | 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock |
| JCD398 | USB-C Dual 4K HDMI 10Gbps Mini Dock |
| JCH462 | Wormhole Switch Display Sharing Hub |
Datasheet & Downloads
| j5create product page | JCD383 on j5create.com |
| Quick Install Guide (JCD383/JCD384) | Quick Install Guide (JCD383/JCD384) (PDF) |
| Downloads & Drivers page | Downloads & Drivers page |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCD383.
Frequently Asked Questions — j5create JCD383
How many external displays does it support?
1. Actual output depends on your laptop's USB-C / Thunderbolt video support; see the Compatibility section.
How much charging power reaches my laptop?
Up to about 85W, based on j5create’s published output rating, when a suitable USB-C PD power adapter is connected (adapter sold separately unless listed in the box).
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCD383 and the quantity for volume pricing and delivery lead time.
