PRODUCT DESCRIPTION
J5Create JCH462 Wormhole Switch Display Sharing Hub - 2 Years Local Warranty
A USB-C hub built around j5create Wormhole Switch software, for sharing screens and peripherals between computers.
Key Features
- Links two Windows computers to share screen, keyboard, mouse, files and clipboard
- Extend or duplicate a screen between devices, with a movable, resizable picture-in-picture window
- Supports virtual multi-touch, Windows gestures and stylus when used with a tablet

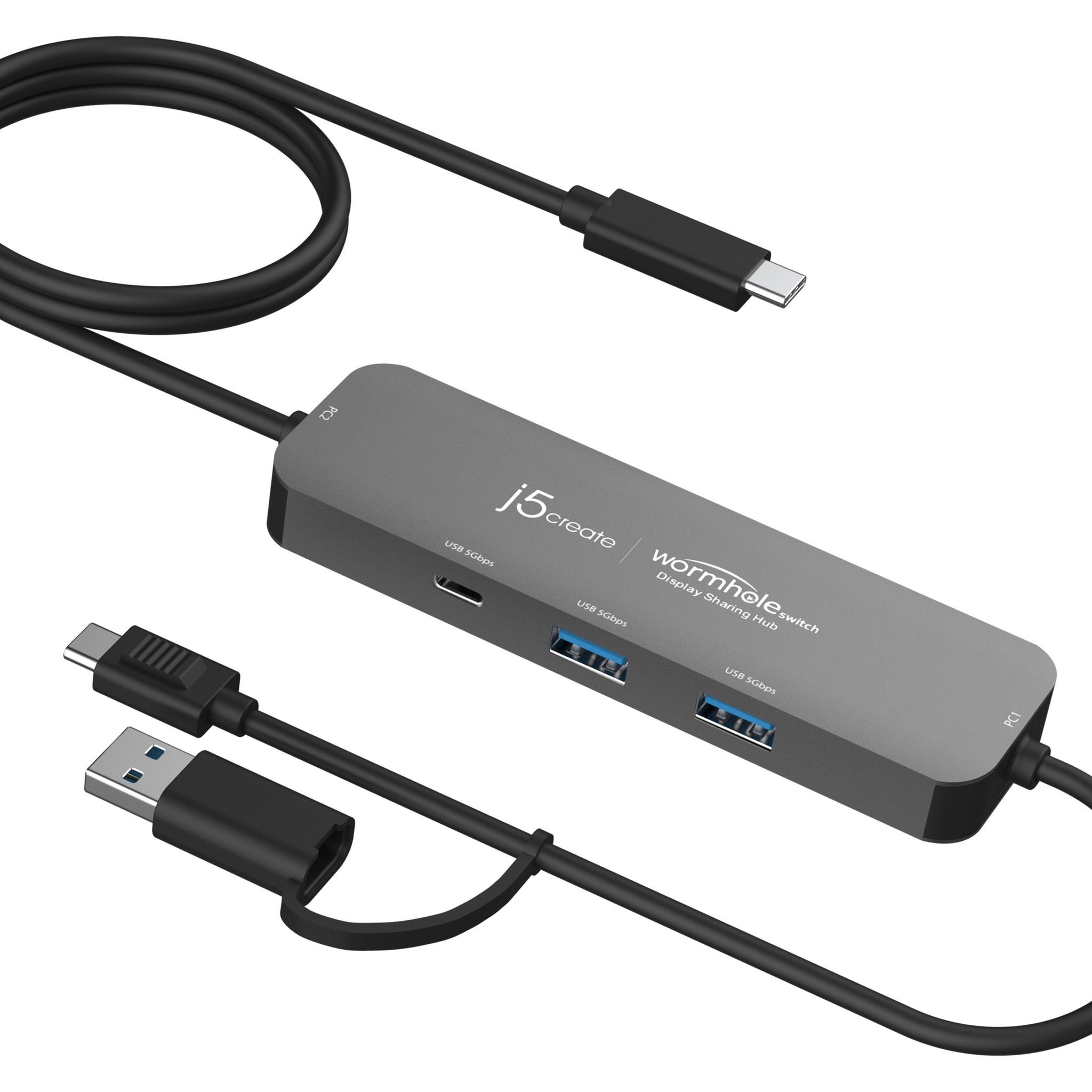

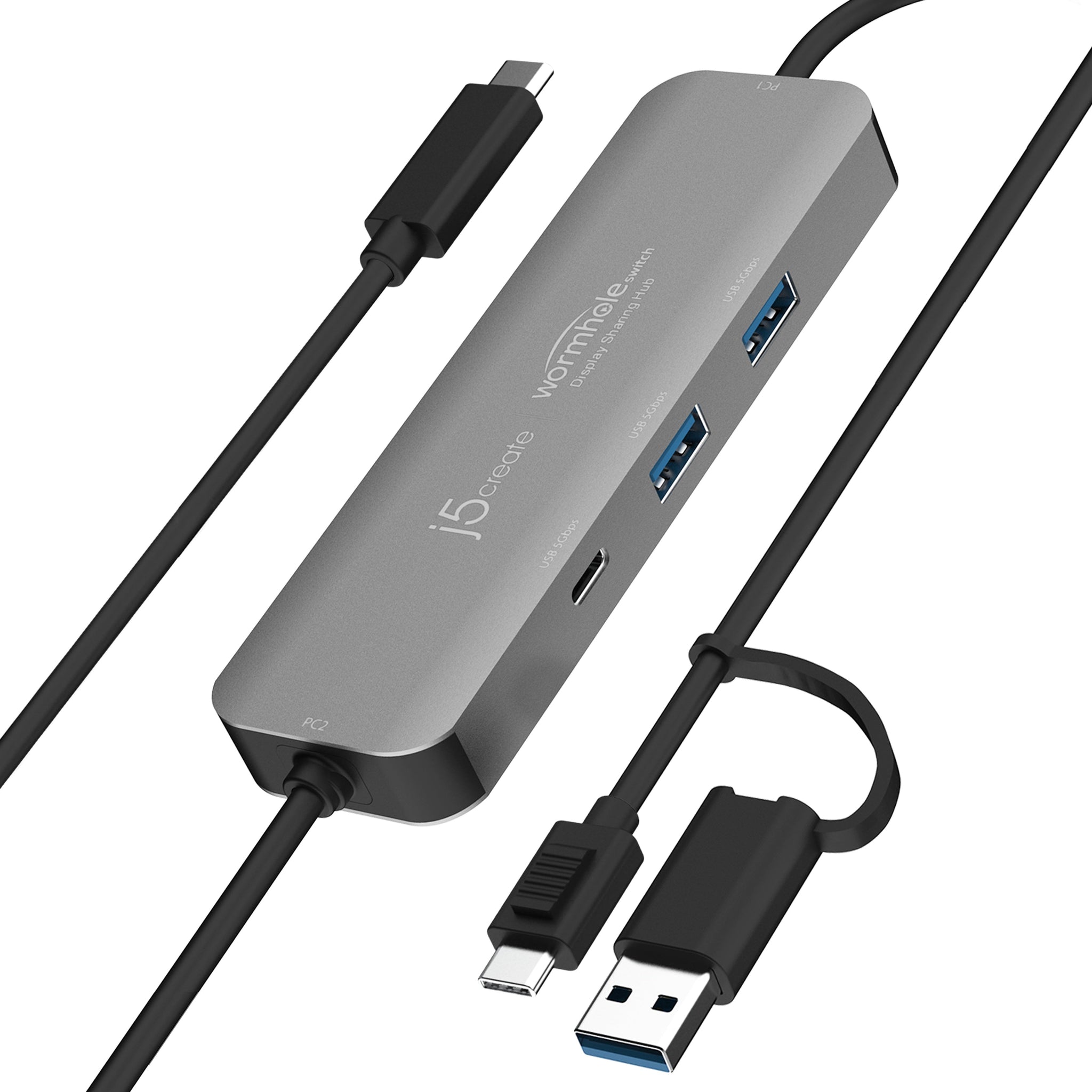

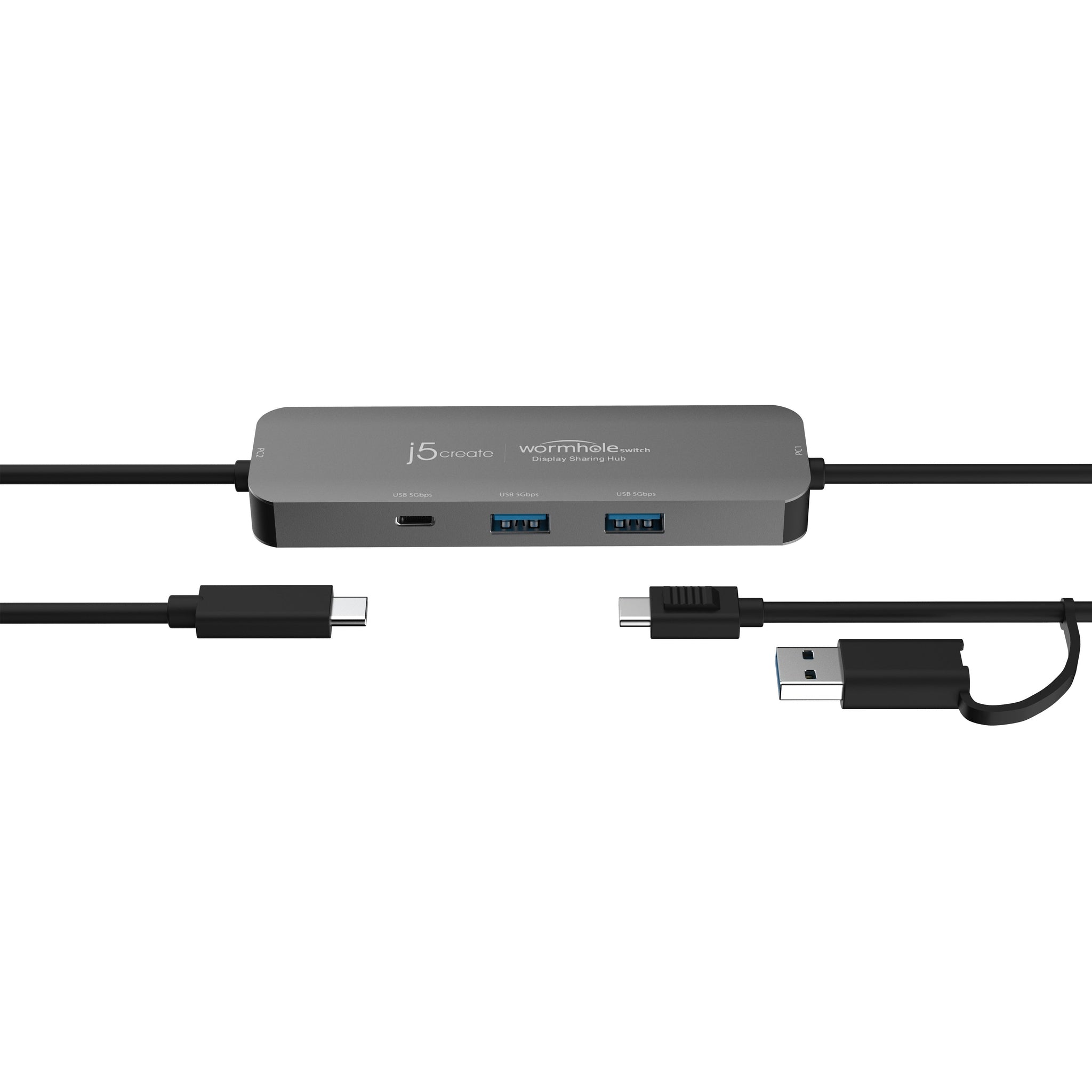

- Built-in hub with 2 x USB-A and 1 x USB-C (5Gbps) ports
- Bus-powered aluminium design with two built-in cables (20cm and 80cm)
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JCH462 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 2-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JCH462 |
| Product Name | Wormhole Switch Display Sharing Hub |
| EAN | 4712795088359 |
Ports
| Connector A | 1 x USB Type-A or USB-C |
| Connector B | 1 x USB-C |
| Ports | 2 x USB Type-A (Female), 1 x USB-C (Female) |
| Max Data Transfer Rate | 5Gbps |
| USB Pass-through | Yes |
| Note | USB-C port works with the PC1 host only |
Power
| Power Source | Bus-powered |
| Input | 5V / 0.9A |
| Output | 5V / 0.9A |
| Power Consumption | 4.5W |
| Power Delivery | N/A |
Compatibility
| Operating Systems | Windows 11 / 10 |
| Functions | Screen extend/duplicate, keyboard/mouse sharing, file and clipboard sharing |
Physical
| Dimensions (W x D x H) | 35.8 x 13 x 120 mm (1.41 x 0.51 x 4.72 in.) |
| Weight | 92 g (3.25 oz) |

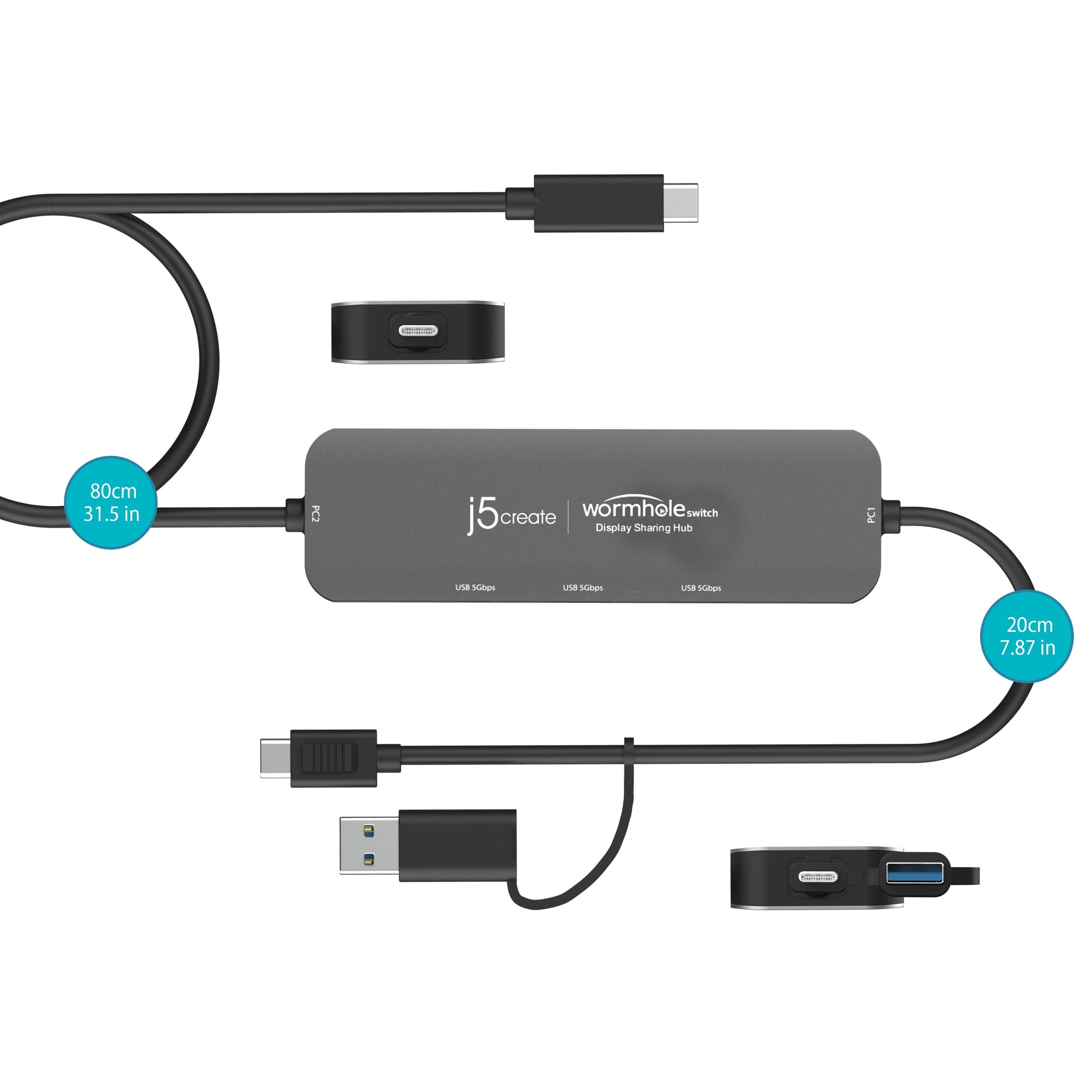

| Cable Length | PC1: 20 cm (7.87 in.); PC2: 80 cm (31.5 in.) |
| Colour | Space Grey |
| Enclosure | Aluminium |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -10 to 65°C (14 to 149°F) |
| Operating Humidity | < 85% non-condensing |
| Storage Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- Windows 11 / 10
- Available USB-C port (USB 3.2 recommended)
- At least 100MB free disk space
- CPU: 8th Gen Intel Core i5, 4 cores or greater
- RAM: 8GB or greater
Compatibility
| Operating Systems | Windows 11 / 10 |
| Functions | Screen extend/duplicate, keyboard/mouse sharing, file and clipboard sharing |
Package Contents & j5create USB-C Mini Docks Ordering Information
In the Box
- 1 x Wormhole Switch Display Sharing Hub
- 1 x Quick Installation Guide (QIG)
j5create USB-C Mini Docks at SourceIT
| Model | Product |
| JCH471 | USB-C Multi-Adapter Gigabit Ethernet / USB 3.1 HUB |
| JCD353 | USB-C to 4K HDMI Multi-Port Hub |
| JCD371 | USB-C to HDMI & USB 3.1 2-Port with Power Delivery |
| JCD373 | USB-C Multi-Port Hub with Power Delivery |
| JCD373EW | USB-C Multi-Port Hub with Power Delivery |
| JCD376 | USB-C Multiport Adapter with Power Delivery |
| JCD381 | USB-C Dual HDMI Mini Dock |
| JCD383 | USB-C Multi Adapter (9 Functions in 1) |
| JCD384 | USB-C Multi Adapter (10 Functions in 1) |
| JCD392 | 4K60 Elite USB-C 10Gbps Travel Dock |
| JCD396 | USB-C Dual HDMI 4K60 Mini Dock |
| JCD397 | 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock |
| JCD398 | USB-C Dual 4K HDMI 10Gbps Mini Dock |
| JCH462 (this listing) | Wormhole Switch Display Sharing Hub |
Datasheet & Downloads
| j5create product page | JCH462 on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
| Drivers | Drivers |
Need a document sent directly? Email sales@sourceit.com.sg quoting JCH462.
Frequently Asked Questions — j5create JCH462
What warranty do I get?
2-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JCH462 and the quantity for volume pricing and delivery lead time.
