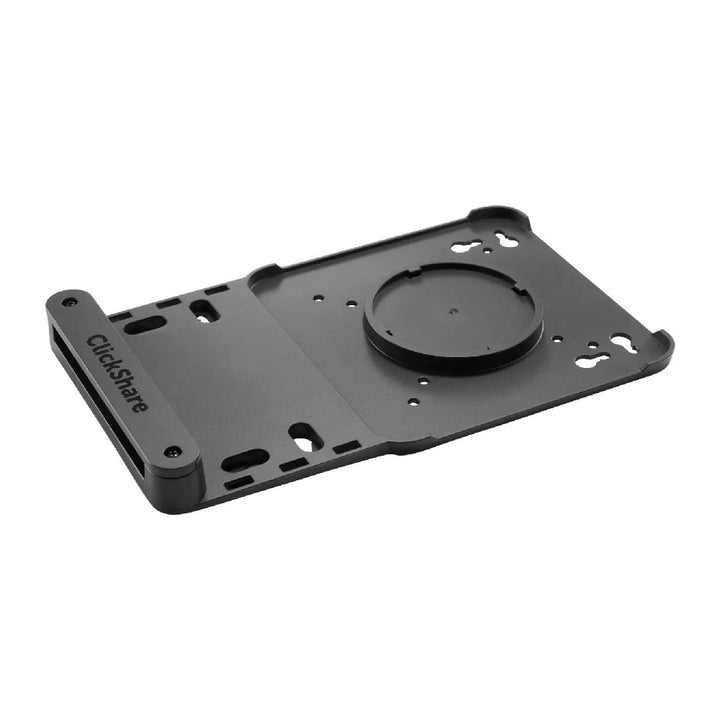

Barco ClickShare Wall Mount Plate with Cable Management
PRODUCT DESCRIPTION
Barco ClickShare Wall Mount Plate with Cable Management for Hub Core / Hub Pro, C-5, C-10, CX-20, CX-30 (B570170K)
Wall-Mount Your Base Unit Neatly
Barco's wall mount plate fixes a ClickShare Hub or C / CX base unit to the wall, horizontally or vertically. Extra holes take zip-ties for cable management or let you fix the plate without drilling, and rubber rings in four sizes keep cables secure.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco B570170K Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare wall mount plate |
| Part Number | B570170K |
Physical
| Dimensions (H x W x D) | 26.9 x 3 x 16.6 cm |
| Weight | 158 g |
| Orientation | Horizontal or vertical |
Compatibility & Software Support
Barco lists compatibility with the ClickShare Hub Core, Hub Pro (and Hub Pro kits), C-5, C-10, CX-20 and CX-30.
Package Contents & ClickShare Accessories Ordering Information
In the Box
Per Barco: wall mount plate, screw pack and rubber rings in four sizes (white 1.8–2.9 mm, grey 3.0–4.2 mm, black 4.3–5.2 mm, red 5.3–6.0 mm).
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Barco ClickShare Accessories
| Model | Part Number |
| Button Gen 4 (USB-C) | R9861600D01C |
| 2 Buttons Gen 4 + Tray | R9861600P01C |
| Tray (4 Buttons) | R9861500T01 |
| HDMI-IN to USB-C Kit | R9861581 |
| CX-50 Gen-2 Power Supply | B5631051K |
| Bar Wall Mount | R8788066K |
| Bar TV Mount | R8788649K |
| Bar Front Cover | R8787713K |
| 2-in-1 Tray (Gen 5) | R9861700T01 |
| Hub Power Supply 100 W | B563235K |
| Hub Power Supply 180 W | B563236K |
| Button Gen 5 | R9861700D01C |
| USB-C Cable 10 m | Z3406338K |
| Wall Mount Plate (this listing) | B570170K |
Datasheet & Downloads
| Barco spec sheet | ClickShare Wall Mount Plate Spec Sheet (PDF) |
| Barco product page | Wall Mount Plate on barco.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting B570170K.
Frequently Asked Questions — Barco B570170K
Can it be mounted vertically?
Yes — horizontally or vertically.
Does it fit the CX-50 Gen-2?
Barco does not list the CX-50 for this plate.
