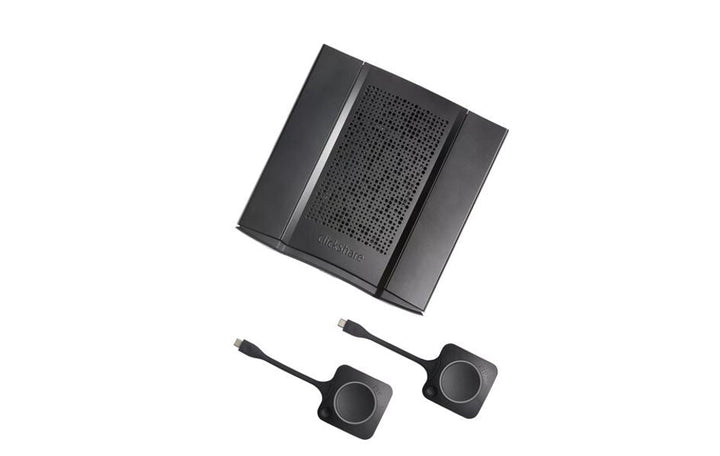

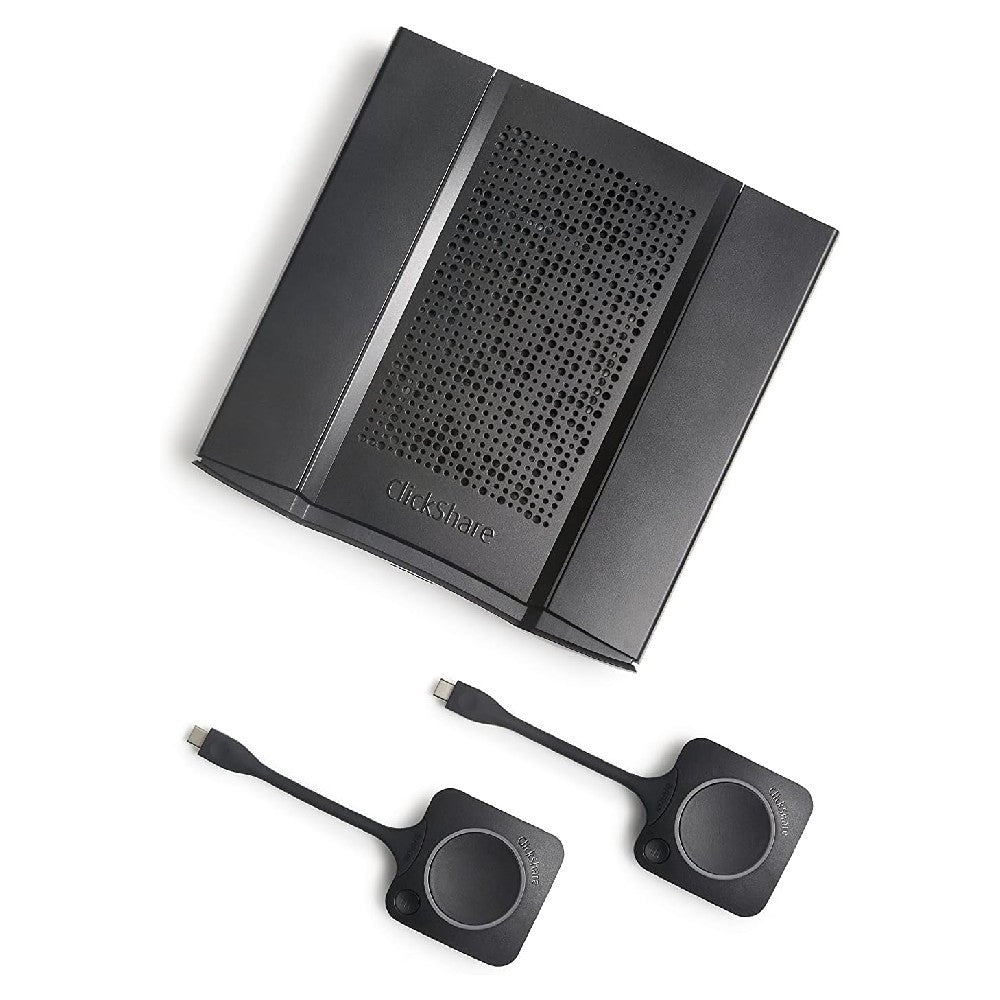

Barco ClickShare CX-50 Gen-2 Wireless Conferencing System with 2 Buttons
PRODUCT DESCRIPTION
Barco ClickShare CX-50 2nd Generation Wireless Conferencing System with 2 ClickShare Buttons, 4K60, Dual Screen (R9861622NAB2) - 1 Year Warranty, up to 5 Years with SmartCare Registration
Premium Wireless Conferencing for Larger Meeting Rooms
The Barco ClickShare CX-50 2nd generation is the top model of the ClickShare Conference range, built for medium to large meeting and boardrooms. Connect wirelessly from your laptop and use the room's USB camera, microphones and speakers with Microsoft Teams, Zoom or any other platform you already use. Two ClickShare Buttons are included.

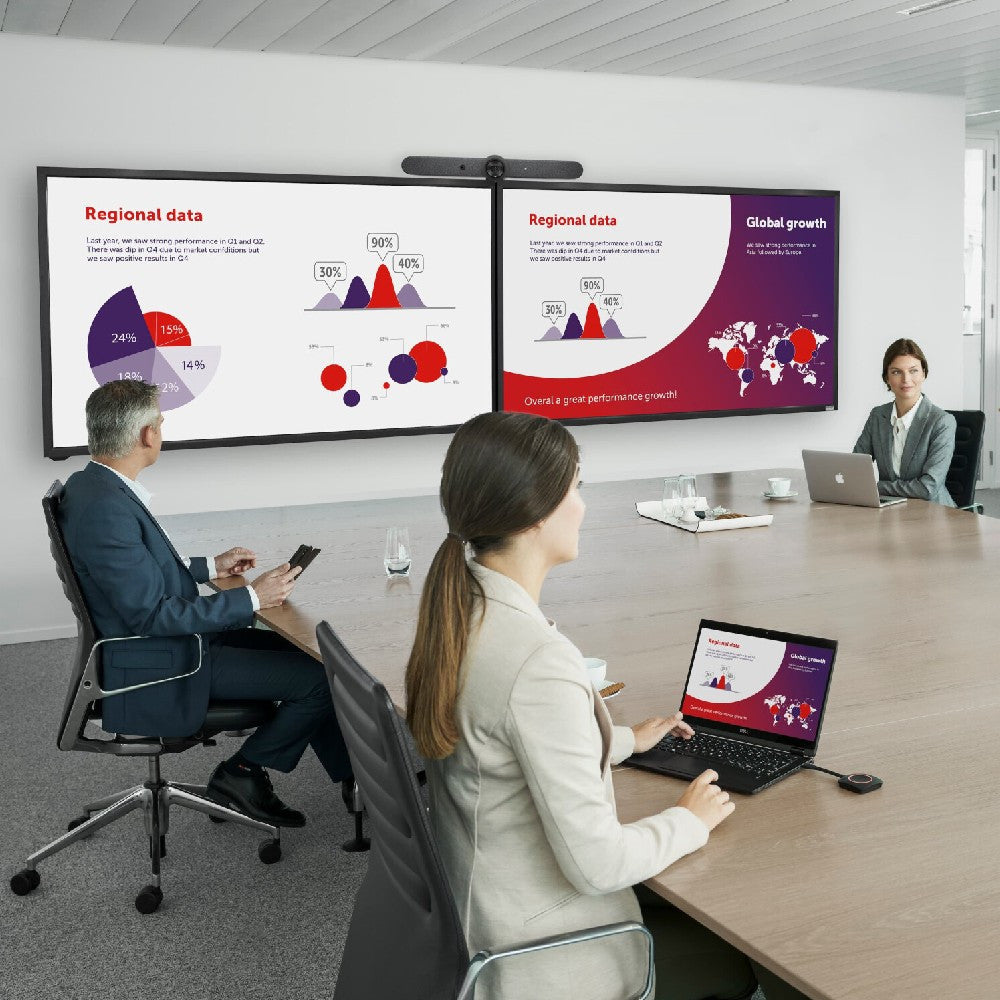

4K60 Output and Dual-Screen Meetings
HDMI 2.1 and USB-C DisplayPort outputs deliver 3840 x 2160 at 60 Hz, and dual-screen support puts people and content side by side on two displays. A front USB-C input doubles as a wired RoomDock for 4K content sharing, with automatic switching between sources.
Enterprise-Grade Networking and Security
2.5 Gbps Ethernet plus dual LAN & Wi-Fi connectivity, 802.1X wired authentication (EAP-TLS / EAP-TTLS / PEAP) and ANSSI CSPN security certification make the CX-50 Gen-2 suitable for corporate networks.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861622NAB2 Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare CX-50 2nd generation with 2 Buttons (NA version) |
| Part Number | R9861622NAB2 |
| Product Family | ClickShare Conference |
| ClickShare Buttons Included | 2 (4th-generation USB-C) |
| Warranty | 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare |
Video, Audio & Sharing
| Video Outputs | HDMI: 3840 x 2160 @ 60 Hz (HDMI 2.1 source); USB-C: 3840 x 2160 @ 60 Hz (DisplayPort Alt Mode 1.2) |
| Video Input | USB-C: 3840 x 2160 @ 30 Hz (DisplayPort Alt Mode sink, DP 1.2) |
| Audio Output | USB, 3.5 mm jack, HDMI |
| Max. Sources on Screen | 2 |
| Dual Screen | Yes |
| Local View | High quality |
Connectivity
| Ports | 1 x Ethernet LAN 2.5 Gbps; 1 x USB-C (USB 3.0 / DP Alt output / PD sink, back); 2 x USB-A 3.0 (back); 1 x USB-C (USB 3.0 / DP Alt input, front); 3.5 mm analogue line out |
| Wireless | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 |
| Frequency Bands | 2.4 GHz and 5 GHz (DFS) |
| Wired Authentication | 802.1X with EAP-TLS / EAP-TTLS / PEAP |
| Network Connection | LAN & Wi-Fi (dual) |
| Security Certification | ANSSI CSPN |
Power & Physical
| Power Supply | Standard 110/220 V AC plug (external 19 V DC adapter) |
| Power Consumption | Operational 50 W max |
| Dimensions (H x W x D) | 39 x 200 x 202 mm |
Compatibility & Software Support
Conferencing: bring-your-own-meeting with the conferencing software on the presenter's laptop (for example Microsoft Teams or Zoom), using the USB camera, microphones and speakers connected to the base unit.
Sharing: ClickShare App and ClickShare Button Gen 4 / 4.1. vs Gen-1: Barco lists front USB-C 3.1 (was USB-A 2.0), HDMI out only (HDMI in and S/PDIF removed — use the HDMI-IN to USB-C convertor kit R9861581 for HDMI input), USB 3.1 at the rear and a 19 V DC power input (was 12 V).
Package Contents & ClickShare Range Ordering Information
In the Box
Two ClickShare Buttons included (per the article description). Barco does not publish a full box-contents list. A replacement CX-50 Gen-2 power supply is available separately (B5631051K).
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 (this listing) | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Datasheet & Downloads
| Barco spec sheet | ClickShare CX-50 Gen-2 Spec Sheet (PDF) |
| Barco product page | CX-50 Gen-2 on barco.com |
| SmartCare warranty registration | How to register your ClickShare base unit |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861622NAB2.
Frequently Asked Questions — Barco R9861622NAB2
Does it include a camera or microphone?
No. The CX-50 Gen-2 connects your laptop wirelessly to the USB camera, microphones and speakers in the room.
Does it support two displays?
Yes — dual-screen meetings with people and content side by side.
Can I connect an HDMI source?
The Gen-2 has no HDMI input; Barco's HDMI-IN to USB-C convertor kit (R9861581) adds one via the front USB-C input.
Is it Wi-Fi 6?
No. Barco's spec sheet lists IEEE 802.11 a/g/n/ac on 2.4 and 5 GHz, plus 2.5 Gbps Ethernet.
What warranty do I get?
Barco: 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare.
