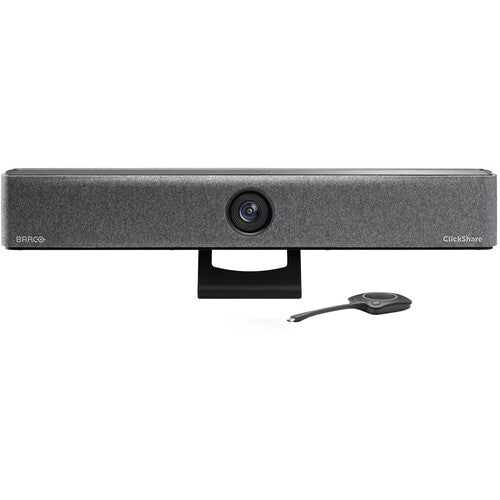

Barco ClickShare Bar Core All-in-One Video Bar with 1 Button
PRODUCT DESCRIPTION
Barco ClickShare Bar Core All-in-One Wireless Conferencing Video Bar with 1 ClickShare Button, 4K Camera (R9861632USB1) - 1 Year Warranty, up to 5 Years with SmartCare Registration
All-in-One Video Bar for Small Meeting Rooms
The Barco ClickShare Bar Core combines ClickShare wireless presentation and conferencing with a built-in 4K camera, six beamforming microphones and stereo speakers in one fanless bar. Connect wirelessly from your laptop and run Microsoft Teams, Zoom or any other platform with the room's camera and audio. One ClickShare Button is included.

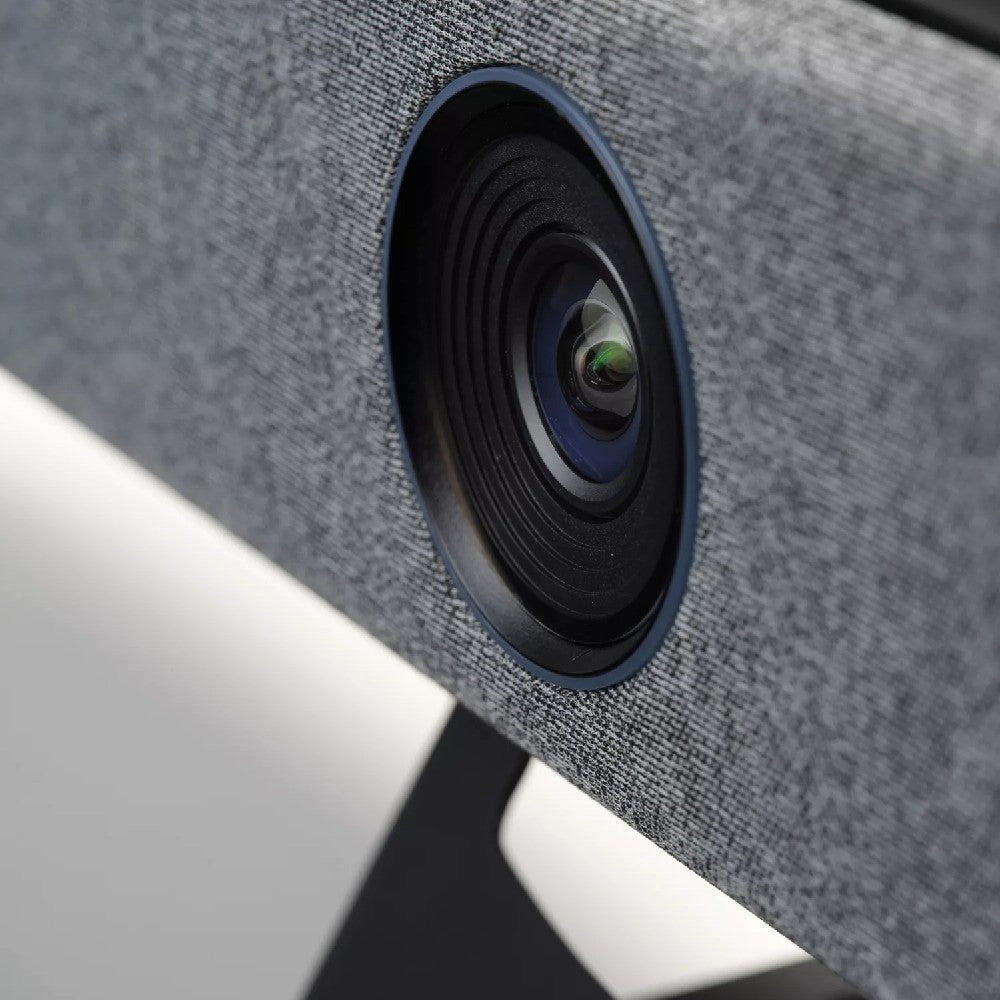

4K Camera with Group Framing
The 4K camera offers 3x zoom / ePTZ and a 120° field of view, with AI group framing and composition mode for up to four people so everyone in a huddle room is seen clearly.
Clear Audio at up to 4 Metres
Six MEMS beamforming microphones with echo and background-noise cancellation pick up voices up to 4 m away, and two 10 W full-duplex stereo speakers deliver the far end clearly.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861632USB1 Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare Bar Core with 1 Button (US version) |
| Part Number | R9861632USB1 |
| Product Family | ClickShare Bar |
| ClickShare Buttons Included | 1 |
| Warranty | 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare |
Video & Sharing
| Video Output | 4K UHD (3840 x 2160) @ 30 Hz via HDMI 1.4b or USB-C DP Alt Mode (DisplayPort 1.2) |
| Video Input | None |
| Max. Sources on Screen | 1 |
| Native Protocols | AirPlay, Google Cast, Miracast |
| Touch Screen | Not supported |
| Local View | Yes |
Camera & Audio
| Camera | 4K camera, 3x zoom / ePTZ, 120° FOV |
| Camera AI | Group framing and composition mode with up to 4 people |
| Speakers | 2 x 10 W full-duplex stereo speakers, 8 Ω |
| Microphones | 6 beamforming MEMS microphones with echo and background-noise cancellation; pick-up range max. 4 m (13 ft) |
Connectivity
| Ports | 1 x USB-C 3.1 (DP) to screen; 1 x USB-A 2.0; 1 x Ethernet LAN 1 Gbps; 1 x USB-C 2.0 (side) |
| Wireless | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 |
| Frequency Bands | 2.4 GHz and 5 GHz (DFS in select countries in network integration mode) |
| Authentication | WPA2-PSK, or IEEE 802.1X in network mode |
Client Operating Systems
| Supported | Windows 10+, macOS Ventura and higher, Android 13+ and iOS 16+ (ClickShare App) |
Power & Physical
| Power Supply | Standard 110/220 V AC plug or USB-C (back) |
| Power Consumption | Operational 5–20 W, 65 W max |
| Dimensions (H x W x D) | 98 x 640 x 101 mm |
| Weight | 2.5 kg |
| Noise | Fanless |
| Anti-theft | Kensington lock (back and bottom) |
| Certifications | FCC / CE |
Compatibility & Software Support
Conferencing: bring-your-own-meeting — the laptop's conferencing app (for example Microsoft Teams or Zoom) uses the Bar's built-in camera, microphones and speakers over the ClickShare wireless link.
Sharing: ClickShare App, ClickShare Button Gen 4.1, AirPlay, Google Cast and Miracast. Barco mounting options for the Bar: wall mount (R8788066K) and TV mount (R8788649K); replacement front cover R8787713K.
Package Contents & ClickShare Range Ordering Information
In the Box
One ClickShare Button included (per the article description). Barco does not publish a full box-contents list for the Bar Core. Wall / TV mounts are sold separately.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core (this listing) | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Datasheet & Downloads
| Barco spec sheet | ClickShare Bar Core Spec Sheet (PDF) |
| Barco product page | Bar Core on barco.com |
| SmartCare warranty registration | How to register your ClickShare base unit |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861632USB1.
Frequently Asked Questions — Barco R9861632USB1
What is the difference between Bar Core and Bar Pro?
Bar Pro adds dual-screen output (2 x 1080p), a USB-C video input, speaker tracking, two sources on screen and two Buttons. Camera optics, microphones, speakers and dimensions are the same.
Does it need a PC in the room?
No. It works with the conferencing app on the presenter's laptop via the ClickShare Button or App.
How large a room is it for?
Barco positions the Bar Core for small rooms; microphone pick-up range is up to 4 m and group framing covers up to 4 people.
How is it mounted?
On a table, or with the ClickShare Bar wall mount or TV mount (sold separately).
What warranty do I get?
Barco: 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare.
