Barco ClickShare Hub Pro Microsoft Teams Rooms System with 2 Buttons
PRODUCT DESCRIPTION
Barco ClickShare Hub Pro Premium Modular Wireless Video Conferencing Room System (Microsoft Teams Rooms on Android) with 2 ClickShare Buttons Gen 5 (R9861710CNB2) - 3 Years Warranty
Premium Modular Microsoft Teams Rooms System
The Barco ClickShare Hub Pro runs Microsoft Teams Rooms on Android (MDEP) and connects to the USB camera and audio of your choice, combining native Teams Rooms meetings with ClickShare wireless sharing. Two ClickShare Buttons 5th generation are included.
Dual Display and Rich Connectivity
Two HDMI 2.0 outputs (up to 5120 x 2160 and 3840 x 2160 at 30 Hz), a 4K30 HDMI input and multiple USB-C ports with DisplayPort output support dual-screen rooms and a wide choice of peripherals.
Next-Gen Wi-Fi and Cloud Management
802.11 ax/be Wi-Fi on 2.4, 5 and 6 GHz with Bluetooth 5.3, ECO and Deep Sleep standby modes, and Barco XMS Cloud management. Add the ClickShare Control Panel (R9861720US) for a 10.1-inch touch console.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861710CNB2 Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare Hub Pro with 2 Buttons (CN version) |
| Part Number | R9861710CNB2 |
| Product Family | ClickShare Hub |
| Operating System | Android (MDEP) — Microsoft Teams Rooms |
| Microsoft Teams Rooms Licence | Required (not included) |

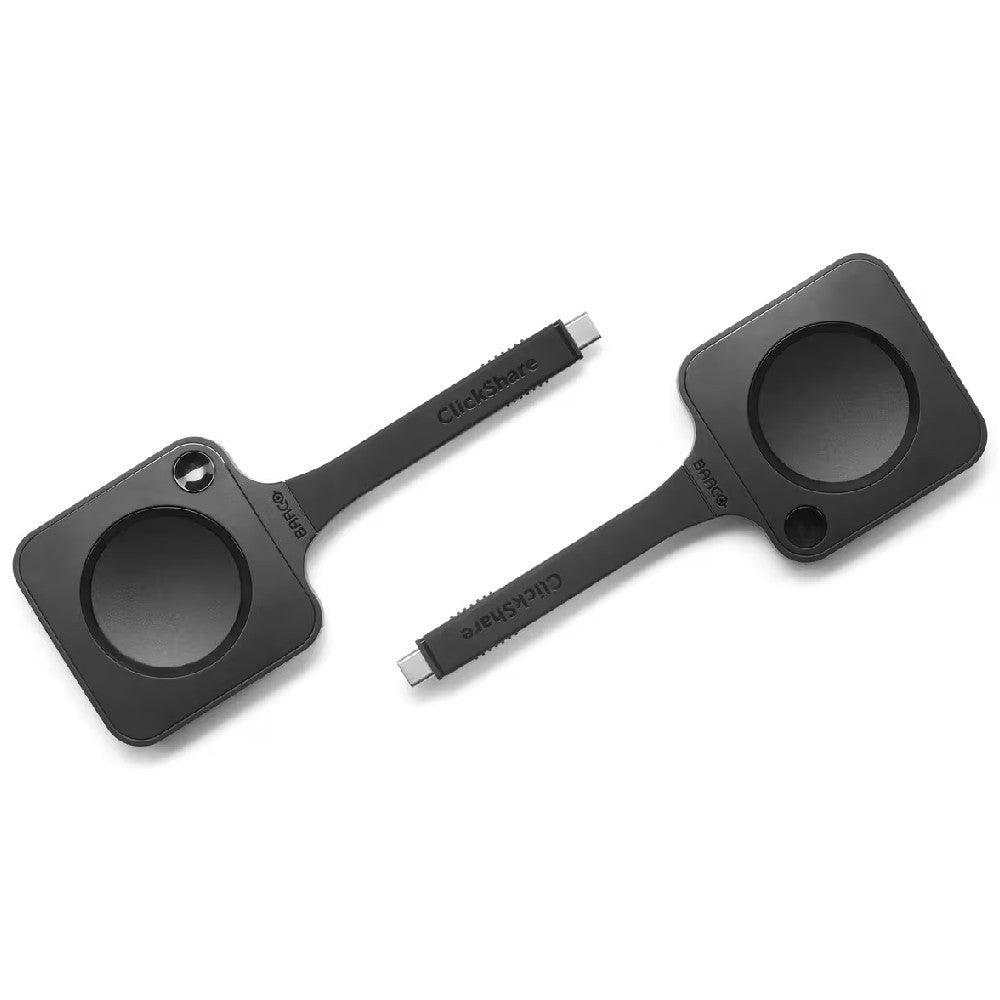

| ClickShare Buttons Included | 2 x ClickShare Button 5th generation |
| Warranty | 3 years standard (Barco) |
Video & Audio
| Video Output | HDMI-1: UW5K (5120 x 2160) @ 30 Hz, HDMI 2.0; HDMI-2: 4K UHD (3840 x 2160) @ 30 Hz, HDMI 2.0; eDP (Control Panel): 1280 x 800 @ 60 Hz |
| Video Input | 4K UHD (3840 x 2160) @ 30 Hz, HDMI 2.0 |
| ClickShare App | Desktop |
Connectivity

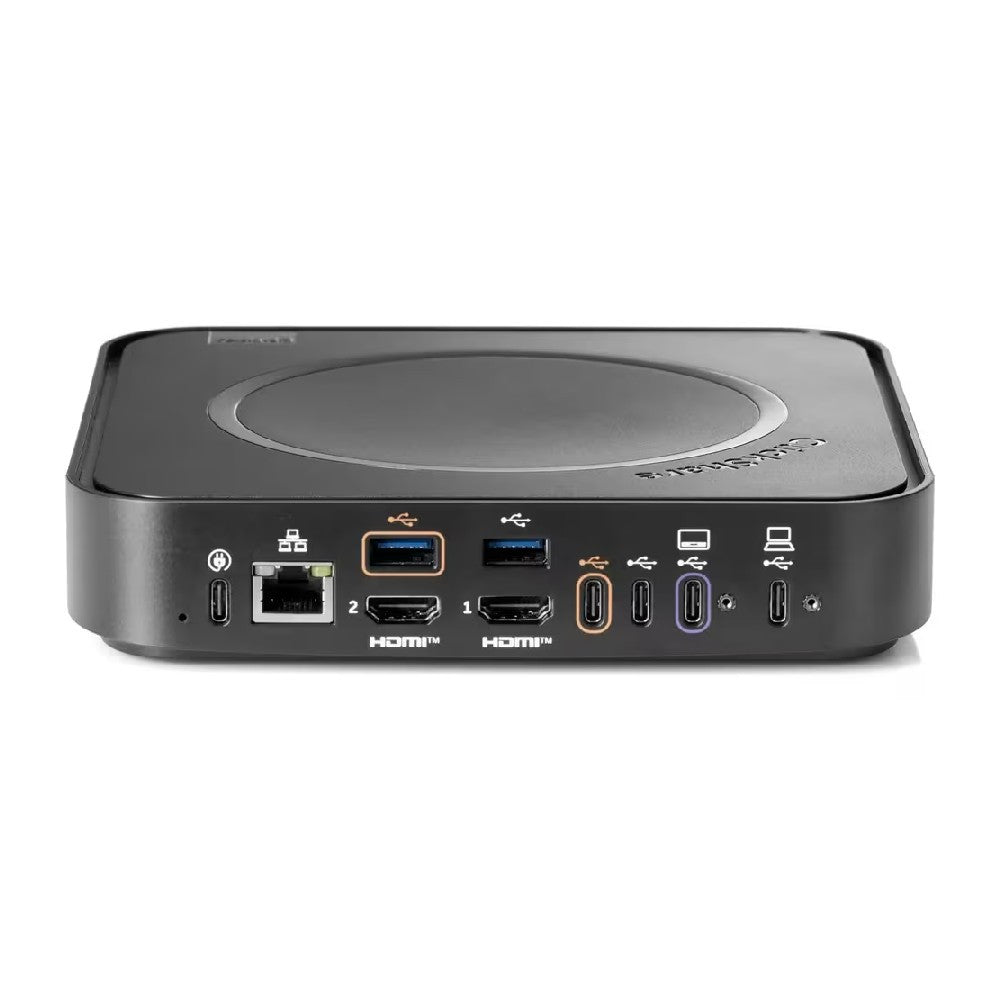

| Back Panel | 1 x Ethernet LAN 1 Gbps; 2 x HDMI 2.0 out; 2 x USB-C 2.0/3.0; 1 x USB-A; 1 x USB-C 2.0/3.0 device + DP out; 1 x USB-C 2.0 + DP out; USB-C PD 3.1 EPR power input |
| Wireless | IEEE 802.11 a/b/g/n/ac/ax/be; Bluetooth 5.3 |
| Frequency Bands | 2.4 GHz, 5 GHz and 6 GHz |
| Management | Barco XMS Cloud |
Power & Physical
| Power Consumption | Operational 160 W max; standby <7 W (ECO), <0.5 W (Deep Sleep) |
| Operating Temperature | 0 °C to +40 °C |
| Power Supply | External USB-C charger — 100 W (PD 3.0 SPR) or 180 W (PD 3.1 EPR); not included |
| Dimensions (H x W x D) | 37 x 180 x 180 mm |
| Weight | 720 g |
| Noise | Max. 25 dBA @ 30 °C |
| Certifications | FCC / CE |
Compatibility & Software Support
Platform: Microsoft Teams Rooms on Android — a Teams Rooms licence is required. Connect a USB camera and audio device of your choice.
Buttons: ClickShare Button 5th generation (R9861700D01C) only. Accessories: Control Panel (R9861720US), 100 W / 180 W USB-C power supplies (B563235K / B563236K), HDMI-IN to USB-C convertor kit (R9861581), wall mount plate (B570170K), 2-in-1 Button tray (R9861700T01).
Package Contents & ClickShare Range Ordering Information
In the Box

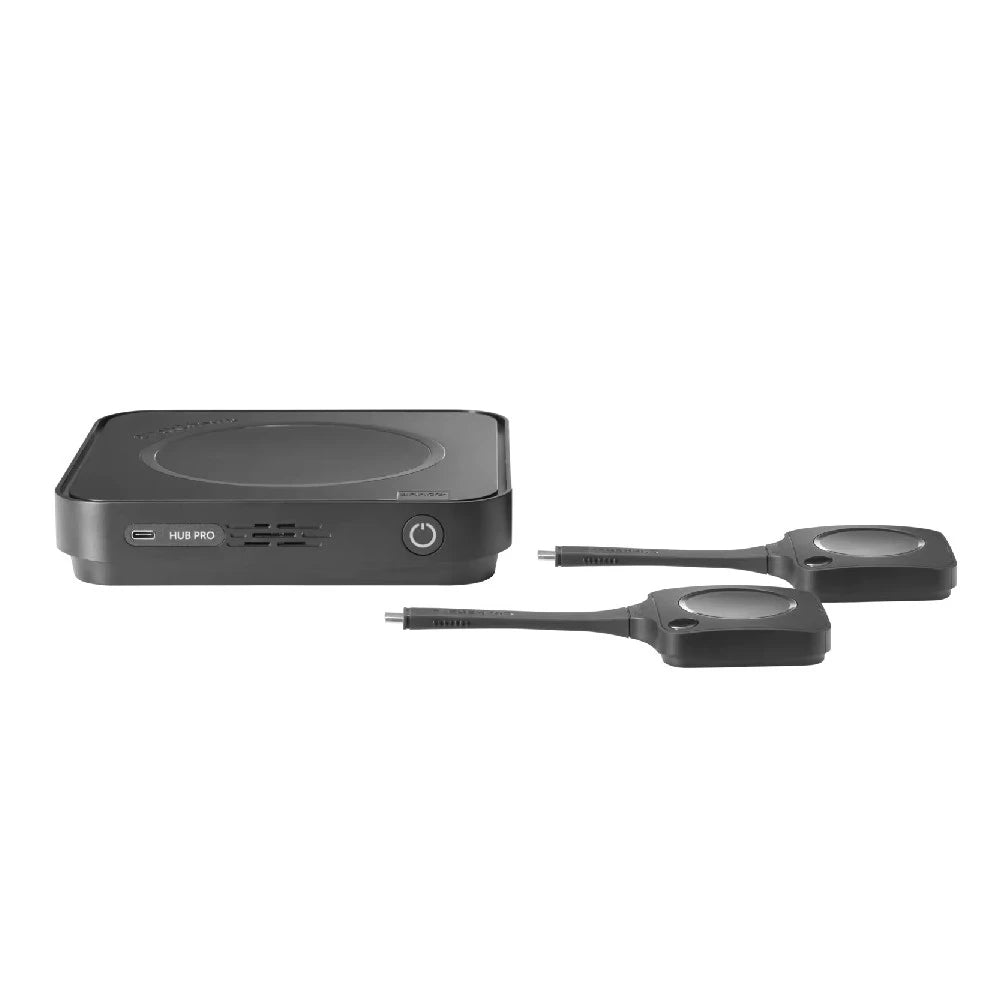

Per Barco: ClickShare Hub Pro base unit, 2 ClickShare Hub Buttons 5th Gen, mounting disc, safety manual and quick setup guide. The Control Panel, power supply and power cord are not included — order the 100 W (B563235K) or 180 W (B563236K) Hub power supply separately.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro (this listing) | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Barco ClickShare Accessories
| Model | Part Number |
| Button Gen 4 (USB-C) | R9861600D01C |
| 2 Buttons Gen 4 + Tray | R9861600P01C |
| Tray (4 Buttons) | R9861500T01 |
| HDMI-IN to USB-C Kit | R9861581 |
| CX-50 Gen-2 Power Supply | B5631051K |
| Bar Wall Mount | R8788066K |
| Bar TV Mount | R8788649K |
| Bar Front Cover | R8787713K |
| 2-in-1 Tray (Gen 5) | R9861700T01 |
| Hub Power Supply 100 W | B563235K |
| Hub Power Supply 180 W | B563236K |
| Button Gen 5 | R9861700D01C |
| USB-C Cable 10 m | Z3406338K |
| Wall Mount Plate | B570170K |
Datasheet & Downloads
| Barco spec sheet | ClickShare Hub Pro Spec Sheet (PDF) |
| Barco product page | Hub Pro on barco.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861710CNB2.
Frequently Asked Questions — Barco R9861710CNB2
Is a power supply included?
No. Order the ClickShare Hub 100 W (B563235K) or 180 W (B563236K) USB-C power supply and a power cord. Barco recommends 180 W if you want to charge a laptop while using wired video input.
What does Hub Pro add over Hub Core?
A second HDMI output for dual-display rooms, more USB-C ports with DisplayPort out, and two Buttons.
Do I need a Microsoft Teams Rooms licence?
Yes — Barco lists a Teams Rooms licence as required.
Will my existing ClickShare Buttons work?
No — the Hub uses the ClickShare Button 5th generation only.
What warranty do I get?
Barco: 3 years standard.
