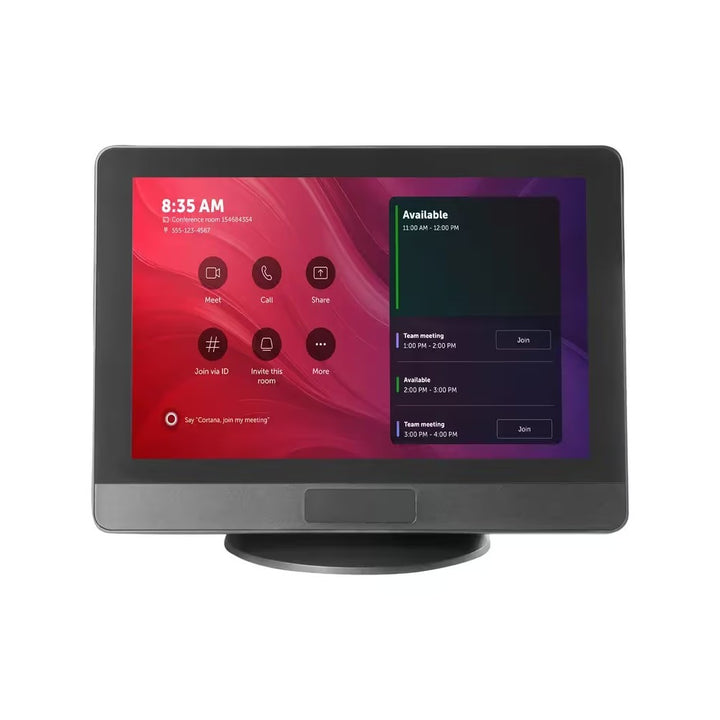

Barco ClickShare Control Panel 10.1" Touch Console for ClickShare Hub
PRODUCT DESCRIPTION
Barco ClickShare Control Panel 10.1-inch Touch Console for ClickShare Hub Core / Hub Pro, with 10 m USB-C Cable (R9861720US)
Touch Console for ClickShare Hub Rooms

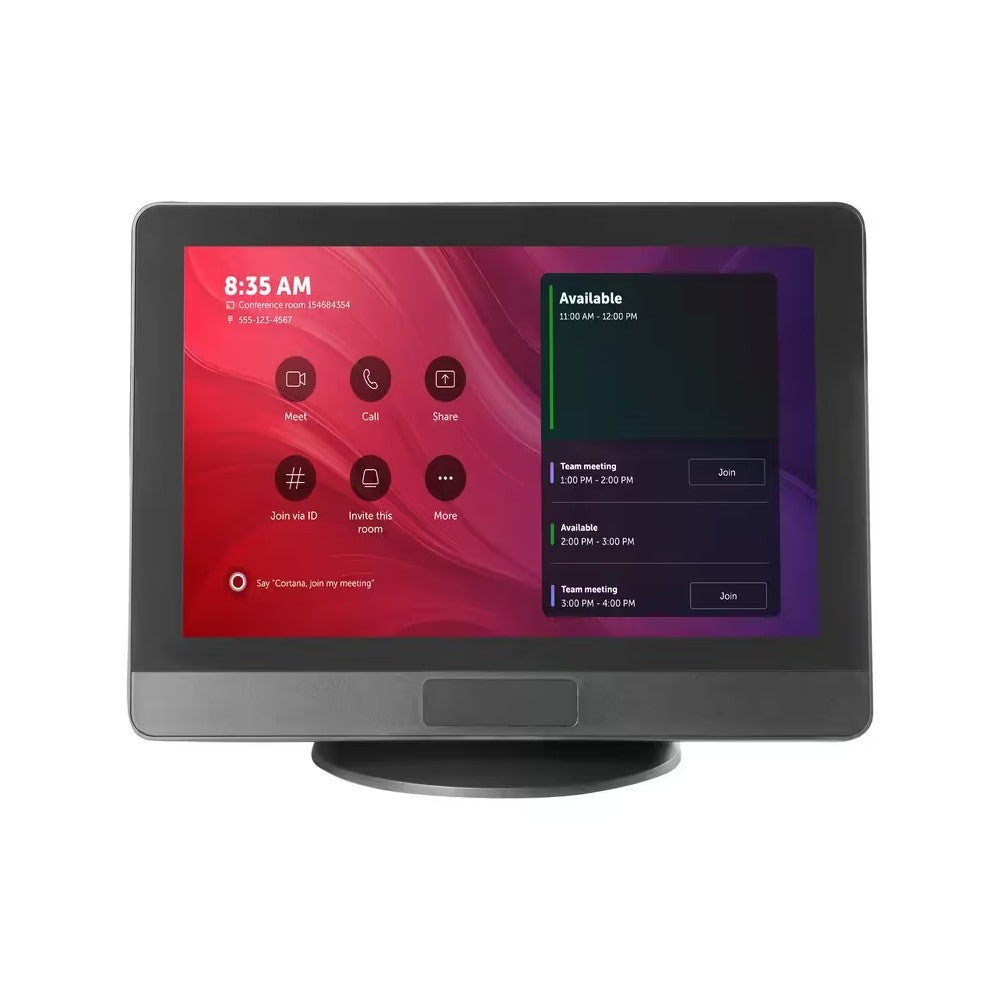

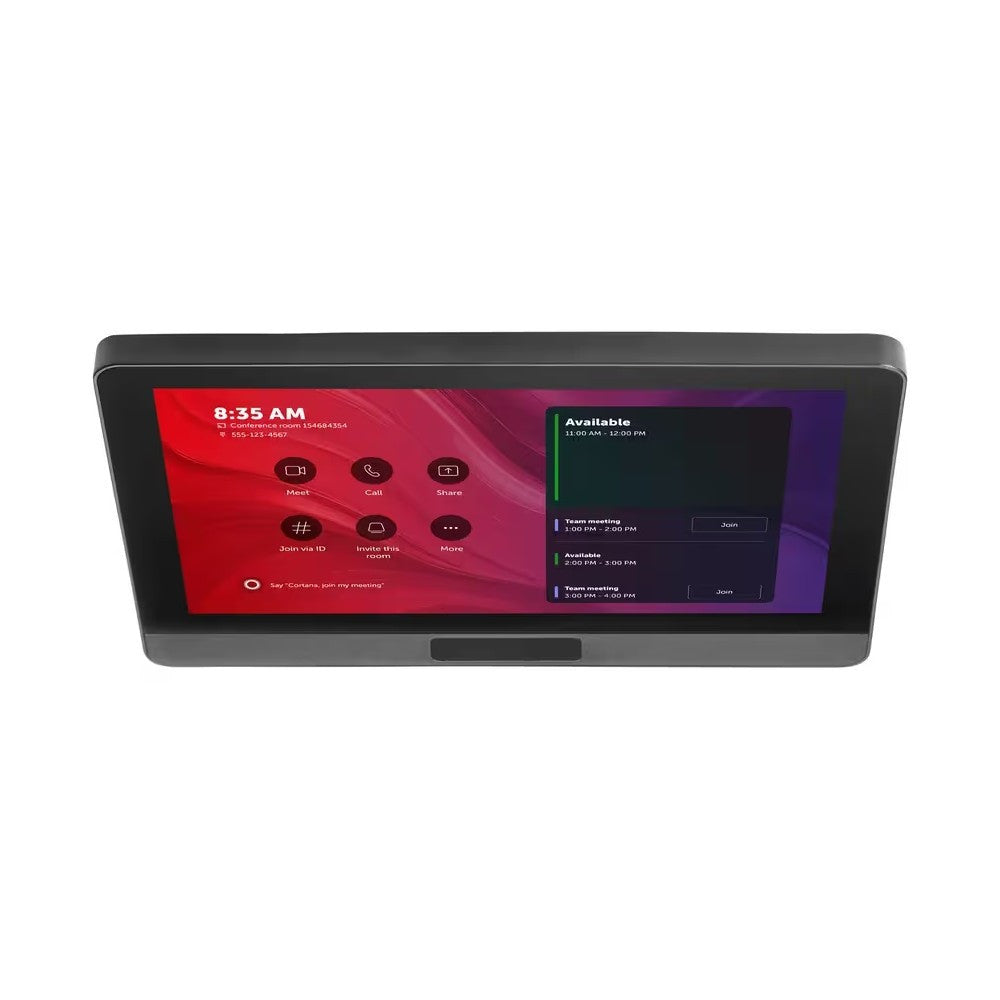

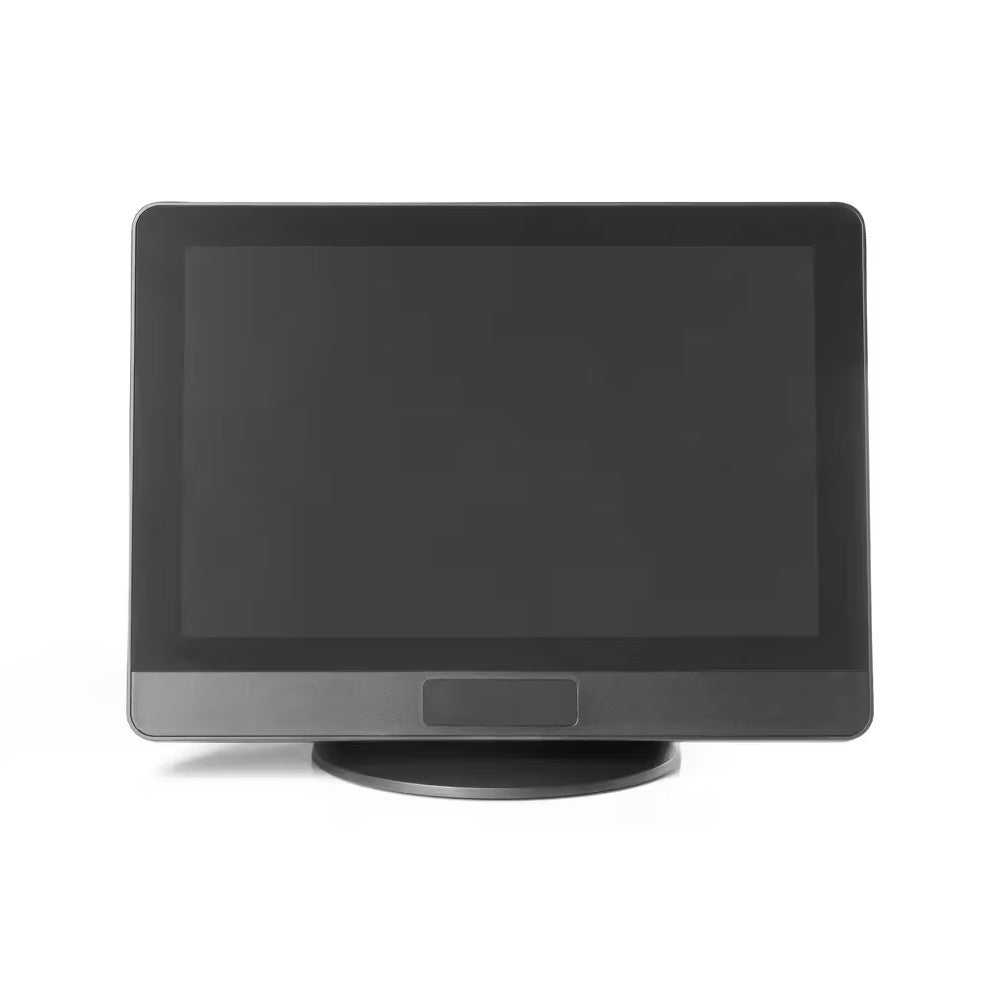

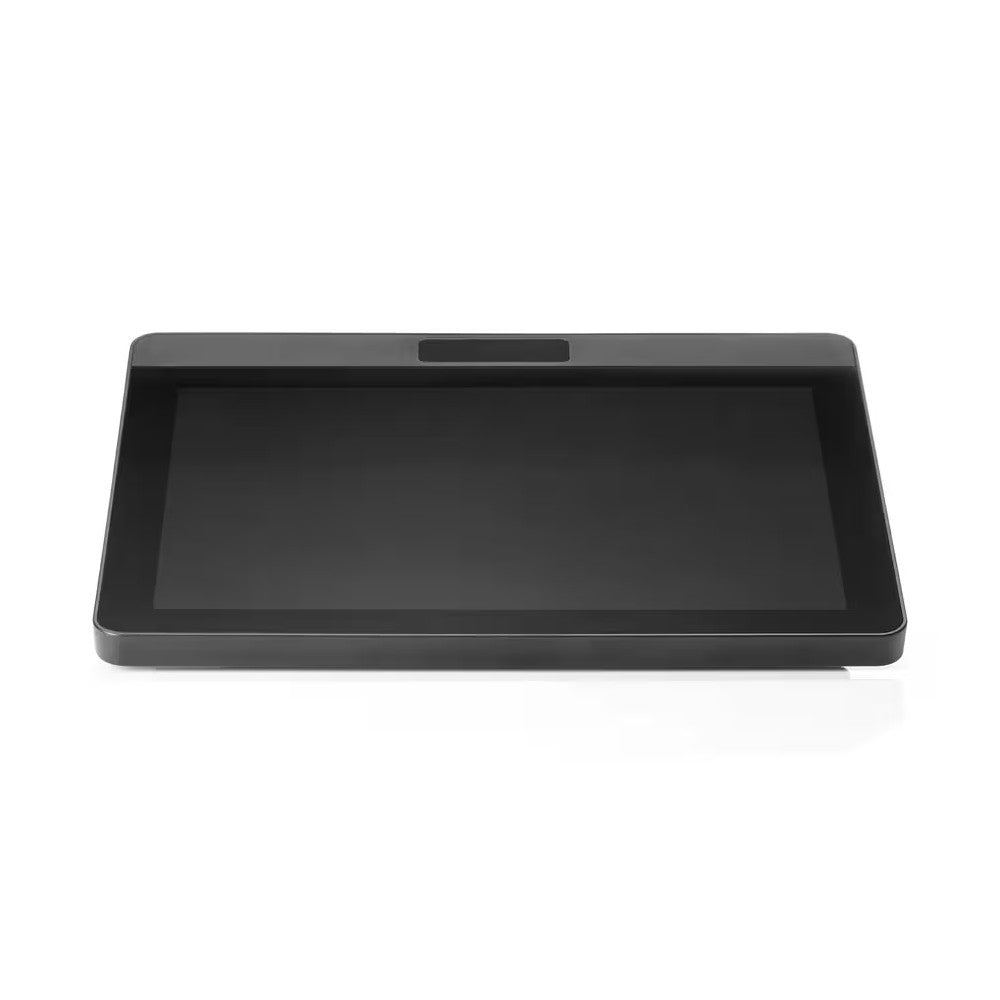

The Barco ClickShare Control Panel is a 10.1-inch touch console for the ClickShare Hub Core and Hub Pro, giving users a familiar Microsoft Teams Rooms control surface at the table.
One Cable for Video, Touch and Power

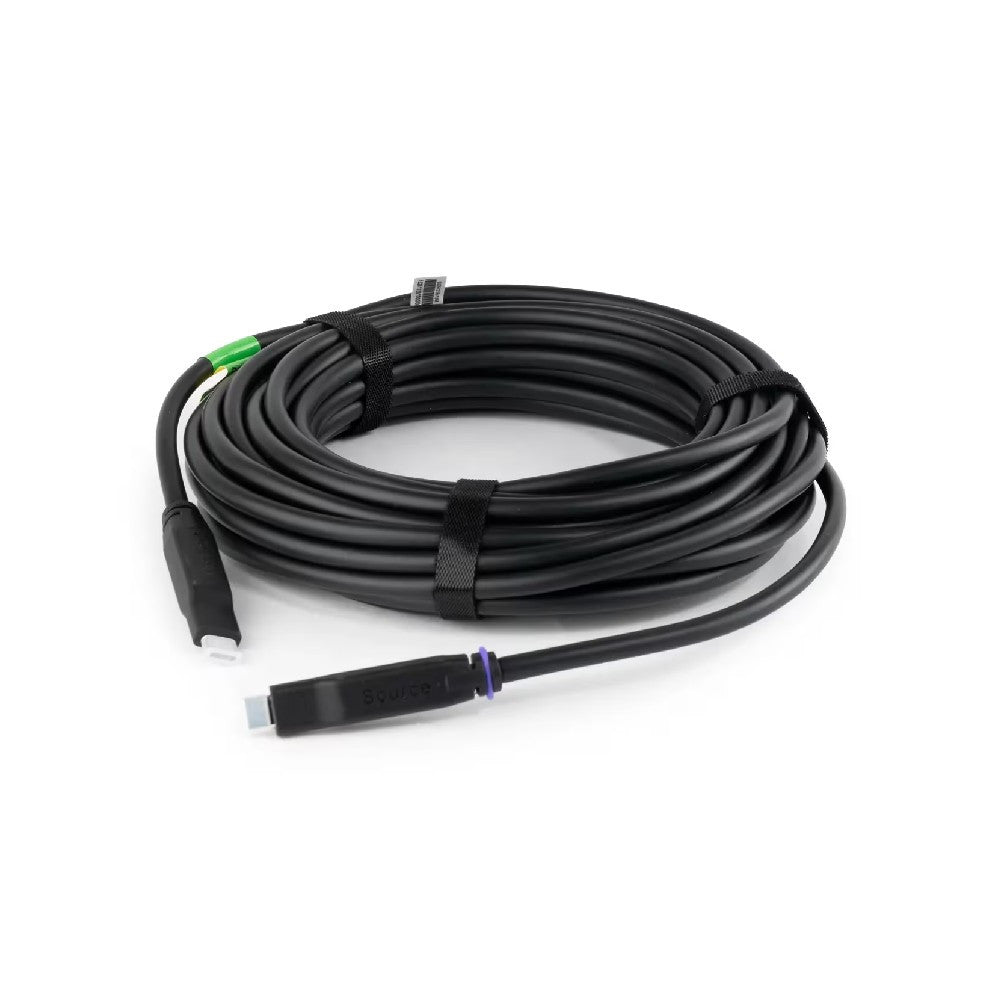

The panel connects to the Hub's Control Panel USB-C port with a single cable carrying DisplayPort Alt Mode video, touch data and USB Power Delivery. The 10 m USB-C active optical cable is included; for longer runs Barco offers a USB-C extension over CAT kit.
Detects People Entering the Room
A human-detection sensor (2 m range, 90° field of view) wakes the panel as people approach. The projected-capacitive screen has anti-fingerprint and anti-glare coatings and draws 7.3 W max.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861720US Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare Control Panel |
| Part Number | R9861720US |
| Compatible With | ClickShare Hub Core and Hub Pro |
Display & Touch
| Screen | 10.1-inch projected capacitive touchscreen, anti-fingerprint and anti-glare coatings, up to 4 touch points |
| Resolution | 1280 x 800 @ 60 Hz |
| Brightness | 300 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 80° up / down / left / right |
| Human Detection Sensor | 2 m range, 90° field of view |
Connectivity
| Connection | USB Type-C 2.0, DisplayPort Alt Mode, PD 3.0 |
| Included Cable | 10 m / 6 mm USB-C active optical cable — USB Type-C 3.2 Gen 1, DP 1.4, 20 W PD, VW-1 (not plenum rated) |
Power & Physical
| Power Consumption | Operational 7.3 W max |
| Dimensions | 254.5 x 187.9 x 76.9 mm |
| Weight | 820 g |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20 °C to +60 °C |
| Anti-theft | Kensington lock |
Compatibility & Software Support
Works only as an add-on for the ClickShare Hub Core and Hub Pro, connected to the Hub's Control Panel USB-C port (driven by the Hub's eDP output at 1280 x 800 @ 60 Hz). Beyond 10 m, Barco's USB-C Extension over CAT kit (R9861625) reaches up to 60 m on CAT5e/6 or 70 m on CAT6a/7 (CAT cables and a 100 W USB-C power supply sold separately).
Package Contents & ClickShare Range Ordering Information
In the Box
Per Barco: ClickShare Control Panel, ClickShare 10 m 20 W USB-C AOC cable, L-shape mounting plate, round base, screw pack, safety manual and quick setup guide.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel (this listing) | R9861720US | Hub touch console |
Datasheet & Downloads
| Barco spec sheet | ClickShare Control Panel Spec Sheet (PDF) |
| Barco product page | Control Panel on barco.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861720US.
Frequently Asked Questions — Barco R9861720US
Does it work with ClickShare CX or Bar models?
No. Barco lists the Control Panel as an add-on for the ClickShare Hub Core and Hub Pro only.
Is the cable included?
Yes, a 10 m USB-C active optical cable is included. A spare is available as Z3406338K.
Does it need its own power supply?
No — it is powered over the USB-C cable from the Hub.
Can it be wall-mounted?
Barco supplies an L-shape mounting plate and a round table base in the box.
What warranty applies?
Barco's Control Panel spec sheet does not state a warranty period; ask us for the current terms.
