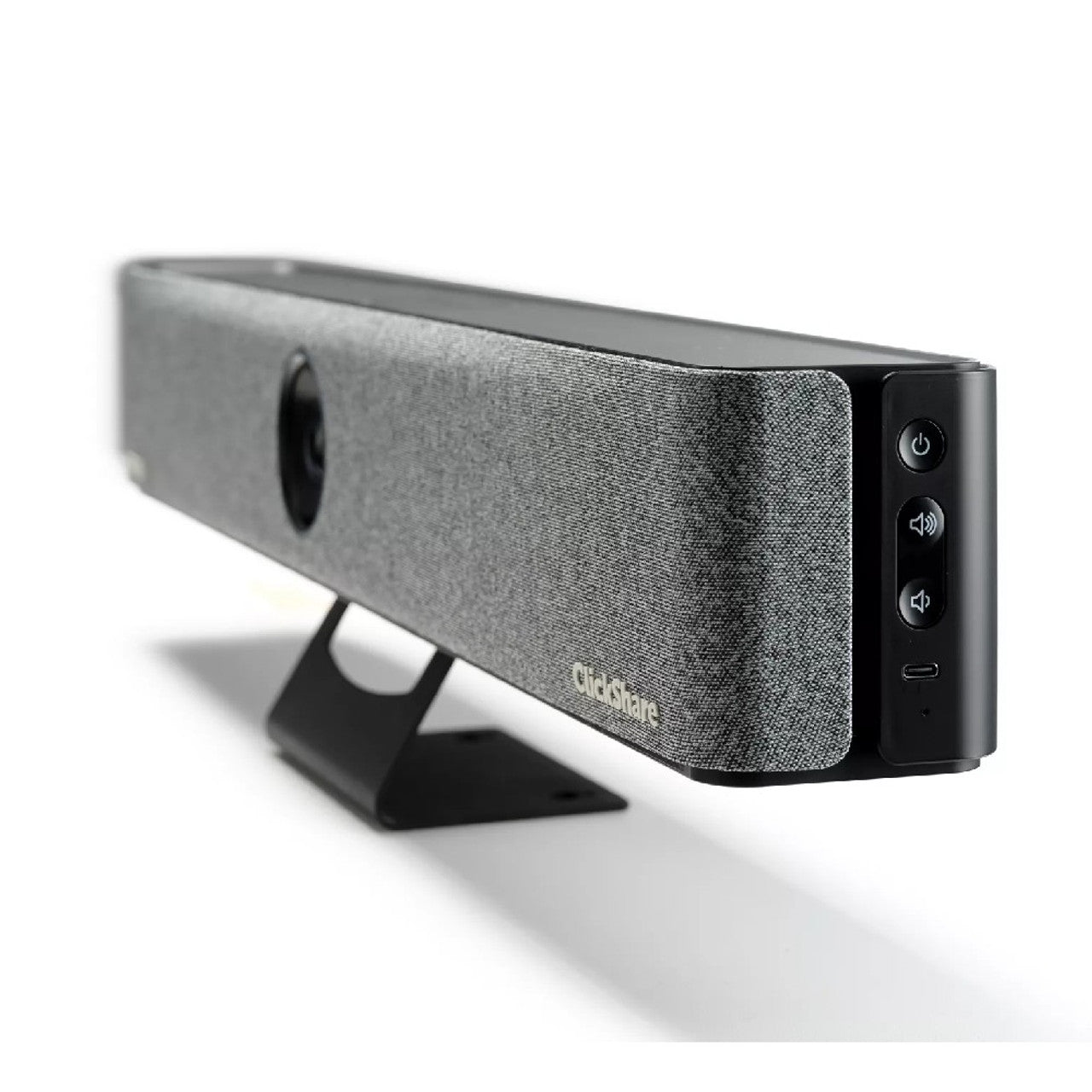

Barco ClickShare Bar Pro All-in-One Video Bar with 2 Buttons
PRODUCT DESCRIPTION

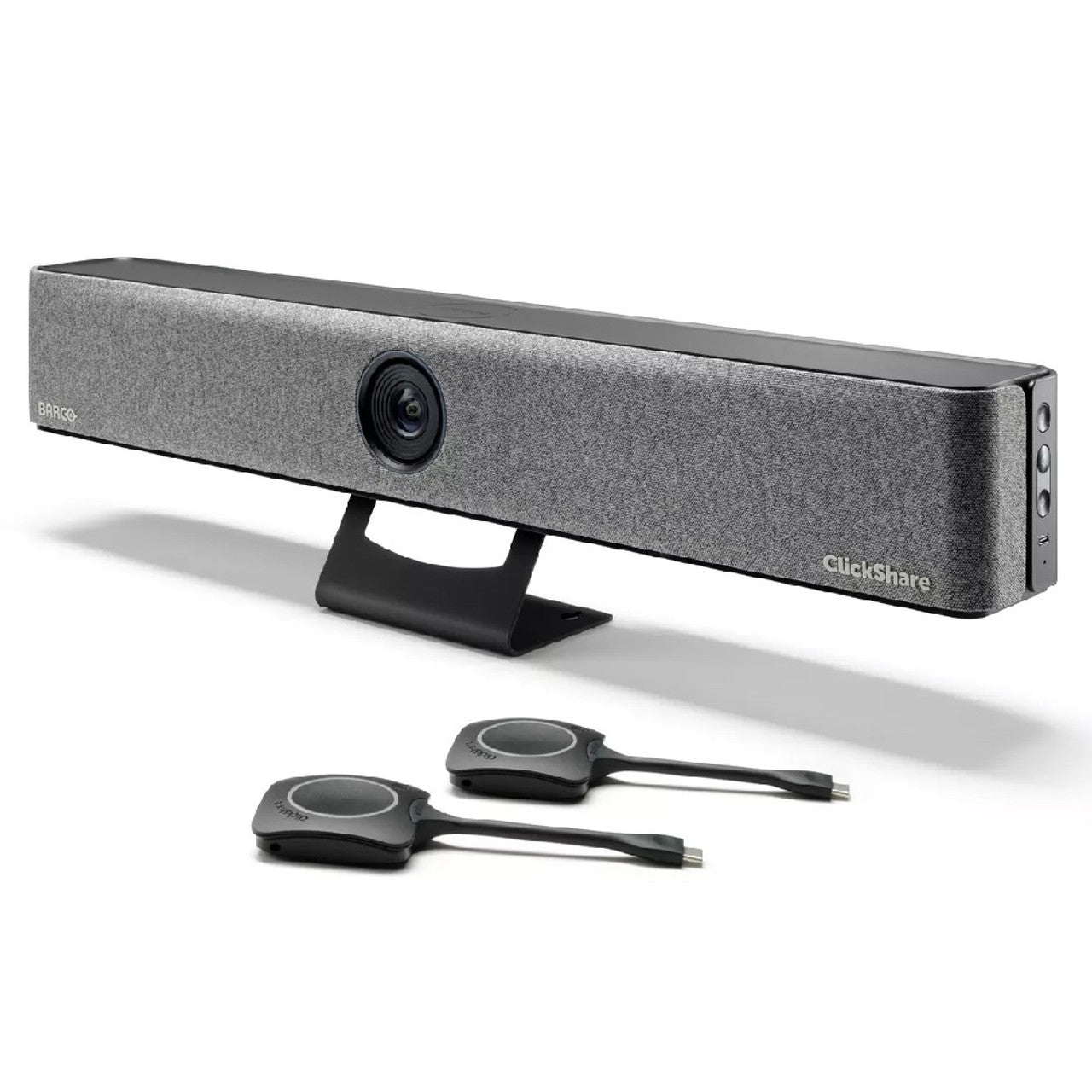

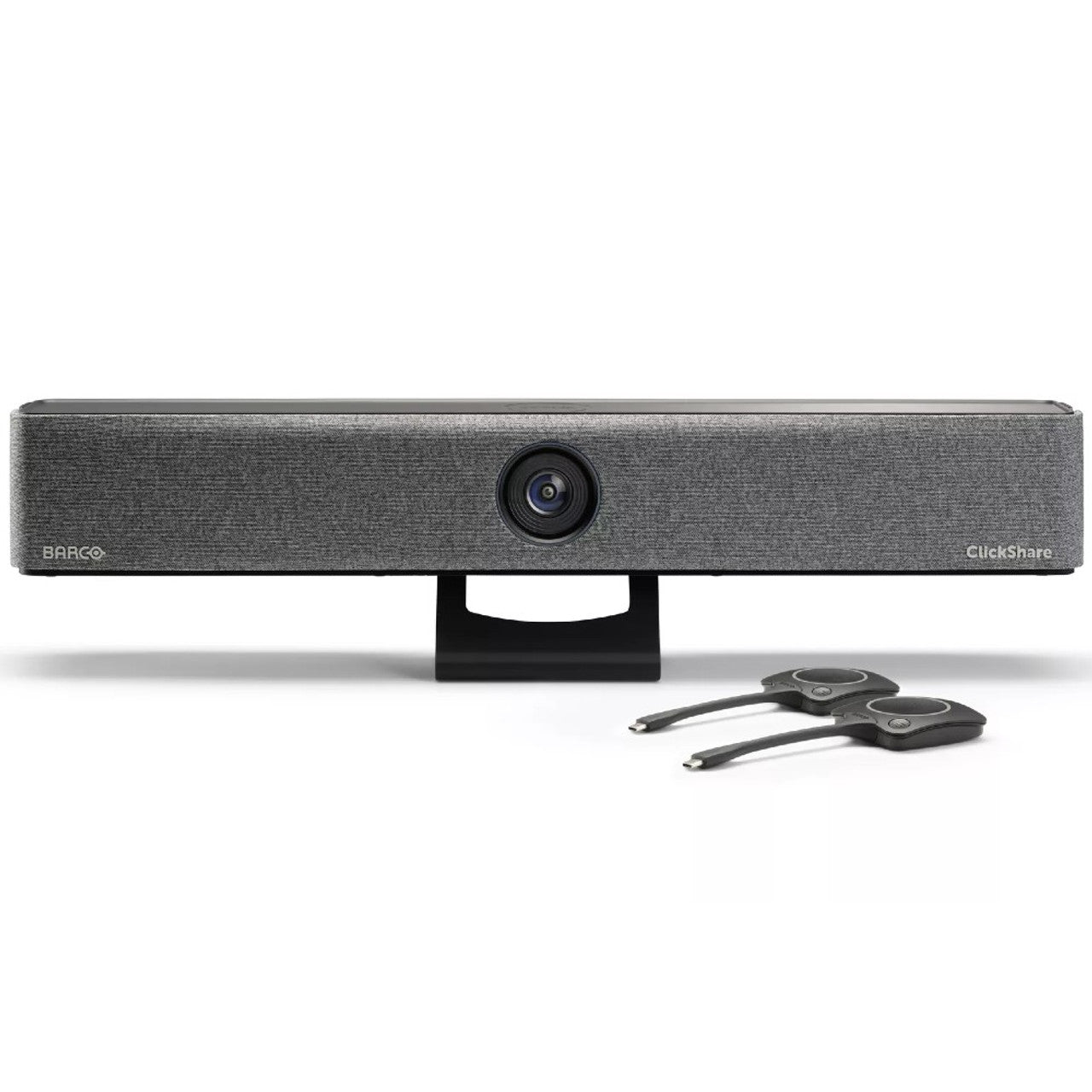

Barco ClickShare Bar Pro All-in-One Wireless Conferencing Video Bar with 2 ClickShare Buttons, 4K Camera, Dual Screen (R9861633USB2) - 1 Year Warranty, up to 5 Years with SmartCare Registration
Premium All-in-One Video Bar
The Barco ClickShare Bar Pro brings wireless presentation, wireless conferencing, a 4K camera, six beamforming microphones and stereo speakers together in one fanless bar for small and medium meeting rooms. Join Microsoft Teams, Zoom or any other platform from your own laptop. Two ClickShare Buttons are included.
Speaker Tracking and Dual Screen

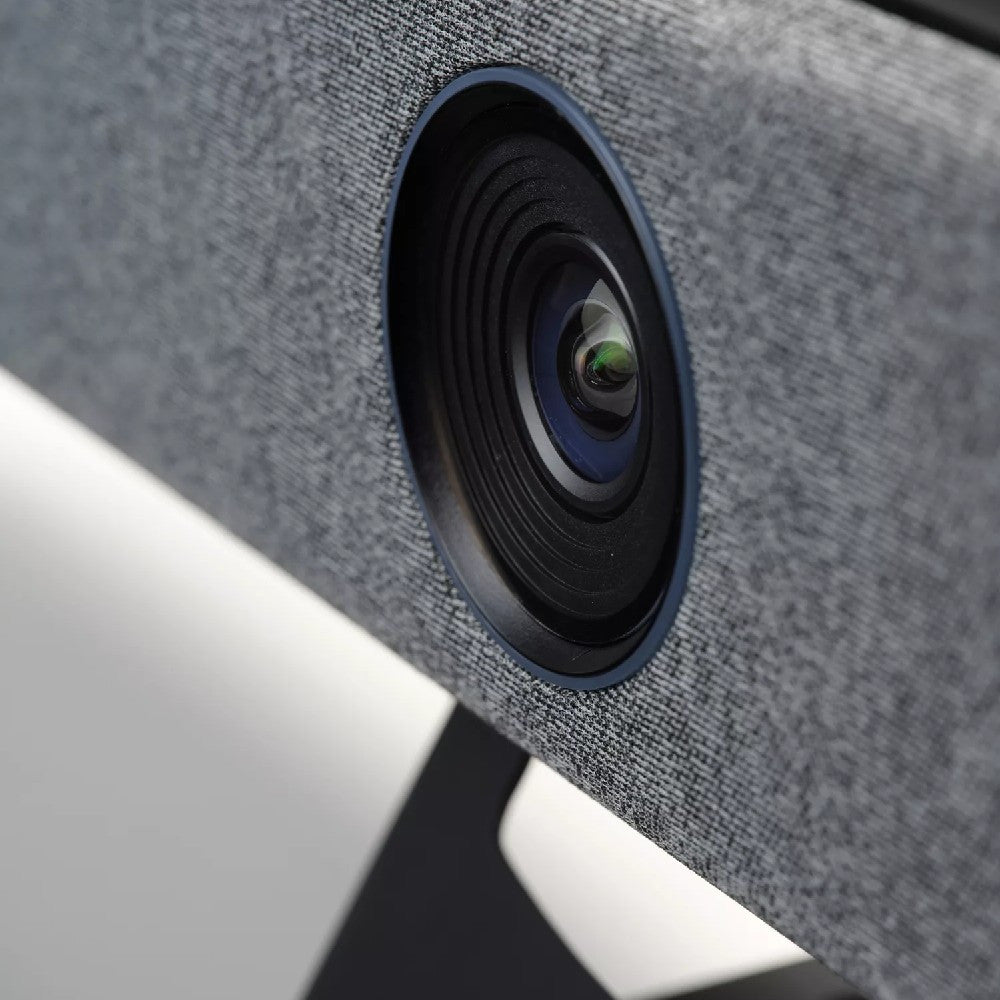

The 4K camera (3x zoom / ePTZ, 120° FOV) adds AI speaker tracking to group framing, and the Bar Pro can drive one 4K display or two 1080p displays, with two sources on screen at once.
Wired Input When You Need It
A USB-C DisplayPort Alt Mode input accepts 4K30 content from a laptop cable, alongside the wireless Button, ClickShare App, AirPlay, Google Cast and Miracast.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861633USB2 Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare Bar Pro with 2 Buttons (US version) |
| Part Number | R9861633USB2 |
| Product Family | ClickShare Bar |
| ClickShare Buttons Included | 2 |
| Warranty | 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare |
Video & Sharing
| Video Output | 4K UHD (3840 x 2160) @ 30 Hz or 2 x 1080p @ 30 Hz via HDMI 1.4b or USB-C DP Alt Mode (DisplayPort 1.2) |
| Video Input | 4K UHD (3840 x 2160) @ 30 Hz via USB-C DP Alt Mode (DisplayPort 1.2) |
| Max. Sources on Screen | 2 |
| Native Protocols | AirPlay, Google Cast, Miracast |
Camera & Audio
| Camera | 4K, 1080p, 720p at 30 fps; 3x zoom / ePTZ; 120° FOV |
| Camera AI | Group framing, composition mode and speaker tracking |
| Speakers | 2 x 10 W full-duplex stereo speakers, 8 Ω |
| Microphones | 6 beamforming MEMS microphones with echo and background-noise cancellation; pick-up range max. 4 m (13 ft) |
Connectivity
| Wireless | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 |
| Frequency Bands | 2.4 GHz and 5 GHz (DFS in select countries in network integration mode) |
| Authentication | WPA2-PSK, or IEEE 802.1X in network mode |
Client Operating Systems
| Supported | Windows 10+, macOS Ventura and higher, Android 13+ and iOS 16+ (ClickShare App) |
Power & Physical
| Power Supply | Standard 110/220 V AC plug or USB-C (back) |
| Power Consumption | Operational 5–20 W, 65 W max |
| Dimensions (H x W x D) | 98 x 640 x 101 mm |
| Weight | 2.5 kg |
| Noise | Fanless |
| Anti-theft | Kensington lock (back and bottom) |
| Certifications | FCC / CE |
Compatibility & Software Support
Conferencing: bring-your-own-meeting — the laptop's conferencing app (for example Microsoft Teams or Zoom) uses the Bar's built-in camera, microphones and speakers over the ClickShare wireless link.
Sharing: ClickShare App, ClickShare Button Gen 4.1, AirPlay, Google Cast and Miracast; USB-C wired input. Barco lists the HDMI-IN to USB-C convertor kit (R9861581) as compatible for HDMI sources. Mounting: Bar wall mount (R8788066K) and TV mount (R8788649K).
Package Contents & ClickShare Range Ordering Information
In the Box
Two ClickShare Buttons included (per the article description). Barco does not publish a full box-contents list for the Bar Pro. Wall / TV mounts are sold separately.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro (this listing) | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Datasheet & Downloads
| Barco spec sheet | ClickShare Bar Pro Spec Sheet (PDF) |
| Barco product page | Bar Pro on barco.com |
| SmartCare warranty registration | How to register your ClickShare base unit |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861633USB2.
Frequently Asked Questions — Barco R9861633USB2
What does Bar Pro add over Bar Core?
Speaker tracking, dual-screen output (2 x 1080p), a USB-C video input, two sources on screen and a second Button.
Does it need a PC in the room?
No — it works with the conferencing app on the presenter's laptop via the ClickShare Button or App.
Can I connect an HDMI laptop?
Yes, with Barco's HDMI-IN to USB-C convertor kit (R9861581) on the USB-C input.
How is it mounted?
On a table, or with the ClickShare Bar wall mount or TV mount (sold separately).
What warranty do I get?
Barco: 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare.
