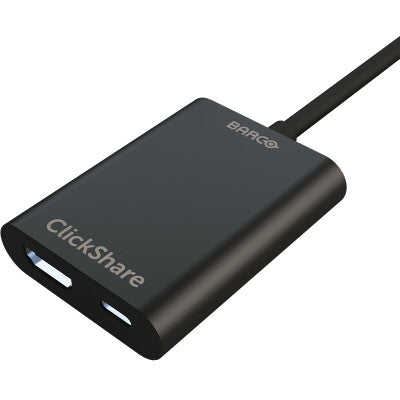

Barco ClickShare HDMI-IN to USB-C Convertor Kit
PRODUCT DESCRIPTION
Barco ClickShare USB-C Input Convertor — HDMI-IN to USB-C Convertor Kit for CX-50 Gen-2, Bar and Hub (R9861581)
Add an HDMI Input to Your ClickShare Room
Barco's USB-C input convertor lets a wired HDMI source connect to a ClickShare base unit's USB-C input, and enables Wired RoomDock use. Barco states that other HDMI-to-USB-C convertors are not supported, so this is the kit to use.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861581 Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare USB-C Input converter (HDMI-IN to USB-C convertor kit) |
| Part Number | R9861581 |
Technical
| Input | HDMI 2.0 and USB 3.2 Gen 1 (5 Gbps) |
| Output | USB-C DisplayPort 1.2 |
| Dimensions | 60 x 30 x 180 mm |
| Weight | 100 g |
| Operating / Storage Temperature | -10 to 60 °C |
Compatibility & Software Support
Barco lists compatibility with the ClickShare CX-50 2nd generation, Bar Pro, Bar Core, Hub Pro and Hub Core. For Wired RoomDock on the CX-50 Gen-2, Barco advises base-unit firmware 2.19 or later.
Package Contents & ClickShare Accessories Ordering Information
In the Box
Barco does not publish a box-contents list.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Barco ClickShare Accessories
| Model | Part Number |
| Button Gen 4 (USB-C) | R9861600D01C |
| 2 Buttons Gen 4 + Tray | R9861600P01C |
| Tray (4 Buttons) | R9861500T01 |
| HDMI-IN to USB-C Kit (this listing) | R9861581 |
| CX-50 Gen-2 Power Supply | B5631051K |
| Bar Wall Mount | R8788066K |
| Bar TV Mount | R8788649K |
| Bar Front Cover | R8787713K |
| 2-in-1 Tray (Gen 5) | R9861700T01 |
| Hub Power Supply 100 W | B563235K |
| Hub Power Supply 180 W | B563236K |
| Button Gen 5 | R9861700D01C |
| USB-C Cable 10 m | Z3406338K |
| Wall Mount Plate | B570170K |
Datasheet & Downloads
| Barco spec sheet | ClickShare HDMI-IN to USB-C Kit Spec Sheet (PDF) |
| Barco product page | HDMI-IN to USB-C Kit on barco.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861581.
Frequently Asked Questions — Barco R9861581
Can I use a generic HDMI-to-USB-C adapter instead?
Barco states that any other HDMI to USB-C convertor is not supported.
Which ClickShare units does it work with?
CX-50 2nd generation, Bar Core/Pro and Hub Core/Pro.
