Barco ClickShare USB-C Cable 10m 20W
PRODUCT DESCRIPTION

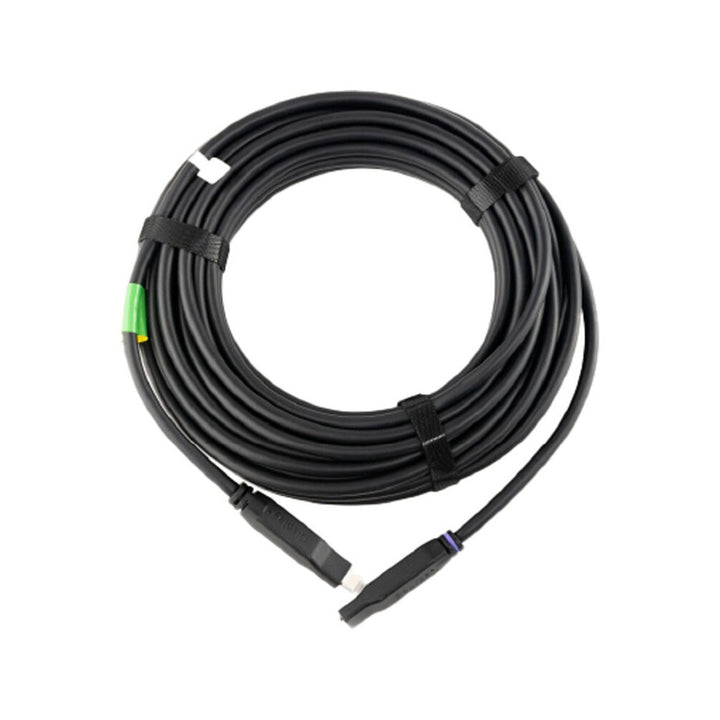

Barco ClickShare 10 m USB-C Active Optical Cable, 20 W PD, for ClickShare Control Panel (Z3406338K)
Spare 10 m Cable for the Control Panel
The genuine Barco USB-C cable kit (10 m, 20 W) that connects the ClickShare Control Panel to a ClickShare Hub. It is the same active optical cable supplied with the Control Panel (R9861720US) — use it as a spare or replacement.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco Z3406338K Datasheet — Technical Specifications
General
| Product Name | Barco USB-C cable kit, 10 metre, 20 Watt |
| Part Number | Z3406338K |
Technical (per Barco Control Panel spec)
| Type | USB-C active optical cable (AOC) |
| Length / Diameter | 10 m / 6 mm |
| Standard | USB Type-C 3.2 Gen 1, DisplayPort 1.4 |
| Power Delivery | 20 W |
| Bend Radius | 60 mm fixed, 30 mm temporary |
| Fire Rating | VW-1 (not plenum rated) |
| Operating / Storage Temperature | -10 to 60 °C / -20 to 70 °C |
Compatibility & Software Support
Barco lists this cable kit for the ClickShare Control Panel. The cable is directional; beyond 10 m, use Barco's USB-C Extension over CAT kit (R9861625).
Package Contents & ClickShare Accessories Ordering Information
In the Box
Barco: USB-C cable plus a USB-C cable lock kit.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Barco ClickShare Accessories
| Model | Part Number |
| Button Gen 4 (USB-C) | R9861600D01C |
| 2 Buttons Gen 4 + Tray | R9861600P01C |
| Tray (4 Buttons) | R9861500T01 |
| HDMI-IN to USB-C Kit | R9861581 |
| CX-50 Gen-2 Power Supply | B5631051K |
| Bar Wall Mount | R8788066K |
| Bar TV Mount | R8788649K |
| Bar Front Cover | R8787713K |
| 2-in-1 Tray (Gen 5) | R9861700T01 |
| Hub Power Supply 100 W | B563235K |
| Hub Power Supply 180 W | B563236K |
| Button Gen 5 | R9861700D01C |
| USB-C Cable 10 m (this listing) | Z3406338K |
| Wall Mount Plate | B570170K |
Datasheet & Downloads
| Barco spare-part page | USB-C Cable 10 m on barco.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Z3406338K.
Frequently Asked Questions — Barco Z3406338K
Is this cable already included with the Control Panel?
Yes — the Control Panel ships with one. This is a spare or replacement.
Can I use a longer cable?
Barco's USB-C Extension over CAT kit reaches up to 60–70 m.
