Barco ClickShare Hub Core Microsoft Teams Rooms System with 1 Button
PRODUCT DESCRIPTION

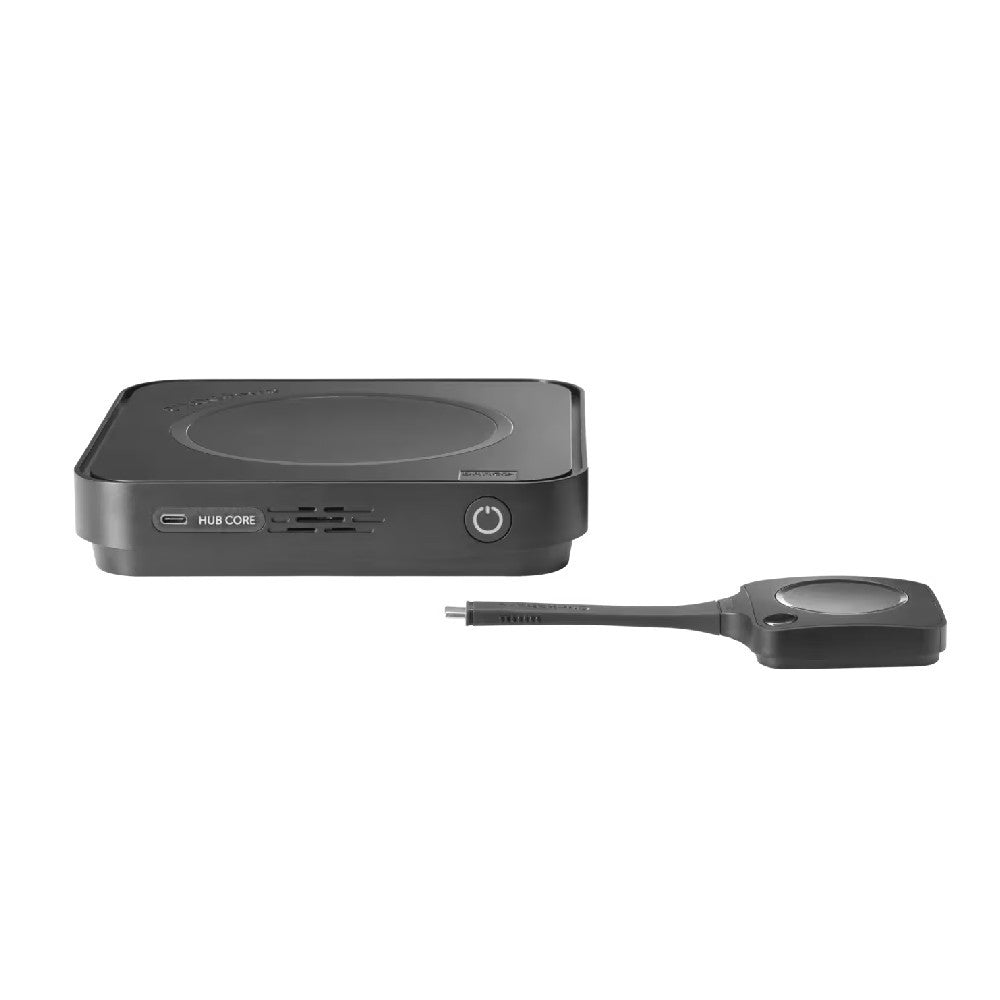

Barco ClickShare Hub Core Modular Wireless Video Conferencing Room System (Microsoft Teams Rooms on Android) with 1 ClickShare Button Gen 5 (R9861711CNB1) - 3 Years Warranty
Modular Microsoft Teams Rooms System
The Barco ClickShare Hub Core is a compact room system that runs Microsoft Teams Rooms on Android (MDEP) and pairs with your choice of USB camera and audio. It combines a native Teams Rooms experience with ClickShare wireless sharing, and ships with one ClickShare Button 5th generation.
Next-Gen Wi-Fi and 5K Output
Wi-Fi with 802.11 ax/be support on 2.4, 5 and 6 GHz plus Bluetooth 5.3, HDMI 2.0 output up to 5120 x 2160 (UW5K) at 30 Hz and a 4K30 HDMI input make the Hub Core ready for modern huddle and small meeting rooms.
Touch Control Panel Ready
Add the ClickShare Control Panel (R9861720US) for a 10.1-inch Teams Rooms touch console, powered and driven by a single USB-C cable. The Hub is managed through Barco XMS Cloud.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861711CNB1 Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare Hub Core with 1 Button (CN version) |
| Part Number | R9861711CNB1 |
| Product Family | ClickShare Hub |
| Operating System | Android (MDEP) — Microsoft Teams Rooms |
| Microsoft Teams Rooms Licence | Required (not included) |

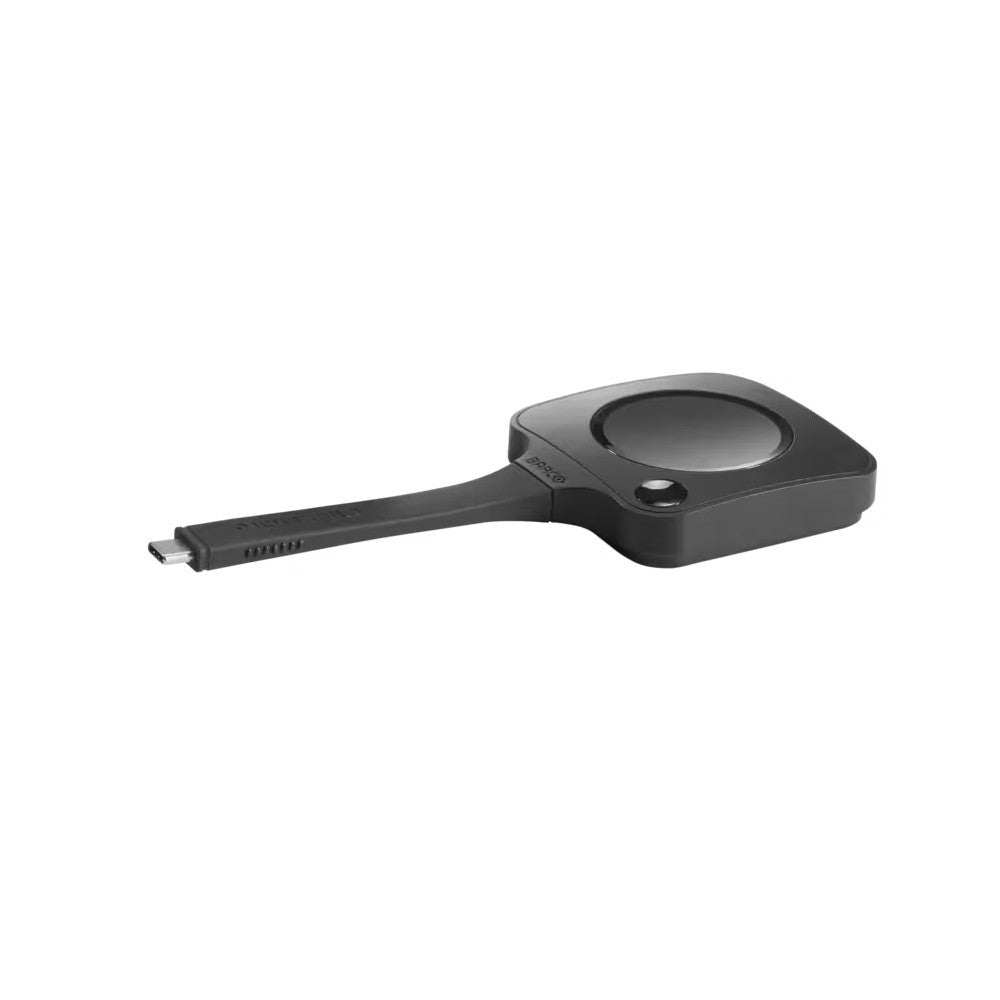

| ClickShare Buttons Included | 1 x ClickShare Button 5th generation |
| Warranty | 3 years standard (Barco) |
Video & Audio
| Video Output | HDMI: UW5K (5120 x 2160) @ 30 Hz, HDMI 2.0; eDP (Control Panel): 1280 x 800 @ 60 Hz, DP 1.4 |
| Video Input | 4K UHD (3840 x 2160) @ 30 Hz, HDMI 2.0 |
| Audio Output | USB-A 2.0/3.0, USB-C 2.0/3.0, HDMI 2.0 |
| Max. Sources on Screen | 1 |
| ClickShare App | Desktop |
Connectivity

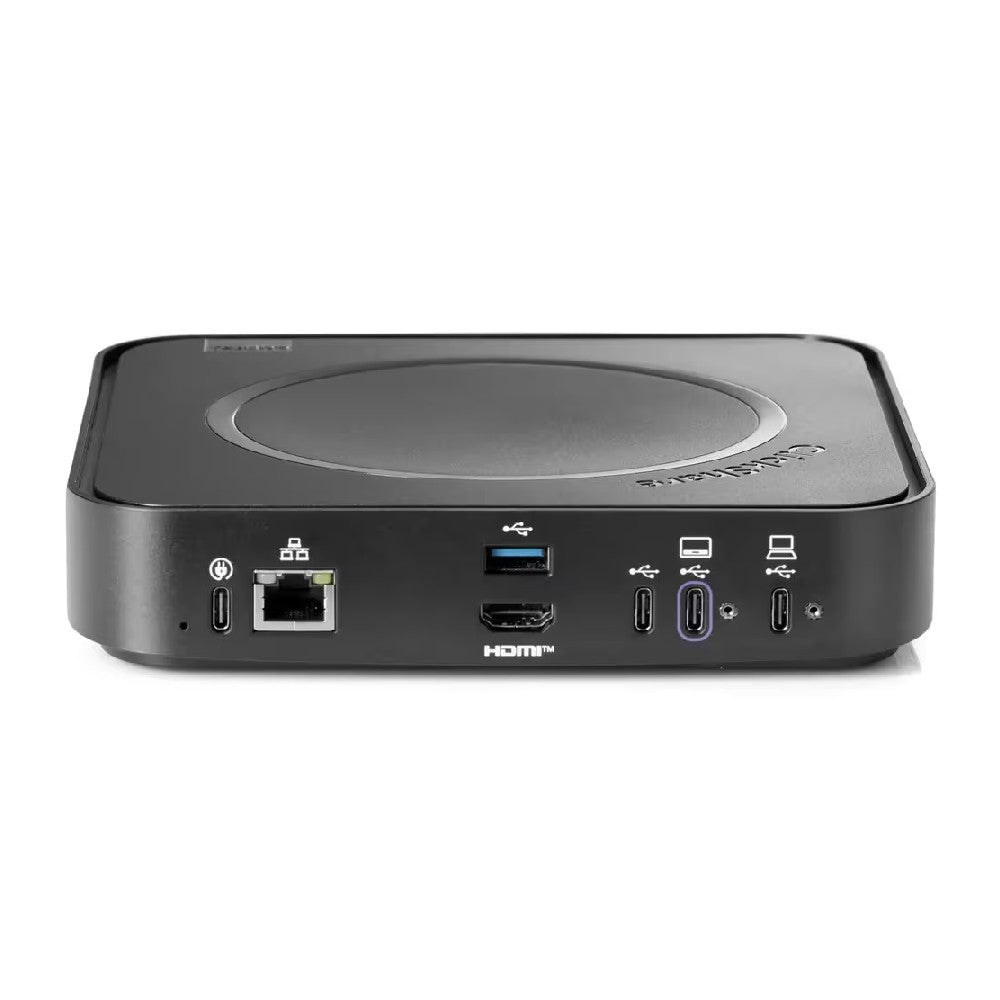

| Back Panel | 1 x Ethernet LAN 1 Gbps; 1 x USB-C PD 3.1 EPR (power adapter); 1 x HDMI 2.0 output; 1 x USB-A 2.0/3.0; 1 x USB-C 2.0/3.0 |
| Front Panel | 1 x USB-C 2.0/3.0 |
| Reach | Max. 30 m (100 ft) between Button and base unit |
| Wireless | IEEE 802.11 a/b/g/n/ac/ax/be; Bluetooth 5.3 |
| Frequency Bands | 2.4 GHz, 5 GHz and 6 GHz |
| Management | Barco XMS Cloud |
Power & Physical
| Power Consumption | Operational 140 W max |
| Operating Temperature | 0 °C to +40 °C |
| Power Supply | External USB-C charger — 100 W (PD 3.0 SPR) or 180 W (PD 3.1 EPR); not included |
| Dimensions (H x W x D) | 37 x 180 x 180 mm |
| Weight | 720 g |
| Noise | Max. 25 dBA @ 30 °C |
| Certifications | FCC / CE |
Compatibility & Software Support
Platform: Microsoft Teams Rooms on Android — a Teams Rooms licence is required. Connect a USB camera and audio device of your choice.
Buttons: uses the ClickShare Button 5th generation (R9861700D01C) only; 4th-generation Buttons are not compatible with the Hub. Accessories: Control Panel (R9861720US), 100 W / 180 W USB-C power supplies (B563235K / B563236K), wall mount plate (B570170K), 2-in-1 Button tray (R9861700T01).
Package Contents & ClickShare Range Ordering Information
In the Box
Per Barco: ClickShare Hub Core base unit, 1 ClickShare Hub Button 5th Gen, mounting disc, safety manual and quick setup guide. The Control Panel, power supply and power cord are not included — order the 100 W (B563235K) or 180 W (B563236K) Hub power supply separately.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core (this listing) | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Barco ClickShare Accessories
| Model | Part Number |
| Button Gen 4 (USB-C) | R9861600D01C |
| 2 Buttons Gen 4 + Tray | R9861600P01C |
| Tray (4 Buttons) | R9861500T01 |
| HDMI-IN to USB-C Kit | R9861581 |
| CX-50 Gen-2 Power Supply | B5631051K |
| Bar Wall Mount | R8788066K |
| Bar TV Mount | R8788649K |
| Bar Front Cover | R8787713K |
| 2-in-1 Tray (Gen 5) | R9861700T01 |
| Hub Power Supply 100 W | B563235K |
| Hub Power Supply 180 W | B563236K |
| Button Gen 5 | R9861700D01C |
| USB-C Cable 10 m | Z3406338K |
| Wall Mount Plate | B570170K |
Datasheet & Downloads
| Barco spec sheet | ClickShare Hub Core Spec Sheet (PDF) |
| Barco product page | Hub Core on barco.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861711CNB1.
Frequently Asked Questions — Barco R9861711CNB1
Is a power supply included?
No. Order the ClickShare Hub 100 W (B563235K) or 180 W (B563236K) USB-C power supply and a power cord. Barco recommends 180 W if you want to charge a laptop while using wired video input.
Do I need a Microsoft Teams Rooms licence?
Yes — Barco lists a Teams Rooms licence as required.
Does it have a built-in camera?
No. The Hub is modular: pair it with a USB camera and audio device.
Will my existing ClickShare Buttons work?
No — the Hub uses the ClickShare Button 5th generation only.
What warranty do I get?
Barco: 3 years standard.
