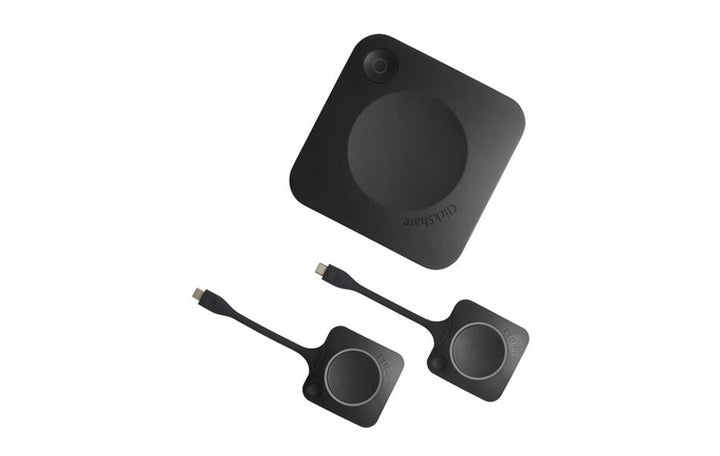

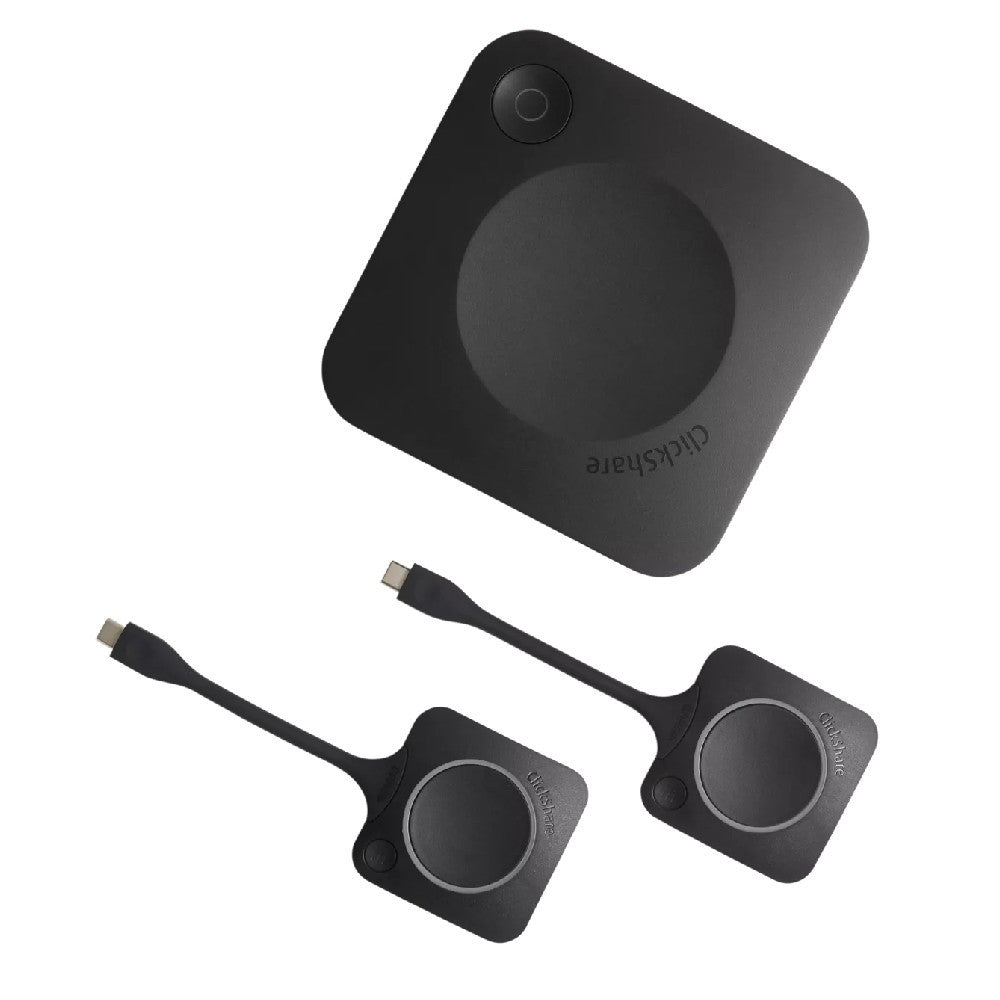

Barco ClickShare C-10 Gen-2 Wireless Presentation System with 2 Buttons
PRODUCT DESCRIPTION
Barco ClickShare C-10 Gen-2 Wireless Presentation System with 2 ClickShare Buttons, 4K, 2 Sources (R9861611NAB2) - 1 Year Warranty, up to 5 Years with SmartCare Registration
Wireless Presentation for Small and Medium Meeting Rooms
The Barco ClickShare C-10 Gen-2 lets presenters share their laptop or mobile screen to the room display in seconds, at up to 4K UHD (3840 x 2160). Two people can share side by side, and this bundle (article R9861611NAB2) includes two ClickShare Buttons for plug-and-press sharing.
Button, App or Native Casting
Plug the USB-C ClickShare Button into a laptop and press to share, or use the ClickShare desktop / mobile app, AirPlay, Google Cast or Miracast. Touch-back and interactivity are supported when the C-10 is connected to a touch display, and local view lets participants follow on their own device.
Gen-2 Connectivity
The Gen-2 unit adds front USB-C 3.0 and USB-A 3.0 ports and 4K output over USB-C DisplayPort 1.2 as well as HDMI 1.4b, with 1 Gbps Ethernet and dual-band Wi-Fi for network integration.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861611NAB2 Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare C-10 Gen-2 with 2 Buttons (NA version) |
| Part Number | R9861611NAB2 |
| Product Family | ClickShare Present |
| ClickShare Buttons Included | 2 (4th-generation USB-C) |
| Warranty | 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare |
Video & Sharing
| Video Output | 4K UHD (3840 x 2160) @ 30 Hz via HDMI 1.4b or USB-C DisplayPort 1.2 |
| Audio Output | HDMI |
| Max. Sources on Screen | 2 |
| Native Protocols | AirPlay, Google Cast, Miracast |
| ClickShare App | Desktop & mobile |
| Touch Screen & Interactivity | Yes |
| Local View | Yes |
| Room Dock | Not supported |
Connectivity
| Ports | 1 x Ethernet LAN 1 Gbps; 1 x USB-C 3.0 and 1 x USB-A 3.0 (front) |
| Wireless | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Reach | Adjustable with signal-strength modulation; max. 30 m (100 ft) |
| Network Connection | LAN & Wi-Fi |
Client Operating Systems
| Supported | Windows 10+, macOS 11+, Android 9+ and iOS 12+ (via the ClickShare App) |
Power & Physical
| Dimensions (H x W x D) | 34 x 135 x 135 mm |
| Weight | 900 g |
| Power Consumption | Operational 5–10 W, 24 W max |
| Noise Level | Max. 25 dBA @ 0–30 °C; max. 30 dBA @ 30–40 °C |
| Operating Temperature | 0 °C to +40 °C (max. 35 °C at 3000 m) |
| Storage Temperature | -20 °C to +60 °C |
| Humidity | 0–85% operating, 0–90% storage, non-condensing |
| Anti-theft | Kensington lock |
| Certifications | FCC / CE |
Compatibility & Software Support
Share from Windows 10+ and macOS 11+ with the ClickShare Button or desktop app, from Android 9+ and iOS 12+ with the mobile app, or natively with AirPlay, Google Cast and Miracast. Barco lists the C-10 as compatible with the ClickShare Button Gen 4 / 4.1 (Gen 4.1 needs base-unit firmware 2.12.0.12 or later on Gen-2 units). Gen-2 units (article numbers R98616xx) add USB 3.0 on all USB ports, DisplayPort over USB-C and USB-C Power Delivery; functions are otherwise the same as Gen-1, per Barco.
Package Contents & ClickShare Range Ordering Information
In the Box
Two ClickShare Buttons included (per the article description). Barco does not publish a full box-contents list for the C-10 Gen-2. Extra Buttons, the Button tray and mounting accessories are sold separately.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) (this listing) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Datasheet & Downloads
| Barco spec sheet | ClickShare C-10 Gen-2 (2 Buttons) Spec Sheet (PDF) |
| Barco product page | C-10 Gen-2 (2 Buttons) on barco.com |
| SmartCare warranty registration | How to register your ClickShare base unit |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861611NAB2.
Frequently Asked Questions — Barco R9861611NAB2
How many Buttons are included?
2. Additional ClickShare Gen 4 USB-C Buttons (R9861600D01C) or the two-Button + tray pack (R9861600P01C) can be added.
How many people can share at the same time?
Two sources can be shown on screen at once.
Does it support touch displays?
Yes — the C-10 supports touch-back and interactivity with a connected touch screen.
Can it be used for video conferencing?
The C-10 is a presentation system. For wireless conferencing with your room camera and speakerphone, see the ClickShare CX-20, CX-30 or CX-50 Gen-2.
What warranty do I get?
Barco: 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare.
