Yealink W80DM DECT IP Multi-Cell System

Yealink W80DM DECT IP Multi-Cell System (1302013) - 1 Years Local Warranty

Centralized DECT Management for Enterprise Communications

The Yealink W80DM DECT IP Multi-Cell System (1302013) serves as the dedicated management unit for the Yealink W80 Multi-Cell DECT solution. Designed for businesses that require seamless wireless communication across large environments, the W80DM provides centralized control, synchronization, and administration of multiple DECT base stations, ensuring reliable voice communication throughout the organization.

Seamless Roaming and Consistent User Experience

Working alongside Yealink W80B base stations, the W80DM enables uninterrupted call continuity through intelligent roaming and handover capabilities. Users can move freely across office floors, warehouses, hospitals, hotels, and educational campuses while maintaining crystal-clear voice communication without dropped calls or connectivity issues.

Scalable Architecture for Growing Organizations

The W80DM is designed to support expanding enterprise communication requirements. As organizations grow, additional W80B base stations and compatible Yealink DECT handsets can be deployed while maintaining centralized management. This scalable design helps businesses build a future-ready wireless communication infrastructure that can adapt to changing operational needs.

Easy Deployment and SIP Platform Integration

The Yealink W80DM integrates seamlessly with SIP-based IP PBX systems and unified communications platforms. Centralized provisioning, simplified configuration, and streamlined maintenance reduce administrative workload while ensuring optimal system performance. Combined with HD voice technology and secure DECT communications, the W80DM provides a dependable foundation for business-critical communications.

Technical Specifications

General
Model: W80DM
Part Number: 1302013
Product Name: Yealink W80DM DECT IP Multi-Cell System
Manufacturer: Yealink
Product Type: DECT Multi-Cell Deployment Manager
Deployment Type: Enterprise DECT Wireless Communication System
System Architecture: Centralized Multi-Cell Management
Compatibility: Yealink W80B Base Stations
Management Capacity: Up to 30 Base Stations and 100 Handsets
Network Type: SIP-Based DECT Wireless Infrastructure
Application: Large Offices, Warehouses, Hospitals, Retail, Manufacturing Facilities
Warranty: 2 Years Limited Warranty

System Specifications
System Type: DECT Multi-Cell Deployment Manager
Function: Centralized Management Controller
DECT Standard: CAT-iq 2.0 Compatible
Roaming Support: Seamless Roaming
Handover Support: Seamless Handover Between Base Stations
Synchronization Method: LAN Synchronization
Deployment Mode: Multi-Cell Wireless Coverage
Management Interface: Web-Based Administration

Capacity Specifications
Maximum Base Stations: Up to 30 x W80B Base Stations
Maximum Handsets: Up to 100 DECT Handsets
Maximum Concurrent Calls: Up to 100 Simultaneous Calls
Maximum SIP Accounts: Up to 100 Accounts
Maximum Repeaters: Supported (Configuration Dependent)
Scalability: Enterprise-Class Expansion Support

DECT Features
DECT Technology: Supported
CAT-iq 2.0: Supported
Wideband Audio: Supported
HD Voice: Supported
Automatic Handover: Supported
Automatic Roaming: Supported
Multi-Site Coverage: Supported
Wireless Mobility: Supported
Signal Optimization: Supported

Voice Features
HD Voice Technology: Supported
Wideband Codec: G.722
Narrowband Codecs: G.711 A-law, G.711 μ-law, G.729, G.726
Noise Reduction: Supported
Packet Loss Concealment: Supported
Echo Cancellation: Supported
Voice Activity Detection: Supported
Comfort Noise Generation: Supported

SIP Features
SIP Protocol: SIP v2 (RFC3261)
SIP Accounts: Up to 100
Proxy Support: Supported
Outbound Proxy: Supported
NAT Traversal: Supported
SRTP: Supported
TLS Encryption: Supported
Multiple SIP Server Support: Supported
Failover Support: Supported

Call Features
Call Hold: Supported
Call Transfer: Supported
Call Forwarding: Supported
Call Waiting: Supported
Three-Way Conferencing: Supported
Caller ID: Supported
Anonymous Call: Supported
Redial: Supported
Do Not Disturb (DND): Supported
Call Park: Supported
Intercom: Supported
Paging: Supported
Emergency Call Support: Supported

Network Specifications
Ethernet Port: 1 x Gigabit Ethernet (RJ45)
Network Speed: 10/100/1000 Mbps
IPv4: Supported
IPv6: Supported
VLAN Support: Supported
QoS Support: Supported
DHCP: Supported
Static IP: Supported
Network Redundancy: Supported

Security Features
TLS Encryption: Supported
SRTP Encryption: Supported
HTTPS Provisioning: Supported
802.1X Authentication: Supported
OpenVPN: Supported
Secure Configuration Management: Supported
User Authentication: Supported
Secure Firmware Upgrade: Supported

Management Features
Web-Based Management: Supported
Centralized Administration: Supported
Remote Configuration: Supported
Remote Firmware Upgrade: Supported
Auto Provisioning: Supported
TR-069: Supported
Device Monitoring: Supported
Diagnostic Logs: Supported
Backup and Restore: Supported
System Status Monitoring: Supported

Compatibility

Compatible Base Stations:

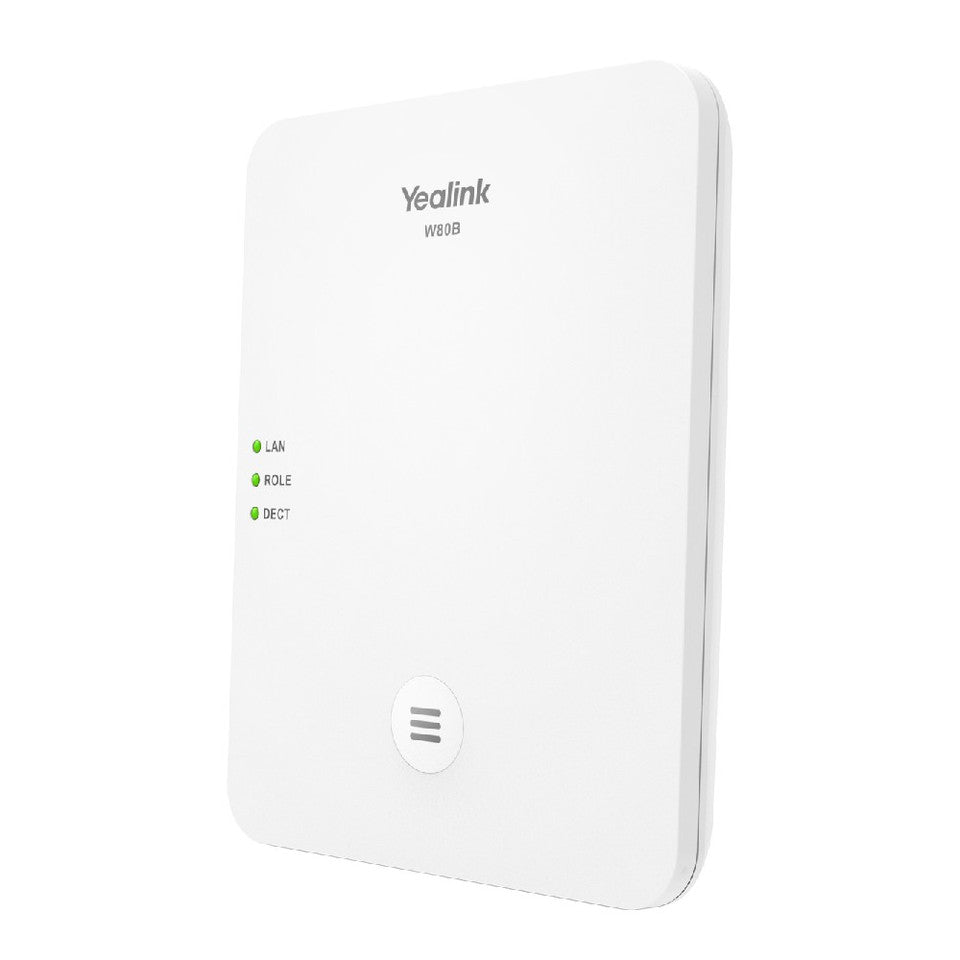

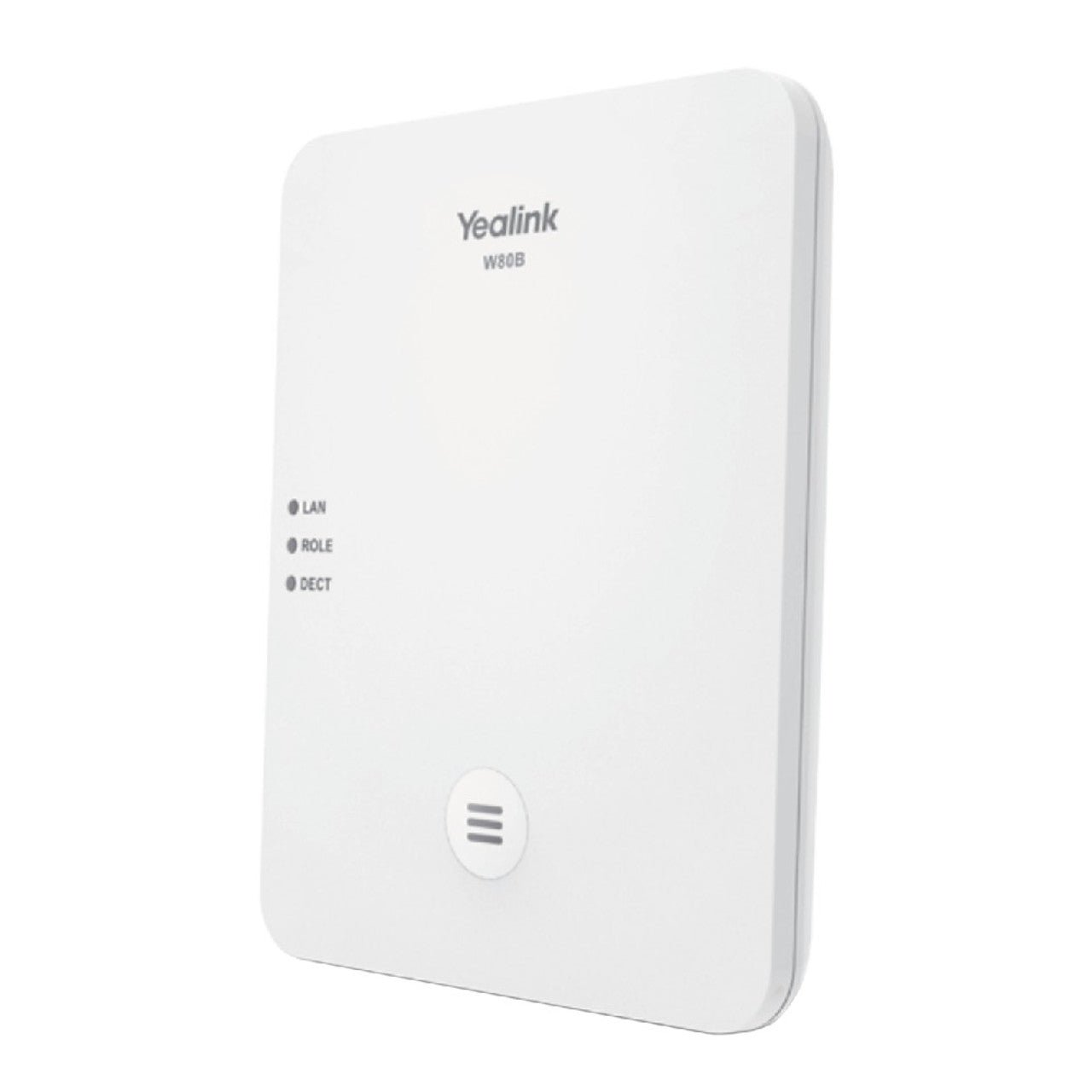

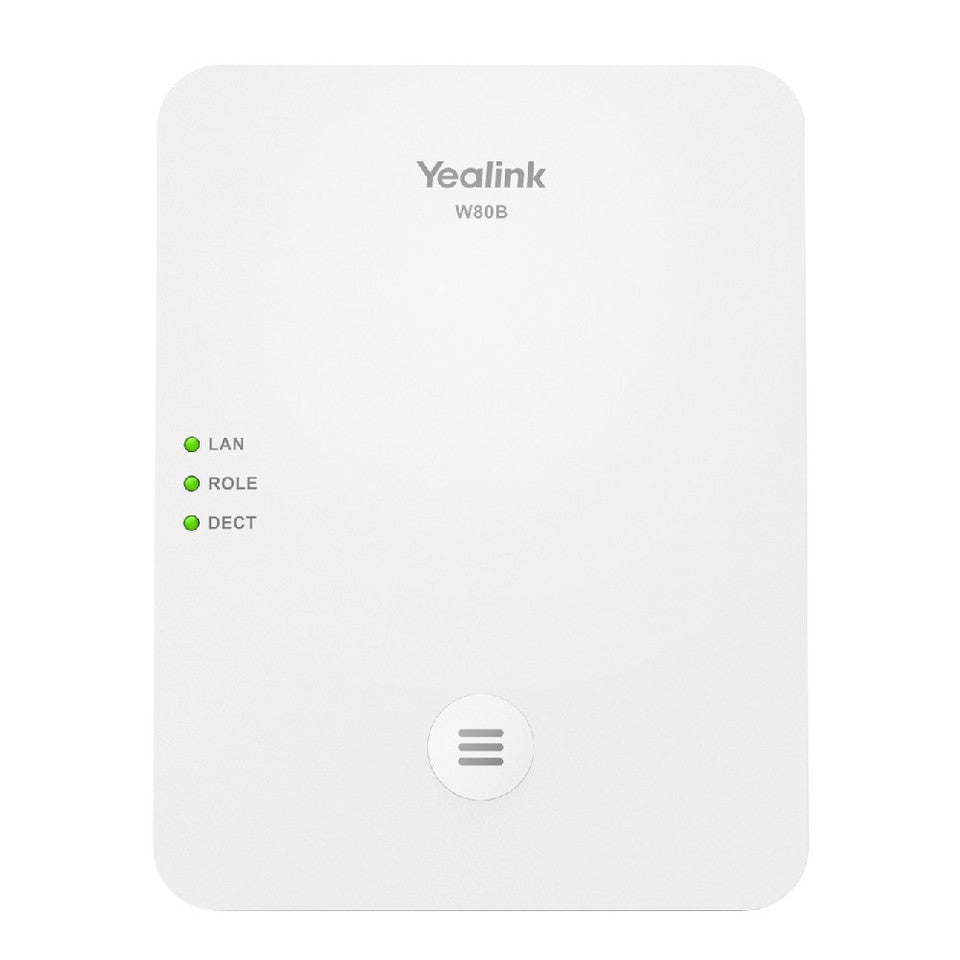

• Yealink W80B DECT Base Station

Compatible Handsets:
• Yealink W59R
• Yealink W57R
• Yealink W56H
• Yealink W53H
• Yealink W73H
• Yealink CP930W Wireless Conference Phone

Compatible SIP Platforms:
• Microsoft Teams SIP Gateway
• Zoom Phone
• BroadSoft
• 3CX
• Asterisk
• FreePBX
• Yeastar
• Cisco BroadWorks

Audio Specifications
HD Audio: Supported
Full Duplex Audio: Supported
Wideband Audio: Supported
DTMF Modes: In-band, Out-of-band, SIP INFO
Codec Support:
• G.722
• G.711 A-law
• G.711 μ-law
• G.726
• G.729

Installation & Deployment
Mounting Options: Wall Mount or Desktop Placement
Deployment Type: Centralized Multi-Cell Controller
Configuration Method: Web GUI and Auto Provisioning
Synchronization: LAN-Based Synchronization
Coverage Expansion: Multiple Base Station Deployment

Design & Construction
Color: Black
Form Factor: Compact Desktop Unit
Status Indicators: LED Indicators
Construction: Enterprise-Grade Design
Deployment Environment: Indoor Business Environments

Performance & Features
Provides centralized management for Yealink W80 multi-cell DECT deployments
Supports seamless roaming and handover across multiple coverage zones
Enables uninterrupted voice communication while users move between locations
Designed for medium to large enterprise wireless telephony environments
Supports up to 100 users and 100 concurrent calls
Delivers reliable DECT coverage across large facilities and multi-floor buildings
Offers secure SIP communications with TLS and SRTP encryption
Simplifies deployment and maintenance through centralized administration
Optimized for warehouses, healthcare facilities, educational institutions and offices
Provides carrier-grade wireless voice mobility for enterprise users

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 10% to 95% Non-Condensing

Physical Specifications
Form Factor: Desktop Deployment Manager
Color: Black
Network Interface: 1 x Gigabit Ethernet Port
Power Supply: External Power Adapter
Deployment Type: Indoor Use

Package Contents
Yealink W80DM DECT Manager
Power Adapter
Ethernet Cable
Quick Start Guide
Mounting Accessories
Regulatory Documentation

Key Features
Supports Up to 30 W80B Base Stations
Supports Up to 100 DECT Handsets
Up to 100 Simultaneous Calls
Seamless Roaming and Handover
Centralized Multi-Cell Management
HD Voice and Wideband Audio
TLS and SRTP Security Encryption
Gigabit Ethernet Connectivity
Auto Provisioning and Remote Management
Enterprise Wireless Mobility Solution
Optimized for Large-Scale DECT Deployments
Compatible with Leading SIP Platforms

Typical Use Cases
Large Corporate Offices
Warehouses and Distribution Centers
Hospitals and Healthcare Facilities
Educational Campuses
Hotels and Hospitality Venues
Retail Chains
Manufacturing Plants
Government Buildings
Logistics Operations
Enterprise Wireless Telephony Deployments
Multi-Floor Office Buildings
Business-Critical Communication Networks
