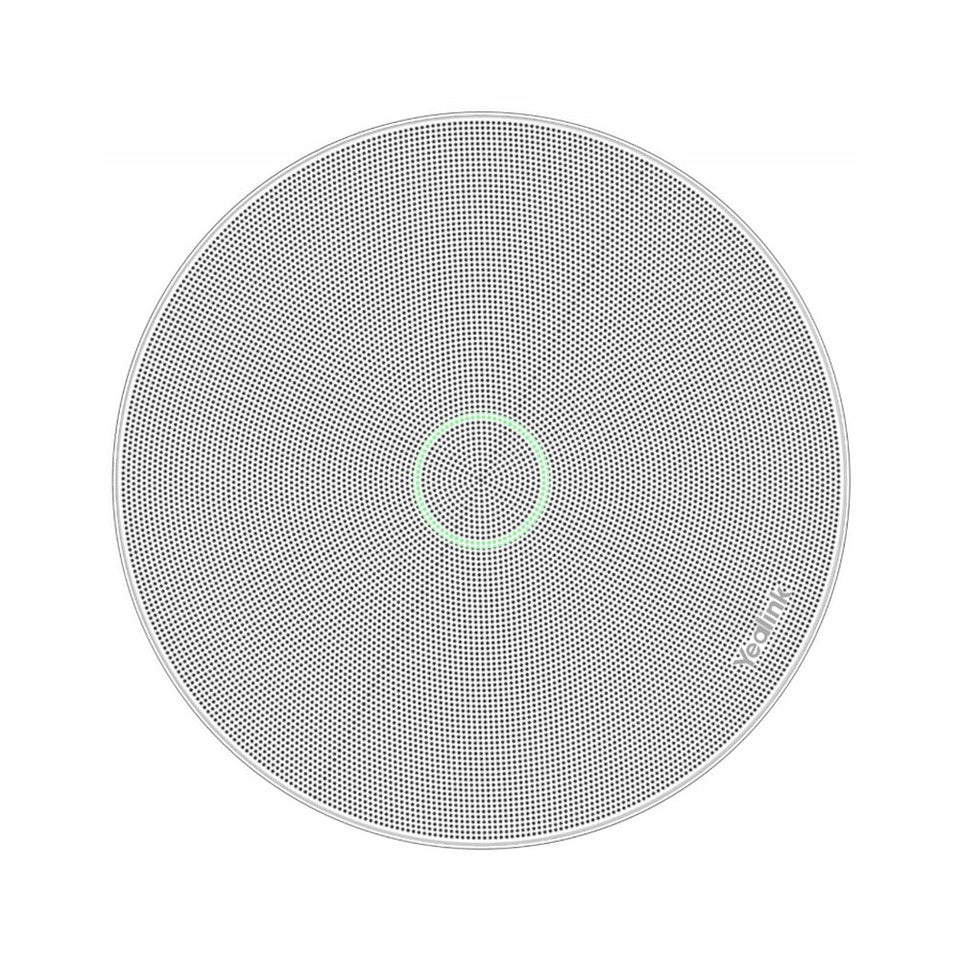

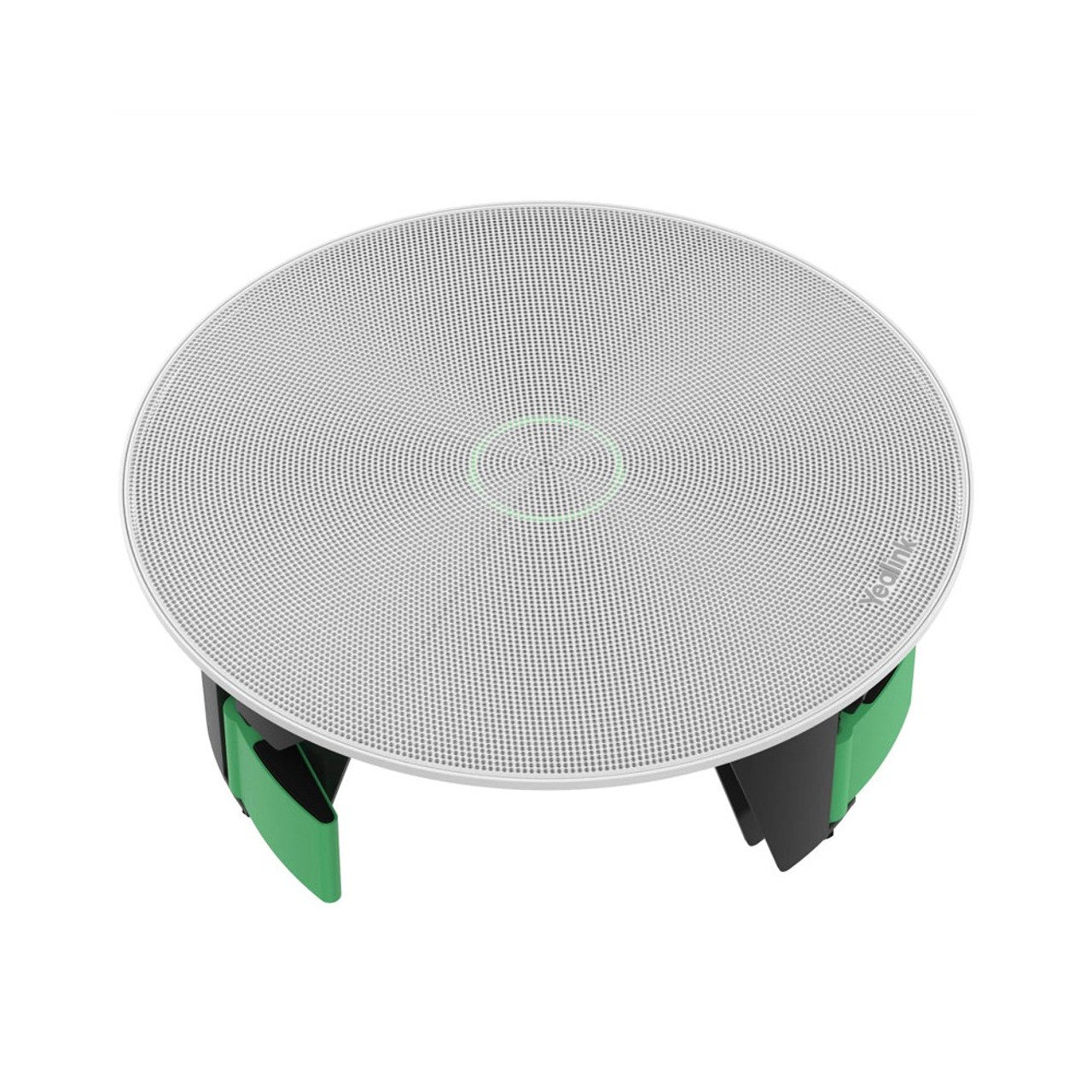

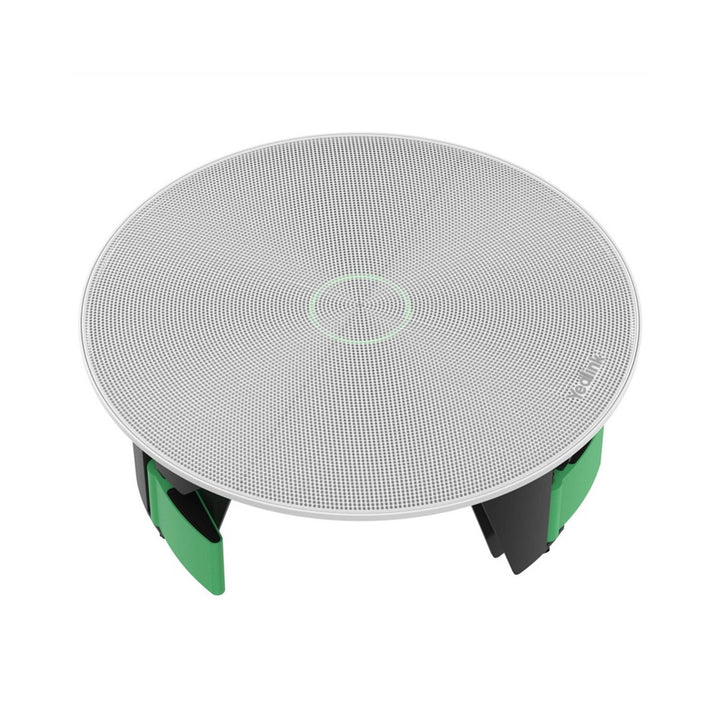

Yealink CM20 AI-Powered Beamforming Ceiling Microphone

Yealink CM20 AI-Powered Beamforming Ceiling Microphone (1303095) - 2 Years Local Warranty

Advanced 360-Degree Audio Capture

The Yealink CM20 Ceiling Microphone is equipped with 16 omnidirectional microphone units, providing comprehensive 360-degree audio pickup. This design ensures clear and inclusive communication across medium to large conference rooms, capturing voices from all directions with exceptional clarity.

AI-Powered Noise Reduction and Echo Cancellation

Integrating AI dynamic noise reduction and reverberation suppression, the CM20 adapts to ambient room conditions to minimize background noise and echo. This intelligent processing guarantees pristine audio quality, facilitating more effective and professional meetings.

Built-In DSP for Seamless Integration

Featuring an integrated Digital Signal Processor (DSP), the CM20 offers plug-and-play functionality with Yealink MVC systems, eliminating the need for external audio processing devices. This simplifies deployment and enhances the overall audio performance of your conferencing setup.

Versatile Installation Options

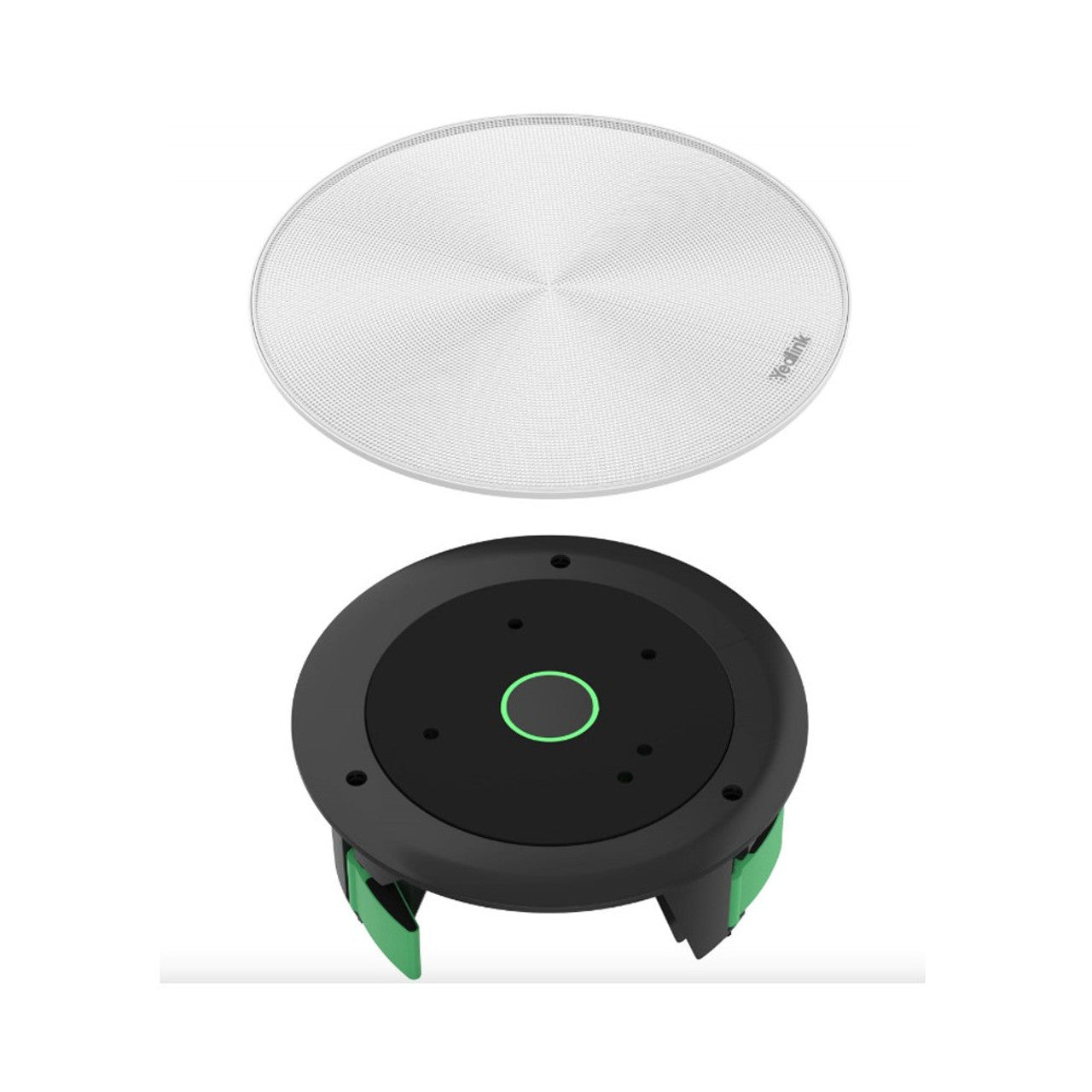

The CM20 supports various ceiling integration methods, including in-ceiling, pendant, and on-ceiling installations. Its sleek, low-profile design, complemented by a removable magnetic mesh cover available in black and white, ensures aesthetic harmony with diverse conference room decors.

Scalable Coverage for Larger Spaces

A single CM20 unit effectively covers up to 60 square meters, with a high-quality full-duplex audio capture radius of 3.2 meters. For expansive conference areas, multiple units can be deployed to ensure consistent and clear audio pickup throughout the space.

Technical Specifications

General
Model: CM20
Part Number: 1303095
Product Name: Yealink CM20 AI-Powered Beamforming Ceiling Microphone
Manufacturer: Yealink
Product Type: AI-Powered Beamforming Ceiling Microphone
Microphone Type: Ceiling-Mounted Beamforming Microphone Array
Deployment Type: Medium and Large Meeting Rooms, Boardrooms, Training Rooms, Divisible Rooms, Hybrid Collaboration Spaces
Audio Processing: Integrated DSP with AI Audio Enhancement
Connectivity: PoE Network Connectivity
Installation Options: In-Ceiling, On-Ceiling, Pendant Mount, Suspension Mount
Color: Pearl Light Gray with White Mesh Cover (Black Cover Optional)
Warranty: 2 Years Limited Warranty

Microphone Specifications
Microphone Array: 16 Omnidirectional MEMS Microphones
Pickup Pattern: 360° Voice Capture
Beamforming Technology: Supported
Independent Pickup Zones: Up to 8 Zones
Beam Outputs: Up to 8 Beam Outputs
Nominal Pickup Radius: Up to 4.5 Meters
Premium Full-Duplex Pickup Radius: Up to 3.2 Meters
Voice Tracking Support: Supported
Camera Tracking Integration: Supported
Far-Field Voice Capture: Supported
Human Voice Optimized EQ Tuning: Supported
Speech Intelligibility (STIPA): Up to 0.78

Audio Specifications
Frequency Response: 120 Hz – 16 kHz
Maximum SPL: 122 dB SPL
Signal-to-Noise Ratio (SNR): 86 dB @ <1% THD
Sensitivity: 0 dBV/Pa @ 94 dB SPL (1 kHz)
Audio Sampling Rate: 48 kHz
AEC Channel: 1 Internal Acoustic Echo Cancellation Channel
Audio Quality: Full-Duplex Conference Audio
Speech Clarity Optimization: Supported
Conference Audio Enhancement: Supported

AI Audio Processing Technologies
AI Dynamic Noise Reduction
AI Reverberation Suppression
Acoustic Echo Cancellation (AEC)
Automatic Room Adaptation
Environmental Noise Filtering
Voice Enhancement Technology
Speech Prioritization
Real-Time Audio Optimization
Adaptive Acoustic Processing
Meeting Room Acoustic Calibration
Intelligent Audio Enhancement Algorithms

Integrated DSP Features
Built-In Digital Signal Processor (DSP)
External DSP Not Required
Plug-and-Play with Yealink MVC Systems
Automatic Audio Optimization
Audio Routing Processing
Conference Room Audio Enhancement
Reduced Installation Complexity
Simplified AV Deployment Architecture
Native Yealink Ecosystem Integration

Coverage & Performance
Coverage Pattern: 360° Omnidirectional
Independent Pickup Zones: 8
Premium Full-Duplex Coverage Area: Up to 30 m²
Effective Audio Coverage Area: Up to 60 m²
Meeting Room Type: Medium to Large Rooms
Multi-Speaker Voice Pickup: Supported
Distributed Participant Coverage: Supported
Voice Tracking Optimization: Supported
Speech Consistency Across Room: Supported
High Speech Intelligibility Performance: Supported

Network & Connectivity Specifications
Network Interface: 1 × RJ45 Ethernet Port
Power Supply: PoE (Power over Ethernet)
PoE Standard: IEEE 802.3af Class 3
Single-Cable Deployment: Supported
Network Audio Connectivity: Supported
AES67 Audio Networking: Supported
Plug-and-Play Connectivity: Supported
Enterprise Network Integration: Supported
Low-Cost Cabling Deployment: Supported

Compatibility

Compatible Yealink Solutions:
• Yealink MVC S40
• Yealink MVC S60
• Yealink MVC S90
• Yealink MeetingBoard Series
• Yealink AVHub
• Yealink CS10 Ceiling Speaker
• Yealink CS10-D Dante Ceiling Speaker
• Yealink Pro AV Audio Solutions

Compatible Platforms:
• Microsoft Teams Rooms
• Zoom Rooms
• BYOD Meeting Rooms
• Enterprise Video Conferencing Systems
• Hybrid Workplace Collaboration Solutions

Installation Options

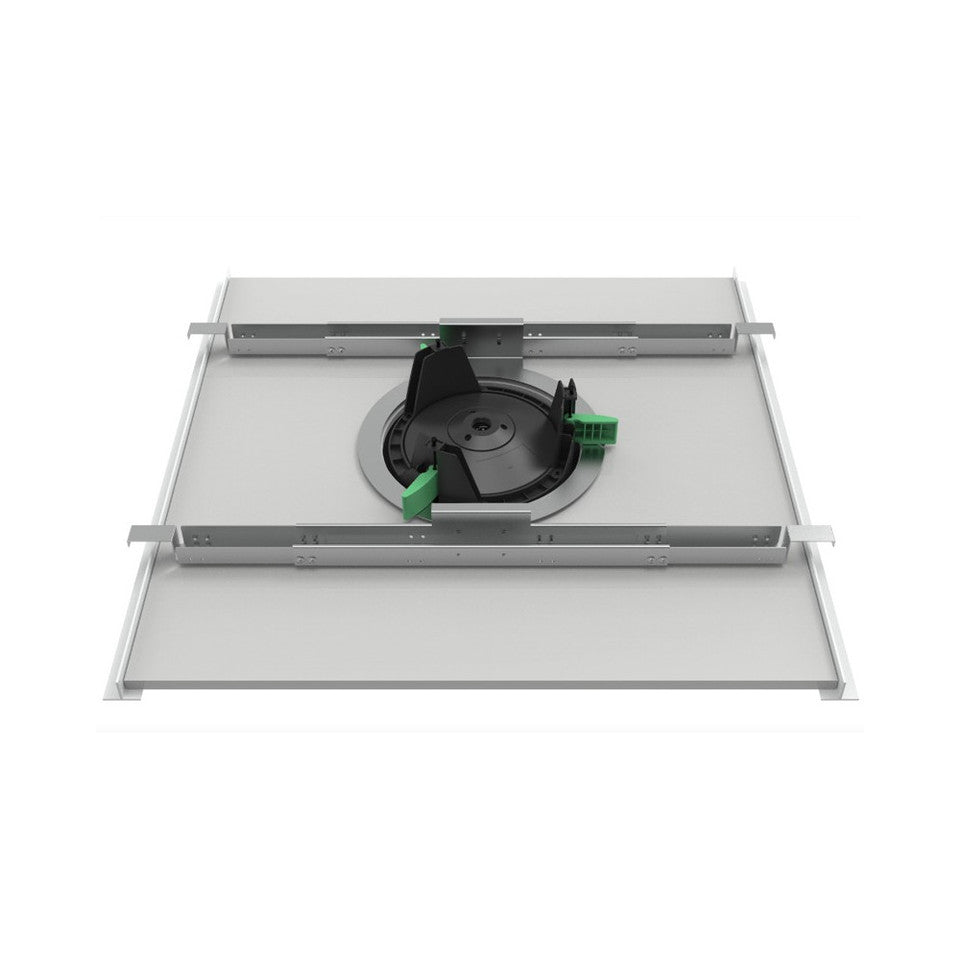

In-Ceiling Installation
Surface Ceiling Mount Installation
Pendant Mount Installation
Wire Rope Suspension Installation
Commercial Ceiling Grid Deployment
Professional AV Integration Ready
Flexible Mounting Architecture
Magnetic Cover Design for Easy Maintenance
Length-Adjustable Pole Support (Optional)
Suspension Rope Assembly Support (Optional)

Design & Construction
Color: Pearl Light Gray
Optional Cover Color: Black
Design: Ultra-Low Profile Ceiling Design
Profile Height: 83 mm
Cover Type: Magnetic Suction Mesh Cover
Construction: Commercial-Grade Enterprise Design
Architectural Integration: Supported
Tool-Free Maintenance Access: Supported
Professional AV Room Ready: Supported

Management Features
Automatic Device Discovery
Remote Configuration Support
Centralized Management Support
Firmware Upgrade Support
Room Audio Optimization Tools
Enterprise Deployment Ready
AV System Integration Support
Yealink Room Designer Compatible

Environmental Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: 0°C to 70°C
Operating Humidity: 5% to 90% Non-Condensing
Typical Power Consumption: 5.7W
Rated Power Consumption: 9W

Physical Specifications
Dimensions (With Cover): Ø223 × 83 mm
Dimensions (Without Cover): Ø215 × 81 mm
Weight: 615 g
Color: Pearl Light Gray
Mounting Type: Ceiling Mounted
Form Factor: Beamforming Ceiling Microphone

Package Contents
Yealink CM20 AI-Powered Beamforming Ceiling Microphone
White Magnetic Mesh Cover
Dust Cover
Assembly Fixing Bracket
Bracing Bridge (1 Pair)
Deployment Template
Quick Start Guide
Mounting Hardware
Installation Accessories

Key Features
16 Omnidirectional MEMS Microphones
360° Beamforming Voice Pickup
8 Independent Pickup Zones
8 Beam Outputs for Speaker Tracking
Integrated DSP Processing
AI Dynamic Noise Reduction
AI Reverberation Suppression
Acoustic Echo Cancellation
AES67 Audio Network Support
PoE Single-Cable Deployment
Up to 60 m² Room Coverage
4.5 m Effective Pickup Radius
3.2 m Premium Full-Duplex Coverage
Camera Tracking Integration
83 mm Ultra-Low Profile Design
Magnetic Snap-On Cover
Microsoft Teams Rooms Optimized
Zoom Rooms Optimized
Professional Enterprise Audio Solution

Performance & Features
The Yealink CM20 is a premium enterprise ceiling microphone designed to deliver crystal-clear audio in medium and large meeting spaces. Featuring a 16-microphone beamforming array with 8 independent pickup zones, the CM20 captures voices accurately while minimizing background noise through AI-powered noise reduction and reverberation suppression. Its built-in DSP eliminates the need for external audio processors, simplifying deployment and reducing project costs. With support for up to 60 m² room coverage, PoE single-cable installation, AES67 networking, and seamless integration with Yealink MVC systems, the CM20 is ideal for modern Microsoft Teams Rooms, Zoom Rooms, and professional AV environments.

Typical Use Cases
Microsoft Teams Rooms
Zoom Rooms
Boardrooms
Executive Meeting Rooms
Training Rooms
Divisible Conference Rooms
Town Hall Spaces
Large Meeting Rooms
Education Facilities
Government Meeting Rooms
Corporate Collaboration Spaces
Enterprise AV Deployments
Hybrid Workplace Environments
Professional Audio Conferencing Systems

GTIN / EAN
GTIN / EAN: 6938818317970
