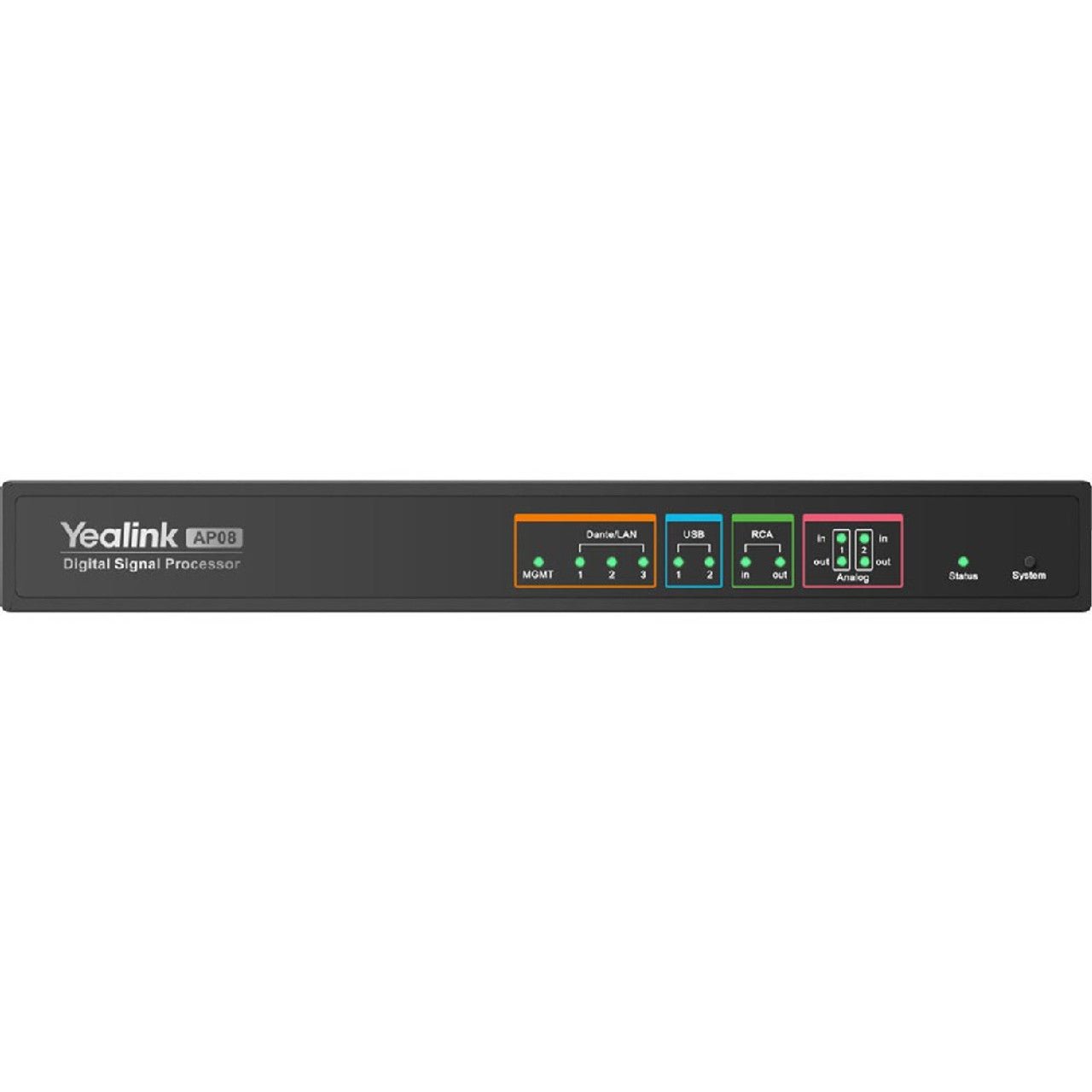

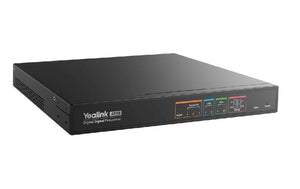

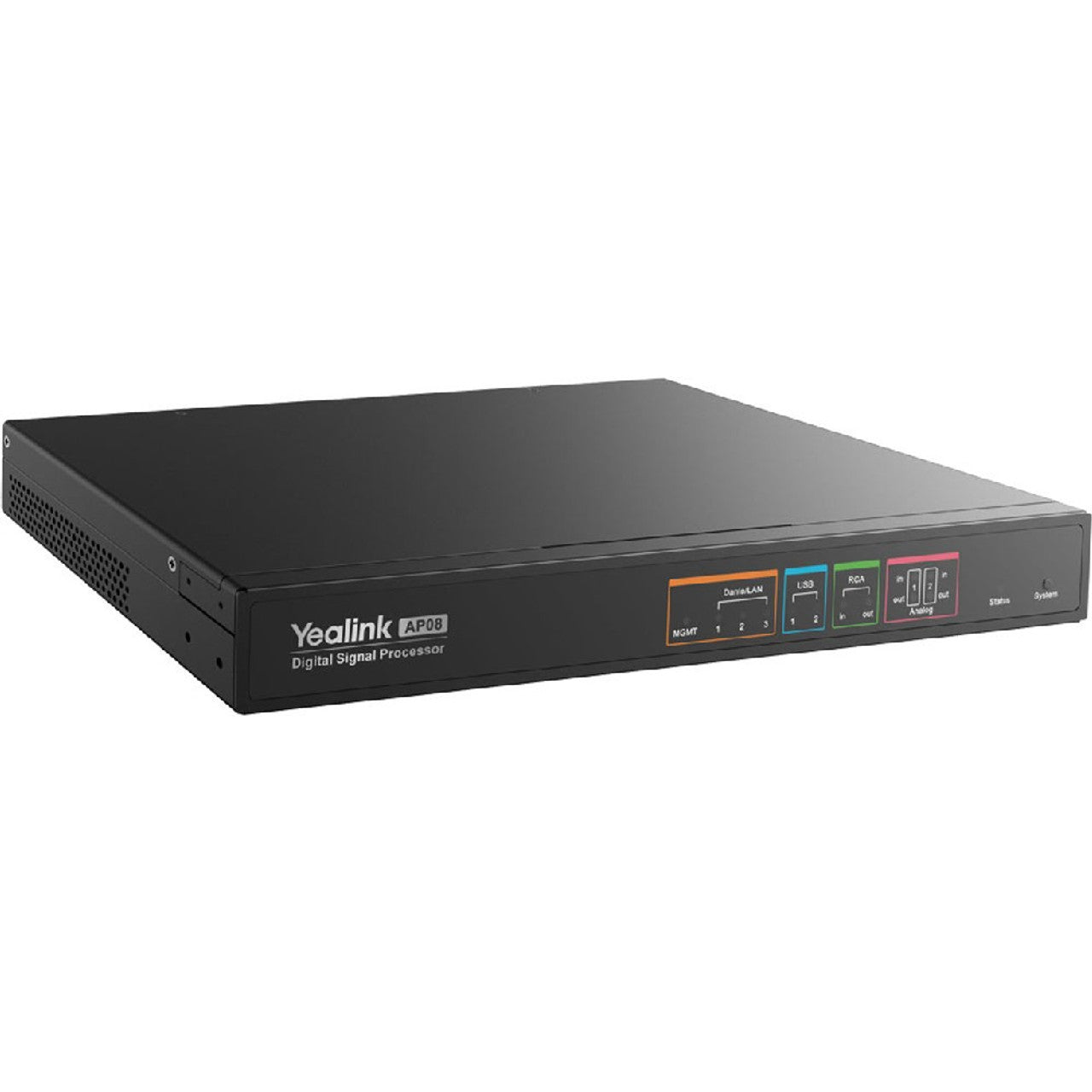

Yealink AP08 Dante Digital Signal Processor
PRODUCT DESCRIPTION
Yealink AP08 Dante Digital Signal Processor (1303097) - 2 Years Local Warranty
SkySound Pro Audio DSP with 16×16 Dante Channels
The Yealink AP08 SkySound Pro is the audio brain of large and integrated meeting rooms. With 16×16 Dante channels at 24-bit/48 kHz, AES67 support and dual processors, it manages, mixes and optimises every microphone and loudspeaker in the room over standard IP networking — cleaner cabling, scalable design.
Dynamic AEC and AI Sound Optimisation
Eight optimised channels run dynamic acoustic echo cancellation, with AI-driven noise cancellation and reverberation suppression on board. Automatic room detection tunes DSP parameters to your space at the double-press of a button, and Auto EQ adapts output to Microsoft Teams meeting states.
Powers Your Dante Devices over PoE+
Three RJ-45 Dante ports supply PoE+ to connected audio devices — power the CM50 Dante ceiling microphone and CS10-D Dante ceiling speakers directly from the DSP, no separate injectors required.
Full Analog and USB I/O for Integrated Rooms

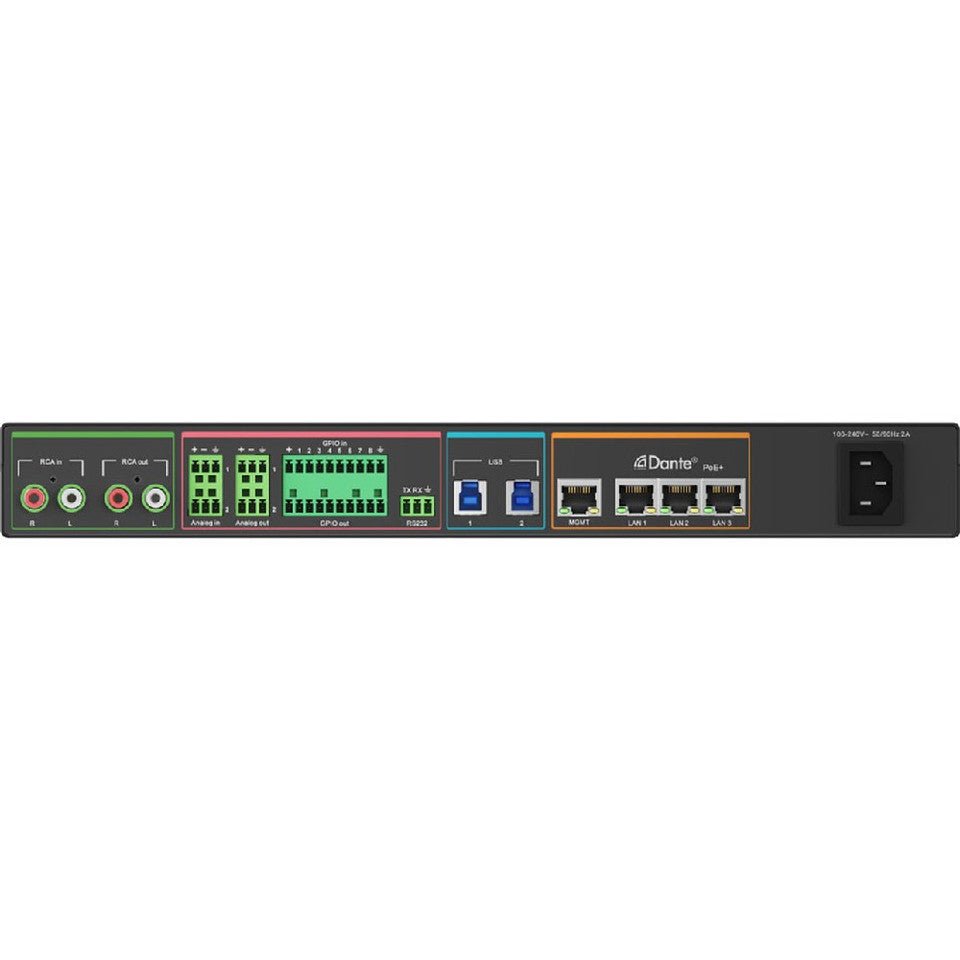

4×4 analog channels (balanced Phoenix and unbalanced RCA in/out) with +48V phantom power, plus two USB 3.0 device interfaces, RS-232, GPIO and a dedicated management port give AV integrators every connection a professional room needs — in a 19-inch rack-mountable 1U-class chassis.
Designed for Teams Rooms and Yealink MVC Systems
The AP08 integrates with Yealink MVC S-series Microsoft Teams Rooms, is configured through Yealink Room Designer software, and offers one-button deployment — pro AV performance without pro AV complexity for Singapore boardrooms and event spaces.
Yealink AP08 Datasheet — Technical Specifications
General
| Part Number | 1303097 |
| Product | Yealink AP08 SkySound Pro Audio DSP (Dante Digital Signal Processor) |
| Colour / chassis | Advanced Black, SGCC steel |
| Dimensions | 360 × 189 × 44 mm (19-inch rack mountable, IEC 60297) |
| Weight | 2.2 kg (net) |
| Operating conditions | 0–40°C, 0–93% RH (storage -30°C to +70°C) |
| Warranty | 2 Years Local Warranty (Singapore) |
Dante & Digital Audio
| Dante channels | 16 × 16 (16 in / 16 out) |
| Sampling | 24-bit / 48 kHz |
| AES67 | Enabled (per Audinate's official listing) |
| Processing | Dual processors; 8 optimised channels with dynamic AEC |
| Frequency response | Dante 50 Hz – 20 kHz; dynamic range 86 dB |
Analog & USB I/O
| Analog inputs | 2 × RCA (unbalanced) + 2 × 3-pin Phoenix (balanced); +48 VDC phantom power (10 mA max) |
| Analog outputs | 2 × RCA (unbalanced) + 2 × 3-pin Phoenix (balanced) |
| Analog performance | 20 Hz – 20 kHz; dynamic range 96 dB (in) / 98 dB (out) |
| USB | 2 × USB 3.0 Type-B device interfaces (usable simultaneously; 2-in/2-out audio, 16/24-bit) |
DSP Features
| Echo cancellation | Dynamic AEC on 8 optimised channels |
| Noise & reverberation | AI-driven noise cancellation and reverberation suppression |
| Room adaptation | Automatic room detection and parameter optimisation (acoustic adaptation); Auto EQ per Teams meeting state; AI-based sound optimisation; one-button deployment |
Network, Control & Power
| Dante ports | 3 × RJ-45 with PoE+ output (powers up to three Dante audio devices) |
| Management | 1 × RJ-45 MGMT port; Yealink Room Designer software; MVC control panel integration (Teams) |
| Control I/O | RS-232 connector; 8-pin GPIO in/out |
| Power | External adapter, AC 100–240V 50/60 Hz 2A; 105W full load (typ. 12–15W no-load) |
Compatibility & Software Support
| Platforms | Microsoft Teams Rooms (Auto EQ tracks Teams meeting state; MVC control panel integration); deployed in Yealink MVC S-series pro AV rooms |
| Dante ecosystem | Standard Dante and AES67 networks; interoperates with third-party Dante devices |
| Yealink devices | CM50 Dante ceiling microphone, CM20 ceiling microphone, CS10-D Dante ceiling speakers (PoE+ powered from the AP08) |
| Configuration | Yealink Room Designer software for design, configuration and audio routing; RS-232/GPIO for third-party control systems |
Package Contents & Pro AV Ordering Information
In the box (per official Quick Start Guide):
- Yealink AP08 SkySound Pro Audio DSP
- Power adapter
- USB 3.0 cable
- Rack mounting ears, screws and expansion nuts
Yealink pro AV audio family at SourceIT:
| Yealink AP08 Dante DSP (this product) | 1303097 |
| Yealink CM50 Dante Beamforming Ceiling Microphone | 1303096 |
| Yealink CM20 AI Beamforming Ceiling Microphone | 1303095 |
| Yealink CS10-D Dante Ceiling Loudspeaker | 1306036 |
| Yealink CS10 Ceiling Loudspeaker | 1303094 |
| Yealink AVHub | 1306011 |
Datasheet & Downloads
Frequently Asked Questions — Yealink AP08
What does the AP08 do in a meeting room?
It is the central DSP: it routes and mixes all room audio (16×16 Dante channels plus 4×4 analog and USB), applies dynamic AEC, AI noise cancellation and reverberation suppression, and outputs clean, intelligible sound to the room and the far end.
Can the AP08 power my ceiling microphones and speakers?
Yes — its three Dante RJ-45 ports supply PoE+ to up to three connected audio devices, such as the CM50 ceiling microphone and CS10-D ceiling speakers.
Does it work with Microsoft Teams Rooms?
Yes — the AP08 integrates with Yealink MVC S-series Teams Rooms, its Auto EQ adapts to Teams meeting states, and it can be managed alongside the MVC control panel.
How is the AP08 configured?
Through Yealink Room Designer software, with automatic room-acoustics detection and one-button deployment; RS-232 and GPIO provide hooks for third-party AV control systems.
How does the AP08 differ from the Yealink AVHub?
The AVHub (1306011) is a video-and-audio hub for Yealink UVC-based rooms, while the AP08 is a dedicated Dante/AES67 audio DSP with PoE+ Dante ports, phantom-powered analog I/O and rack mounting for integrated pro AV designs.
Does the Yealink AP08 come with local warranty in Singapore?
Yes. Every AP08 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
