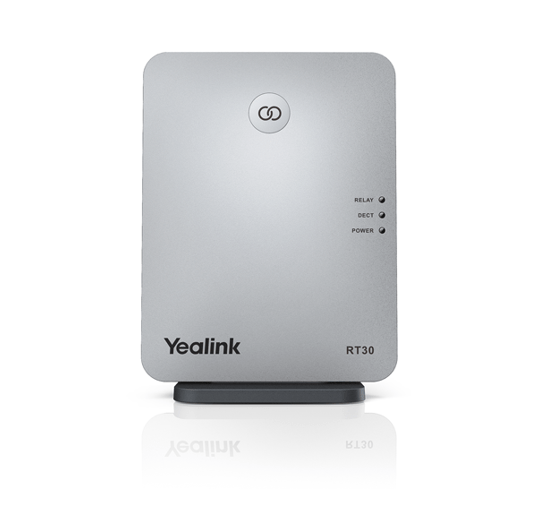

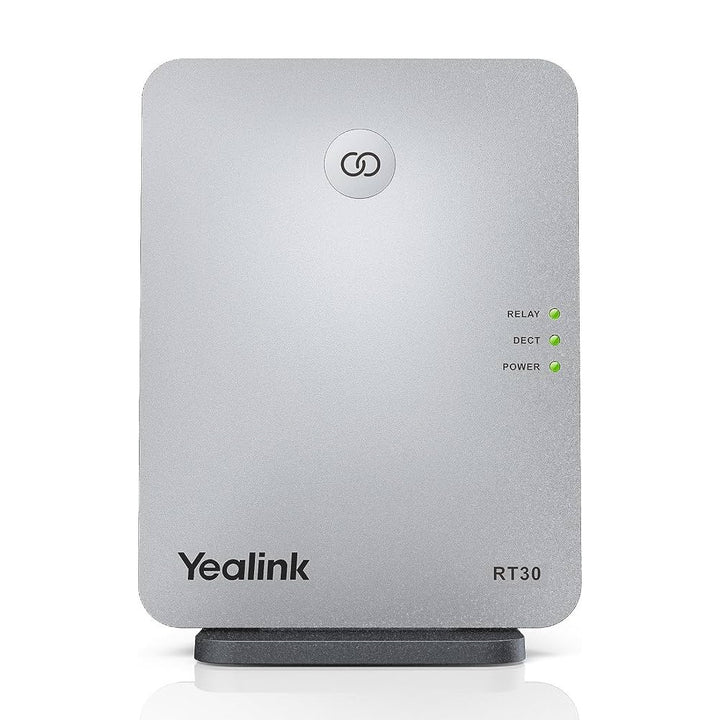

Yealink RT30 DECT Repeater
PRODUCT DESCRIPTION
Yealink RT30 DECT Repeater (1300042) - 2 Years Local Warranty
Yealink RT30 DECT Repeater — Extend DECT Coverage Across Your Singapore Office
The Yealink RT30 is Yealink's current-generation DECT repeater, extending the wireless range of compatible Yealink DECT base stations — filling coverage gaps across corridors, floors, warehouses and back-of-house areas so W-series handsets stay connected everywhere staff work. Indoor range extends up to 50 m per repeater (up to 300 m outdoor in clear, ideal conditions).
Up to 4 Simultaneous Calls with Automatic Handover
Paired with a Yealink W70B base station (on current firmware), each RT30 relays up to 4 simultaneous calls in HD voice. Automatic handover keeps calls alive as users roam between the base station's cell and repeater cells — no drops, no manual re-registration.
Star and Cascade Deployment for Larger Sites
Deploy up to 6 RT30 repeaters in a star layout around one base station, and chain up to 2 repeaters in cascade (with W60B/W70B) to push coverage deeper into a building. That flexibility lets a single-cell DECT system cover shops, clinics, workshops and multi-room offices without running network cable.
Plug-and-Play Setup with Status LEDs
Auto-association makes installation simple: power the RT30 near the edge of existing coverage and it registers to the base. Three LEDs (Power, DECT Link, Active Relay) confirm status at a glance, and the slim housing sits on a desk or mounts to a wall.
Yealink RT30 Datasheet — Technical Specifications
| Model | Yealink RT30 DECT Repeater |
| Part Number | 1300042 |
| Product Type | DECT repeater for Yealink single-cell DECT systems |
| Warranty | 2 Years Local Warranty (Singapore) |
| Compatible Base Stations | Yealink W60B (firmware 77.81.0.35+), W70B (146.85.0.15+), W52 base (25.81.0.10+) |
| Simultaneous Calls | Up to 4 calls per repeater (with W70B 146.85.0.35+ / RT30 83.0.0.22+) |
| Handover | Automatic handover between base and repeater cells; HD voice supported |
| Deployment | Up to 6 repeaters per base station (star); up to 2 repeaters in cascade (W60B/W70B) |
| DECT Frequency Bands | 1880–1900 MHz (Europe), 1920–1930 MHz (US), 1902–1906 MHz (TH), 1910–1920 MHz (BR) |
| Indoor Range | Up to 50 m |
| Outdoor Range | Up to 300 m (clear view, ideal conditions) |
| Antennas | 2 internal QWL omnidirectional antennas |
| Modulation / TX Power | GFSK; approx. 10 mW average transmission; RX sensitivity -91 dBm (typical) |
| Power Supply | AC 100–240 V input, DC 5 V / 600 mA output |
| LED Indicators | Power On, DECT Link, Active Relay |
| Dimensions | 130 × 100 × 25.1 mm |
| Mounting | Desktop or wall mount |
Compatibility & Software Support
Base stations (per Yealink datasheet): Yealink W60B (firmware v77.81.0.35 or later), W70B (v146.85.0.15 or later) and W52 base (v25.81.0.10 or later). The 4-simultaneous-call capacity requires W70B v146.85.0.35+ with RT30 firmware v83.0.0.22+.
Handsets: Works transparently with the Yealink W-series DECT handsets registered to the base (e.g. W56H, W57R, W59R, W73H, W78H) — handsets roam between base and repeater cells with automatic handover.
Deployment note: The RT30 extends single-cell DECT systems (W53P/W56P/W60P/W70B-based). For very large or multi-storey coverage, consider a Yealink multi-cell system such as the W80B or W90B instead.
Package Contents & DECT Accessory Ordering Information
Yealink RT30 DECT Repeater, USB cable, power adapter, Quick Start Guide.
| RT30 DECT Repeater (current model) | 1300042 (this product) |
| RT20U DECT Repeater (previous model) | 1300041 |
| DD10K DECT USB Dongle | 1300020 |
| W70B DECT IP Base Station | 1302017 |
| W73P IP DECT Phone System | 1302022 |
Datasheet & Downloads
Frequently Asked Questions — Yealink RT30
What is the difference between the RT30 and the RT20U?
The RT30 is the newer model: it supports up to 4 simultaneous calls per repeater (vs 2 on the RT20U), works with the current W70B base station, and allows up to 6 repeaters per base with 2-level cascading.
How many RT30 repeaters can I use with one base station?
Up to 6 in a star layout around the base, and up to 2 can be chained in cascade (with W60B/W70B) to reach further into a building.
Which base stations does the RT30 work with?
Per the official datasheet: Yealink W60B, W70B and W52 bases on the listed firmware versions. It extends single-cell systems such as the W73P and W79P (both W70B-based).
How much extra range does one repeater add?
Each RT30 relays the base signal for up to 50 m indoors (up to 300 m outdoors in clear, ideal conditions) — real-world range depends on walls and building materials.
Will calls drop when I walk from the base area into a repeater area?
No. The RT30 supports automatic handover, so active calls transfer seamlessly between base and repeater cells as you move.
Does the RT30 come with local warranty?
Yes. Every RT30 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
