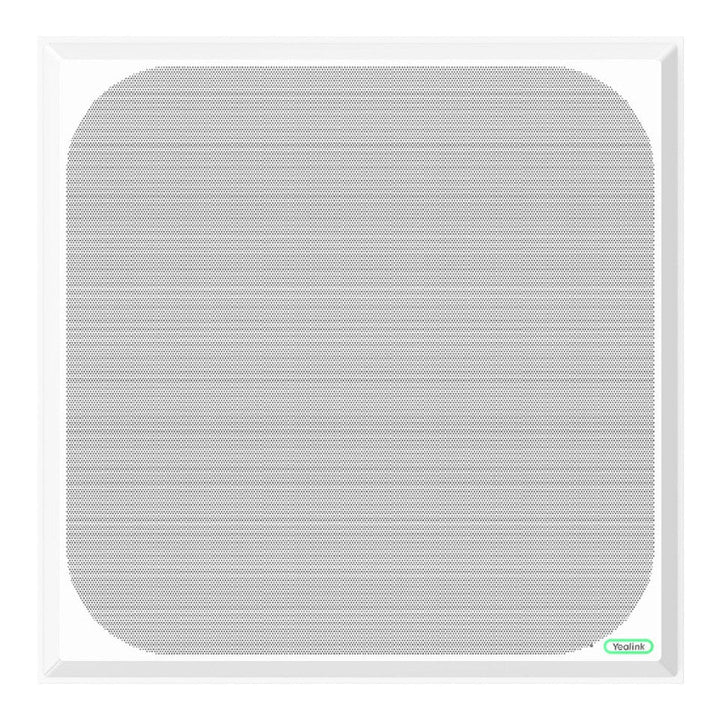

Yealink CM50 Dante Beamforming Ceiling Microphone
PRODUCT DESCRIPTION
Yealink CM50 Dante Beamforming Ceiling Microphone (1303096) - 2 Years Local Warranty
Premium Dante Ceiling Microphone with 127-Element Beamforming Array
The Yealink CM50 is an innovative Dante ceiling microphone built around a 127-element beamforming microphone array. With 8 independent, customizable pickup zones and sound-source localization that can drive accurate camera tracking, the CM50 is engineered for large boardrooms and fully integrated pro AV meeting spaces in Singapore.
5-Metre Radius Premium Pickup for Large Rooms
A single CM50 captures speech at premium quality across a 5-metre pickup radius (STIPA > 0.76, measured at RT60 408 ms @ 1 kHz and 40 dB(A) room noise), so participants are heard clearly whether they are seated at the table or presenting from the side of the room.
AI Audio Optimization with Auto Room Adaptation
AI-powered noise reduction, reverberation cancellation and feedback suppression run on board, while automatic room-acoustics detection and dynamic auto EQ adapt the microphone to your space and meeting state. Dedicated Dante reference input channels support AEC and AFC processing in integrated systems.
Native Dante Networking with 8+2 Output Channels
The CM50 delivers 8+2 Dante output channels and 2 Dante input channels (AEC and AFC reference) at 48 kHz / 24-bit over a single RJ-45 cable with PoE+ power, plus a 3-pin Phoenix analog output. It slots straight into Dante-based pro AV designs alongside DSPs and Dante ceiling speakers, keeping meeting tables completely cable-free.
Ceiling-Tile Form Factor, Plenum Rated
Sized to replace a standard 60 x 60 cm (2 x 2 ft) ceiling tile at just 56 mm thin, the CM50 also supports suspension and adhesive mounting options and is Plenum Rated to UL 2043 for air-handling spaces.
Yealink CM50 Datasheet — Technical Specifications
General
| Part Number | 1303096 |
| Product | Yealink CM50 Dante Beamforming Ceiling Microphone |
| Colour | Apple White |
| Dimensions | L592 × W592 × T56 mm (fits 60 × 60 cm / 2 × 2 ft ceiling grids) |
| Net weight | 5.15 kg (excluding accessories) |
| Operating conditions | 0–40°C, 0–93% RH |
| Certification | Plenum Rated UL 2043 (suitable for air-handling spaces) |
| Warranty | 2 Years Local Warranty (Singapore) |
Microphones
| Microphone array | 127-element beamforming microphone array |
| Pickup zones | 8 independent, customizable pickup zones |
| Pickup range | 5 m radius at premium quality (STIPA > 0.76) |
| Test conditions | RT60 = 408 ms @ 1 kHz, room noise level 40 dB(A) SPL |
| Sound localization | Supports accurate speaker localization for camera tracking |
Audio
| Frequency response | 120 Hz – 20 kHz |
| Sensitivity | 0 dBV/Pa (94 dB SPL @ 1 kHz) |
| Signal-to-noise ratio | 86 dB @ 1 kHz, 94 dB SPL, A-weighted |
| Maximum SPL | 122 dB at <1% THD |
| Dynamic range | 86 dB @ <1% THD |
| Audio processing | AI noise reduction, reverberation cancellation, AI feedback suppression, auto room-acoustics adaptation, dynamic auto EQ |
Connectivity (Dante)
| Dante output channels | 8+2 channels |
| Dante input channels | 2 channels (1 × AEC reference, 1 × AFC reference) |
| Sampling | 48 kHz / 24-bit |
| Network | 1 × RJ-45 (Dante over Ethernet) |
| Analog output | 1 × 3-pin Phoenix connector |
Power
| Power supply | PoE+ (IEEE 802.3at, Class 4) |
| Power consumption | Typical 17 W; Rated 19.3 W |
Installation
| Mounting options | Ceiling-tile replacement (60 × 60 cm / 2 × 2 ft grids), suspension, adhesive mounting |
| Mounting accessories | Angle bracket, mounting bracket A, mounting bracket B; suspension/adhesive mounting accessories included |
Compatibility & Software Support
The Yealink CM50 is a native Dante microphone that integrates into Dante audio networks, working alongside the Yealink AP08 Dante Digital Signal Processor (1303097) and Dante ceiling speakers in pro AV system designs.
It is deeply integrated with Microsoft Teams, offering features such as automatic EQ switching and mute synchronization, and works with Yealink MVC Series room systems (including multi-camera tracking setups with MVC cameras). Yealink's product page also lists Zoom Rooms deployments.
Yealink Room Designer software supports acoustic room planning and setup, and the device is manageable via the Yealink Device Management Platform per Yealink's product page.
Package Contents & Ceiling Audio Ordering Information
In the box:
- Yealink CM50 Dante ceiling microphone
- Accessories for suspension or adhesive ceiling mounting (included per Yealink datasheet)
Yealink ceiling audio family at SourceIT:
| Yealink CM20 AI-Powered Beamforming Ceiling Microphone | 1303095 |
| Yealink CM50 Dante Beamforming Ceiling Microphone (this product) | 1303096 |
| Yealink CS10 2-Way Coaxial Ceiling Loudspeaker | 1303094 |
| Yealink CS10-D 2-Way Coaxial Dante Ceiling Loudspeaker | 1306036 |
| Yealink AP08 Dante Digital Signal Processor | 1303097 |
Datasheet & Downloads
Frequently Asked Questions — Yealink CM50
What is the difference between the Yealink CM50 and the CM20?
The CM50 is a premium 127-element Dante ceiling-tile microphone with 8+2 Dante output channels, a 5 m pickup radius and Phoenix analog output for large, integrated pro AV rooms. The Yealink CM20 (1303095) is a compact 16-element AI beamforming ceiling microphone (PoE, AES67) designed for Yealink 4th-gen MVC Series rooms.
How much area does one CM50 cover, and can I scale to bigger rooms?
A single CM50 provides premium-quality pickup across a 5-metre radius (STIPA > 0.76). Because it is a native Dante device, multiple CM50 units can be deployed on a Dante network with a DSP such as the Yealink AP08 (1303097) for larger spaces; contact SourceIT for a room design based on your floor plan.
What do I need to run the CM50 on a Dante network?
The CM50 connects over a single RJ-45 cable and requires PoE+ (IEEE 802.3at, Class 4) power. It outputs 8+2 Dante channels at 48 kHz / 24-bit and accepts 2 Dante reference inputs for AEC/AFC, typically routed through a Dante-enabled DSP such as the Yealink AP08.
Can I pair the CM50 with Yealink ceiling speakers?
Yes, the CS10-D Dante Ceiling Loudspeaker (1306036) joins the same Dante network for a fully networked ceiling audio system, while the analog CS10 Ceiling Loudspeaker (1303094) can be driven via an amplifier/DSP.
Why choose a ceiling microphone over table microphones?
A ceiling microphone keeps boardroom tables completely free of devices and cables, covers flexible seating and standing presenters, and avoids table-knock noise. Yealink also offers the VCM38 Ceiling Microphone Array as an alternative ceiling option for MVC rooms.
Does the Yealink CM50 come with local warranty in Singapore?
Yes. Every CM50 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
