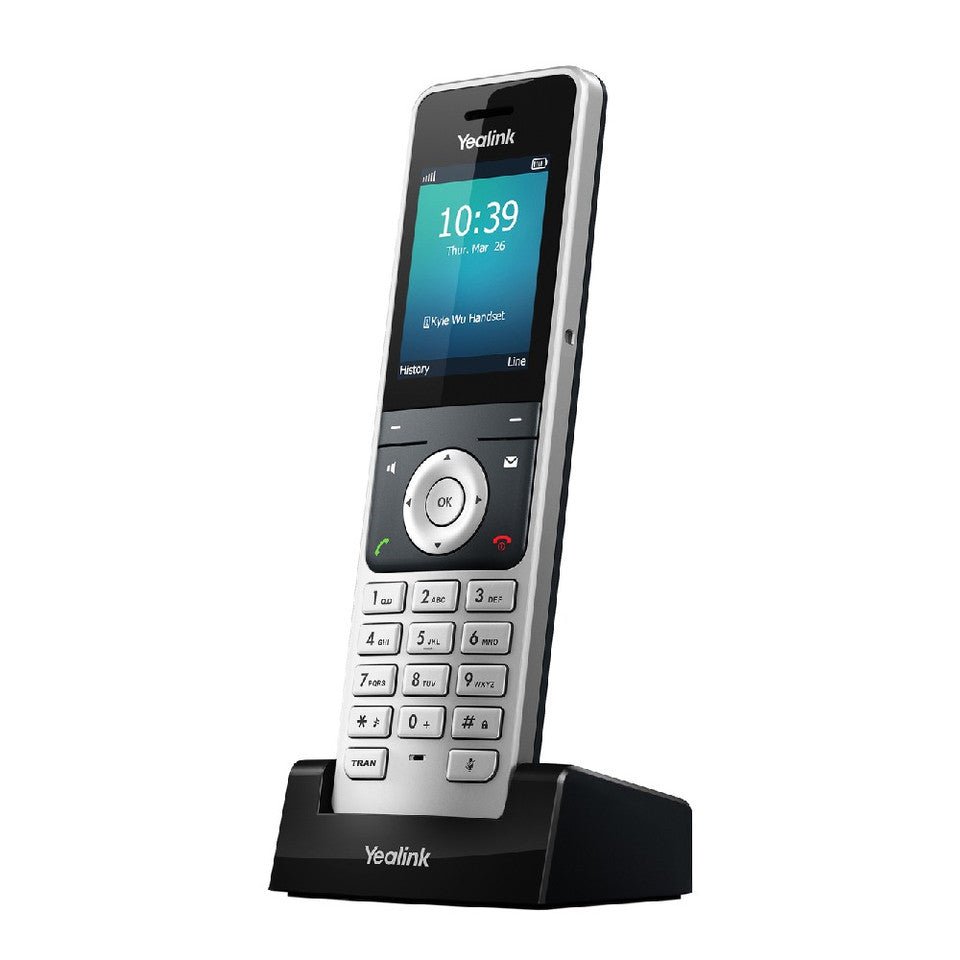

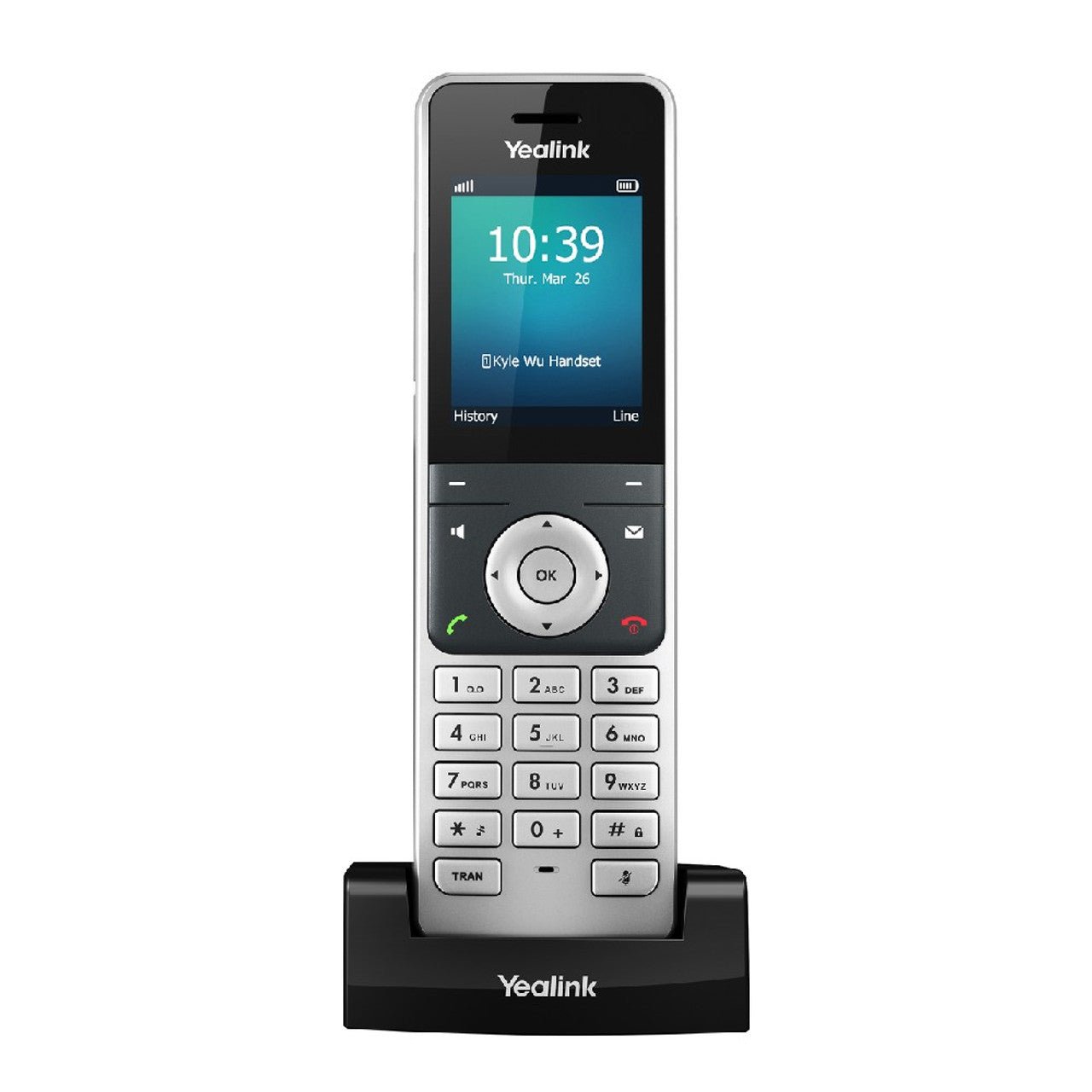

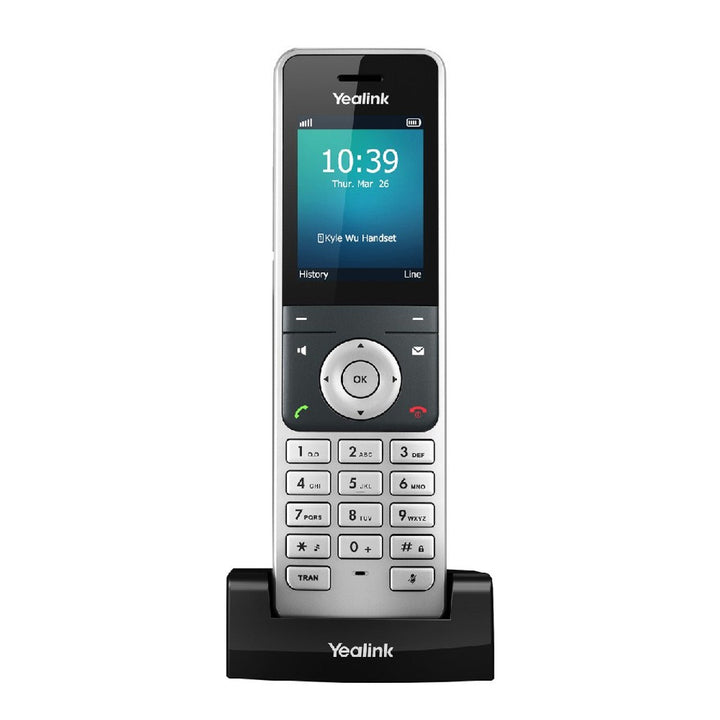

Yealink W56H DECT Handset
PRODUCT DESCRIPTION
Yealink W56H DECT Mobile Phone (1302002) - 1 Year Local Warranty
Yealink W56H Classic Business DECT Handset with 2.4β³ Colour Screen
The Yealink W56H is the proven classic of the Yealink cordless range β a large 2.4β³ 240x320 colour display, HD voice and a full-duplex speakerphone, and up to 30 hours of talk time (up to 400 hours standby) keep mobile staff reachable across warehouses, showrooms and clinics.
Built for Busy Shifts
Quick charging in the USB cradle, a belt clip, a 3.5 mm headset jack and a backlit screen and keypad keep the W56H practical from first shift to last.
A Safe Choice for Growing Teams
The W56H registers to Yealink DECT bases including the current W70B (as bundled in the W76P system, up to 10 handsets, 10 SIP accounts and 20 concurrent calls per base), so existing fleets can keep growing without retraining staff.
Ideal For
The W56H is ideally suited to Singapore businesses that want a large-screen cordless handset on a dependable, widely deployed platform.
Yealink W56H Datasheet β Technical Specifications
General
| Model | Yealink W56H |
| Part Number / SKU | 1302002 |
| Product type | Business DECT handset |
| Warranty | 1 Year Local Warranty (Singapore) |
Display & Interface
| Screen | 2.4β³ 240 x 320 pixels colour display, backlit |
| Keypad | 12-key numerical keypad, 5 navigation keys, 2 soft keys, 6 function keys, 6 shortcut keys; backlit |
| Notifications | Caller ID with name and number; notification light for voicemail and missed calls |
Audio
| Voice quality | HD voice |
| Speakerphone | Full-duplex speakerphone |
| Headset | 3.5 mm headset jack |
Battery
| Battery | Rechargeable lithium battery (included) |
| Talk time | Up to 30 hours (ideal conditions) |
| Standby time | Up to 400 hours (hardware V0-V3); up to 350 hours (hardware V4) β ideal conditions |
| Charging | Quick charge via USB charger cradle (DC 5V/600mA output) |
Design
| Dimensions | 175 mm x 53 mm x 20.3 mm |
| Colour | Alabaster Silver |
| Carrying | Belt clip included; USB charger cradle included |
Compatibility
| Base stations | Yealink W70B DECT IP base station (as bundled in the W76P system); W80B multi-cell base for handover and roaming; also expands W56P systems |
| DECT | Up to 50 m indoor / 300 m outdoor range (ideal conditions); max transmission power 10 mW |
| Note | Not compatible with third-party DECT bases |
Compatibility & Software Support
The W56H registers to the Yealink W70B DECT IP base station β the base bundled in the W76P system β and to the W80B multi-cell base, and also expands older Yealink W56P systems. For W80/W90 multi-cell deployments, ask SourceIT presales to confirm the right handset/base combination.
The W70B-based W-series DECT systems register to any standards-based SIP platform (SIP v1/RFC2543, v2/RFC3261) and are widely deployed with leading IP-PBX and hosted voice platforms used in Singapore. They are open-SIP devices β they are not Microsoft Teams or Zoom certified endpoints.
- Provisioning: auto-provisioning via TFTP/FTP/HTTP/HTTPS, PnP and Yealink RPS (Redirection & Provisioning Service) for zero-touch rollout
- Management: web user interface plus Yealink device management (YMCS/YDMP) support; over-the-air handset upgrades
- Security: TLS 1.0/1.2/1.3, SRTP voice encryption, HTTPS and OpenVPN on the W70B base
- Mixed fleets: one W70B base can host a mix of W-series handsets (W73H, W56H, W78H, W57R, W59R) β up to 10 per base
Need help confirming interoperability with your PBX or hosted platform? Contact SourceIT presales in Singapore before you order.
Package Contents & W-Series Ordering Information
In the box: W56H handset, rechargeable lithium battery, belt clip, power adapter, USB charger cradle.
Yealink W-series family at SourceIT:
| Yealink W73P (W70B + W73H) | Complete system β SKU 1302022 |
| Yealink W73H handset | Everyday business handset β SKU 1302021 |
| Yealink W76P (W70B + W56H) | Classic 2.4β³ handset system β SKU W76P |
| Yealink W56H handset | Classic 2.4β³ handset β SKU 1302002 |
| Yealink W78P (W70B + W78H) | Bluetooth handset system β SKU 1302026 |
| Yealink W78H handset | Bluetooth handset β SKU 1302023 |
| Yealink W77P (W70B + W57R) | Rugged long-battery system β SKU 1302027 |
| Yealink W57R handset | Rugged handset β SKU 1302007 |
| Yealink W79P (W70B + W59R) | IP67 rugged system β SKU 1302025 |
| Yealink W59R handset | IP67 rugged handset β SKU 1302006 |
| Yealink W70B base station | DECT IP base station β SKU 1302017 |
| Yealink W69P (W60B + W59R) | Rugged system with PSU β SKU 1302019 |
| Yealink W71P / W71H / W74P | New W7 models β coming soon |
Datasheet & Downloads
Official Yealink resources for the W56H:
Frequently Asked Questions β Yealink W56H
What is the difference between the Yealink W56H and W73H?
The W56H has a larger 2.4β³ 240x320 colour screen and up to 30 hours talk time; the W73H is the newer everyday business handset. Both register to the W70B base.
Which complete system includes the W56H?
The Yealink W76P bundles this W56H handset with the W70B DECT base station β a ready-to-run cordless SIP system.
How long does the W56H battery last?
Yealink rates it at up to 30 hours of talk time and up to 400 hours of standby (350 hours on V4 hardware) in ideal conditions.
Does the W56H work with a headset?
Yes, via the 3.5 mm headset jack. For wireless Bluetooth headsets, see the W78H.
Can the W56H be used in tough environments?
The W56H is an office-grade handset. For rugged use, choose the W57R or the IP67 W59R.
Does the Yealink W56H come with local warranty in Singapore?
Yes. Every W56H sold by SourceIT comes with 1 year local Singapore warranty and a GST invoice.
