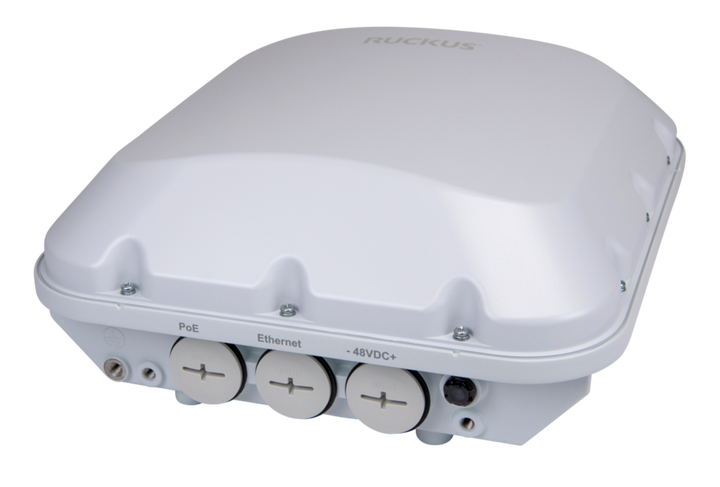

RUCKUS Unleashed T670 Outdoor Wi-Fi 7 Access Point
PRODUCT DESCRIPTION
RUCKUS Unleashed T670 Outdoor Wi-Fi 7 2x2:2 Access Point (9U1-T670-WW01) - Local Warranty
High-Performance Outdoor Wi-Fi 7
The RUCKUS T670 is an outdoor 802.11be (Wi-Fi 7) access point built for transit hubs, stadiums, conference centres and other high-traffic outdoor spaces carrying 4K/8K video and latency-sensitive voice and data. RUCKUS rates it at up to 768 concurrent users, with -100 dBm receive sensitivity at 5 GHz.
Unleashed: Controller-Less Wi-Fi
This is the Unleashed edition (part number prefix 9U1-). RUCKUS Unleashed access points carry an embedded controller, so there is no separate controller appliance or cloud subscription to buy. RUCKUS says you just plug it in and set it up from the RUCKUS Unleashed mobile app or any web browser, and add capacity by plugging in another Unleashed AP. Unleashed also manages RUCKUS ICX switches, and includes guest services, Dynamic PSK and SmartMesh wireless meshing.
Tri-Band or Dual-Band by Region
RUCKUS specifies tri-band operation (2.4 + 5 + 6 GHz, 2x2:2 each, up to 9.34 Gbps) for the US and Canada, and dual-band operation (2.4 + 5 GHz) for global use with a maximum physical data rate of 6.454 Gbps. The radios can be software-configured to 2x2 (2.4 GHz) + 4x4:4 (5 GHz).
Built for the Outdoors
IP-67 weatherproofing, a -40°C to 65°C operating range and 165 mph wind survivability, with the mounting bracket included in the box. Built-in GPS supports Automated Frequency Coordination (AFC), and a 5/2.5/1 GbE port removes the wired backhaul bottleneck.
Supplied in Singapore with Local Warranty
SourceIT supplies the T670 locally in Singapore with a GST invoice and local warranty support. The power adapter is not included. Email sales@sourceit.com.sg with your site plan for a coverage design and bill of materials.
RUCKUS Unleashed T670 9U1-T670-WW01 Datasheet — Technical Specifications
General
| Product Name | RUCKUS T670 Unleashed Outdoor Access Point |
| Part Number | 9U1-T670-WW01 |
| RUCKUS Description | UNLSHD T670 XX OUTDOOR 11be AP 2-2-2/2-4 |
| Edition | Unleashed (embedded controller); non-Unleashed version is 901-T670-WW01 |
| Manufacturer Warranty | RUCKUS limited warranty — see support.ruckuswireless.com/warranty; ask SourceIT to confirm the term for this outdoor model |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radio Modes | Tri-band 2x2:2 (2.4/5/6 GHz) for US and Canada; dual-band (2.4 + 5 GHz) for global use; software-configurable 2x2 (2.4 GHz) + 4x4:4 (5 GHz) |
| Combined Data Rate | Tri-band up to 9.34 Gbps; dual-band (global) up to 6.454 Gbps |
| Supported Data Rates | 802.11be 4 to 5765 Mbps; 802.11ax 4 to 4804 Mbps; 802.11ac 6.5 to 866 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 689 Mbps; 5 GHz 5765 Mbps (4x4:4) or 2882 Mbps (2x2:2); 6 GHz 5765 Mbps |
| Channelization | 20, 40, 80, 160, 320 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| Wi-Fi 7 Features | MLO (Multi-Link Operation), preamble puncturing, 4K QAM |
| Client Capacity | Up to 768 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity (PD-MRC), 4,000+ patterns per band; gain up to 3.2 dBi |
| Peak Tx Power | 2.4 GHz 25 dBm; 5 GHz 25 dBm (2x2), 28 dBm (4x4); 6 GHz 25 dBm |
| Max EIRP | 2.4 GHz 28.2 dBm; 5 GHz 28.2 dBm (2x2), 31.2 dBm (4x4); 6 GHz 28.2 dBm |
| Rx Sensitivity | -100 dBm at 5 GHz |
| GPS | Built-in, for AFC |
Interfaces & Power
| Ethernet | 1 x 100M/1/2.5/5 GbE (PoE in) + 1 x 10M/100M/1 GbE; LLDP |
| PoE | 802.3af/at/bt, Cat 5e or better |
| DC Input | 48 V DC terminal block |
| Max Power / 802.3bt | 32 W (full operation on 802.3bt / uPoE / PoH) |
| 802.3at PoE+ | 25.5 W, reduced Tx power (2.4 GHz 19-22 dBm, 5 GHz 20-21 dBm, 6 GHz 20 dBm) |
Security
| Wireless Security | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, DPSK3 |
| Other | WIPS/WIDS, TPM 2.0, Secure Boot; web authentication, guest access, Hotspot 2.0, captive portal, WISPr |
Physical & Environmental
| Dimensions | 24.8 cm (L) x 23.8 cm (W) x 10.8 cm (H) |
| Weight | 1.97 kg (4.34 lbs) |
| Mounting | Wall, pole, flat surface; bracket included in the box |
| Weatherproofing | IP-67 |
| Wind Survivability | 165 mph |
| Operating Temperature | -40°C to 65°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7), Passpoint, Vantage |
| Safety / Other | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS T670 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This 9U1- part ships as an Unleashed AP, managed from the RUCKUS Unleashed mobile app or a web browser with no controller hardware. The RUCKUS data sheet lists SmartZone, RUCKUS One and RUCKUS Unleashed for the T670, noting Unleashed support as expected in a future release at the time of publication — ask us to confirm the current Unleashed firmware before you deploy. If you plan to run SmartZone or RUCKUS One, the non-Unleashed part 901-T670-WW01 is the usual order.
Mixing with Other RUCKUS Gear
Unleashed can manage RUCKUS ICX switches alongside the access points, and the T670 sits alongside the indoor Wi-Fi 7 R370, R670 and R770 in the same network. RUCKUS AI provides analytics and Cloudpath handles security and policy.
What It Is Suited To
RUCKUS positions the T670 for transit hubs, stadiums, conference centres and other high-traffic outdoor spaces, with airtime decongestion and transient client management for heavily congested environments.
Package Contents & RUCKUS Unleashed Access Point Ordering Information
In the Box
One RUCKUS T670 outdoor access point with mounting bracket (per the RUCKUS data sheet). Power adapter not included.
RUCKUS Unleashed Access Points — Ordering Information
| RUCKUS Unleashed R350 | Wi-Fi 6, 2x2:2, indoor | 9U1-R350-WW02 |
| RUCKUS Unleashed R550 | Wi-Fi 6, 2x2:2, indoor | 9U1-R550-WW00 |
| RUCKUS Unleashed R650 | Wi-Fi 6, 4+2 streams, indoor | 9U1-R650-WW00 |
| RUCKUS Unleashed R750 | Wi-Fi 6, 4x4:4, indoor | 9U1-R750-WW00 |
| RUCKUS Unleashed R850 | Wi-Fi 6, 8x8:8, indoor | 9U1-R850-WW00 |
| RUCKUS Unleashed R370 | Dual-band Wi-Fi 7, indoor | 9U1-R370-WW02 |
| RUCKUS Unleashed R670 | Wi-Fi 7, indoor | 9U1-R670-WW00 |
| RUCKUS Unleashed R770 | Wi-Fi 7, indoor | 9U1-R770-WW00 |
| RUCKUS Unleashed H350 | Dual-band Wi-Fi 6 | 9U1-H350-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 802.3af PoE out | 9U1-H550-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 48 V passive PoE out | 9U1-H550-WW02 |
| RUCKUS Unleashed T350c | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW20 |
| RUCKUS Unleashed T350d | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW40 |
| RUCKUS Unleashed T350se | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW51 |
| RUCKUS Unleashed T750 | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW01 |
| RUCKUS Unleashed T750SE | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW51 |
| RUCKUS Unleashed T670 (this listing) | Outdoor Wi-Fi 7 | 9U1-T670-WW01 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit PoE injector (60 W), the 902-0125-0000 secure articulating mounting bracket, the 902-0134-0000 secure articulating bracket with 10° increments and the 902-1121-0000 spare cable gland for the RJ-45 port. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS T670 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS T670 Outdoor Access Point |
| RUCKUS support | RUCKUS T670 support & documentation |
| RUCKUS Unleashed | RUCKUS Unleashed controller-less Wi-Fi |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9U1-T670-WW01.
Frequently Asked Questions — RUCKUS Unleashed T670 9U1-T670-WW01
What is the difference between 9U1-T670-WW01 and 901-T670-WW01?
Same T670 hardware. 9U1- ships with Unleashed (embedded controller, no controller or subscription needed); 901- is the standard AP for SmartZone or RUCKUS One management.
Will it run tri-band in Singapore?
RUCKUS specifies tri-band (with 6 GHz) for the US and Canada and dual-band 2.4 + 5 GHz for global use. Ask us to confirm the operating mode for your deployment.
What PoE does it need?
802.3bt / uPoE / PoH for full operation (32 W). On 802.3at (25.5 W) transmit power is reduced.
Is it weatherproof?
Yes — IP-67, -40°C to 65°C, and rated for 165 mph wind survivability. A spare cable gland for the RJ-45 port is available as 902-1121-0000.
Is a bracket included?
Yes, a mounting bracket is included in the box. Secure articulating brackets are optional.
