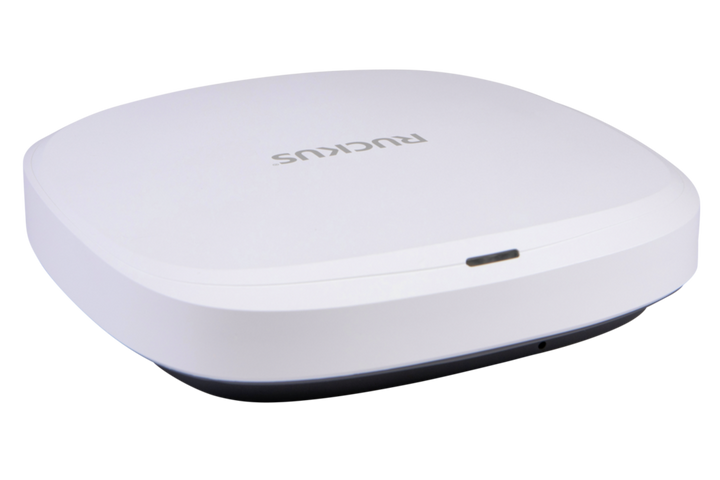

RUCKUS Unleashed R670 Indoor Wi-Fi 7 Tri-Band Access Point
PRODUCT DESCRIPTION
RUCKUS Unleashed R670 Indoor Wi-Fi 7 Tri-Band 2x2:2 Access Point (9U1-R670-WW00) - Limited Lifetime Local Warranty
High-Performance Tri-Band Wi-Fi 7
The RUCKUS R670 is a tri-band concurrent 802.11be (Wi-Fi 7) indoor access point with 2x2:2 radios on 2.4 GHz, 5 GHz and 6 GHz, for a combined data rate of 9.34 Gbps. It can be software-configured to dual-band mode with 4x4:4 on 5 GHz. RUCKUS rates it at up to 768 clients per AP and positions it for guest rooms, classrooms and meeting rooms carrying 4K/8K video and latency-sensitive voice and data.
Unleashed: Controller-Less Wi-Fi
This is the Unleashed edition (part number prefix 9U1-). RUCKUS Unleashed access points carry an embedded controller, so there is no separate controller appliance or cloud subscription to buy. RUCKUS says you just plug it in and set it up from the RUCKUS Unleashed mobile app or any web browser, and add capacity by plugging in another Unleashed AP. Unleashed also manages RUCKUS ICX switches, and includes guest services, Dynamic PSK and SmartMesh wireless meshing.
5 Gbps Ethernet Backhaul
One 5/2.5/1 GbE PoE port removes the wired backhaul bottleneck, with a second 1 GbE port for a local device. Wi-Fi 7 features include 320 MHz channels, Multi-Link Operation (MLO) and preamble puncturing.
BeamFlex+ and Converged IoT
BeamFlex+ adaptive antennas offer 4,000+ unique antenna patterns per band, steering signal per device on a packet-by-packet basis. An onboard BLE or Zigbee IoT radio (Matter and Thread capable), a USB 2.0 port, TPM 2.0 and Secure Boot round out the converged design.
Supplied in Singapore with Local Warranty
RUCKUS sells the R670 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. An adjustable acoustic drop-ceiling bracket is included; the power adapter is not. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS Unleashed R670 9U1-R670-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R670 Unleashed Indoor Access Point |
| Part Number | 9U1-R670-WW00 |
| RUCKUS Description | UNLEASHED R670 XX AP 11be indoor 2-2-2/2-4 |
| Edition | Unleashed (embedded controller); non-Unleashed version is 901-R670-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radios | Tri-band concurrent 2.4 GHz, 5 GHz and 6 GHz; software-configurable dual-band mode |
| MIMO / Streams | 2x2:2 in all three bands (tri-band mode); 2x2 (2.4 GHz) + 4x4:4 (5 GHz) in dual-band mode; SU-MIMO and MU-MIMO |
| Combined Data Rate | 9.34 Gbps |
| Supported Data Rates | 802.11be 4 to 5765 Mbps; 802.11ax 4 to 4804 Mbps; 802.11ac 6.5 to 866 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 689 Mbps; 5 GHz 5765 Mbps (4x4:4) or 2882 Mbps (2x2:2); 6 GHz 5765 Mbps |
| Channelization | 20, 40, 80, 160, 320 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| 6 GHz Modes | LPI and SP with AFC |
| Wi-Fi 7 Features | MLO (Multi-Link Operation), preamble puncturing |
| Client Capacity | Up to 768 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity, 4,000+ patterns per band; gain up to 4 dBi |
| Peak Tx Power | 2.4 GHz 25 dBm (2x2); 5 GHz 25 dBm (2x2), 28 dBm (4x4); 6 GHz 25 dBm (2x2) |
| IoT | Integrated BLE or Zigbee (one IoT radio), Matter & Thread capable |
Interfaces & Power
| Ethernet | 1 x 100M/1/2.5/5 GbE (PoE in) + 1 x 10M/100M/1 GbE, RJ-45; LLDP |
| PoE | 802.3af/at/bt, Cat 5e or better |
| USB | 1 x USB 2.0, Type A |
| DC Input | 48 V DC power jack |
| DC / 802.3bt / PoH / uPoE | 35 W (full functionality: both Ethernet ports, USB 3 W and IoT enabled) |
| 802.3at PoE+ | 25.5 W (USB disabled; Tx reduced to 2.4 GHz 20 dBm, 5 GHz 20 dBm, 6 GHz 21 dBm) |
Security
| Wireless Security | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, DPSK3 |
| Other | WIPS/WIDS, TPM 2.0, Secure Boot |
Physical & Environmental
| Dimensions | 22 cm (L) x 22 cm (W) x 4.9 cm (H) |
| Weight | 1.02 kg (2.25 lbs) |
| Mounting | Wall, acoustic ceiling, desk; bracket 902-0120-0000; secure bracket sold separately |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7), Passpoint, Vantage |
| Safety / Other | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R670 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This 9U1- part ships as an Unleashed AP, managed from the RUCKUS Unleashed mobile app or a web browser with no controller hardware. RUCKUS lists SmartZone, RUCKUS Unleashed and RUCKUS One management for the R670 — if you plan to run SmartZone or RUCKUS One, the non-Unleashed part 901-R670-WW00 is the usual order.
Mixing with Other RUCKUS Gear
Unleashed can manage RUCKUS ICX switches alongside the access points. RUCKUS AI (formerly RUCKUS Analytics) provides network analytics and Cloudpath handles security and policy. Wi-Fi 7 clients get the full 802.11be feature set; 802.11a/b/g/n/ac/ax devices remain supported.
What It Is Suited To
RUCKUS positions the R670 for guest rooms, classrooms and meeting rooms, with airtime decongestion and transient client management for busy spaces.
Package Contents & RUCKUS Unleashed Access Point Ordering Information
In the Box
One RUCKUS R670 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS ordering information). Power adapter not included.
RUCKUS Unleashed Access Points — Ordering Information
| RUCKUS Unleashed R350 | Wi-Fi 6, 2x2:2, indoor | 9U1-R350-WW02 |
| RUCKUS Unleashed R550 | Wi-Fi 6, 2x2:2, indoor | 9U1-R550-WW00 |
| RUCKUS Unleashed R650 | Wi-Fi 6, 4+2 streams, indoor | 9U1-R650-WW00 |
| RUCKUS Unleashed R750 | Wi-Fi 6, 4x4:4, indoor | 9U1-R750-WW00 |
| RUCKUS Unleashed R850 | Wi-Fi 6, 8x8:8, indoor | 9U1-R850-WW00 |
| RUCKUS Unleashed R370 | Dual-band Wi-Fi 7, indoor | 9U1-R370-WW02 |
| RUCKUS Unleashed R670 (this listing) | Wi-Fi 7, indoor | 9U1-R670-WW00 |
| RUCKUS Unleashed R770 | Wi-Fi 7, indoor | 9U1-R770-WW00 |
| RUCKUS Unleashed H350 | Dual-band Wi-Fi 6 | 9U1-H350-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 802.3af PoE out | 9U1-H550-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 48 V passive PoE out | 9U1-H550-WW02 |
| RUCKUS Unleashed T350c | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW20 |
| RUCKUS Unleashed T350d | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW40 |
| RUCKUS Unleashed T350se | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW51 |
| RUCKUS Unleashed T750 | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW01 |
| RUCKUS Unleashed T750SE | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW51 |
| RUCKUS Unleashed T670 | Outdoor Wi-Fi 7 | 9U1-T670-WW01 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit PoE injector (60 W), the 902-1170-XX00 48 V 36 W power supply, the 902-0120-0000 accessory mounting bracket and the 902-0196-0000 T-bar bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R670 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R670 Indoor Access Point |
| RUCKUS support | RUCKUS R670 support & documentation |
| RUCKUS Unleashed | RUCKUS Unleashed controller-less Wi-Fi |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9U1-R670-WW00.
Frequently Asked Questions — RUCKUS Unleashed R670 9U1-R670-WW00
What is the difference between 9U1-R670-WW00 and 901-R670-WW00?
Same R670 hardware. 9U1- ships with Unleashed (embedded controller, no controller or subscription needed); 901- is the standard AP for SmartZone or RUCKUS One management.
R670 or R770?
Both are tri-band Wi-Fi 7. The R670 has 2x2:2 on 5 GHz in tri-band mode, a 5 GbE port and up to 768 clients; the R770 runs 4x4:4 on 5 GHz, has a 10 GbE port and supports up to 1,024 clients.
What PoE does it need?
802.3bt / PoH / uPoE (35 W) for full functionality. On 802.3at (25.5 W) USB is disabled and transmit power is reduced.
Does it support 6 GHz?
Yes — 2x2:2 on 6 GHz with 320 MHz channels, LPI and SP (with AFC) modes.
What warranty do I get?
RUCKUS sells the R670 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
