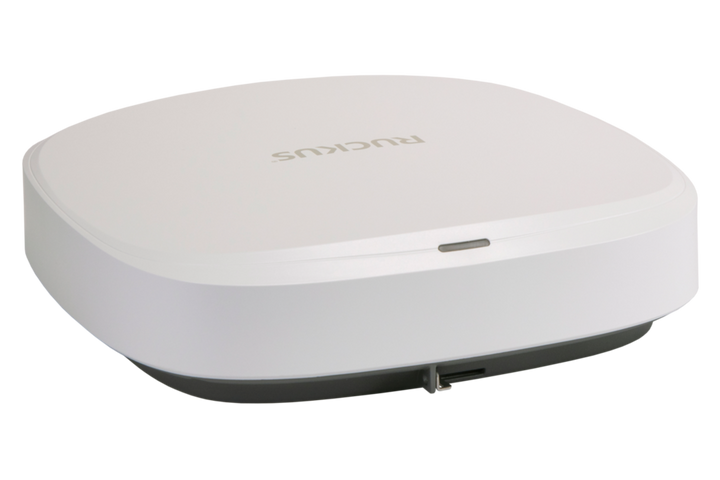

RUCKUS Unleashed R770 Indoor Wi-Fi 7 Tri-Band Access Point
PRODUCT DESCRIPTION
RUCKUS Unleashed R770 Indoor Wi-Fi 7 Tri-Band 2x2:2 + 4x4:4 + 2x2:2 Access Point (9U1-R770-WW00) - Limited Lifetime Local Warranty
Very-High-Performance Tri-Radio Wi-Fi 7
The RUCKUS R770 is a tri-band concurrent 802.11be (Wi-Fi 7) indoor access point with 2x2:2 on 2.4 GHz, 4x4:4 on 5 GHz and 2x2:2 on 6 GHz, for a combined maximum rate of 12.22 Gbps. RUCKUS rates it at up to 1,024 clients per AP and builds it for high client density in large meeting halls, general enterprise spaces and large classrooms.
Unleashed: Controller-Less Wi-Fi
This is the Unleashed edition (part number prefix 9U1-). RUCKUS Unleashed access points carry an embedded controller, so there is no separate controller appliance or cloud subscription to buy. RUCKUS says you just plug it in and set it up from the RUCKUS Unleashed mobile app or any web browser, and add capacity by plugging in another Unleashed AP. Unleashed also manages RUCKUS ICX switches, and includes guest services, Dynamic PSK and SmartMesh wireless meshing.
10 GbE Uplink
One 10/5/2.5/1 GbE PoE port removes the wired backhaul bottleneck on multi-gigabit networks, with a second 1 GbE port. Wi-Fi 7 features include 320 MHz channels on 6 GHz, with 6 GHz LPI and SP (AFC) support.
BeamFlex+ and Converged IoT
BeamFlex+ adaptive antennas offer 4,000+ unique antenna patterns per band. An onboard BLE or Zigbee IoT radio, a USB 2.0 port, TPM 2.0 and Secure Boot make the R770 a converged access point for Wi-Fi and IoT.
Supplied in Singapore with Local Warranty
RUCKUS sells the R770 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. An adjustable acoustic drop-ceiling bracket is included; the power adapter is not. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS Unleashed R770 9U1-R770-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R770 Unleashed Indoor Access Point |
| Part Number | 9U1-R770-WW00 |
| RUCKUS Description | UNLEASHED R770 XX AP 11be indoor 2-4-2 |
| Edition | Unleashed (embedded controller); non-Unleashed version is 901-R770-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radios | Tri-band concurrent 2.4 GHz, 5 GHz and 6 GHz; software-configurable to 2x2 (2.4 GHz) + 4x4 (5 GHz) dual-band mode |
| MIMO / Streams | 2x2:2 (2.4 GHz and 6 GHz), 4x4:4 (5 GHz); SU-MIMO and MU-MIMO |
| Combined Data Rate | 12.22 Gbps |
| Supported Data Rates | 802.11be 4 to 5765 Mbps; 802.11ax 4 to 4804 Mbps; 802.11ac 6.5 to 866 Mbps; 802.11n 6.5 to 600 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 689 Mbps; 5 GHz 5765 Mbps; 6 GHz 5765 Mbps |
| Channelization | 20, 40, 80, 160, 320 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| 6 GHz Modes | LPI and SP with AFC |
| Client Capacity | Up to 1,024 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity, 4,000+ patterns per band; gain up to 4 dBi |
| Peak Tx Power | 2.4 GHz 26 dBm; 5 GHz 28 dBm; 6 GHz 25 dBm |
| IoT | Integrated BLE or Zigbee (one IoT radio); Matter & Thread in a future update |
Interfaces & Power
| Ethernet | 1 x 100M/1/2.5/5/10G (PoE in) + 1 x 10M/100M/1G, RJ-45 |
| PoE | 802.3af/at/bt, Cat 6a or better |
| USB | 1 x USB 2.0, Type A |
| DC Power | 32 W (average/RMS) |
| 802.3bt / PoH / uPoE | 32 W average, 40 W peak (LLDP) |
| 802.3at PoE+ | 25.5 W |
Security
| Wireless Security | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK |
| Other | WIPS/WIDS, TPM 2.0, Secure Boot |
Physical & Environmental
| Dimensions | 23.3 cm (L) x 23.3 cm (W) x 5.9 cm (H) |
| Weight | 1.36 kg (3 lbs) |
| Mounting | Wall, acoustic ceiling, desk; bracket 902-0120-0000 |
| Physical Security | Padlock feature; secure bracket sold separately |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7), Passpoint, Vantage |
| Safety / Other | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R770 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This 9U1- part ships as an Unleashed AP, managed from the RUCKUS Unleashed mobile app or a web browser with no controller hardware. RUCKUS lists SmartZone, RUCKUS Unleashed and RUCKUS One management for the R770 — if you plan to run SmartZone or RUCKUS One, the non-Unleashed part 901-R770-WW00 is the usual order.
Mixing with Other RUCKUS Gear
Unleashed can manage RUCKUS ICX switches alongside the access points. For the full 10 GbE uplink, pair the R770 with a multi-gigabit PoE switch and Cat 6a cabling. RUCKUS AI provides network analytics and Cloudpath handles security and policy.
What It Is Suited To
RUCKUS positions the R770 for large meeting halls, general enterprise spaces and large classrooms running 4K/8K video and latency-sensitive voice and data.
Package Contents & RUCKUS Unleashed Access Point Ordering Information
In the Box
One RUCKUS R770 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS ordering information). Power adapter not included.
RUCKUS Unleashed Access Points — Ordering Information
| RUCKUS Unleashed R350 | Wi-Fi 6, 2x2:2, indoor | 9U1-R350-WW02 |
| RUCKUS Unleashed R550 | Wi-Fi 6, 2x2:2, indoor | 9U1-R550-WW00 |
| RUCKUS Unleashed R650 | Wi-Fi 6, 4+2 streams, indoor | 9U1-R650-WW00 |
| RUCKUS Unleashed R750 | Wi-Fi 6, 4x4:4, indoor | 9U1-R750-WW00 |
| RUCKUS Unleashed R850 | Wi-Fi 6, 8x8:8, indoor | 9U1-R850-WW00 |
| RUCKUS Unleashed R370 | Dual-band Wi-Fi 7, indoor | 9U1-R370-WW02 |
| RUCKUS Unleashed R670 | Wi-Fi 7, indoor | 9U1-R670-WW00 |
| RUCKUS Unleashed R770 (this listing) | Wi-Fi 7, indoor | 9U1-R770-WW00 |
| RUCKUS Unleashed H350 | Dual-band Wi-Fi 6 | 9U1-H350-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 802.3af PoE out | 9U1-H550-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 48 V passive PoE out | 9U1-H550-WW02 |
| RUCKUS Unleashed T350c | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW20 |
| RUCKUS Unleashed T350d | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW40 |
| RUCKUS Unleashed T350se | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW51 |
| RUCKUS Unleashed T750 | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW01 |
| RUCKUS Unleashed T750SE | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW51 |
| RUCKUS Unleashed T670 | Outdoor Wi-Fi 7 | 9U1-T670-WW01 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit PoE injector (60 W), the 902-1170-XX00 48 V 36 W power supply, the 902-0120-0000 accessory mounting bracket and the 902-0196-0000 T-bar bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R770 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R770 Indoor Access Point |
| RUCKUS support | RUCKUS indoor AP support & documentation |
| RUCKUS Unleashed | RUCKUS Unleashed controller-less Wi-Fi |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9U1-R770-WW00.
Frequently Asked Questions — RUCKUS Unleashed R770 9U1-R770-WW00
What is the difference between 9U1-R770-WW00 and 901-R770-WW00?
Same R770 hardware. 9U1- ships with Unleashed (embedded controller, no controller or subscription needed); 901- is the standard AP for SmartZone or RUCKUS One management.
R770 or R670?
The R770 runs 4x4:4 on 5 GHz, has a 10 GbE port and supports up to 1,024 clients (12.22 Gbps combined). The R670 has 2x2:2 on each band in tri-band mode, a 5 GbE port and up to 768 clients (9.34 Gbps).
What PoE does it need?
802.3bt / PoH / uPoE for full functionality (32 W average, 40 W peak). RUCKUS also lists 802.3at at 25.5 W.
What cabling do I need for 10 GbE?
RUCKUS specifies Cat 6a or better for PoE on the multi-gigabit port.
What warranty do I get?
RUCKUS sells the R770 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
