RUCKUS Unleashed T750 Outdoor Wi-Fi 6 4x4:4 Access Point
PRODUCT DESCRIPTION
RUCKUS Unleashed T750 Outdoor Wi-Fi 6 4x4:4 Access Point (9U1-T750-WW01) - Local Warranty
Flagship Outdoor Wi-Fi 6 for Stadiums, Parks and Transport Hubs
The RUCKUS T750 is a dual-band 802.11ax (Wi-Fi 6) outdoor access point with 4x4:4 radios and 160 MHz channels. RUCKUS rates it at up to 2400 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz, with up to 1,024 clients per AP, for high-density public venues such as airports, amusement parks and stadiums and for bandwidth-heavy uses such as 4K video streaming.
Unleashed: Controller-Less Wi-Fi
This is the Unleashed edition (part number prefix 9U1-). RUCKUS Unleashed access points carry an embedded controller, so there is no separate controller appliance or cloud subscription to buy. RUCKUS says you just plug it in and set it up from the RUCKUS Unleashed mobile app or any web browser, and add capacity by plugging in another Unleashed AP. Unleashed also manages RUCKUS ICX switches, and includes guest services, Dynamic PSK and SmartMesh wireless meshing.
2.5G, Fiber and PoE Out

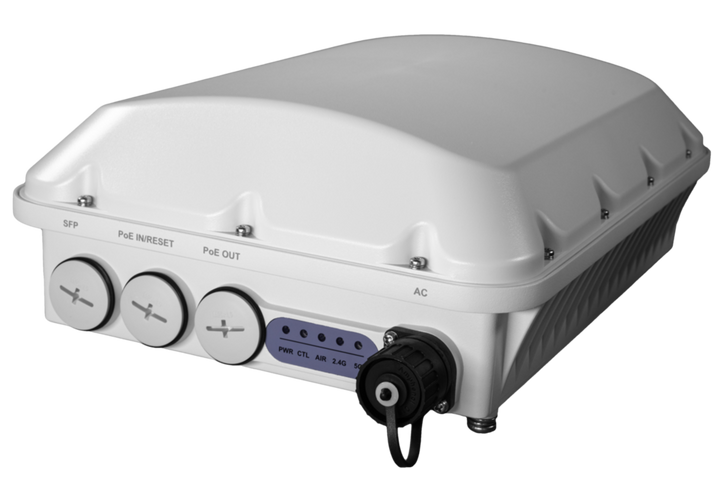

Backhaul runs over a 2.5 Gbps Ethernet port or an SFP/SFP+ fiber slot (1 or 10 Gbps). A second Gigabit port can power a camera or another device with 26 W PoE out when the AP itself is fed by 802.3bt PoE.
Omnidirectional T750 with USB and IoT

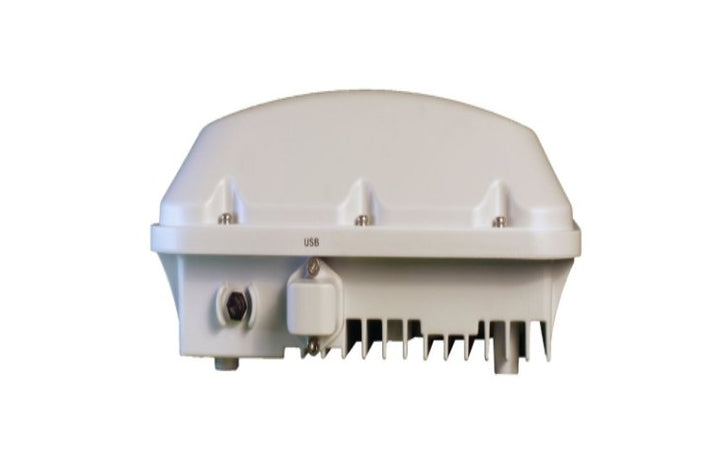

The T750 is the omnidirectional version, with BeamFlex+ adaptive antennas offering 4,000+ antenna patterns per band, a USB 2.0 port and built-in BLE and Zigbee for IoT. For aimed sector coverage, see the T750SE.
Supplied in Singapore with Local Warranty
RUCKUS sells the T750 with a limited one-year warranty. SourceIT supplies the T750 locally in Singapore with a GST invoice. The unit is IP-67 rated for -40°C to 65°C and ships with a mounting bracket; the power adapter is not included. Email sales@sourceit.com.sg with your site layout for a coverage plan and bill of materials.
RUCKUS Unleashed T750 9U1-T750-WW01 Datasheet — Technical Specifications
General
| Product Name | RUCKUS T750 Unleashed Outdoor Access Point |
| Part Number | 9U1-T750-WW01 |
| Edition | Unleashed (embedded controller); non-Unleashed version is 901-T750-WW01 |
| Manufacturer Warranty | Limited one-year warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band, concurrent 2.4 GHz and 5 GHz |
| MIMO / Streams | 4x4:4; 4 spatial streams for both SU-MIMO and MU-MIMO |
| Supported Data Rates | 802.11ax 4 to 2400 Mbps; 802.11ac 6.5 to 1732 Mbps; 802.11n 6.5 to 600 Mbps |
| Peak PHY Rate | 2.4 GHz 1148 Mbps; 5 GHz 2400 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Channelization | 20, 40, 80, 160 MHz |
| Client Capacity | Up to 1024 clients per AP |
| SSIDs | Up to 31 per AP |
| Antenna | Internal omnidirectional BeamFlex+ adaptive antenna with polarization diversity, 4,000+ unique antenna patterns per band; gain 2.4 GHz 1.6 dBi, 5 GHz 3.4 dBi |
| IoT | IoT capable: built-in BLE and Zigbee; pluggable IoT module supported |
Interfaces & Power
| Ethernet | 1 x 2.5 Gbps and 1 x 10/100/1000 Mbps RJ-45 |
| PoE Out | PSE out (26 W) available on the 1GbE port |
| Fiber Backhaul | SFP (1 Gbps) / SFP+ (10 Gbps) |
| USB | 1 x USB 2.0, Type A |
| GPS | Built-in (RUCKUS ordering table: -XX01 and -XX51 builds include GPS) |
| 802.3bt PoE (Class 7) | 57 W (maximum functionality, with PSE out) |
| 802.3at PoE+ | 24.2 W (reduced functionality, without PSE out) |
| Idle | 10.75 W |
Radio Management
| Features | BeamFlex+, ChannelFly dynamic channel management, adaptive band balancing, client load balancing, SmartMesh self-healing wireless meshing, SPoT location-based services |
Security
| Wireless Security | WPA2, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE |
Physical & Environmental
| Dimensions | 34.64 cm (L) x 24.06 cm (W) x 10.17 cm (H) |
| Weight | 2.84 kg (6.27 lbs) |
| Mounting | Pole, wall or flat surface; mounting bracket included |
| Operating Temperature | -40°C to 65°C (-40°F to 145°F) |
| Operating Humidity | Up to 95%, non-condensing |
| Ingress Protection | IP-67 |
| Wind Survivability | Up to 266 km/h (165 mph) |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED 6, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open |
| Safety / Other | EN 60950-1, EN 61000-4-2/3/5, EN 50121 (railway), IEC 61373, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS T750 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This 9U1- part ships as an Unleashed AP: set up and managed from the RUCKUS Unleashed mobile app or a web browser, with no controller hardware. RUCKUS also supports the T750 hardware on SmartZone, ZoneDirector, cloud and standalone management — if you plan to run a controller or RUCKUS One from day one, the non-Unleashed part 901-T750-WW01 is the usual order.
Powering It
For full functionality including PSE out, feed the AP from 802.3bt Class 7 PoE (57 W). On 802.3at it runs with reduced functionality and no PSE out (24.2 W). RUCKUS offers 60 W PoE injectors for this.
Mixing with Other RUCKUS Gear
Unleashed can manage RUCKUS ICX switches alongside the access points, and outdoor T-series APs can join the same Unleashed network as indoor R-series and H-series APs. Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported.
Package Contents & RUCKUS Unleashed Access Point Ordering Information
In the Box
One RUCKUS T750 outdoor access point with a mounting bracket (per the RUCKUS data sheet). The power adapter is not included.
RUCKUS Unleashed Access Points — Ordering Information
| RUCKUS Unleashed R350 | Wi-Fi 6, 2x2:2, indoor | 9U1-R350-WW02 |
| RUCKUS Unleashed R550 | Wi-Fi 6, 2x2:2, indoor | 9U1-R550-WW00 |
| RUCKUS Unleashed R650 | Wi-Fi 6, 4+2 streams, indoor | 9U1-R650-WW00 |
| RUCKUS Unleashed R750 | Wi-Fi 6, 4x4:4, indoor | 9U1-R750-WW00 |
| RUCKUS Unleashed R850 | Wi-Fi 6, 8x8:8, indoor | 9U1-R850-WW00 |
| RUCKUS Unleashed R370 | Dual-band Wi-Fi 7, indoor | 9U1-R370-WW02 |
| RUCKUS Unleashed R670 | Wi-Fi 7, indoor | 9U1-R670-WW00 |
| RUCKUS Unleashed R770 | Wi-Fi 7, indoor | 9U1-R770-WW00 |
| RUCKUS Unleashed H350 | Dual-band Wi-Fi 6 | 9U1-H350-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 2x2:2 | 9U1-H550-WW02 |
| RUCKUS Unleashed T350c | Outdoor Wi-Fi 6, 2x2:2, omni | 9U1-T350-WW20 |
| RUCKUS Unleashed T350d | Outdoor Wi-Fi 6, 2x2:2, omni, DC/USB/IoT | 9U1-T350-WW40 |
| RUCKUS Unleashed T350se | Outdoor Wi-Fi 6, 2x2:2, sector + external antenna | 9U1-T350-WW51 |
| RUCKUS Unleashed T750 (this listing) | Outdoor Wi-Fi 6, 4x4:4, omni | 9U1-T750-WW01 |
| RUCKUS Unleashed T750SE | Outdoor Wi-Fi 6, 4x4:4, sector + external antenna | 9U1-T750-WW51 |
| RUCKUS Unleashed T670 | Outdoor Wi-Fi 7 | 9U1-T670-WW01 |
Power, Mounting & Antenna Accessories
RUCKUS lists the 902-0180-XX00 60W PoE injector, the 902-1180-XX00 multi-gigabit (2.5/5/10GBASE-T) 60W PoE injector, the 902-0125-0000 secure articulating mounting bracket, the 902-0134-0000 weatherized aluminium outdoor bracket (180° adjustment, 1–4 inch poles), and SFP/SFP+ optics E1MG-LX-OM, E1MG-SX-OM, 10G-SFPP-SR, 10G-SFPP-LR, 10G-SFPP-USR and 10G-SFPP-ER. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS T750 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS T750 Outdoor Access Point |
| RUCKUS Unleashed | RUCKUS Unleashed controller-less Wi-Fi |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9U1-T750-WW01.
Frequently Asked Questions — RUCKUS Unleashed T750 9U1-T750-WW01
What is the difference between 9U1-T750-WW01 and 901-T750-WW01?
Same T750 hardware. 9U1- ships with Unleashed (embedded controller, no controller or subscription needed); 901- is the standard AP for SmartZone, ZoneDirector or cloud management.
What is the difference between the T750 and T750SE?
The T750 uses an omnidirectional BeamFlex+ antenna and has a USB 2.0 port. The T750SE uses a 120° sector antenna (6.0 dBi / 8.0 dBi) with four N-type connectors for an external antenna, and has no USB port. Both are 4x4:4 Wi-Fi 6 with 2.5G, SFP/SFP+ and PoE out.
What PoE does it need?
802.3bt Class 7 (57 W) for full functionality including 26 W PoE out. It also runs on 802.3at (24.2 W) with reduced functionality and no PoE out.
How many devices can it handle?
RUCKUS rates the T750 series at up to 1,024 clients and up to 31 SSIDs per AP.
What warranty do I get?
RUCKUS sells the T750 with a limited one-year warranty; SourceIT supplies it with local support and a GST invoice.
