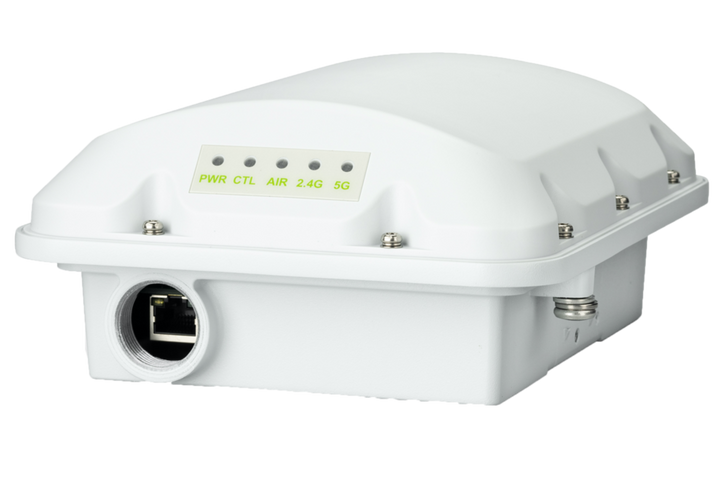

RUCKUS Unleashed T350c Outdoor Wi-Fi 6 2x2:2 Access Point
PRODUCT DESCRIPTION
RUCKUS Unleashed T350c Outdoor Wi-Fi 6 2x2:2 Access Point (9U1-T350-WW20) - Local Warranty
Outdoor Wi-Fi 6 for Plazas, Campuses and Public Venues
The RUCKUS T350c is a dual-band, concurrent 802.11ax (Wi-Fi 6) outdoor access point with 2x2:2 radios on both 2.4 GHz and 5 GHz. RUCKUS rates the T350 series at up to 1774 Mbps (802.11ax) and up to 512 clients per AP, and positions it for high-density outdoor public venues such as airports, convention centres, plazas, malls, smart cities and dense urban spaces.
Unleashed: Controller-Less Wi-Fi
This is the Unleashed edition (part number prefix 9U1-). RUCKUS Unleashed access points carry an embedded controller, so there is no separate controller appliance or cloud subscription to buy. RUCKUS says you just plug it in and set it up from the RUCKUS Unleashed mobile app or any web browser, and add capacity by plugging in another Unleashed AP. Unleashed also manages RUCKUS ICX switches, and includes guest services, Dynamic PSK and SmartMesh wireless meshing.
Which T350 Is the T350c?
The T350c is the compact, PoE-only member of the family: one Gigabit PoE port, an internal omnidirectional antenna and an operating range of -20°C to 65°C.
Built for Singapore's Outdoors
The T350 series is IP-67 rated, survives winds of up to 266 km/h (165 mph) and mounts on a pole, wall or flat surface with the bracket supplied in the box. BeamFlex+ adaptive antennas and SmartMesh self-healing wireless meshing help extend coverage to spots where running cable is hard.
Supplied in Singapore with Local Warranty
RUCKUS sells the T350 series with a limited one-year warranty. SourceIT supplies the T350c locally in Singapore with a GST invoice. No PoE injector is included; the AP runs at full functionality on 802.3at PoE. Email sales@sourceit.com.sg with your site layout for a coverage plan and bill of materials.
RUCKUS Unleashed T350c 9U1-T350-WW20 Datasheet — Technical Specifications
General
| Product Name | RUCKUS T350c Unleashed Outdoor Access Point |
| Part Number | 9U1-T350-WW20 |
| Variant | T350c, omni, outdoor access point, 2x2:2 Wi-Fi 6, internal BeamFlex+, dual band concurrent, one Ethernet port, PoE input |
| Edition | Unleashed (embedded controller); non-Unleashed version is 901-T350-WW20 |
| Manufacturer Warranty | Limited one-year warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band, concurrent 2.4 GHz and 5 GHz |
| MIMO / Streams | 2x2:2 SU-MIMO and MU-MIMO; 2 spatial streams per band |
| Supported Data Rates | 802.11ax 4 to 1774 Mbps; 802.11ac 6.5 to 867 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 574 Mbps; 5 GHz 1200 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Channelization | 20, 40, 80 MHz |
| Client Capacity | Up to 512 clients per AP |
| SSIDs | Up to 31 per AP |
| Antenna | Internal omnidirectional BeamFlex+ adaptive antenna; gain up to 3 dBi |
| Max Tx Power | 2.4 GHz 26 dBm; 5 GHz 25 dBm |
Interfaces & Power
| Ethernet | 1 x 1GbE RJ-45, PoE in (802.3at Class 4) |
| 802.3at PoE (Class 4) | 13.24 W (full functionality) |
| 802.3af PoE (Class 3) | 11.42 W |
| Idle (PoE) | 7.68 W |
Radio Management
| Features | BeamFlex+ antenna optimization, polarization diversity with maximal ratio combining (PDMRC), ChannelFly dynamic channel management, adaptive band balancing, client load balancing, SmartRoam, SmartMesh self-healing wireless meshing |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK, OWE |
| Other | WIPS/WIDS |
Physical & Environmental
| Dimensions | 194.9 mm (L) x 162.3 mm (W) x 80.9 mm (H) |
| Weight | 1.01 kg (2.23 lbs) with bracket |
| Mounting | Pole, wall or flat surface; mounting bracket included |
| Operating Temperature | -20°C to 65°C |
| Operating Humidity | Up to 95%, non-condensing |
| Ingress Protection | IP-67 |
| Wind Survivability | Up to 266 km/h (165 mph) |
| Altitude | Up to 3,048 m (10,000 ft), functional operation |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac, Wi-Fi CERTIFIED 6, WPA3-Enterprise/Personal, Wi-Fi Enhanced Open |
| Safety / Other | IEC/EN/UL safety, FCC Part 15B, railway EMC, UL 2043 plenum, WEEE & RoHS |
Figures are taken from the RUCKUS T350 series data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This 9U1- part ships as an Unleashed AP: set up and managed from the RUCKUS Unleashed mobile app or a web browser, with no controller hardware. RUCKUS also supports the T350 hardware on SmartZone, ZoneDirector, cloud and standalone management — if you plan to run a controller or RUCKUS One from day one, the non-Unleashed part 901-T350-WW20 is the usual order.
Mixing with Other RUCKUS Gear
Unleashed can manage RUCKUS ICX switches alongside the access points, and outdoor T-series APs can join the same Unleashed network as indoor R-series and H-series APs. Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported.
What It Is Suited To
RUCKUS positions the T350 series for airports, convention centres, plazas, malls, smart cities and other dense urban environments.
Package Contents & RUCKUS Unleashed Access Point Ordering Information
In the Box
One RUCKUS T350c outdoor access point with a mounting bracket (per the RUCKUS data sheet). No PoE injector is included.
RUCKUS Unleashed Access Points — Ordering Information
| RUCKUS Unleashed R350 | Wi-Fi 6, 2x2:2, indoor | 9U1-R350-WW02 |
| RUCKUS Unleashed R550 | Wi-Fi 6, 2x2:2, indoor | 9U1-R550-WW00 |
| RUCKUS Unleashed R650 | Wi-Fi 6, 4+2 streams, indoor | 9U1-R650-WW00 |
| RUCKUS Unleashed R750 | Wi-Fi 6, 4x4:4, indoor | 9U1-R750-WW00 |
| RUCKUS Unleashed R850 | Wi-Fi 6, 8x8:8, indoor | 9U1-R850-WW00 |
| RUCKUS Unleashed R370 | Dual-band Wi-Fi 7, indoor | 9U1-R370-WW02 |
| RUCKUS Unleashed R670 | Wi-Fi 7, indoor | 9U1-R670-WW00 |
| RUCKUS Unleashed R770 | Wi-Fi 7, indoor | 9U1-R770-WW00 |
| RUCKUS Unleashed H350 | Dual-band Wi-Fi 6 | 9U1-H350-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 2x2:2 | 9U1-H550-WW02 |
| RUCKUS Unleashed T350c (this listing) | Outdoor Wi-Fi 6, 2x2:2, omni | 9U1-T350-WW20 |
| RUCKUS Unleashed T350d | Outdoor Wi-Fi 6, 2x2:2, omni, DC/USB/IoT | 9U1-T350-WW40 |
| RUCKUS Unleashed T350se | Outdoor Wi-Fi 6, 2x2:2, sector + external antenna | 9U1-T350-WW51 |
| RUCKUS Unleashed T750 | Outdoor Wi-Fi 6, 4x4:4, omni | 9U1-T750-WW01 |
| RUCKUS Unleashed T750SE | Outdoor Wi-Fi 6, 4x4:4, sector + external antenna | 9U1-T750-WW51 |
| RUCKUS Unleashed T670 | Outdoor Wi-Fi 7 | 9U1-T670-WW01 |
Power, Mounting & Antenna Accessories
RUCKUS lists the 902-0162-XXYY 24W PoE injector, the 902-0125-0000 secure articulating mounting bracket, the 902-1121-0000 spare weatherizing cable gland and the 902-0183-000 spare RJ-45 cable gland. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS T350 Series Data Sheet (PDF) |
| RUCKUS product page | RUCKUS T350 Outdoor Access Point |
| Technical documentation | RUCKUS T350 technical documentation |
| RUCKUS Unleashed | RUCKUS Unleashed controller-less Wi-Fi |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9U1-T350-WW20.
Frequently Asked Questions — RUCKUS Unleashed T350c 9U1-T350-WW20
What is the difference between 9U1-T350-WW20 and 901-T350-WW20?
Same T350c hardware. 9U1- ships with Unleashed (embedded controller, no controller or subscription needed); 901- is the standard AP for SmartZone, ZoneDirector or cloud management.
How do the T350c, T350d and T350se differ?
The T350c is omni, PoE-only, -20°C to 65°C. The T350d adds DC input, USB and a BLE/Zigbee IoT radio and runs from -40°C. The T350se has a 120° sector antenna with N-type connectors for an external antenna, plus DC input and USB.
What PoE does it need?
802.3at PoE (Class 4, 13.24 W) for full functionality. On 802.3af (Class 3) it draws 11.42 W.
Is it weatherproof?
Yes. The T350c is IP-67 rated, survives winds up to 266 km/h and operates from -20°C to 65°C.
What warranty do I get?
RUCKUS sells the T350 series with a limited one-year warranty; SourceIT supplies it with local support and a GST invoice.
