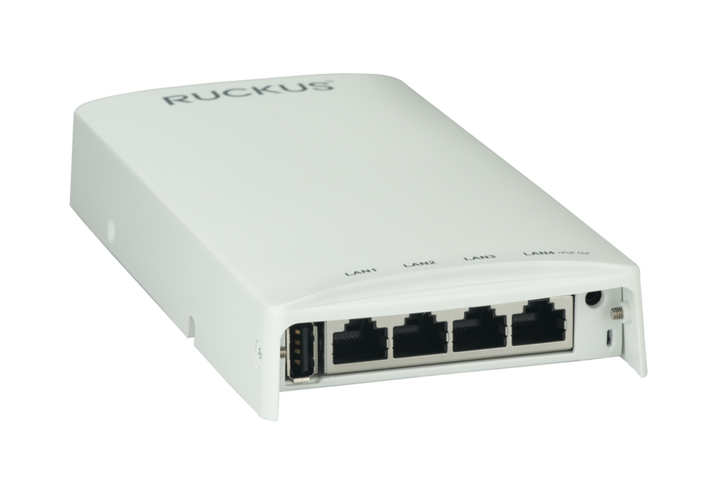

RUCKUS Unleashed H550 Wall-Plate Wi-Fi 6 2x2:2 Access Point
PRODUCT DESCRIPTION
RUCKUS Unleashed H550 Wall-Plate Wi-Fi 6 2x2:2 Access Point (9U1-H550-WW02) - Limited Lifetime Local Warranty
Converged In-Room Connectivity for Hotels, Residences and MDUs
The RUCKUS H550 is a wall-mounted dual-band 802.11ax (Wi-Fi 6) 2x2:2 access point with a built-in four-port gigabit switch, dual-concurrent BLE and Zigbee, and a USB port. RUCKUS rates it at up to 1774 Mbps (802.11ax) and up to 512 clients per AP, and designed it for hotel guest rooms, student residence halls, apartments and other MDUs.
Unleashed: Controller-Less Wi-Fi
This is the Unleashed edition (part number prefix 9U1-). RUCKUS Unleashed access points carry an embedded controller, so there is no separate controller appliance or cloud subscription to buy. RUCKUS says you just plug it in and set it up from the RUCKUS Unleashed mobile app or any web browser, and add capacity by plugging in another Unleashed AP. Unleashed also manages RUCKUS ICX switches, and includes guest services, Dynamic PSK and SmartMesh wireless meshing.
48V Passive PoE Out (WW02)
This -WW02 version has four 1GbE LAN ports, one of which supplies 48 V passive PoE out; the -WW00 version supplies 802.3af PoE out instead. Wire in IPTV boxes, IP phones and other in-room devices from the same wall plate.
Fits a Standard Wall Box
The H550 installs over an electrical wall box or a standard US or EU single-gang wall jack, with an optional bracket for surface mounting. It takes an 802.3bt (Class 5) PoE uplink.
Supplied in Singapore with Local Warranty
RUCKUS sells the H550 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your room count for a bill of materials.
RUCKUS Unleashed H550 9U1-H550-WW02 Datasheet — Technical Specifications
General
| Product Name | RUCKUS H550 Unleashed Wall-Plate Access Point |
| Part Number | 9U1-H550-WW02 |
| Edition | Unleashed (embedded controller); non-Unleashed version is 901-H550-WW02 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band 2.4 GHz and 5 GHz |
| MIMO / Streams | 2x2:2 (2.4 GHz and 5 GHz); 2x2 SU-MIMO and MU-MIMO |
| Channelization | 20, 40, 80 MHz |
| Supported Data Rates | 802.11ax 4 to 1774 Mbps |
| Peak PHY Rate | 2.4 GHz 574 Mbps; 5 GHz 1200 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 512 clients per AP |
| SSIDs | 8 per radio |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity; gain up to 1 dBi |
| Max Tx Power | 2.4 GHz 19 dBm; 5 GHz 22 dBm (aggregate) |
| Min Receive Sensitivity | -100 dBm |
| IoT | Integrated BLE and Zigbee (dual concurrent) |
Interfaces & Power
| Uplink | 1 x 1GbE RJ-45, PoE in 802.3bt Class 5 |
| LAN Ports | 4 x 1GbE RJ-45, one PoE out port (48 V passive on -WW02; 802.3af on -WW00) |
| PoE Out Power | 8.4 W to 12.95 W depending on power mode |
| USB | 1 x USB 2.0, Type A (disabled on 802.3af) |
| 802.3af | 12.54 W, PoE out disabled |
| 802.3at | 15.9 W, PoE out disabled |
| 802.3bt / uPoE | 24.91 W to 32.21 W, PoE out enabled |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE |
| Other | WIPS/WIDS, captive portal, Hotspot 2.0, WISPr, 802.11r/k/v |
Physical & Environmental
| Dimensions | 89.5 mm (W) x 178.5 mm (L) x 29.3 mm (H) |
| Weight | 278 g without bracket; 350 g with bracket |
| Mounting | Electrical wall box; standard US and EU single-gang wall jack; optional bracket |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED 6, WPA3-Enterprise/Personal |
| Safety / Other | EN 60950-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS H550 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This 9U1- part ships as an Unleashed AP: set up and managed from the RUCKUS Unleashed mobile app or a web browser, with no controller hardware. RUCKUS lists the H550 hardware as supported by SmartZone, ZoneDirector, Unleashed, standalone and cloud management — if you plan to run a controller or RUCKUS One from day one, the non-Unleashed part 901-H550-WW02 is the usual order.
Mixing with Other RUCKUS Gear
Unleashed can manage RUCKUS ICX switches alongside the access points. Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported.
What It Is Suited To
RUCKUS positions the H550 for converged services in hospitality and residential locations — hotel guest rooms, student residence halls, apartments and other MDU structures — where IPTV, IP phones and minibars share the wall plate with Wi-Fi and IoT.
Package Contents & RUCKUS Unleashed Access Point Ordering Information
In the Box
One RUCKUS H550 wall-plate access point. The RUCKUS data sheet does not publish the box contents; the surface-mount bracket 902-0136-0000 is listed as an optional accessory.
RUCKUS Unleashed Access Points — Ordering Information
| RUCKUS Unleashed R350 | Wi-Fi 6, 2x2:2, indoor | 9U1-R350-WW02 |
| RUCKUS Unleashed R550 | Wi-Fi 6, 2x2:2, indoor | 9U1-R550-WW00 |
| RUCKUS Unleashed R650 | Wi-Fi 6, 4+2 streams, indoor | 9U1-R650-WW00 |
| RUCKUS Unleashed R750 | Wi-Fi 6, 4x4:4, indoor | 9U1-R750-WW00 |
| RUCKUS Unleashed R850 | Wi-Fi 6, 8x8:8, indoor | 9U1-R850-WW00 |
| RUCKUS Unleashed R370 | Dual-band Wi-Fi 7, indoor | 9U1-R370-WW02 |
| RUCKUS Unleashed R670 | Wi-Fi 7, indoor | 9U1-R670-WW00 |
| RUCKUS Unleashed R770 | Wi-Fi 7, indoor | 9U1-R770-WW00 |
| RUCKUS Unleashed H350 | Dual-band Wi-Fi 6 | 9U1-H350-WW00 |
| RUCKUS Unleashed H550 (this listing) | Wi-Fi 6 wall-plate, 2x2:2 | 9U1-H550-WW02 |
| RUCKUS Unleashed T350c | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW20 |
| RUCKUS Unleashed T350d | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW40 |
| RUCKUS Unleashed T350se | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW51 |
| RUCKUS Unleashed T750 | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW01 |
| RUCKUS Unleashed T750SE | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW51 |
| RUCKUS Unleashed T670 | Outdoor Wi-Fi 7 | 9U1-T670-WW01 |
Power & Mounting Accessories
RUCKUS lists the 902-0180 60W PoE injector, the 902-2170 50W power supply and the 902-0136-0000 optional surface-mount bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS H550 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS H550 Wall-Plate Access Point |
| RUCKUS support | RUCKUS H550 support & documentation |
| RUCKUS Unleashed | RUCKUS Unleashed controller-less Wi-Fi |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9U1-H550-WW02.
Frequently Asked Questions — RUCKUS Unleashed H550 9U1-H550-WW02
What is the difference between 9U1-H550-WW02 and 9U1-H550-WW00?
Both are Unleashed H550s. -WW02 has a 48 V passive PoE out port; -WW00 has an 802.3af PoE out port. Pick the one that matches the device you will power from the wall plate.
And 9U1- versus 901-?
Same hardware. 9U1- ships with Unleashed (embedded controller, no controller or subscription needed); 901- is the standard AP for SmartZone, ZoneDirector or RUCKUS One management.
What PoE does it need?
802.3bt (Class 5) or uPoE for PoE out (24.91 W to 32.21 W). On 802.3at (15.9 W) or 802.3af (12.54 W) the PoE out port is disabled.
How many wired devices can I connect?
Four through the 1GbE LAN ports, one of which can power a device.
What warranty do I get?
RUCKUS sells the H550 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
