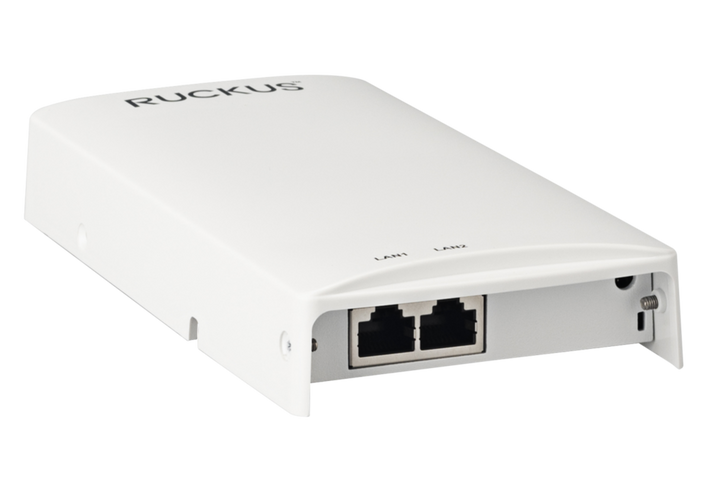

RUCKUS Unleashed H350 Wall-Plate Wi-Fi 6 2x2:2 Access Point
PRODUCT DESCRIPTION
RUCKUS Unleashed H350 Wall-Plate Wi-Fi 6 2x2:2 Access Point (9U1-H350-WW00) - Limited Lifetime Local Warranty
Wall-Plate Wi-Fi 6, IoT and Switch in One
The RUCKUS H350 is a wall-mounted dual-band 802.11ax (Wi-Fi 6) access point with 2x2:2 radios, integrated BLE and Zigbee, and two extra 1GbE LAN ports for wired devices in the room. RUCKUS rates it at up to 1774 Mbps (802.11ax) and up to 512 clients per AP.
Unleashed: Controller-Less Wi-Fi
This is the Unleashed edition (part number prefix 9U1-). RUCKUS Unleashed access points carry an embedded controller, so there is no separate controller appliance or cloud subscription to buy. RUCKUS says you just plug it in and set it up from the RUCKUS Unleashed mobile app or any web browser, and add capacity by plugging in another Unleashed AP. Unleashed also manages RUCKUS ICX switches, and includes guest services, Dynamic PSK and SmartMesh wireless meshing.
Fits a Standard Wall Box
The H350 installs over an electrical wall box or a standard US or EU single-gang wall jack, with an optional bracket for offset and surface mounting. It runs from a single 802.3af (Class 3) PoE uplink.
Built for Rooms, Not Arenas
RUCKUS positions the H350 for low-density enterprise, hospitality, MDU, small and medium-size businesses, retail, restaurants and small or branch offices.
Supplied in Singapore with Local Warranty
RUCKUS sells the H350 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your room count for a bill of materials.
RUCKUS Unleashed H350 9U1-H350-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS H350 Unleashed Wall-Plate Access Point |
| Part Number | 9U1-H350-WW00 |
| Edition | Unleashed (embedded controller); non-Unleashed version is 901-H350-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band 2.4 GHz and 5 GHz |
| MIMO / Streams | 2x2:2 (2.4 GHz and 5 GHz); 2x2 SU-MIMO and MU-MIMO |
| Channelization | 20, 40, 80 MHz |
| Supported Data Rates | 802.11ax 4 to 1774 Mbps; 802.11ac 6.5 to 867 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 574 Mbps; 5 GHz 1200 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 512 clients per AP |
| SSIDs | 8 per radio |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity; gain up to 1 dBi |
| Max Tx Power | 2.4 GHz 19 dBm; 5 GHz 22 dBm (aggregate) |
| Min Receive Sensitivity | -100 dBm |
| IoT | Integrated BLE and Zigbee (1 radio, switchable) |
Interfaces & Power
| Uplink | 1 x 1GbE RJ-45, PoE in 802.3af Class 3 |
| LAN Ports | 2 x 1GbE RJ-45 |
| Power Consumption | 12.54 W |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE |
| Other | WIPS/WIDS, 802.1X authenticator and supplicant |
Physical & Environmental
| Dimensions | 89.5 mm (W) x 178.5 mm (L) x 29.3 mm (H) |
| Weight | 276 g without bracket; 346 g with bracket |
| Mounting | Electrical wall box; standard US and EU single-gang wall jack; optional bracket for offset and wall mount |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED 6, WPA3-Enterprise/Personal |
| Safety / Other | EN 60950-1, EN 62311, WEEE & RoHS |
Figures are taken from the RUCKUS H350 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This 9U1- part ships as an Unleashed AP: set up and managed from the RUCKUS Unleashed mobile app or a web browser, with no controller hardware. RUCKUS lists the H350 hardware as supported by SmartZone, ZoneDirector, Unleashed, standalone and cloud management — if you plan to run a controller or RUCKUS One from day one, the non-Unleashed part 901-H350-WW00 is the usual order.
Mixing with Other RUCKUS Gear
Unleashed can manage RUCKUS ICX switches alongside the access points. Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported.
What It Is Suited To
Hotel rooms, multi-dwelling units, small offices, retail and restaurants — rooms that need Wi-Fi plus a couple of wired jacks rather than high-density coverage.
Package Contents & RUCKUS Unleashed Access Point Ordering Information
In the Box
One RUCKUS H350 wall-plate access point. The RUCKUS data sheet does not publish the box contents; the surface-mount bracket 902-0136-0000 is listed as an optional accessory.
RUCKUS Unleashed Access Points — Ordering Information
| RUCKUS Unleashed R350 | Wi-Fi 6, 2x2:2, indoor | 9U1-R350-WW02 |
| RUCKUS Unleashed R550 | Wi-Fi 6, 2x2:2, indoor | 9U1-R550-WW00 |
| RUCKUS Unleashed R650 | Wi-Fi 6, 4+2 streams, indoor | 9U1-R650-WW00 |
| RUCKUS Unleashed R750 | Wi-Fi 6, 4x4:4, indoor | 9U1-R750-WW00 |
| RUCKUS Unleashed R850 | Wi-Fi 6, 8x8:8, indoor | 9U1-R850-WW00 |
| RUCKUS Unleashed R370 | Dual-band Wi-Fi 7, indoor | 9U1-R370-WW02 |
| RUCKUS Unleashed R670 | Wi-Fi 7, indoor | 9U1-R670-WW00 |
| RUCKUS Unleashed R770 | Wi-Fi 7, indoor | 9U1-R770-WW00 |
| RUCKUS Unleashed H350 (this listing) | Dual-band Wi-Fi 6 | 9U1-H350-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 2x2:2 | 9U1-H550-WW02 |
| RUCKUS Unleashed T350c | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW20 |
| RUCKUS Unleashed T350d | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW40 |
| RUCKUS Unleashed T350se | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW51 |
| RUCKUS Unleashed T750 | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW01 |
| RUCKUS Unleashed T750SE | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW51 |
| RUCKUS Unleashed T670 | Outdoor Wi-Fi 7 | 9U1-T670-WW01 |
Power & Mounting Accessories
RUCKUS lists the 902-0162 24W PoE injector, the 902-0170 30W power supply and the 902-0136-0000 optional surface-mount bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS H350 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS H350 Wall-Plate Access Point |
| RUCKUS Unleashed | RUCKUS Unleashed controller-less Wi-Fi |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9U1-H350-WW00.
Frequently Asked Questions — RUCKUS Unleashed H350 9U1-H350-WW00
What is the difference between 9U1-H350-WW00 and 901-H350-WW00?
Same H350 hardware. 9U1- ships with Unleashed (embedded controller, no controller or subscription needed); 901- is the standard AP for SmartZone, ZoneDirector or RUCKUS One management.
What PoE does it need?
A single 802.3af (Class 3) PoE uplink; RUCKUS lists power consumption at 12.54 W.
Can I plug wired devices into it?
Yes. It has two 1GbE LAN ports for devices such as a TV, phone or desktop. The H350 data sheet lists no PoE out port — for PoE out, see the H550.
H350 or H550?
The H550 adds a 4-port switch with one PoE out port, dual-concurrent BLE and Zigbee, and a USB port, but needs an 802.3bt uplink for all features.
What warranty do I get?
RUCKUS sells the H350 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
