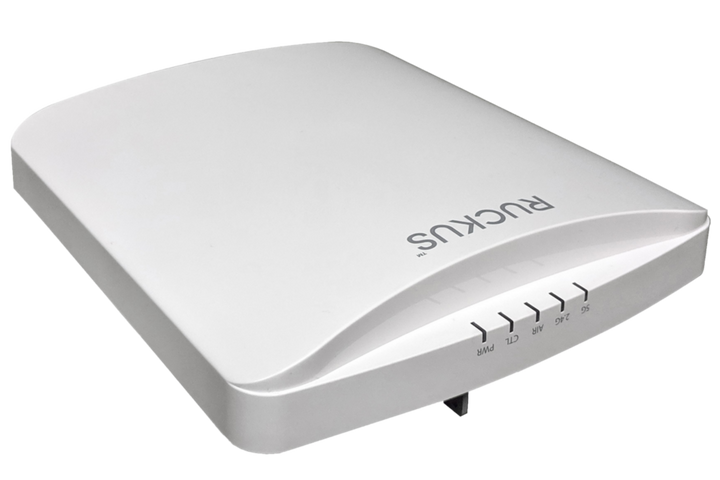

RUCKUS Unleashed R750 Indoor Wi-Fi 6 4x4:4 Access Point
PRODUCT DESCRIPTION
RUCKUS Unleashed R750 Indoor Wi-Fi 6 4x4:4 Access Point (9U1-R750-WW00) - Limited Lifetime Local Warranty
High-Density Wi-Fi 6 for Auditoriums, Transit Hubs and Large Classrooms
The RUCKUS R750 is a dual-band, dual-concurrent 802.11ax (Wi-Fi 6) indoor access point with 4x4:4 radios on both 2.4 GHz and 5 GHz. RUCKUS rates it at up to 2400 Mbps (802.11ax) and up to 1024 clients per AP, aimed at high-traffic indoor spaces and streaming applications such as 4K video.
Unleashed: Controller-Less Wi-Fi
This is the Unleashed edition (part number prefix 9U1-). RUCKUS Unleashed access points carry an embedded controller, so there is no separate controller appliance or cloud subscription to buy. RUCKUS says you just plug it in and set it up from the RUCKUS Unleashed mobile app or any web browser, and add capacity by plugging in another Unleashed AP. Unleashed also manages RUCKUS ICX switches, and includes guest services, Dynamic PSK and SmartMesh wireless meshing.
BeamFlex+ with 4,000+ Antenna Patterns
RUCKUS BeamFlex+ adaptive antennas with polarization diversity provide more than 4,000 unique antenna patterns per band, and work without client feedback so legacy devices benefit too.
2.5GbE Backhaul and Built-In IoT
One 2.5 Gbps and one 1 Gbps Ethernet port, onboard BLE and Zigbee radios and a USB 2.0 port make the R750 a converged AP for Wi-Fi and IoT.
Supplied in Singapore with Local Warranty
RUCKUS sells the R750 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. The R750 does not include a power adaptor; RUCKUS specifies 802.3at PoE+ for full functionality. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS Unleashed R750 9U1-R750-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R750 Unleashed Indoor Access Point |
| Part Number | 9U1-R750-WW00 |
| Edition | Unleashed (embedded controller); non-Unleashed version is 901-R750-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band, dual-concurrent 2.4 GHz and 5 GHz |
| MIMO / Streams | 4x4:4 (5 GHz) and 4x4:4 (2.4 GHz); 4x4 SU-MIMO and MU-MIMO |
| Channelization | 20, 40, 80, 160/80+80 MHz |
| Supported Data Rates | 802.11ax 4 to 2400 Mbps; 802.11ac 6.5 to 1732 Mbps; 802.11n 6.5 to 600 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 1148 Mbps; 5 GHz 2400 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 1024 clients per AP |
| SSIDs | Up to 31 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity, 4,000+ unique patterns per band; gain up to 3 dBi |
| Max Tx Power | 2.4 GHz 26 dBm; 5 GHz 28 dBm |
| IoT | Onboard BLE and Zigbee |
Interfaces & Power
| Ethernet | 1 x 2.5GbE and 1 x 1GbE, 802.3af/at/bt PoE in, LLDP |
| USB | 1 x USB 2.0, Type A |
| 802.3af PoE | 12.54 W (reduced functionality: 2x4 radios, 2nd port/IoT/USB disabled) |
| 802.3at PoE+ | 22.34 W (full functionality) |
| DC Input | 22.69 W |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE |
| Other | WIPS/WIDS, 802.1X authenticator & supplicant, device fingerprinting |
Physical & Environmental
| Dimensions | 23.5 cm (L) x 20.6 cm (W) x 6.2 cm (H) |
| Weight | 1.01 kg (2.23 lbs) |
| Mounting | Wall, acoustic ceiling, desk; secure bracket sold separately |
| Physical Security | Hidden latching mechanism, T-bar Torx, bracket 902-0120-0000 Torx screw & padlock (sold separately) |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax, Passpoint, Vantage |
| Safety / Other | EN 60950-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R750 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This 9U1- part ships as an Unleashed AP: set up and managed from the RUCKUS Unleashed mobile app or a web browser, with no controller hardware. RUCKUS lists the R750 hardware as supported by SmartZone, ZoneDirector, Unleashed, standalone and cloud management — if you plan to run a controller or RUCKUS One from day one, the non-Unleashed part 901-R750-WW00 is the usual order.
Mixing with Other RUCKUS Gear
Unleashed can manage RUCKUS ICX switches alongside the access points. Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported.
What It Is Suited To
RUCKUS positions the R750 for transit hubs, auditoriums, conference centres, large meeting halls, general enterprise spaces and large classrooms, including latency-sensitive voice and 4K video.
Package Contents & RUCKUS Unleashed Access Point Ordering Information
In the Box
One RUCKUS R750 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS data sheet). No power adaptor is included.
RUCKUS Unleashed Access Points — Ordering Information
| RUCKUS Unleashed R350 | Wi-Fi 6, 2x2:2, indoor | 9U1-R350-WW02 |
| RUCKUS Unleashed R550 | Wi-Fi 6, 2x2:2, indoor | 9U1-R550-WW00 |
| RUCKUS Unleashed R650 | Wi-Fi 6, 4+2 streams, indoor | 9U1-R650-WW00 |
| RUCKUS Unleashed R750 (this listing) | Wi-Fi 6, 4x4:4, indoor | 9U1-R750-WW00 |
| RUCKUS Unleashed R850 | Wi-Fi 6, 8x8:8, indoor | 9U1-R850-WW00 |
| RUCKUS Unleashed R370 | Dual-band Wi-Fi 7, indoor | 9U1-R370-WW02 |
| RUCKUS Unleashed R670 | Wi-Fi 7, indoor | 9U1-R670-WW00 |
| RUCKUS Unleashed R770 | Wi-Fi 7, indoor | 9U1-R770-WW00 |
| RUCKUS Unleashed H350 | Dual-band Wi-Fi 6 | 9U1-H350-WW00 |
| RUCKUS Unleashed H550 | Wi-Fi 6 wall-plate, 2x2:2 | 9U1-H550-WW02 |
| RUCKUS Unleashed T350c | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW20 |
| RUCKUS Unleashed T350d | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW40 |
| RUCKUS Unleashed T350se | Outdoor Wi-Fi 6, 2x2:2 | 9U1-T350-WW51 |
| RUCKUS Unleashed T750 | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW01 |
| RUCKUS Unleashed T750SE | Outdoor Wi-Fi 6, 4x4:4 | 9U1-T750-WW51 |
| RUCKUS Unleashed T670 | Outdoor Wi-Fi 7 | 9U1-T670-WW01 |
Power & Mounting Accessories
RUCKUS lists the 902-0180 60W PoE injector, the 902-1180 multi-gigabit (2.5/5/10GBASE-T) 60W PoE injector, the 902-1170 48V 0.75A 36W power supply, the 902-0120-0000 spare mounting bracket and the 902-0195-0000 T-bar ceiling mount kit. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R750 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R750 Indoor Access Point |
| RUCKUS support | RUCKUS R750 support & documentation |
| RUCKUS Unleashed | RUCKUS Unleashed controller-less Wi-Fi |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9U1-R750-WW00.
Frequently Asked Questions — RUCKUS Unleashed R750 9U1-R750-WW00
What is the difference between 9U1-R750-WW00 and 901-R750-WW00?
Same R750 hardware. 9U1- ships with Unleashed (embedded controller, no controller or subscription needed); 901- is the standard AP for SmartZone, ZoneDirector or RUCKUS One management.
R650 or R750?
The R750 is 4x4:4 on both bands with up to 1024 clients; the R650 is 4x4:4 on 5 GHz and 2x2:2 on 2.4 GHz with up to 512 clients.
What PoE does it need?
802.3at PoE+ (22.34 W) for full functionality. On 802.3af (12.54 W) it runs with reduced radios and the second port, IoT and USB disabled.
How many devices can it handle?
RUCKUS rates the R750 at up to 1024 clients and up to 31 SSIDs per AP.
What warranty do I get?
RUCKUS sells the R750 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
