Poly BYOD Kit Extender For Poly Studio Room Kit
PRODUCT DESCRIPTION
Poly BYOD Kit Extender for Poly Studio Room Kit (7230-87590-102 / 9R1Y7AA) - Local Warranty
Poly BYOD Kit Extender — USB to 100 m over Structured Cabling

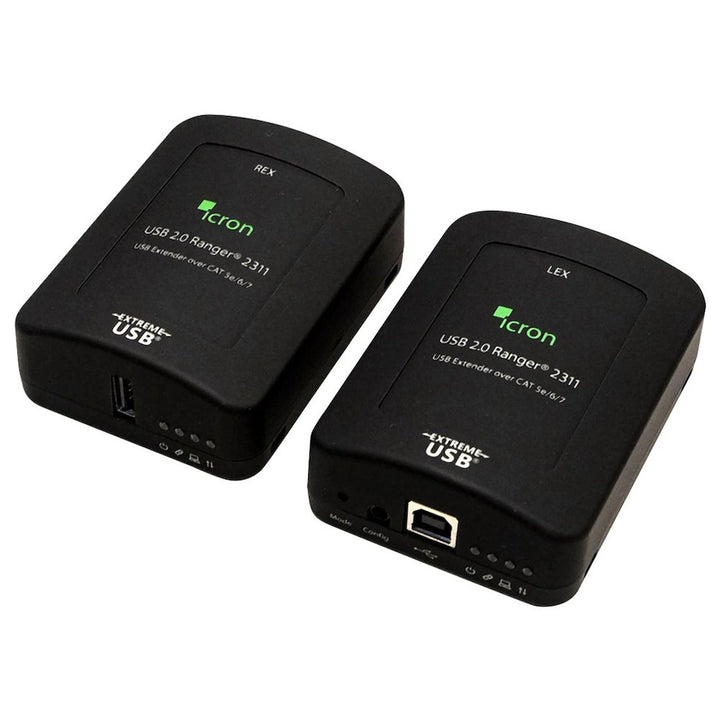

The Poly BYOD Kit Extender takes the USB connection between a laptop connection point and a Poly Studio Room Kit and stretches it up to 100 m (330 ft) over ordinary CAT 5e, 6 or 7 cabling. It is the Icron USB 2.0 Ranger 2311, sold as its own part number. In large Singapore boardrooms, training rooms and auditoriums, the table connection point is routinely further from the AV rack than any USB cable will reach — this is the product that closes that gap.
100 m over CAT 5e, 6 or 7 — Structured Cabling You Already Have
Because the extender runs over standard twisted-pair cabling rather than a proprietary run, it uses the same structured cabling your contractor is already pulling. Poly specifies direct connection up to 100 m (330 ft) over CAT 5e/6/7, carrying USB 2.0 to 480 Mbps and USB 1.1 to 12 Mbps.
Also the Supported Way to Site a GC8 Controller at Distance
HP's own GC8 specification sheet names a USB 2.0 extender kit supporting up to 100 m over CAT5e as a supported way to connect a GC8 touch controller to the room compute — the same figure this extender delivers. So the same device solves both the BYOD table drop and the long controller run.
Straightforward to Install and Power
The extender takes a 100–240 V AC supply with 24 V 1 A DC output and ships with a 1.8 m USB Type-A to Type-B cable and a 5 m USB Type-A to Type-C cable, so both ends have a lead in the box.
Poly BYOD Kit Extender Datasheet — Technical Specifications
General
| Product | Poly BYOD Kit Extender for Poly Studio Room Kit |
| Part number | 7230-87590-102 / 9R1Y7AA |
| Manufacturer | Poly (HP) |
| Device | Icron USB 2.0 Ranger 2311 |
| What it does | Extends the USB connection between a laptop connection point and a Poly Studio Room Kit over structured cabling |
| Compatibility | Poly Studio Room Kit for PC-based solution (Poly does not publish individual Studio model numbers) |
| Regional availability (Poly) | US, Canada, EU/EEA, UK, Australia and New Zealand |
| Warranty | Local Warranty (Singapore) |
Extension and signal
| Maximum reach | Direct connection up to 100 m (330 ft) |
| Cabling | CAT 5e, CAT 6 or CAT 7 |
| Signal carried | USB only — USB 2.0 to 480 Mbps, USB 1.1 to 12 Mbps |
| Video pass-through | None. This is a USB 2.0 extender; it does not carry HDMI or any video signal of its own |
Power and cables
| Power | 100–240 V AC input, 24 V 1 A DC output |
| PoE | Not applicable — the extender uses a DC power supply, not PoE |
| Cables included | 6 ft (1.8 m) USB Type-A to Type-B cable; 16.4 ft (5 m) USB Type-A to Type-C cable |
Source note: HP publishes no product page for 9R1Y7AA or 7230-87590-102 in any locale, and the GTIN carried on this listing (017229187795) does not appear on any official source we could verify. The specifications above are taken verbatim from Poly's own data sheet Poly Room Solutions for Microsoft Teams Rooms on Windows, cross-checked across three independent mirrors that agree word for word, and the 100 m / CAT5e figure is independently corroborated by HP's own GC8 specification sheet. Enclosure dimensions, weight and the number of units in the carton are not published by Poly and are therefore not stated here.
Compatibility & Software Support
Compatibility: Poly documents this extender for the Poly Studio Room Kit for PC-based solution. Poly does not publish a list of individual Studio model numbers, so SourceIT does not print one — tell us your room system model and we will confirm before you order.
Also supported for touch controllers: HP's GC8 specification sheet names a USB 2.0 extender kit supporting up to 100 m over CAT5e as a supported way to connect a Poly GC8 controller to the room compute, alongside an active optical cable of 10 m or longer.
USB only. The extender carries USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps). It does not carry HDMI or any other video signal, and it is not a PoE device — it takes its own 24 V DC supply.
Poly lists regional availability for the BYOD solution as US, Canada, EU/EEA, UK, Australia and New Zealand. Contact SourceIT to confirm current availability into Singapore.
Package Contents & BYOD Ordering Information
What Poly documents as supplied:
- Icron USB 2.0 Ranger 2311 extender
- 6 ft (1.8 m) USB Type-A to Type-B cable
- 16.4 ft (5 m) USB Type-A to Type-C cable
- Power supply, 100–240 V AC input, 24 V 1 A DC output
Poly does not publish whether the carton contains a local and remote unit pair, nor the enclosure dimensions or weight. Confirm with SourceIT before ordering.
Poly room compute, control and BYOD kits available from SourceIT
| Microsoft Teams Room Base Kit — HP Mini PC with GC8 and 10 m USB cable | 9J6B8AA |
| Studio Base Kit G9 Plus for Microsoft Teams — HP Mini IP PC with TC10 | A3LU8AA |
| Zoom Room Base Kit — HP Mini PC with TC10 | 9J6C2AA |
| BYOD Kit for Poly Studio Room Kit | 7230-87670-102 / 9C9U2AA |
| BYOD Kit Extender for Poly Studio Room Kit | 7230-87590-102 / 9R1Y7AA |
Complete Poly Studio room kits for Microsoft Teams
Datasheet & Downloads
- Official Poly data sheet — Poly Room Solutions for Microsoft Teams Rooms on Windows (mirror 1)
- Official Poly data sheet — same document (mirror 2)
- HP official spec sheet PDF — Poly GC8 touch controller (corroborates the 100 m CAT5e USB 2.0 extender figure)
HP publishes no product page or product-specifications page for this SKU in any locale, so none is linked here.
Frequently Asked Questions — Poly BYOD Kit Extender
How far will it actually reach?
Poly specifies direct connection up to 100 m (330 ft) over CAT 5e, CAT 6 or CAT 7 cabling.
What signal does it carry?
USB only — USB 2.0 to 480 Mbps and USB 1.1 to 12 Mbps. It does not carry HDMI or any other video signal.
Do I need the BYOD Kit as well?
Usually yes. The Poly BYOD Kit supplies the eight-port dual-host hub that lets the room's peripherals switch between the room system and a guest laptop; this extender only adds distance to the USB run. Poly's own documentation describes the extender as part of the BYOD solution.
Can I use it to site a GC8 touch controller far from the room PC?
Yes. HP's GC8 specification sheet names a USB 2.0 extender kit supporting up to 100 m over CAT5e as a supported connection method for the GC8, alongside a 10 m or longer active optical cable.
Is it PoE powered?
No. It uses its own power supply — 100–240 V AC input with 24 V 1 A DC output.
Which Poly room systems does it work with?
Poly documents the Poly Studio Room Kit for PC-based solutions. Individual Studio model numbers are not published by Poly, so contact SourceIT with your room system model and we will confirm.
Does this come with local warranty in Singapore?
Yes. Every Poly BYOD Kit Extender sold by SourceIT comes with local Singapore warranty and a GST invoice.
