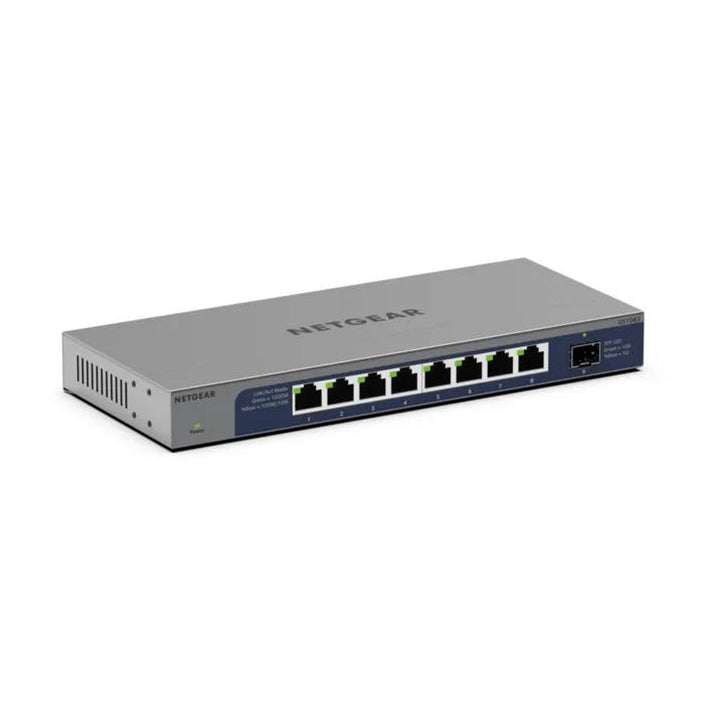

NETGEAR GS108X 8-Port Gigabit Ethernet Unmanaged Switch with 10G SFP+ Uplink, Fanless, Desktop/Wall-Mount
PRODUCT DESCRIPTION
NETGEAR GS108X 8-Port Gigabit Ethernet Unmanaged Switch with 10G SFP+ Uplink (GS108X-100UKS) - Limited Lifetime Local Warranty
8 Gigabit Ports Plus a Dedicated 10G SFP+ Uplink
The NETGEAR GS108X is an 8-port Gigabit Ethernet unmanaged switch with one dedicated 10G SFP+ port. The SFP+ fiber uplink gives a long-distance connection of more than 100 m to a core switch, server or another floor (transceiver required). It is plug-and-play — no software to install and no configuration needed.
Non-Blocking, Line-Rate Performance
NETGEAR rates the GS108X at 36 Gbps line-rate switching fabric and a forwarding rate of 41.664 Mfps (64-byte packets), with a 768 KB packet buffer, 16K MAC address table and jumbo frames up to 9,728 bytes. 802.1p / DSCP traffic prioritisation with 8 queues keeps latency-sensitive traffic moving.
Silent, Efficient and Built to Last
The fanless design runs at 0 dBA for noise-sensitive offices and classrooms. The metal case is rugged and durable, maximum power draw is 5.7 W with IEEE 802.3az Energy-Efficient Ethernet, and the switch sits on a desk or mounts on a wall with the included wall-mount kit.
Need help choosing? Email sales@sourceit.com.sg with your port count, uplink distance and fiber type and we will match the switch and SFP+ module for you.
NETGEAR GS108X Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS108X 8-port Gigabit Ethernet Unmanaged Switch with 1 Dedicated 10G SFP+ Port |
| Part Number | GS108X-100UKS |
| Series | NETGEAR 8-port Gigabit Switches with 10 Gigabit SFP+ Uplink (GS108X / GS108MX) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 8 x 10/100/1000 Mbps RJ-45 copper |
| Uplink | 1 x dedicated 10G SFP+ port (port 9); 10G on fiber modules only, 1G SFP modules supported |
| LEDs | Per port: speed, link, activity; per device: power |
Performance
| Switching Fabric | 36 Gbps line-rate (non-blocking) |
| Forwarding Rate | 41.664 Mfps (64-byte packets) |
| Latency | < 5 µs (100M); < 2 µs (1G); < 1 µs (10G) |
| MAC Address Table | 16K (dynamic) |
| Packet Buffer | 768 KB |
| Jumbo Frames | Up to 9,728 bytes |
| QoS | IEEE 802.1p CoS and IPv4 DSCP; 8 priority queues (WRR) |
| Standards | IEEE 802.3x flow control; IEEE 802.3az Energy-Efficient Ethernet |
Power & Environmental
| Power Supply | External power adapter, 12 V 1.5 A |
| Power Consumption | 5.7 W max; 2.3 W min |
| Heat Dissipation | 19.33 BTU/hr max; 7.86 BTU/hr min |
| Cooling | Fanless (0 dBA) |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
| Operating Altitude | 10,000 ft max |
| MTBF | 4,802,599 hours (548 years) |
Physical
| Dimensions (W x D x H) | 235 x 100.8 x 27 mm |
| Weight | 0.575 kg |
| Enclosure | Metal |
| Mounting | Desktop or wall-mount (wall-mount kit included) |
Certifications
| EMC | RCM, ICES-003, FCC Part 15, CE, UKCA, VCCI, KC, BSMI (Class B) |
| Safety | RCM, CE, UKCA, BSMI |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate to the highest common speed.
Supported NETGEAR SFP/SFP+ Modules
The SFP+ port supports 10G on fiber modules and DAC cables only — NETGEAR states it does not support 10G copper (10GBASE-T) modules. A 1G module links at 1G.
| Module | Description |
| AXM761 | 10GBASE-SR SFP+ LC, multimode (550 m OM4, 300 m OM3) |
| AXM762 | 10GBASE-LR SFP+ LC, single mode (10 km) |
| AXM764 | 10GBASE-LR Lite SFP+ LC, single mode (2 km) |
| AXC761 | 10G SFP+ to SFP+ passive DAC cable, 1 m |
| AXC763 | 10G SFP+ to SFP+ passive DAC cable, 3 m |
| AGM731F | 1000BASE-SX SFP LC, multimode (1000 m OM4, 550 m OM3) |
| AGM732F | 1000BASE-LX SFP LC, single mode (10 km) |
| AGM734 | 1000BASE-T SFP RJ-45 copper transceiver |
Typical Use
Small offices, classrooms and branch sites that need eight Gigabit wired connections with a fast fiber uplink to a core switch, server or another floor. Not a PoE switch. For 10G/Multi-Gig copper uplinks see the GS108MX or GS110MX.
Package Contents & Multi-Gig/10G Unmanaged Ordering Information
In the Box
GS108X switch, power adapter (plug varies by region), wall-mount kit, rubber feet, installation guide. SFP/SFP+ transceivers are sold separately.
NETGEAR Multi-Gig/10G Unmanaged Models
| Model | Ports | Part No. |
| GS108X (this listing) | 8 x GE + 1 x 10G SFP+, desktop/wall | GS108X-100UKS |
| GS108MX | 8 x GE + 1 x 10G/Multi-Gig RJ-45, desktop/wall | GS108MX-100UKS |
| GS110MX | 8 x GE + 2 x 10G/Multi-Gig RJ-45 | GS110MX-100UKS |
| XS505M | 4 x 10G/Multi-Gig RJ-45 + 1 x 10G/1G SFP+/copper combo | XS505M-100EUS |
| XS508M | 7 x 10G/Multi-Gig RJ-45 + 1 x 10G/1G SFP+/copper combo | XS508M-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | GS108X / GS108MX Datasheet (PDF) |
| Installation guide | GS108X Installation Guide (PDF) |
| NETGEAR product page | GS108X on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS108X-100UKS.
Frequently Asked Questions — NETGEAR GS108X
Does the GS108X need configuring?
No. It is unmanaged and plug-and-play — no software or configuration needed.
Is an SFP+ transceiver included?
No. The SFP+ uplink requires a transceiver or DAC cable, sold separately — see the supported NETGEAR modules above.
Can I use a 10GBASE-T copper SFP+ module?
No. NETGEAR states the SFP+ port supports 10G on fiber modules only, not 10G copper modules. For a 10G copper uplink see the GS108MX or GS110MX.
Is it fanless?
Yes. NETGEAR lists a fanless design with 0 dBA acoustic noise.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
