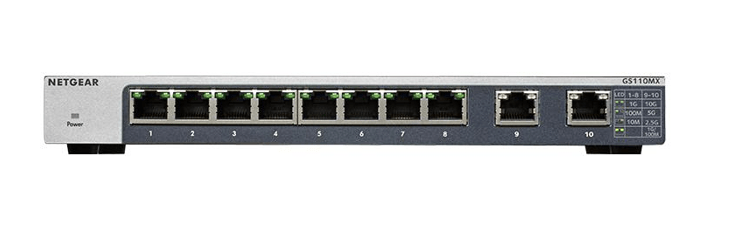

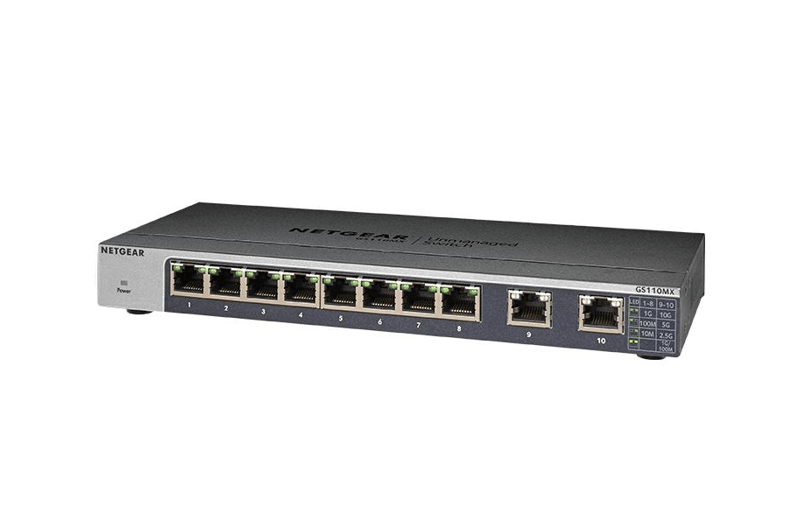

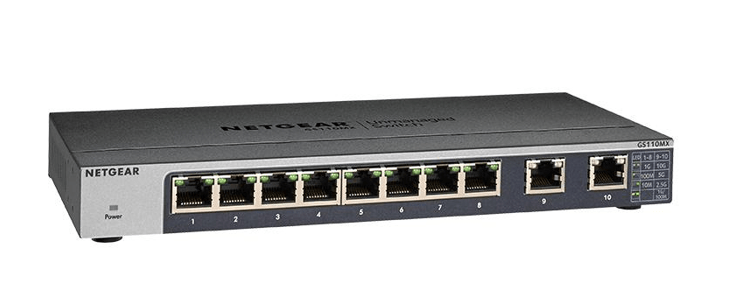

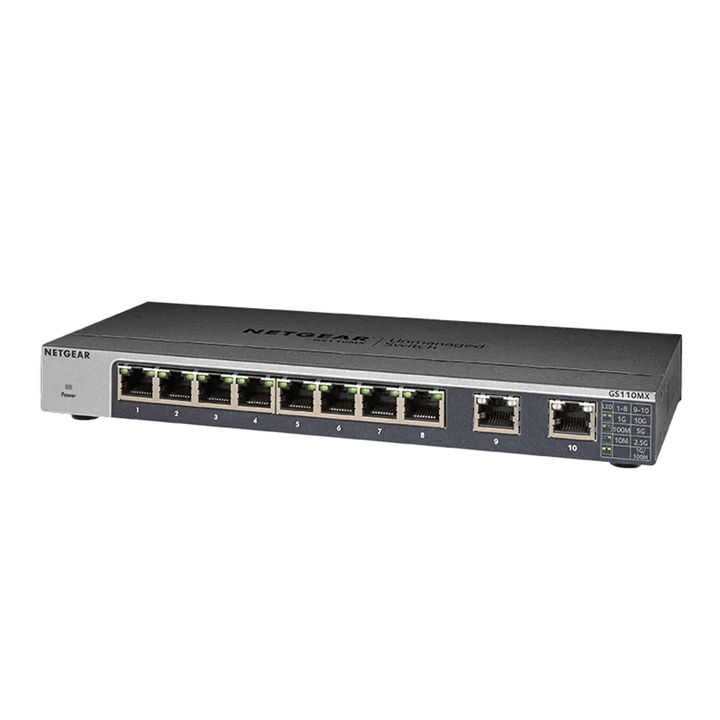

NETGEAR GS110MX 10-Port Gigabit Unmanaged Switch with 2 x 10G/Multi-Gig Uplinks, Fanless
PRODUCT DESCRIPTION
NETGEAR GS110MX 8-Port Gigabit Ethernet Unmanaged Switch with 2-Port 10G/Multi-Gig Uplinks (GS110MX-100UKS) - Limited Lifetime Local Warranty
Gigabit Access with 10G Uplinks
The NETGEAR GS110MX pairs eight Gigabit Ethernet ports with two 10-Gigabit/Multi-Gig copper ports — ideal for connecting a fast NAS, server or workstation, or uplinking to a 10G core, without a managed switch.
Five Speeds on the Multi-Gig Ports
The two Multi-Gig ports auto-negotiate 100M, 1G, 2.5G, 5G and 10G, so they match whatever you plug in over your existing copper cabling.
Fanless and Plug-and-Play
No configuration needed. The compact fanless metal case runs silently on a desktop, wall or rack, with 8 priority queues for 802.1p QoS and jumbo frame support.
Need help choosing? Email sales@sourceit.com.sg with what you need to connect at 10G and we will size it for you.
NETGEAR GS110MX Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS110MX 8-Port Gigabit Ethernet Unmanaged Switch with 2-Port 10G/Multi-Gig Uplinks |
| Part Number | GS110MX-100UKS |
| Series | NETGEAR Gigabit Switches with 10-Gigabit/Multi-Gigabit Uplinks |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit Ports | 8 x 10/100/1000BASE-T RJ-45 |
| 10G/Multi-Gig Ports | 2 x 100M/1G/2.5G/5G/10G RJ-45 |
Performance
| Switching Capacity | 56 Gbps, line-rate |
| Latency (10G) | Under 3 µs |
| MAC Address Table | 16K |
| Packet Buffer | 128 KB |
| Jumbo Frames | Supported |
| QoS | IEEE 802.1p, 8 priority queues (WRR) |
Power & Environmental
| Power Supply | External adapter, 12 V DC, 1.5 A |
| Power Consumption | 13.2 W max |
| Heat Dissipation | 45.14 BTU/hr max; 16.42 BTU/hr min |
| Cooling | Fanless (0 dBA) |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 236 x 102 x 27 mm |
| Weight | 0.74 kg |
| Mounting | Desktop, wall or rack |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed and duplex.
Multi-Gig Speeds
The 10G/Multi-Gig copper ports auto-negotiate 100M, 1G, 2.5G, 5G and 10G, so NBASE-T devices such as WiFi 6/7 access points, NAS units and workstations connect at their best supported speed over existing cabling.
Typical Use
Small offices and studios that need Gigabit for everyday devices plus two 10G links for a NAS, server, workstation or uplink.
Package Contents & 10G/Multi-Gig Unmanaged Ordering Information
In the Box
Switch, power adapter, rack-mount kit, wall-mount kit, rubber feet, quick installation guide.
NETGEAR 10G/Multi-Gig Unmanaged Models
| Model | Ports | Part No. |
| GS110MX (this listing) | 8 x 1G + 2 x 10G/Multi-Gig copper, fanless | GS110MX-100UKS |
| XS505M | 4 x 10G/Multi-Gig copper + 1 x 10G SFP+ | XS505M-100EUS |
| XS508M | 7 x 10G/Multi-Gig copper + 1 x 10G copper/SFP+ combo | XS508M-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | GS110EMX / GS110MX Datasheet (PDF) |
| NETGEAR support page | GS110MX support on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS110MX-100UKS.
Frequently Asked Questions — NETGEAR GS110MX
Does the GS110MX need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Do the 10G ports take SFP+ modules?
No. Both 10G/Multi-Gig ports are RJ-45 copper, supporting 100M, 1G, 2.5G, 5G and 10G.
Is it fanless?
Yes. NETGEAR's datasheet lists it as fanless with 0 dBA acoustic noise.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
