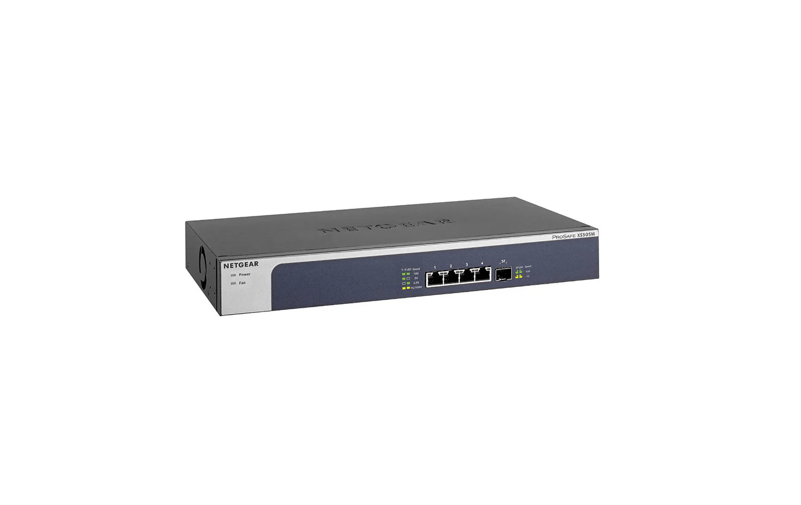

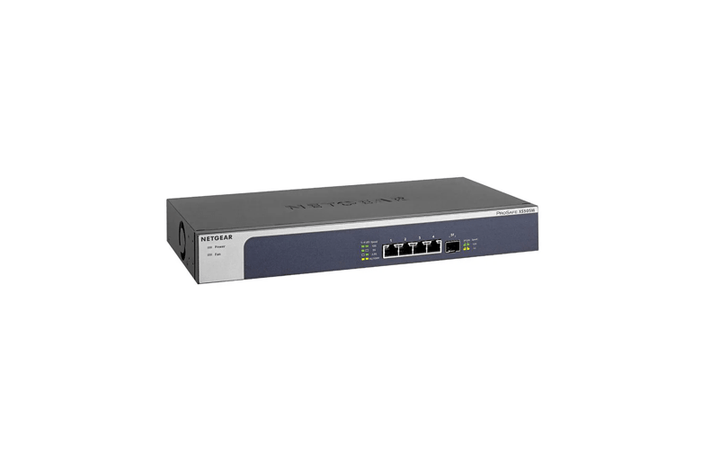

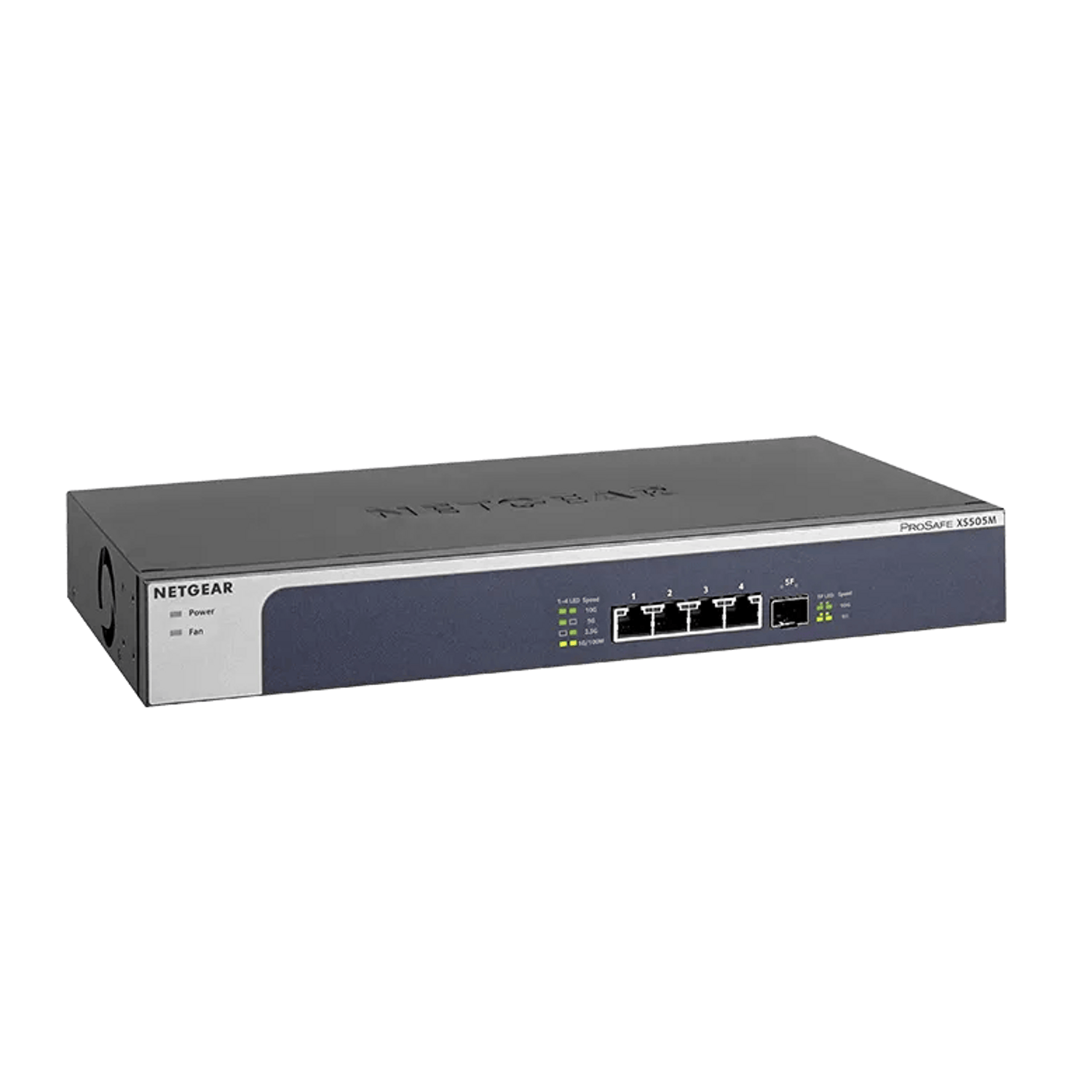

NETGEAR XS505M 5-Port 10G/Multi-Gig Unmanaged Switch with 10G SFP+, Desktop/Rackmount
PRODUCT DESCRIPTION
NETGEAR XS505M 5-Port 10-Gigabit/Multi-Gigabit Ethernet Unmanaged Switch with 1 x SFP+ (XS505M-100EUS) - Limited Lifetime Local Warranty
10-Gigabit Without the Complexity
The NETGEAR XS505M delivers four 10G/Multi-Gig copper ports plus a dedicated 10G SFP+ port with 100 Gbps line-rate switching — plug-and-play 10G for NAS, servers, editing workstations and high-speed uplinks.
All Speeds Welcome
Copper ports auto-negotiate 100M, 1G, 2.5G, 5G and 10G, so every device connects at its best speed over existing cabling; the SFP+ port takes fibre or DAC for longer runs.
Desktop or Rackmount
The metal chassis with internal power supply sits on a desk or mounts in a 19-inch rack, with 8 priority queues for 802.1p QoS and jumbo frame support.
Need help choosing? Email sales@sourceit.com.sg with what you need to connect at 10G and we will size it for you.
NETGEAR XS505M Datasheet — Technical Specifications
General
| Product Name | NETGEAR XS505M 5-Port 10-Gigabit/Multi-Gigabit Ethernet Unmanaged Switch with 1 x SFP+ |
| Part Number | XS505M-100EUS |
| Series | NETGEAR 10-Gigabit/Multi-Gigabit Unmanaged Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| 10G/Multi-Gig Copper Ports | 4 x 100M/1G/2.5G/5G/10G RJ-45 |
| SFP+ Ports | 1 x 10G SFP+ |
Performance
| Switching Capacity | 100 Gbps, line-rate |
| Latency (10G) | 4.845 µs |
| MAC Address Table | 2K |
| Packet Buffer | 128 KB |
| Jumbo Frames | Up to 9K |
| QoS | IEEE 802.1p, 8 priority queues (WRR) |
Power & Environmental
| Power Supply | Internal, 100–240 V AC, 50–60 Hz |
| Power Consumption | 22.5 W max |
| Heat Dissipation | 85.3 BTU/hr max |
| Cooling | 1 low-noise fan |
| Acoustic Noise | 22.5 dBA @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 95% max RH, non-condensing |
| MTBF | 1,093,237 hours @ 25 °C |
Physical
| Dimensions (W x D x H) | 328 x 169 x 43.2 mm |
| Weight | 1.38 kg |
| Mounting | Desktop or 19-inch rack |
Certifications
| EMC | FCC Part 15 Class B, ICES-003 Class B, EN 55032 Class B, EN 55024, AS/NZS CISPR 32 Class B, VCCI, KC, CNS 13438 |
| Safety | CB/LVD 60950-1, AS/NZS 60950-1, UL 60950-1, BSMI (CNS 14336-1) |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed and duplex.
Multi-Gig Speeds

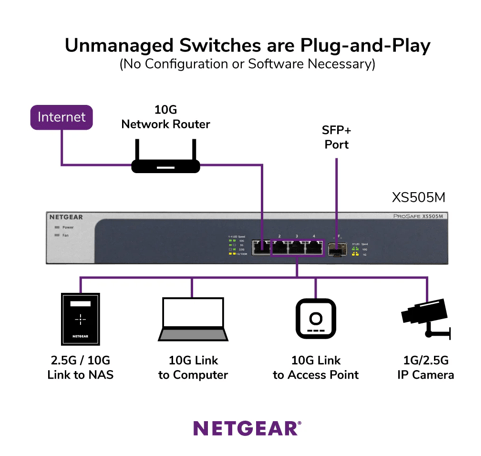

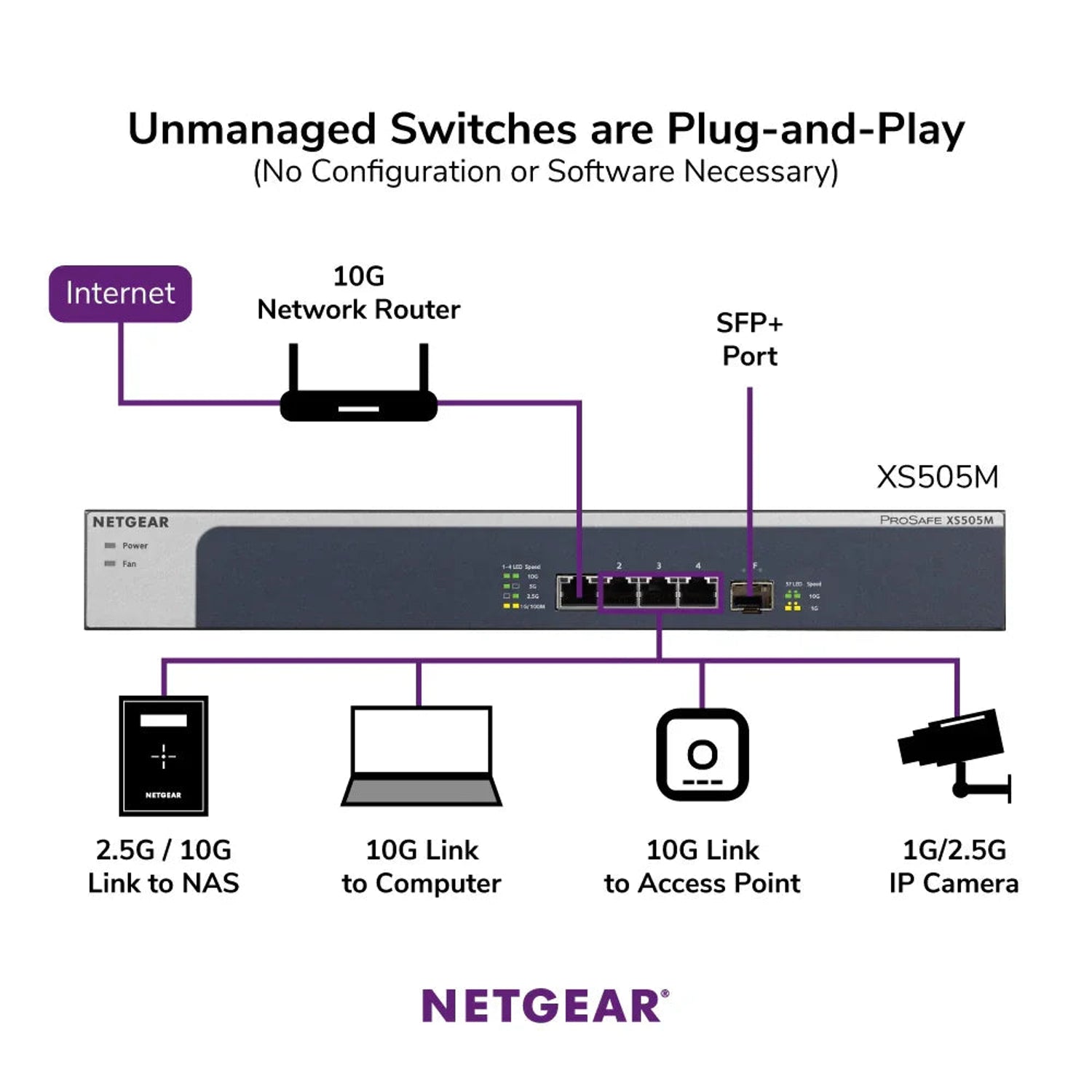

The 10G/Multi-Gig copper ports auto-negotiate 100M, 1G, 2.5G, 5G and 10G, so NBASE-T devices such as WiFi 6/7 access points, NAS units and workstations connect at their best supported speed over existing cabling.
Typical Use
Creative studios, labs and small offices linking 10G NAS, servers and workstations, with an SFP+ port for fibre uplinks.
Package Contents & 10G/Multi-Gig Unmanaged Ordering Information
In the Box
Switch, power cord, rack-mount kit, installation guide.
NETGEAR 10G/Multi-Gig Unmanaged Models
| Model | Ports | Part No. |
| GS110MX | 8 x 1G + 2 x 10G/Multi-Gig copper, fanless | GS110MX-100UKS |
| XS505M (this listing) | 4 x 10G/Multi-Gig copper + 1 x 10G SFP+ | XS505M-100EUS |
| XS508M | 7 x 10G/Multi-Gig copper + 1 x 10G copper/SFP+ combo | XS508M-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | XS505M / XS508M Datasheet (PDF) |
| Installation guide | XS505M / XS508M Installation Guide (PDF) |
| NETGEAR product page | XS505M on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XS505M-100EUS.
Frequently Asked Questions — NETGEAR XS505M
Does the XS505M need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Is the SFP+ port shared with a copper port?
No. NETGEAR lists four 10G/Multi-Gig copper ports plus one separate 10G SFP+ port.
Is it silent?
It uses one low-noise fan; NETGEAR's datasheet rates it at 22.5 dBA.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
