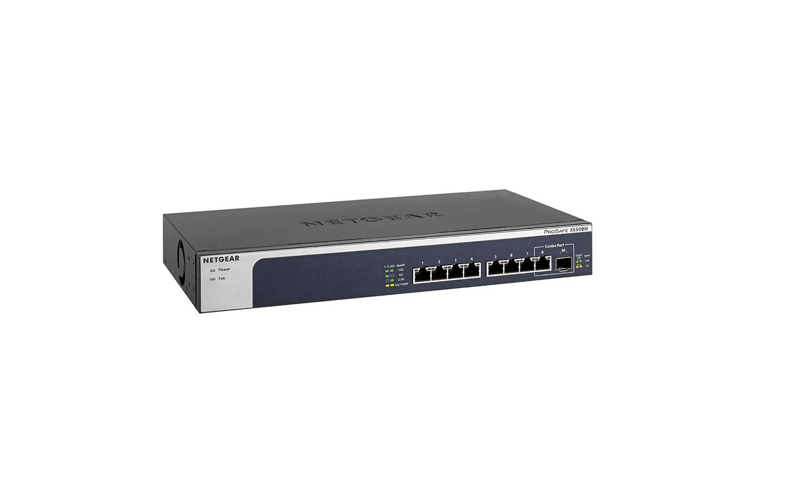

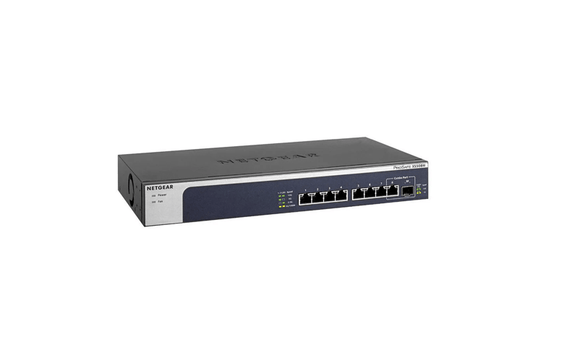

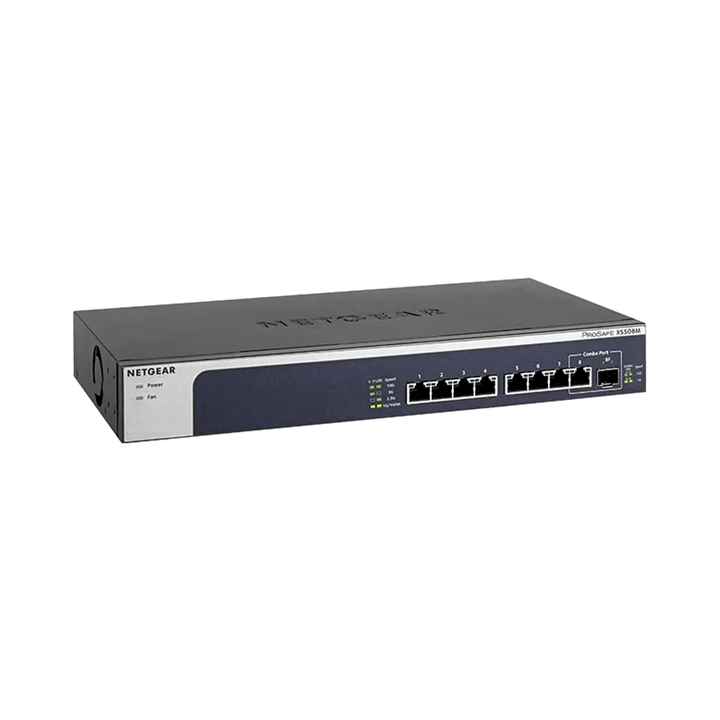

NETGEAR XS508M 8-Port 10G/Multi-Gig Unmanaged Switch with SFP+ Combo, Desktop/Rackmount
PRODUCT DESCRIPTION
NETGEAR XS508M 8-Port 10-Gigabit/Multi-Gigabit Ethernet Unmanaged Switch with 1 x SFP+ Combo (XS508M-100AJS) - Limited Lifetime Local Warranty
Eight Ports of 10-Gigabit
The NETGEAR XS508M gives you eight 10G/Multi-Gig ports — the eighth is a combo port that can use copper or a 10G/1G SFP+ module — with 160 Gbps line-rate switching for NAS, servers, workstations and 10G uplinks.
All Speeds Welcome
Copper ports auto-negotiate 100M, 1G, 2.5G, 5G and 10G, so every device connects at its best speed over existing cabling.
Desktop or Rackmount
The metal chassis with internal power supply sits on a desk or mounts in a 19-inch rack, with 8 priority queues for 802.1p QoS and jumbo frame support.
Need help choosing? Email sales@sourceit.com.sg with what you need to connect at 10G and we will size it for you.
NETGEAR XS508M Datasheet — Technical Specifications
General
| Product Name | NETGEAR XS508M 8-Port 10-Gigabit/Multi-Gigabit Ethernet Unmanaged Switch with 1 x SFP+ Combo |
| Part Number | XS508M-100AJS |
| Series | NETGEAR 10-Gigabit/Multi-Gigabit Unmanaged Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| 10G/Multi-Gig Copper Ports | 7 x 100M/1G/2.5G/5G/10G RJ-45 |
| Combo Port | 1 x 10G/1G SFP+ or 10G copper (port 8) |
Performance
| Switching Capacity | 160 Gbps, line-rate |
| Latency (10G) | 4.913 µs |
| MAC Address Table | 2K |
| Packet Buffer | 128 KB |
| Jumbo Frames | Up to 9K |
| QoS | IEEE 802.1p, 8 priority queues (WRR) |
Power & Environmental
| Power Supply | Internal, 100–240 V AC, 50–60 Hz |
| Power Consumption | 39 W max |
| Heat Dissipation | 147.86 BTU/hr max |
| Cooling | 1 low-noise fan |
| Acoustic Noise | 22.5 dBA @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 95% max RH, non-condensing |
| MTBF | 1,145,157 hours @ 25 °C |
Physical
| Dimensions (W x D x H) | 328 x 169 x 43.2 mm |
| Weight | 1.49 kg |
| Mounting | Desktop or 19-inch rack |
Certifications
| EMC | FCC Part 15 Class B, ICES-003 Class B, EN 55032 Class B, EN 55024, AS/NZS CISPR 32 Class B, VCCI, KC, CNS 13438 |
| Safety | CB/LVD 60950-1, AS/NZS 60950-1, UL 60950-1, BSMI (CNS 14336-1) |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed and duplex.
Multi-Gig Speeds
The 10G/Multi-Gig copper ports auto-negotiate 100M, 1G, 2.5G, 5G and 10G, so NBASE-T devices such as WiFi 6/7 access points, NAS units and workstations connect at their best supported speed over existing cabling.
Typical Use

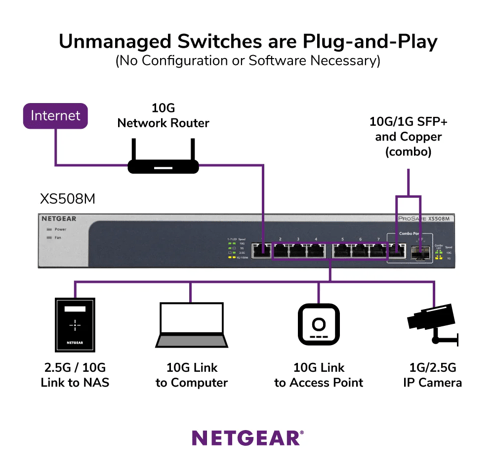

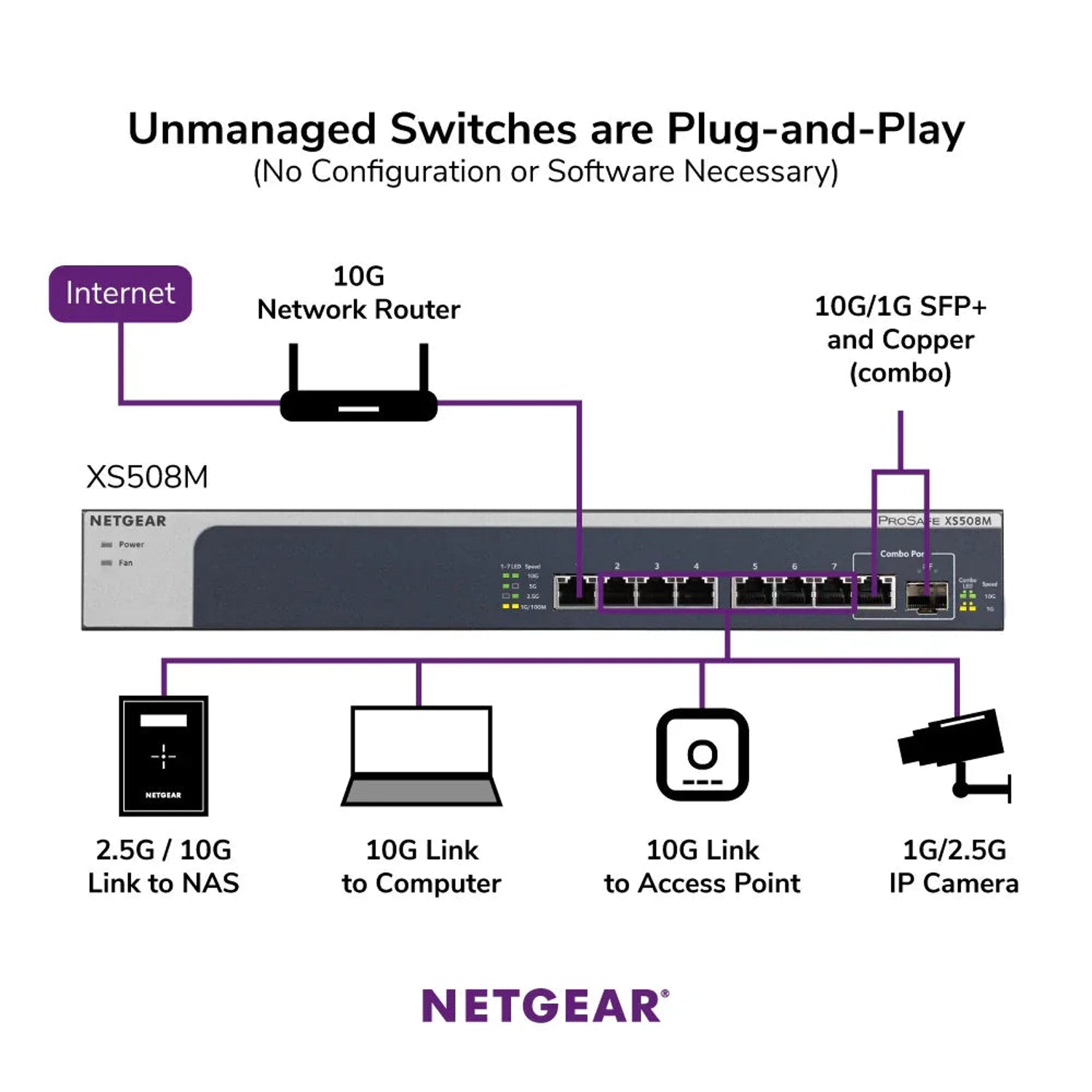

Creative studios, labs and small offices building a 10G workgroup of NAS, servers and workstations, with a combo port for a fibre uplink.
Package Contents & 10G/Multi-Gig Unmanaged Ordering Information
In the Box
Switch, power cord, rack-mount kit, installation guide.
NETGEAR 10G/Multi-Gig Unmanaged Models
| Model | Ports | Part No. |
| GS110MX | 8 x 1G + 2 x 10G/Multi-Gig copper, fanless | GS110MX-100UKS |
| XS505M | 4 x 10G/Multi-Gig copper + 1 x 10G SFP+ | XS505M-100EUS |
| XS508M (this listing) | 7 x 10G/Multi-Gig copper + 1 x 10G copper/SFP+ combo | XS508M-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | XS505M / XS508M Datasheet (PDF) |
| Installation guide | XS505M / XS508M Installation Guide (PDF) |
| NETGEAR product page | XS508M on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XS508M-100AJS.
Frequently Asked Questions — NETGEAR XS508M
Does the XS508M need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
How does the SFP+ combo port work?
Port 8 can be used either as a 10G copper port or with a 10G/1G SFP+ module — one or the other at a time.
Is it silent?
It uses one low-noise fan; NETGEAR's datasheet rates it at 22.5 dBA.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
