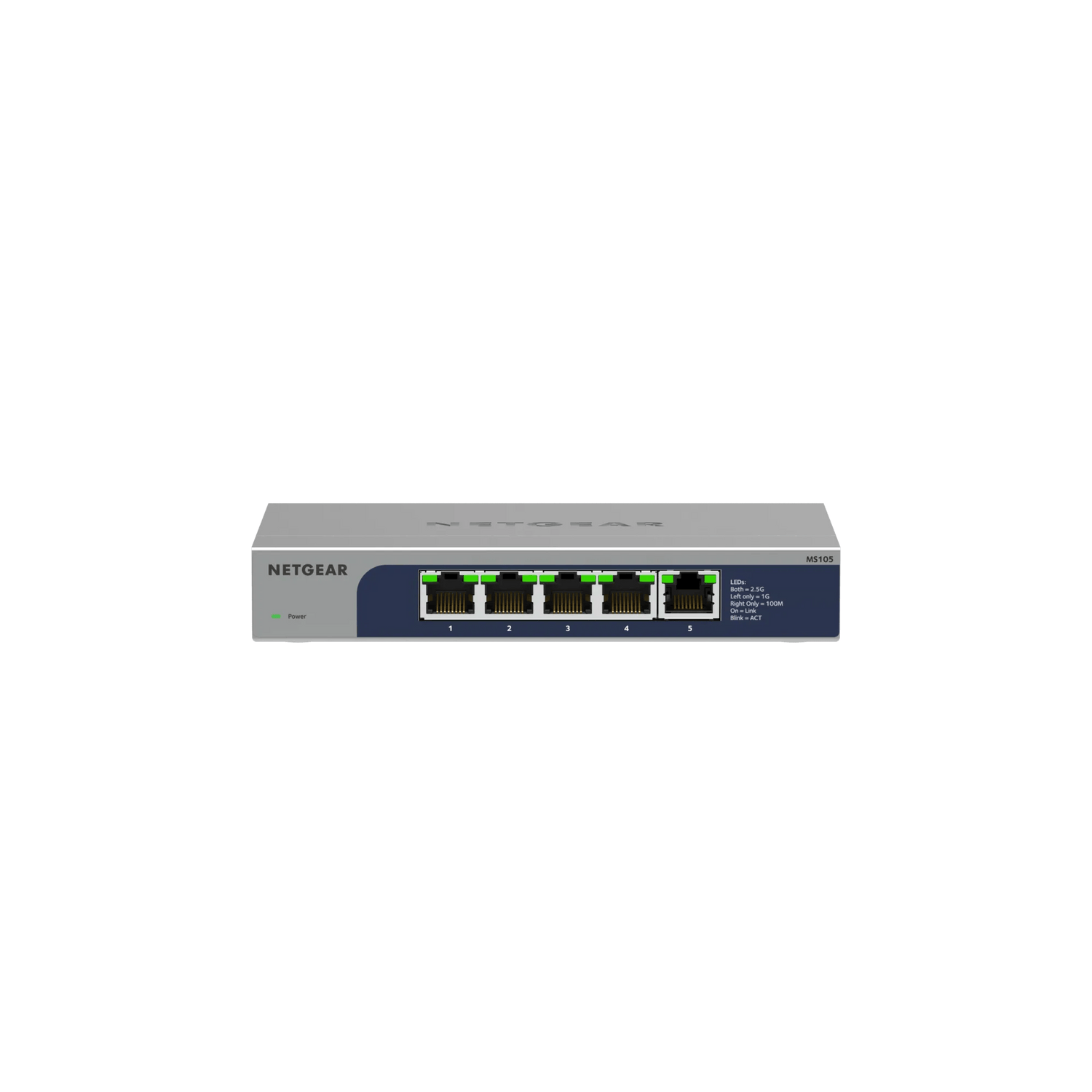

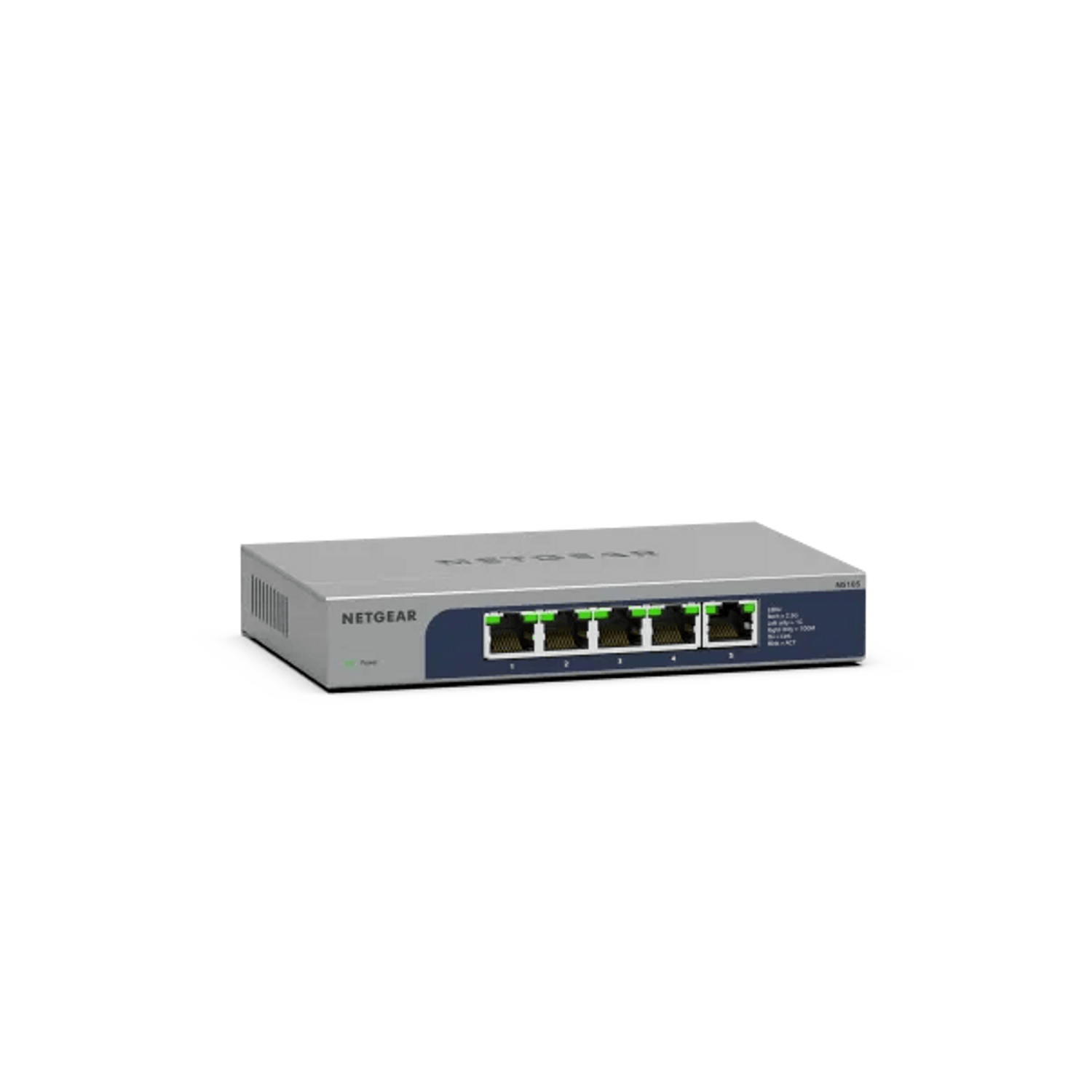

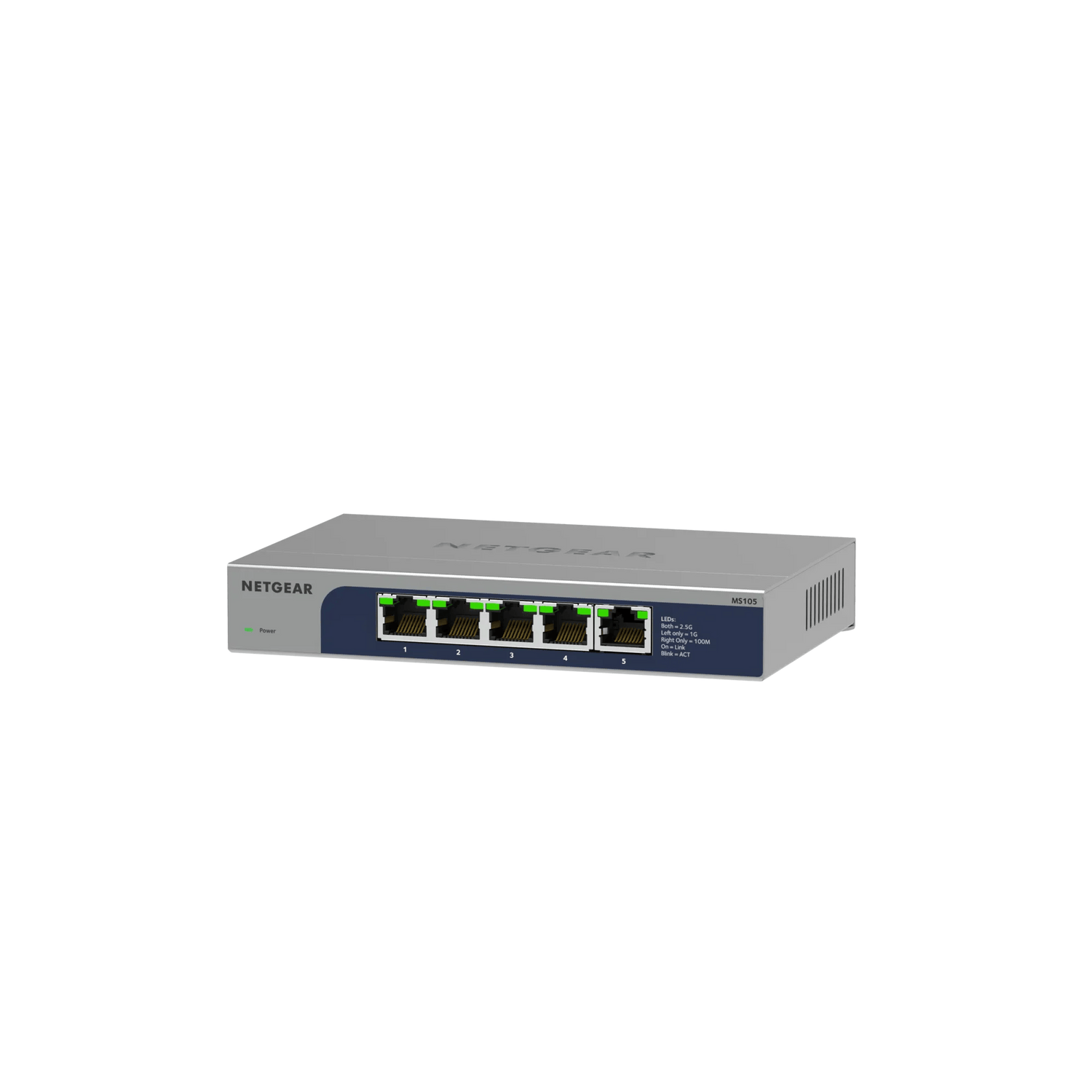

NETGEAR MS105 5-Port 2.5G Multi-Gigabit Ethernet Unmanaged Switch, Fanless, Desktop/Wall-Mount
PRODUCT DESCRIPTION
NETGEAR MS105 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch (MS105-100UKS) - Limited Lifetime Local Warranty
Five 2.5G Multi-Gig Ports
The NETGEAR MS105 gives you five RJ-45 ports that each auto-negotiate 100M, 1G or 2.5G, so 2.5G NAS units, PCs, access points and broadband gateways run at full speed while existing Gigabit devices connect alongside.
Non-Blocking, Wire-Speed Switching
A 25 Gbps non-blocking switching fabric with a 1 MB packet buffer and 16K MAC table moves traffic at wire speed on all five ports, with 802.1p and DSCP QoS honoured for voice and video.
Plug-and-Play, Silent and Efficient
There is nothing to configure. The fanless metal case runs silently on a desk or wall (wall-mount kit included), and 802.3az Energy Efficient Ethernet with auto power-down keeps maximum consumption to 9.24 W.
NETGEAR MS105 Datasheet — Technical Specifications
General
| Product Name | NETGEAR MS105 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch |
| Part Number | MS105-100UKS |
| Series | NETGEAR Multi-Gigabit Unmanaged Switches |
| Local Warranty (Singapore) | Limited Lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 5 x 100M/1G/2.5G RJ-45 copper |
| PoE | Not supported |
Performance
| Switching Bandwidth | 25 Gbps (non-blocking, non head-of-line blocking) |
| Forwarding Rate (64-byte) | 1,488,000 pps per 1G port; 3,720,000 pps per 2.5G port |
| Latency (64-byte, average) | 1G: < 2.458 µs; 2.5G: < 5.773 µs |
| MAC Address Table | 16K |
| Packet Buffer | 1 MB |
| Jumbo Frames | Up to 9,720 bytes |
| QoS | IEEE 802.1p (CoS), honours DSCP tags; WRR queue ratio 1:3:5:7:8:10:12:15 |
Power & Environmental

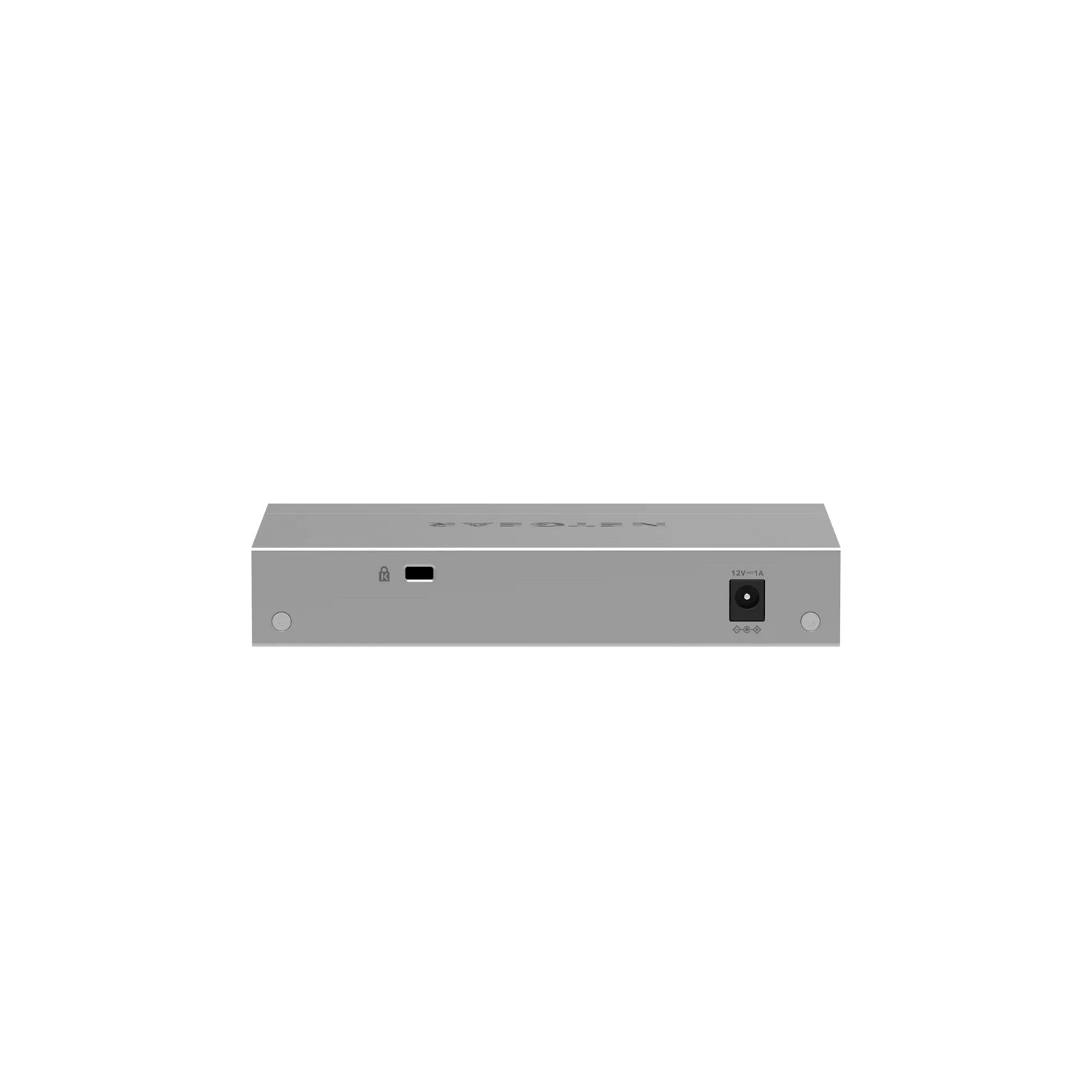

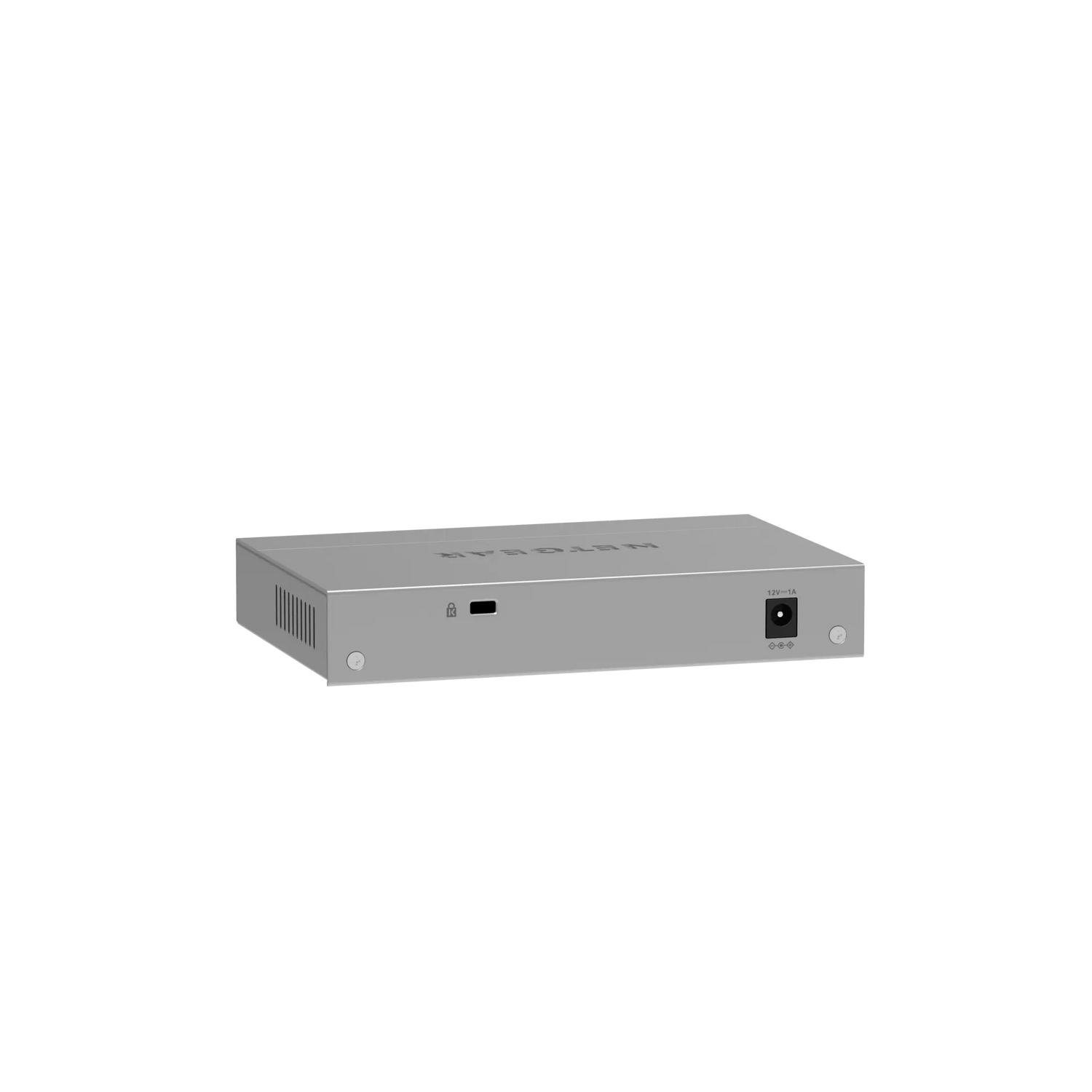

| Power Supply | External adapter, 12 V / 1.0 A |
| Power Consumption | 9.24 W max; 4.60 W standby |
| Heat Dissipation | 31.545 BTU/hr max; 15.704 BTU/hr standby |
| Green Ethernet | IEEE 802.3az Energy Efficient Ethernet, auto power-down |
| Cooling | Fanless (0 dBA) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Operating Humidity | 90% max RH, non-condensing |
| Storage Temperature | –20 to 70 °C (–4 to 158 °F) |
| MTBF | 1,401,743 hours (159.9 years) @ 25 °C |
Physical
| Dimensions (W x D x H) | 158 x 101 x 29 mm |
| Weight | 0.48 kg (1.06 lb) |
| Enclosure | Metal |
| Mounting | Desktop or wall mount |
Certifications
| EMC | CE, FCC Part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
| Safety | CB, CSA, CCC, BSMI, RCM, CE LVD |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required.
Device Compatibility
Works with any standards-based Ethernet device: 2.5G NAS units and PCs, Multi-Gig WiFi access points and gateways, as well as 100M/1G devices at their own speed.
Typical Use
Home offices, studios and small offices adding 2.5G links to a NAS, workstation or WiFi access point.
Package Contents & Multi-Gig Unmanaged Switch Ordering Information
In the Box
MS105 switch, power adapter, wall installation kit, rubber feet, installation guide.
NETGEAR Multi-Gig Unmanaged Switches
| Model | Ports | Part No. |
| MS105 (this listing) | 5 x 2.5G Multi-Gig | MS105-100UKS |
| MS108UP | 8 x 2.5G Multi-Gig, Ultra60 PoE++ 230W | MS108UP-100UKS |
| GS108MX | 8 x 1G + 1 x 10G/Multi-Gig | GS108MX-100UKS |
| GS110MX | 8 x 1G + 2 x 10G/Multi-Gig | GS110MX-100UKS |
| XS505M | 10G/Multi-Gig with 10G SFP+ | XS505M-100EUS |
| XS508M | 10G/Multi-Gig with SFP+ combo | XS508M-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | MS105 Datasheet (PDF) |
| Installation guide | MS105 Installation Guide (PDF) |
| NETGEAR product page | MS105 on netgear.com |
Frequently Asked Questions — NETGEAR MS105
Does the MS105 need configuring?
No. It is unmanaged and plug-and-play — every port automatically negotiates its speed.
What speeds do the ports support?
Each of the 5 ports supports 100 Mbps, 1 Gbps and 2.5 Gbps. It does not support 5G or 10G.
Is it noisy?
No. The MS105 is fanless and silent (0 dBA).
What warranty do I get?
Limited Lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
