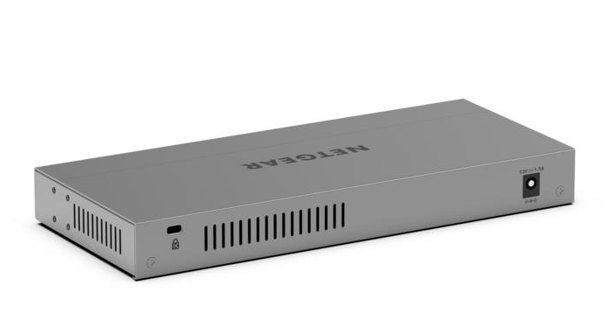

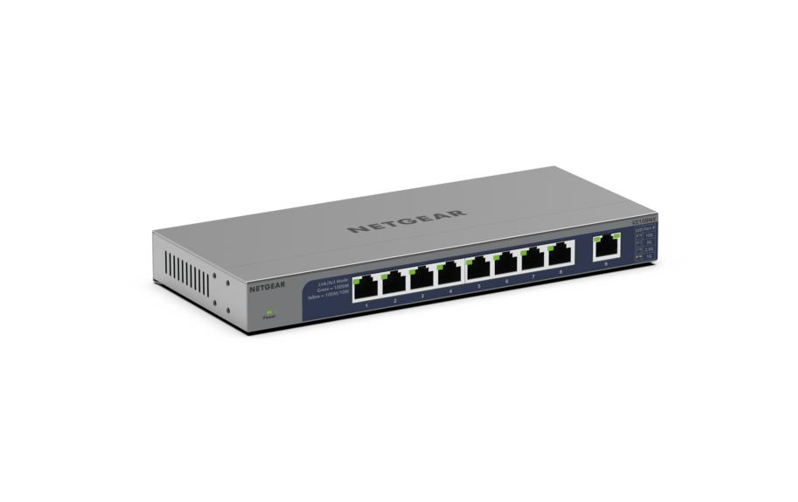

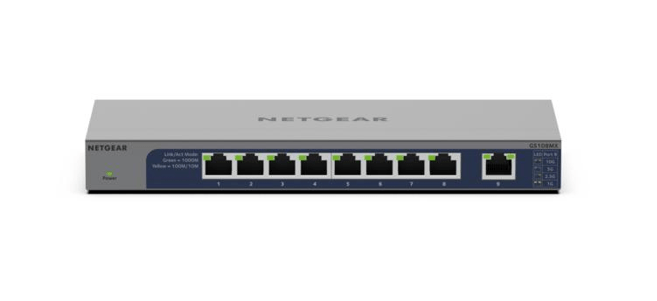

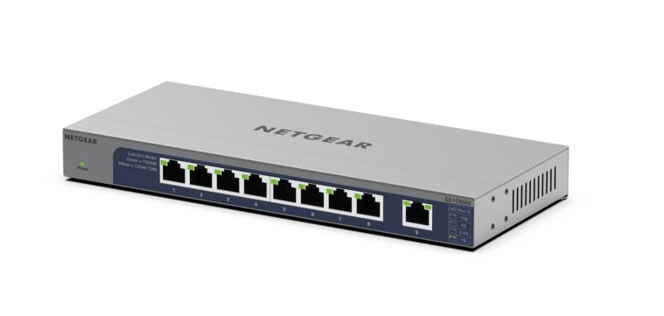

NETGEAR GS108MX 8-Port Gigabit Unmanaged Switch with 1 x 10G/Multi-Gig Uplink, Fanless
Currently out of stock. Request a quote and
our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR GS108MX 8-Port Gigabit Ethernet Unmanaged Switch with 1 Dedicated 10G/Multi-Gig Port (GS108MX-100UKS) - Limited Lifetime Local Warranty
Eight Gigabit Ports Plus a 10G/Multi-Gig Uplink
The NETGEAR GS108MX has 8 Gigabit RJ-45 ports for everyday devices plus 1 dedicated RJ-45 10G/Multi-Gig port (9 ports in total). The Multi-Gig port auto-negotiates 100M, 1G, 2.5G, 5G or 10G, so the link to your router, NAS or core switch is no longer capped at 1 Gbps.
Removes the Uplink Bottleneck
With a 36 Gbps non-blocking switching fabric, eight users can each run at full Gigabit speed at the same time while sharing one fast 10G/Multi-Gig connection upstream.
Silent, Plug-and-Play
No configuration is needed. The fanless design runs at 0 dBA, draws 5.8 W maximum, and installs on a desk or wall with the included wall-mount kit.
NETGEAR GS108MX Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS108MX 8-Port Gigabit Ethernet Unmanaged Switch with 1 Dedicated 10G/Multi-Gig Port |
| Part Number | GS108MX-100UKS |
| Series | NETGEAR GS108X / GS108MX Unmanaged Switches with 10G Uplink |
| Local Warranty (Singapore) | Limited Lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit Ports | 8 x 1G RJ-45 copper |
| 10G/Multi-Gig Port | 1 x RJ-45, 100M/1G/2.5G/5G/10G (uplink) |
| Total Ports | 9 |
| PoE | Not supported |
Performance
| Switching Bandwidth | 36 Gbps (line-rate, non-blocking) |
| Forwarding Rate | 41.664 Mpps (64-byte packets) |
| Latency | 100M: < 5 µs; 1G: < 2 µs; 2.5G: < 4 µs; 5G: < 3 µs; 10G: < 2 µs |
| MAC Address Table | 16K (dynamic) |
| Packet Buffer | 768 KB |
| Jumbo Frames | Up to 9,728 bytes |
| QoS | 8 priority queues (WRR), IEEE 802.1p CoS, IPv4 DSCP; IEEE 802.3x flow control |
Power & Environmental
| Power Supply | External adapter, 12 V, 1.5 A |
| Power Consumption | 5.8 W max (all ports, line rate); 2.4 W min (link-down standby) |
| Heat Dissipation | 19.91 BTU/hr max; 8.21 BTU/hr min |
| Green Ethernet | IEEE 802.3az Energy Efficient Ethernet |
| Cooling | Fanless (0 dBA @ 25 °C) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 3,514,690 hours (401 years) @ 25 °C |
Physical
| Dimensions (W x D x H) | 235 x 100.8 x 27 mm (9.25 x 3.97 x 1.06 in) |
| Weight | 0.575 kg (1.267 lb) |
| Mounting | Desktop or wall mount |
Certifications
| EMC | RCM, ICES-003, FCC Part 15, CE, UKCA, VCCI, KC, BSMI (Class B) |
| Safety | RCM, CE, UKCA, BSMI |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required.
Cabling
The 10G/Multi-Gig port needs Cat 6A or higher cabling to run at 10 Gbps.
Uplink Compatibility
Connect the 10G/Multi-Gig port to a 10G, 5G or 2.5G router, gateway, NAS or switch port — it auto-negotiates to the highest common speed. For a fibre uplink instead, see the GS108X with a 10G SFP+ port.
Typical Use
Small offices, home offices and studios where eight Gigabit devices share a fast connection to a Multi-Gig internet gateway, NAS or core switch.
Package Contents & Gigabit Switch with 10G Uplink Ordering Information
In the Box
GS108MX switch, power adapter, wall-mount kit, rubber feet, installation guide.
NETGEAR Gigabit Unmanaged Switches with 10G Uplinks
| Model | Ports | Part No. |
| GS108X | 8 x 1G + 1 x 10G SFP+ (fibre) | GS108X-100UKS |
| GS108MX (this listing) | 8 x 1G + 1 x 10G/Multi-Gig RJ-45 | GS108MX-100UKS |
| GS110MX | 8 x 1G + 2 x 10G/Multi-Gig | GS110MX-100UKS |
| MS105 | 5 x 2.5G Multi-Gig | MS105-100UKS |
Datasheet & Downloads
| NETGEAR datasheet | GS108X / GS108MX Datasheet (PDF) |
| Installation guide | GS108X / GS108MX Installation Guide (PDF) |
| NETGEAR product page | GS108MX on netgear.com |
Frequently Asked Questions — NETGEAR GS108MX
How many ports does the GS108MX have?
9 in total: 8 x Gigabit RJ-45 ports plus 1 dedicated 10G/Multi-Gig RJ-45 port.
What speeds does the 10G/Multi-Gig port support?
100 Mbps, 1G, 2.5G, 5G and 10G. The other 8 ports are Gigabit (1G) ports.
What cable do I need for 10G?
Cat 6A or higher for 10 Gbps on the Multi-Gig port.
Does it need configuring?
No. It is unmanaged, plug-and-play and fanless.
What warranty do I get?
Limited Lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
