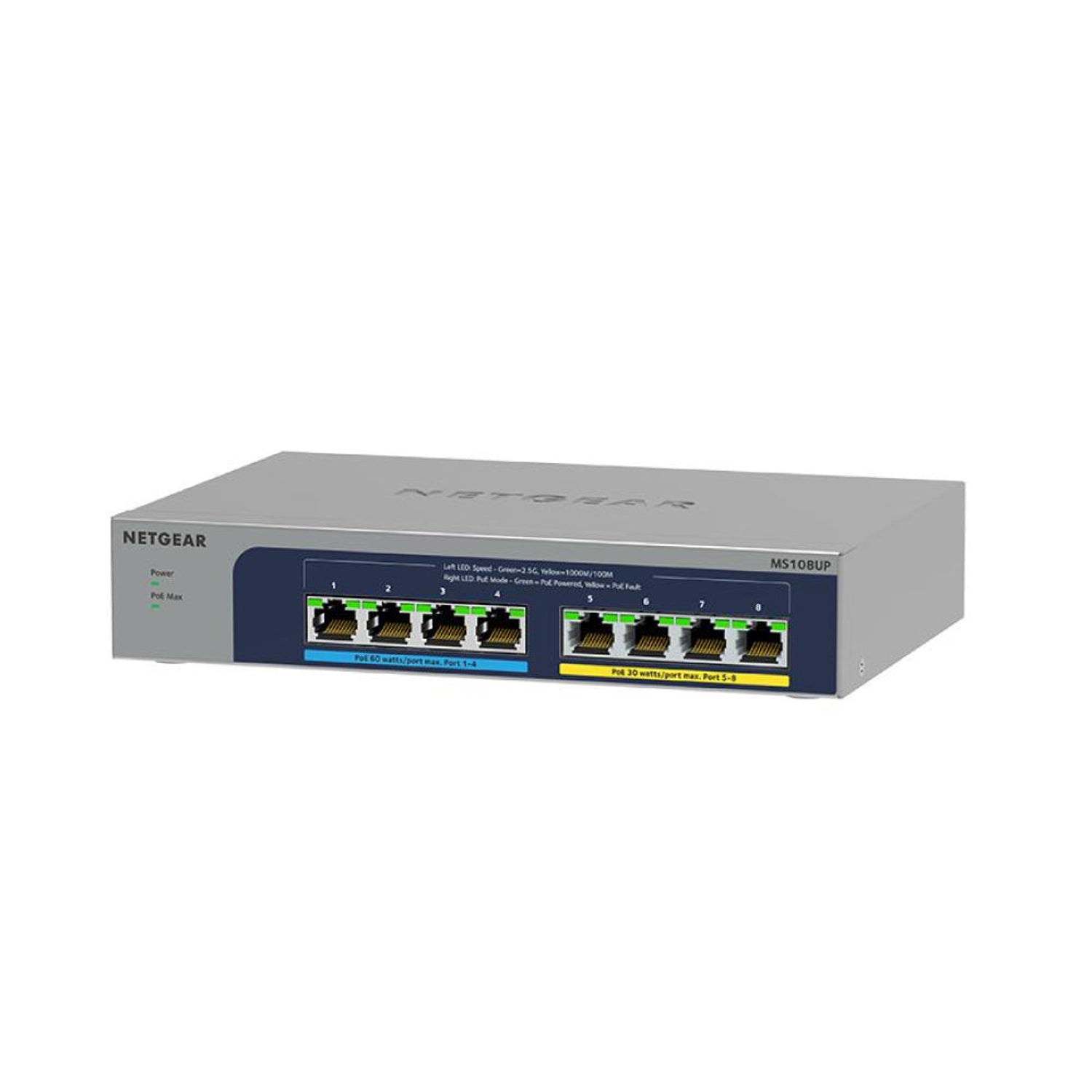

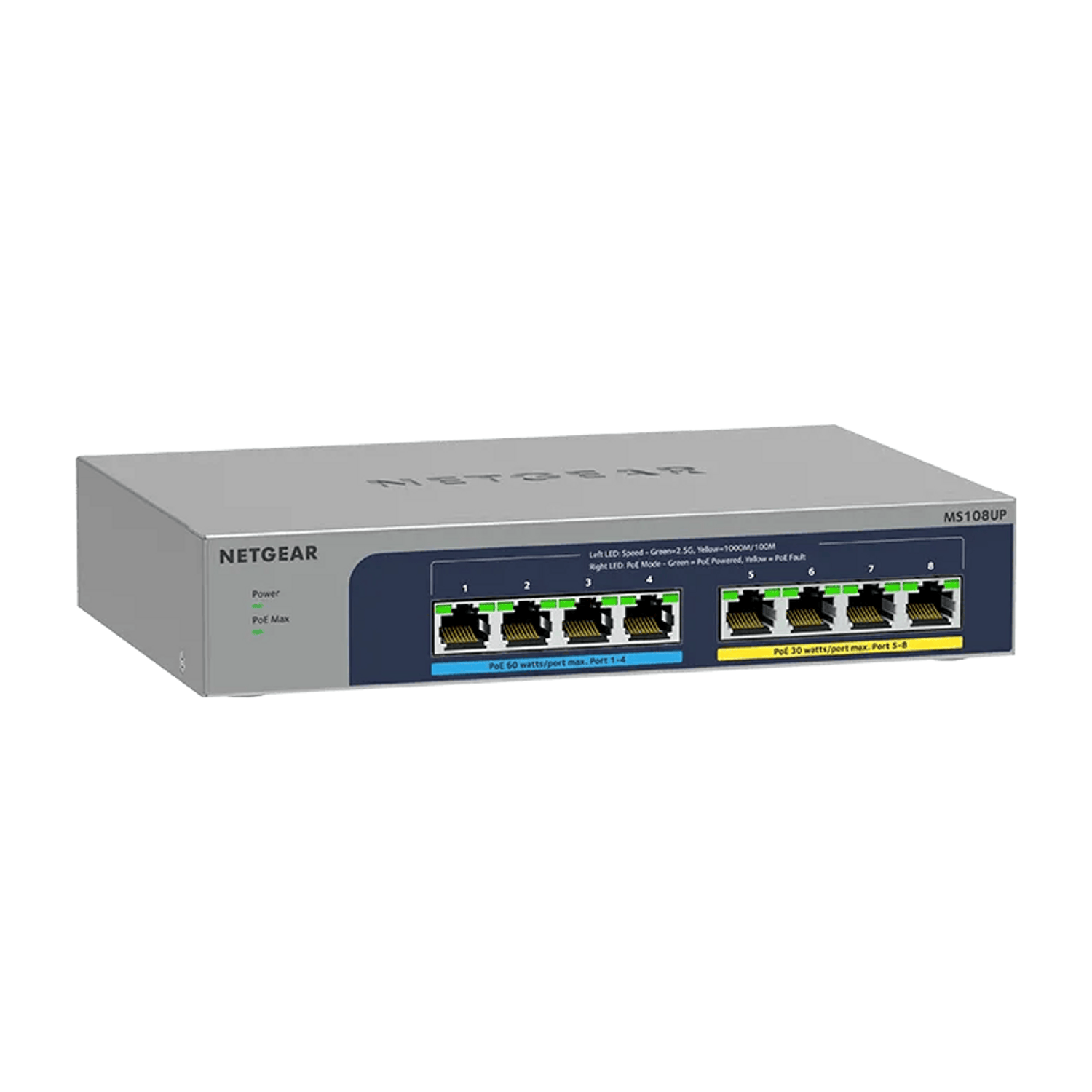

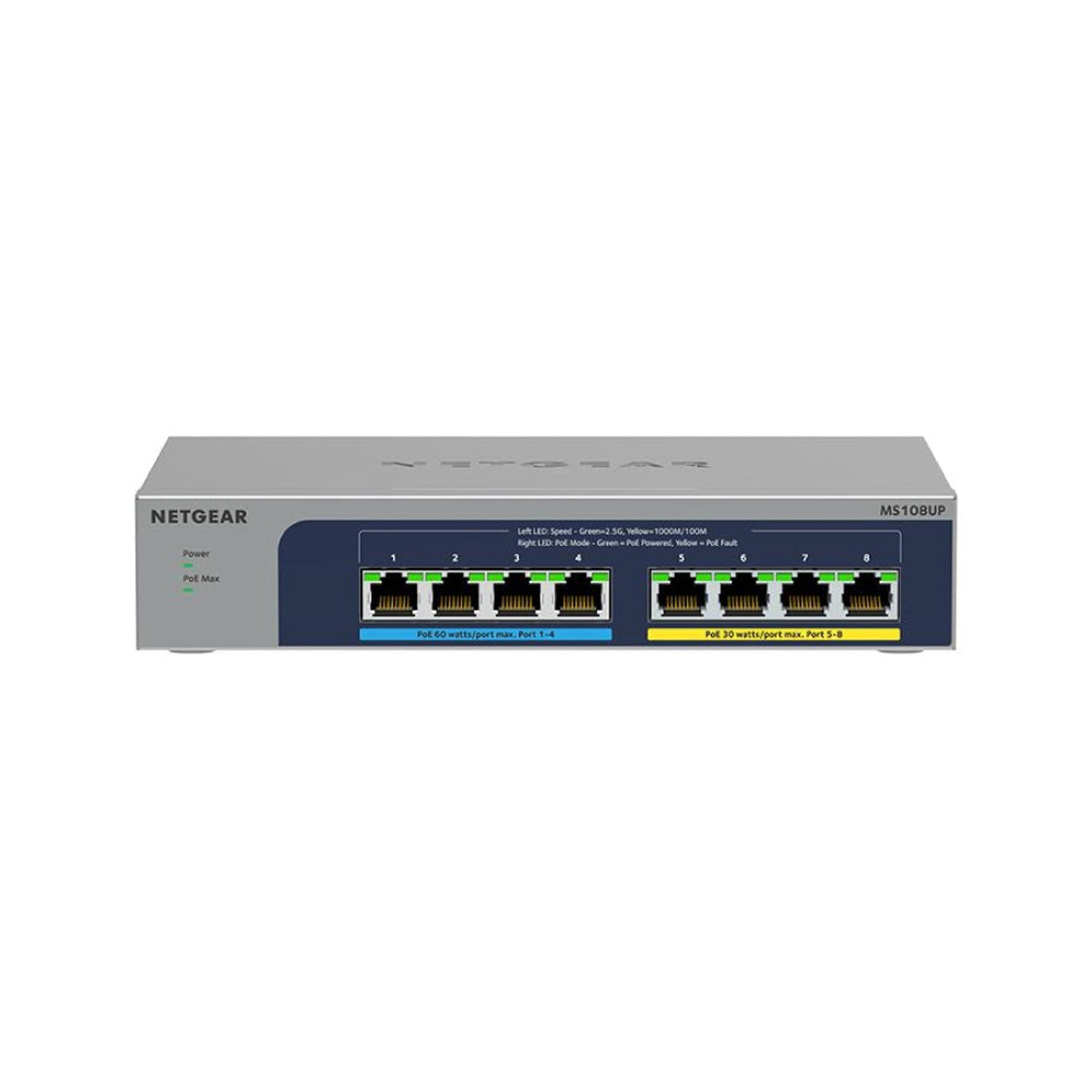

NETGEAR MS108UP 8-Port 2.5G Multi-Gigabit Ultra60 PoE++ Unmanaged Switch (230W)
PRODUCT DESCRIPTION
NETGEAR MS108UP 8-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Unmanaged Switch (230W) (MS108UP-100UKS) - 3 Years Local Warranty
Eight 2.5G Multi-Gigabit Ports
The NETGEAR MS108UP is an 8-port unmanaged switch where every RJ-45 port runs at 100M, 1G or 2.5G, giving each connected device up to 2.5 Gbps of dedicated, non-blocking bandwidth over a 40 Gbps switching fabric — ideal for WiFi 6 access points and other multi-gig devices.
4 x Ultra60 PoE++ and 4 x PoE+, 230W Budget
Ports 1–4 are IEEE 802.3bt Ultra60 PoE++ (up to 60W per port) and ports 5–8 are IEEE 802.3at PoE+ (up to 30W per port), sharing a 230W PoE budget. NETGEAR's PoE Auto-Balance technology automatically balances PoE power based on the needs of connected devices.
Plug-and-Play, Fanless and Silent
No configuration is needed — the switch works out of the box with auto MDI/MDI-X and auto-negotiation, and honours 802.1p and DSCP priority tags. The fanless design runs silently in offices and classrooms, and the compact unit sits on a desk or mounts on a wall with the included kit.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE device list and uplink needs and we will size it for you.
NETGEAR MS108UP Datasheet — Technical Specifications
General
| Product Name | NETGEAR MS108UP 8-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Unmanaged Switch |
| Part Number | MS108UP-100UKS |
| Series | NETGEAR Multi-Gigabit Unmanaged Switches |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 8 x 100M/1G/2.5G RJ-45 copper |
| PoE++ Ports | Ports 1–4: IEEE 802.3bt Type 3 Ultra60 PoE++, up to 60W per port |
| PoE+ Ports | Ports 5–8: IEEE 802.3at PoE+, up to 30W per port |
| PoE Budget | 230 W total, with PoE Auto-Balance |
| LEDs | Per port: speed, link, activity, PoE; Power and PoE Max LEDs |
Performance
| Switching Capacity | 40 Gbps (non-blocking) |
| Forwarding Rate | 1,488,000 pps at 1G; 3,720,000 pps at 2.5G (64-byte packets) |
| Latency | < 3.593 µs average at 1G; < 5.874 µs average at 2.5G |
| MAC Address Table | 16K |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 12,000 bytes |
Features
| QoS | 802.1p-based QoS/CoS; honours DSCP (DiffServ) tags |
| Other | Auto MDI/MDI-X cable detection, auto-sensing half/full duplex, Energy Efficient Ethernet (IEEE 802.3az) |
Power & Environmental

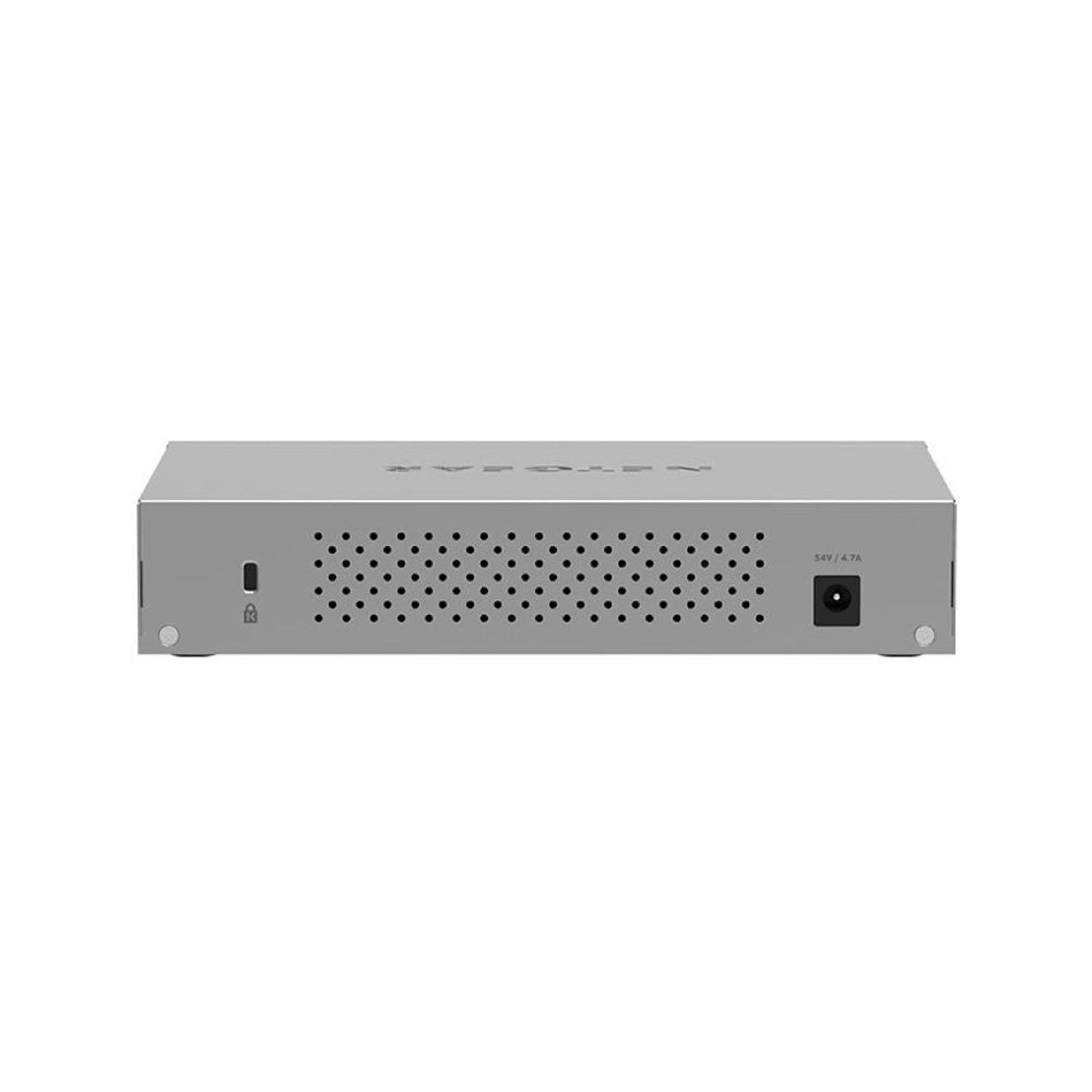

| Power Supply | External power adapter, 54V / 4.7A |
| Power Consumption | 270.5 W max with PoE; 16.58 W without PoE; 6.95 W standby |
| Heat Dissipation | 923.49 BTU/hr max; 23.73 BTU/hr standby |
| Cooling | Fanless (0 dBA) |
| MTBF | 373,644 hours @ 25 °C |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH |
| Storage Temperature | –20 to 70 °C |
Physical
| Dimensions (W x D x H) | 210 x 140 x 40 mm |
| Weight | 0.9 kg |
| Mounting | Desktop or wall mount (wall installation kit included) |
Certifications
| EMC | CE, FCC Part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
| Safety | CB, CSA, CCC, BSMI, RCM |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type, and PoE Auto-Balance allocates power automatically. For web-based PoE controls such as port prioritisation and per-port power limits, see the Easy Smart Managed MS108EUP.
Typical Use
NETGEAR positions the MS108UP for WiFi 6 access points that need both 2.5G speeds and PoE++ power, IP surveillance, PoE-powered LED lighting and IP speakers, in small and midsize offices and home offices.
Package Contents & Multi-Gigabit 2.5G Switch Ordering Information
In the Box
MS108UP unmanaged switch, power adapter, detachable power cable, wall installation kit, rubber feet, installation guide.
NETGEAR 2.5G Multi-Gigabit Desktop Switch Models
| Model | Ports / PoE | Part No. |
| MS105 | 5 x 2.5G, unmanaged, non-PoE | MS105-100UKS |
| MS108UP (this listing) | 8 x 2.5G (4 PoE++, 4 PoE+), 230 W, unmanaged | MS108UP-100UKS |
| MS108EUP | 8 x 2.5G (4 PoE++, 4 PoE+), 230 W, Easy Smart Managed | MS108EUP-100UKS |
Other models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | MS108UP Datasheet (PDF) |
| Installation guide | MS108UP Installation Guide (PDF) |
| NETGEAR product page | MS108UP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MS108UP-100UKS.
Frequently Asked Questions — NETGEAR MS108UP
How much PoE power does the MS108UP provide?
230W total. Ports 1–4 deliver up to 60W each (802.3bt Ultra60 PoE++) and ports 5–8 up to 30W each (802.3at PoE+).
Are all ports 2.5G?
Yes. All 8 RJ-45 ports support 100M, 1G and 2.5G.
Does it need configuring?
No. It is unmanaged and plug-and-play; PoE Auto-Balance allocates power automatically.
Is it fanless?
Yes. NETGEAR lists a fanless, silent design (0 dBA).
How does it differ from the MS108EUP?
Both have 8 x 2.5G ports with 4 PoE++ and 4 PoE+ ports and a 230W budget; the MS108EUP is Easy Smart Managed with a web GUI and PoE controls such as prioritisation and per-port power limits, while the MS108UP is unmanaged.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
