NETGEAR GSM4352PA M4300-52G-PoE+ 48-Port Gigabit PoE+ Stackable L3 Managed Switch, 2x10GBASE-T, 2x SFP+, 550W PSU
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4300-52G-PoE+ 48-Port Gigabit PoE+ Stackable L3 Managed Switch, 550W PSU (GSM4352PA-100AJS) - Limited Lifetime Local Warranty
48 PoE+ Ports with 10G Uplinks
The M4300-52G-PoE+ combines 48 x 10/100/1000 RJ45 ports, each IEEE 802.3at PoE+ (up to 30W per port), with 2 x 10GBASE-T and 2 x SFP+ ports that are all independent. The 550W PSU delivers a 480W PoE budget for access points, cameras, AV endpoints and phones, on a 176 Gbps non-blocking switching fabric.

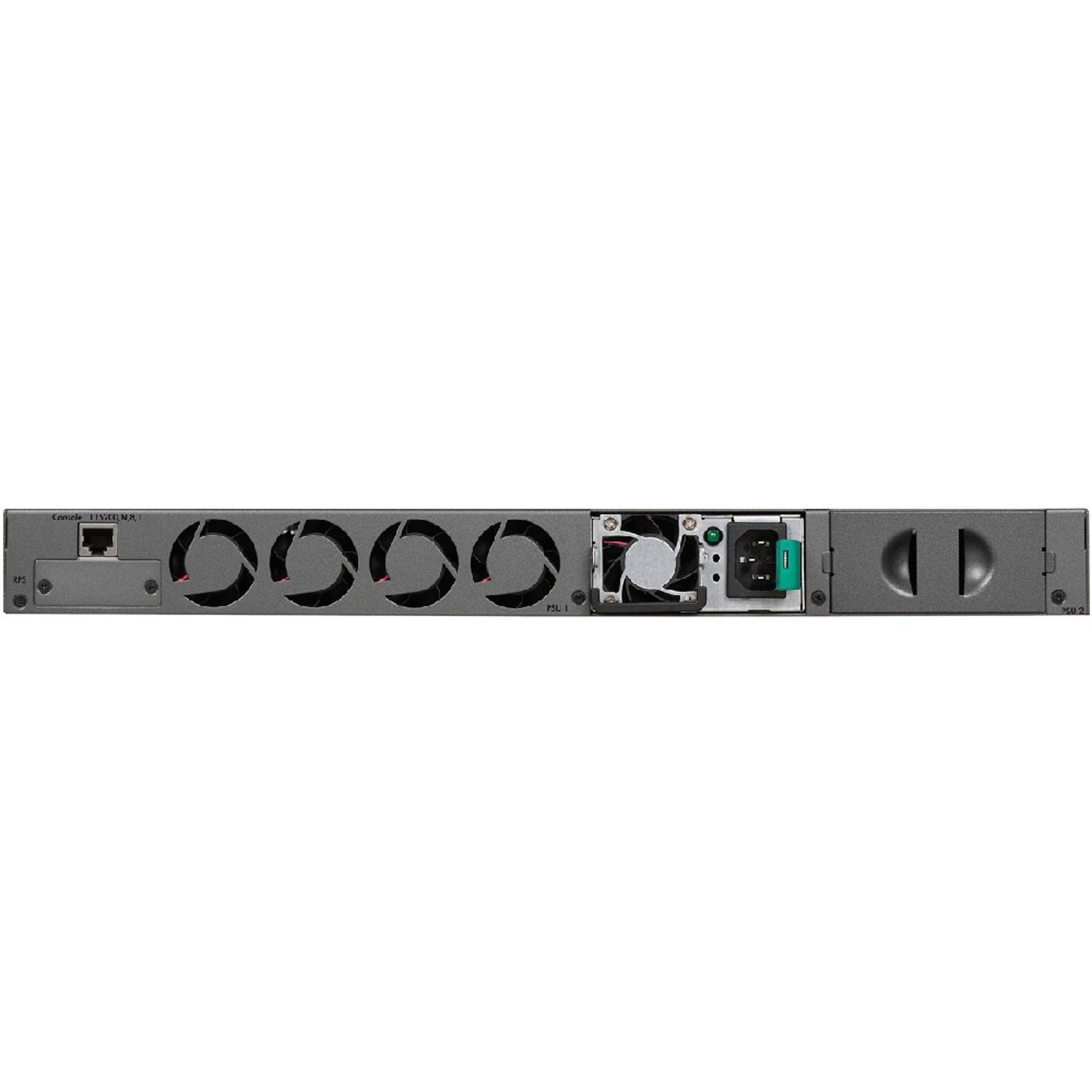

Dual Modular Hot-Swap Power Supplies
This full-width 1U switch has two modular PSU bays and ships with one APS550W installed (the second bay has a blank cover). Adding a second APS550W enables 1+1 redundant power (480W PoE budget) or EPS shared mode for a 720W PoE budget.
Stacking with Non-Stop Forwarding
Up to eight M4300 switches can be aggregated into a single virtual chassis, and 10G models stack seamlessly with 1G models. There are no dedicated stacking ports: any 10G port (copper or fibre, RJ45, SFP+ or DAC) can be used. Non-Stop Forwarding (NSF) gives hitless failover from the management unit to the redundant management unit, and the stack is seen by the rest of the network as a single bridge or router.
Zero-Touch Pro AV Multicast
NETGEAR IGMP Plus provides automatic Layer 2 multicast out of the box: IGMP Snooping, IGMP Fast Leave and IGMP Querier are already enabled, giving zero-touch AV-over-IP with pre-configured L2 multicast (SDVoE-ready).
Layer 3 Routing with No Licence
The entire M4300 feature set, including L2 switching with IGMP Plus and L3 routing (static, RIP, OSPF, VRRP, PIM-SSM and policy-based routing) plus PTPv2, is available without a licence. Manage it through the industry-standard CLI, the NETGEAR web GUI or SNMP, with sFlow and RSPAN for visibility.
Need help choosing? Email sales@sourceit.com.sg with your PoE device count, per-port power draw and uplink requirements and we will size it for you.
NETGEAR GSM4352PA M4300-52G-PoE+ Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4300-52G-PoE+ 48-Port Gigabit PoE+ Stackable Managed Switch with 2x 10GBASE-T and 2x SFP+ (550W PSU) |
| Part Number | GSM4352PA-100AJS |
| Series | NETGEAR M4300 Series Fully Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| 1G RJ45 ports | 48 x 10/100/1000BASE-T, PoE+ |
| 10G copper ports | 2 x 10GBASE-T (100M / 1G / 10G), independent |
| 10G fibre ports | 2 x SFP+ (1G / 10G), independent |
| Out-of-band management | 1 x 1G Ethernet (front) |
| Console | RJ45 RS232 (back); Mini-USB (front) |
| USB | USB port (front) for storage |
Performance
| Switching fabric | 176 Gbps, non-blocking |
| MAC address table | 16K |
| ARP/NDP | 888 |
| Routing table | Static: 64 IPv4 / 64 IPv6; RIP: 512; OSPF: 512 |
| VLANs | 4K |
| Packet buffer | 16Mb |
| Stacking | Up to 8 switches, NSF hitless failover; any 10G port can be a stacking port |
PoE
| PoE standard | IEEE 802.3at PoE+, up to 30W per port |
| PoE ports | 48 |
| PoE budget, 1 PSU | 480W |
| PoE budget, 2 PSUs (1+1 RPS mode) | 480W |
| PoE budget, 2 PSUs (EPS mode) | 720W |
Power & Environmental
| Power supply | 1 x APS550W modular PSU included |
| PSU bays | 2 modular bays, hot-swap (blank cover on second bay) |
| Cooling | Fixed fans, front-to-back airflow |
| Acoustic noise | 39.8 dB @ 25°C (77°F) |
Physical
| Form factor | Full width, 1U rack mount |
Compatibility & Software Support
Power supplies
Compatible PSUs for the M4300-52G-PoE+ are the NETGEAR APS550W and APS1000W. For redundancy, add a second APS550W. The APS1000W is also supported on this model for a larger PoE budget.
Transceivers & cabling
The 2 SFP+ ports accept 1G and 10G SFP/SFP+ optics and DAC cables; the 2 10GBASE-T ports run at 100M, 1G or 10G over copper.
Stacking
Stacks with other M4300 models (up to 8 switches), including mixing 1G and 10G models. Any 10G port, copper or fibre, can be configured for stacking.
Software features
Full Layer 2 and Layer 3 feature set with no licence: static routing, RIP, OSPF, VRRP, PIM-SSM, policy-based routing, PTPv2 and NETGEAR IGMP Plus automatic multicast. Managed via industry-standard CLI, web GUI and SNMP, with sFlow and RSPAN.
Package Contents & M4300 Ordering Information
In the Box
M4300 switch, power cord, console cable (RJ45 to DB9), USB console cable (mini-B to type A), rack-mount kit, rubber footpads for tabletop installation and quick installation guide.
NETGEAR M4300 Models
| Model | Ports | Part No. |
| GSM4328S M4300-28G | 24 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4328S-100AJS |
| GSM4328PA M4300-28G-PoE+ (550W PSU) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PA-100AJS |
| GSM4328PB M4300-28G-PoE+ (1000W PSU) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PB-100AJS |
| GSM4352S M4300-52G | 48 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4352S-100AJS |
| GSM4352PA M4300-52G-PoE+ (550W PSU) (this listing) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PA-100AJS |
| GSM4352PB M4300-52G-PoE+ (1000W PSU) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PB-100AJS |
| XSM4316S M4300-8X8F | 8 x 10GBASE-T, 8 x SFP+ | XSM4316S-100AJS |
| XSM4316PA M4300-16X (PoE+, PA) | 16 x 10GBASE-T PoE+ | XSM4316PA-100AJS |
| XSM4316PB M4300-16X (PoE+, PB) | 16 x 10GBASE-T PoE+ | XSM4316PB-100AJS |
| XSM4324S M4300-12X12F | 12 x 10GBASE-T, 12 x SFP+ | XSM4324S-100AJS |
| XSM4324CS M4300-24X | 24 x 10GBASE-T (4 shared SFP+) | XSM4324CS-100AJS |
| XSM4324FS M4300-24XF | 24 x SFP+ (2 shared 10GBASE-T) | XSM4324FS-100AJS |
| XSM4348S M4300-24X24F | 24 x 10GBASE-T, 24 x SFP+ | XSM4348S-100AJS |
| XSM4348CS M4300-48X | 48 x 10GBASE-T (4 shared SFP+) | XSM4348CS-100AJS |
| XSM4348FS M4300-48XF | 48 x SFP+ (2 shared 10GBASE-T) | XSM4348FS-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | M4300 Series Datasheet (PDF) |
| Installation guide | M4300 Series Installation Guide (PDF) |
| User manual | M4300 / M4300-96X User Manual (PDF) |
| NETGEAR product page | GSM4352PA on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GSM4352PA-100AJS.
Frequently Asked Questions — NETGEAR GSM4352PA M4300-52G-PoE+
What is the difference between GSM4352PA and GSM4352PB?
Both are the same 48-port M4300-52G-PoE+ switch. The PA ships with an APS550W PSU (480W PoE budget, 720W with two PSUs in EPS mode); the PB ships with an APS1000W PSU (591W at 110VAC / 860W at 220VAC, and up to 1,010W / 1,440W with two PSUs in EPS mode).
Do I need a licence for Layer 3 routing?
No. Static, RIP, OSPF, VRRP, PIM-SSM and policy-based routing are all included without a licence.
Can it stack with 10G M4300 switches?
Yes. Up to 8 M4300 switches, 1G and 10G models mixed, can form one stack using any 10G port.
Is it ready for AV-over-IP?
Yes. IGMP Plus with IGMP Snooping, Fast Leave and Querier is enabled out of the box for zero-touch L2 multicast (SDVoE-ready).
Does it come with redundant power?
It ships with one PSU and has a second modular bay. Add a second matching PSU for 1+1 redundancy or EPS shared mode for a larger PoE budget.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
